Lake Onslow Details
| Property | Value |
|---|---|
| Rupture Count | 3,391 |
| Ruptures Above Sect Min Mag | 3,391 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [7.10, 8.40] |
| Length Range | [23, 423] km |
| Total Rate | 6.756498E-6 /yr |
| Multi-Fault Rate | 6.756498E-6 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 46 |
Table Of Contents

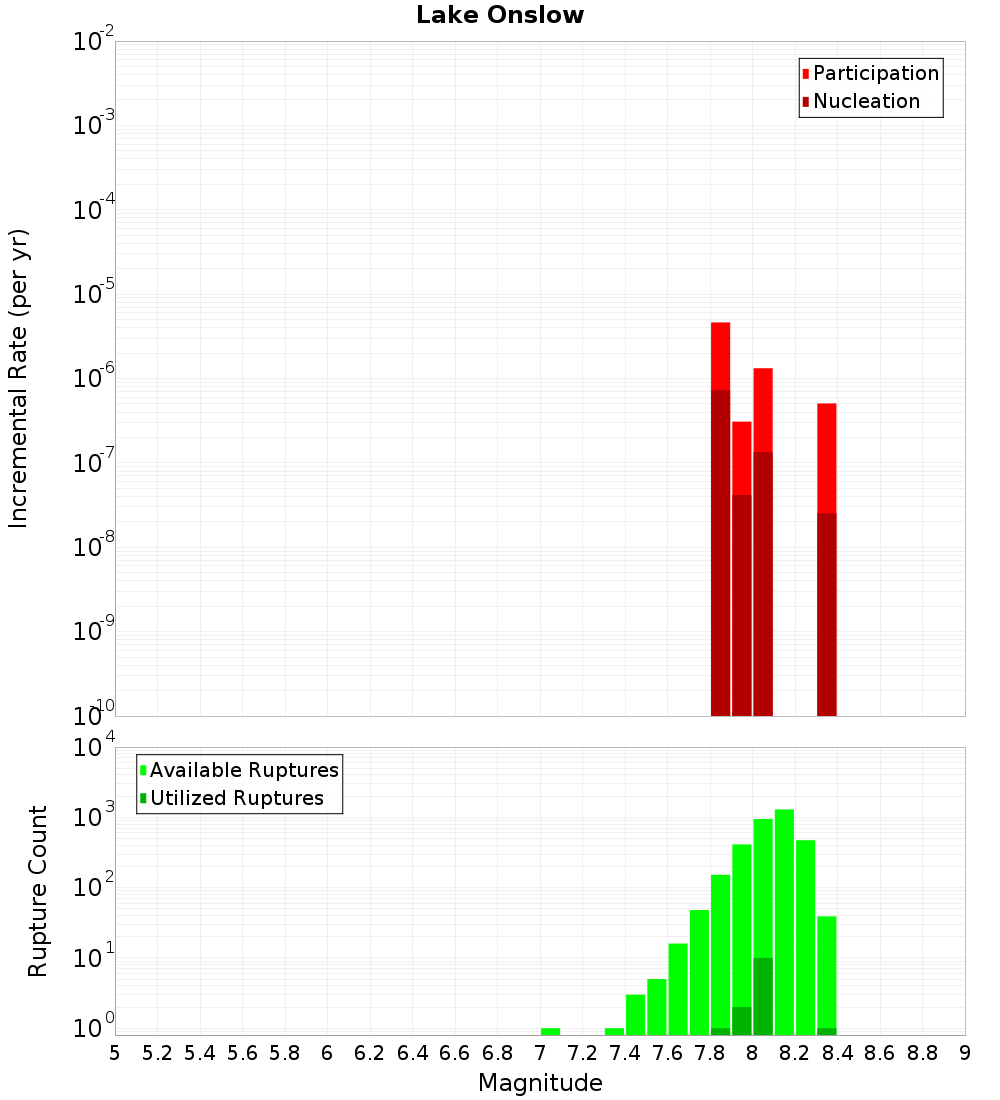

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

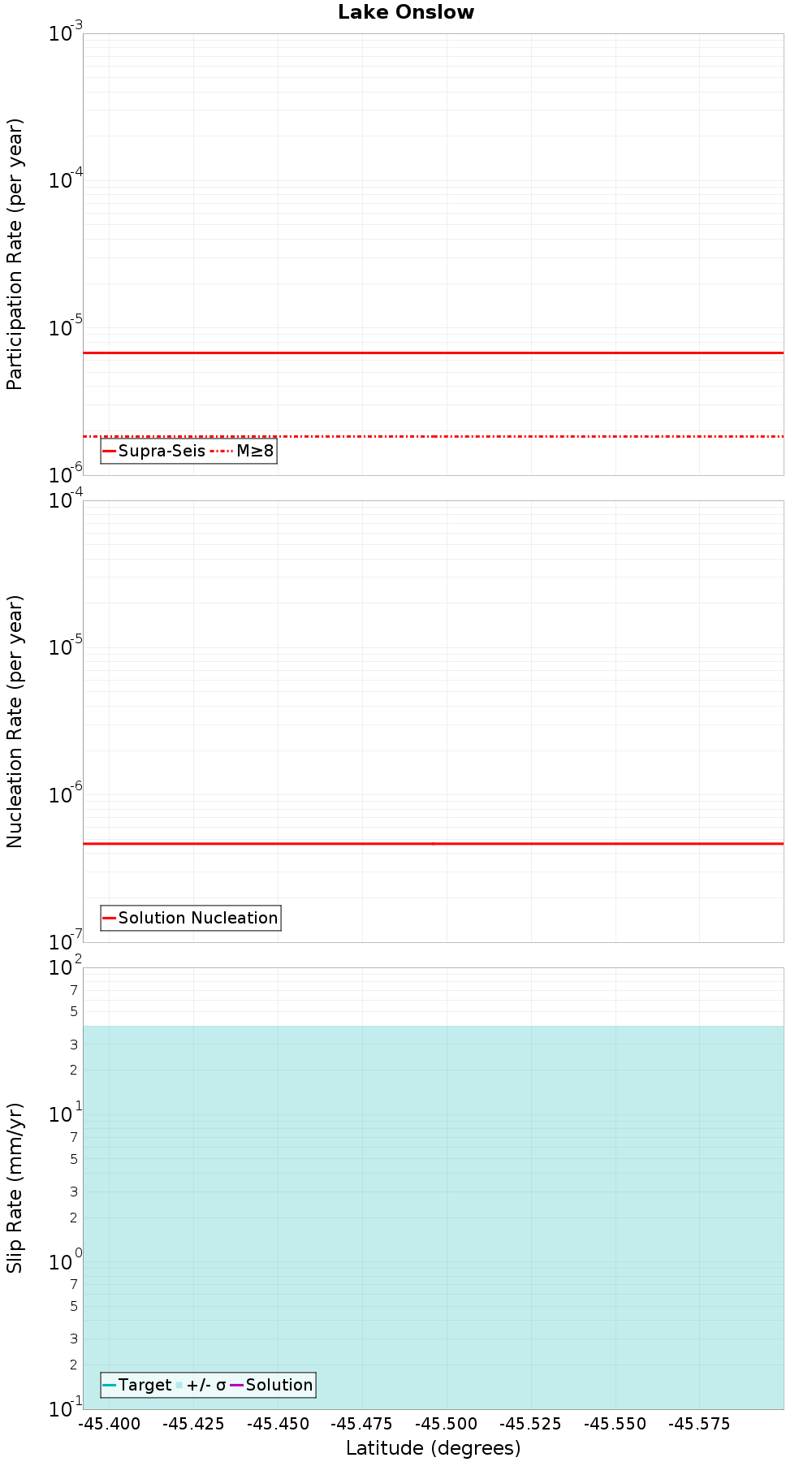

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Galloway, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 815 |
| Co-rupture Rate | 6.248969E-6 |
Little Valley, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,597 |
| Co-rupture Rate | 5.0619775E-7 |
Long Valley, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 983 |
| Co-rupture Rate | 1.3312142E-9 |
Backbone, 3.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,103 |
| Co-rupture Rate | 1.5999634E-6 |
Beaumont River, 3.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Pylap, 7.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Logan Burn, 7.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Garvie, 7.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikaia, 9.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 11.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hyde South - The Twins, 11.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Roaring Lion, 12.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Teviot, 13.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMzIuMHZIZVZH | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 161 |
| Co-rupture Rate | 0.0 |
