Motunau Details

PropertyValue
Rupture Count814
Ruptures Above Sect Min Mag797
Ruptures w/ Nonzero Rates11
Magnitude Range[6.47, 7.91]
Length Range[13, 291] km
Total Rate4.20756E-4 /yr
Multi-Fault Rate4.20756E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults21

Table Of Contents

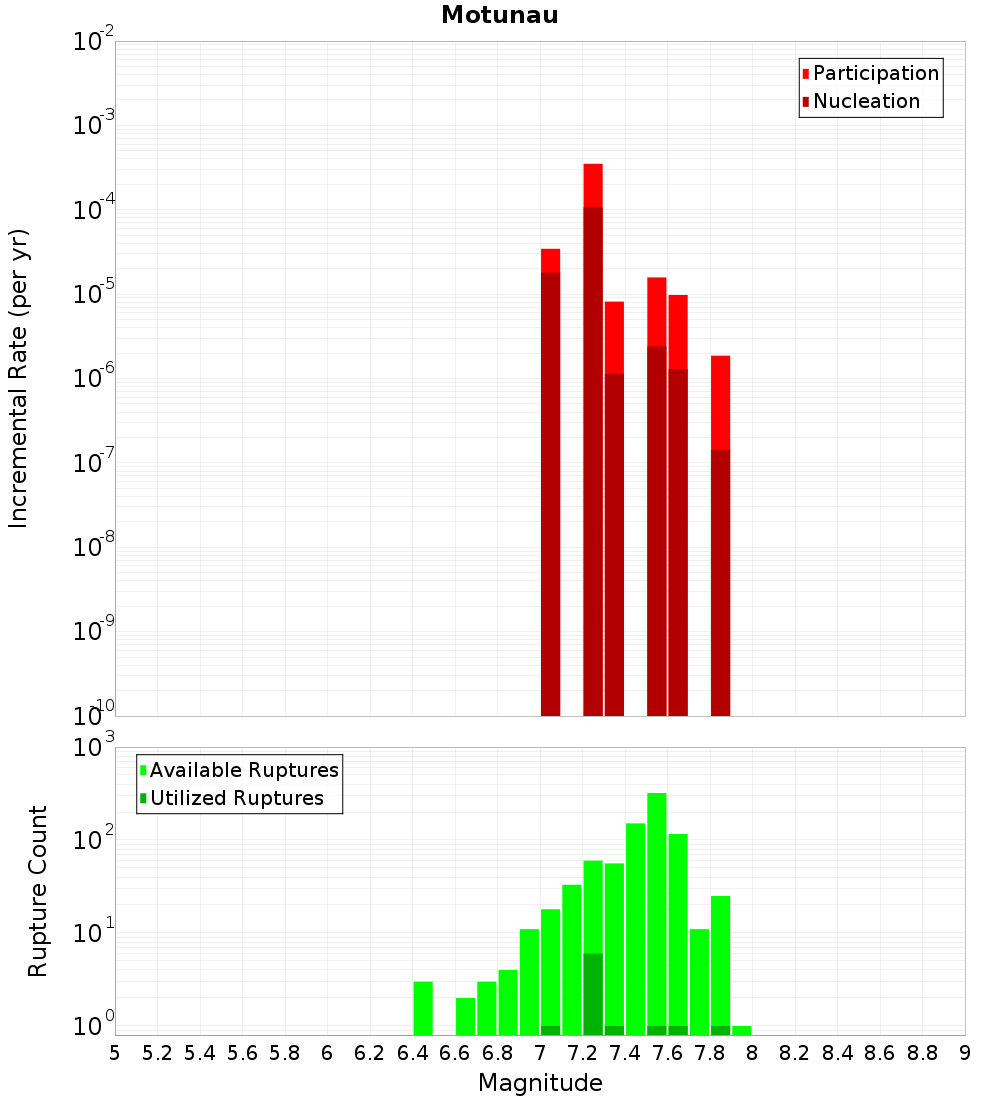

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

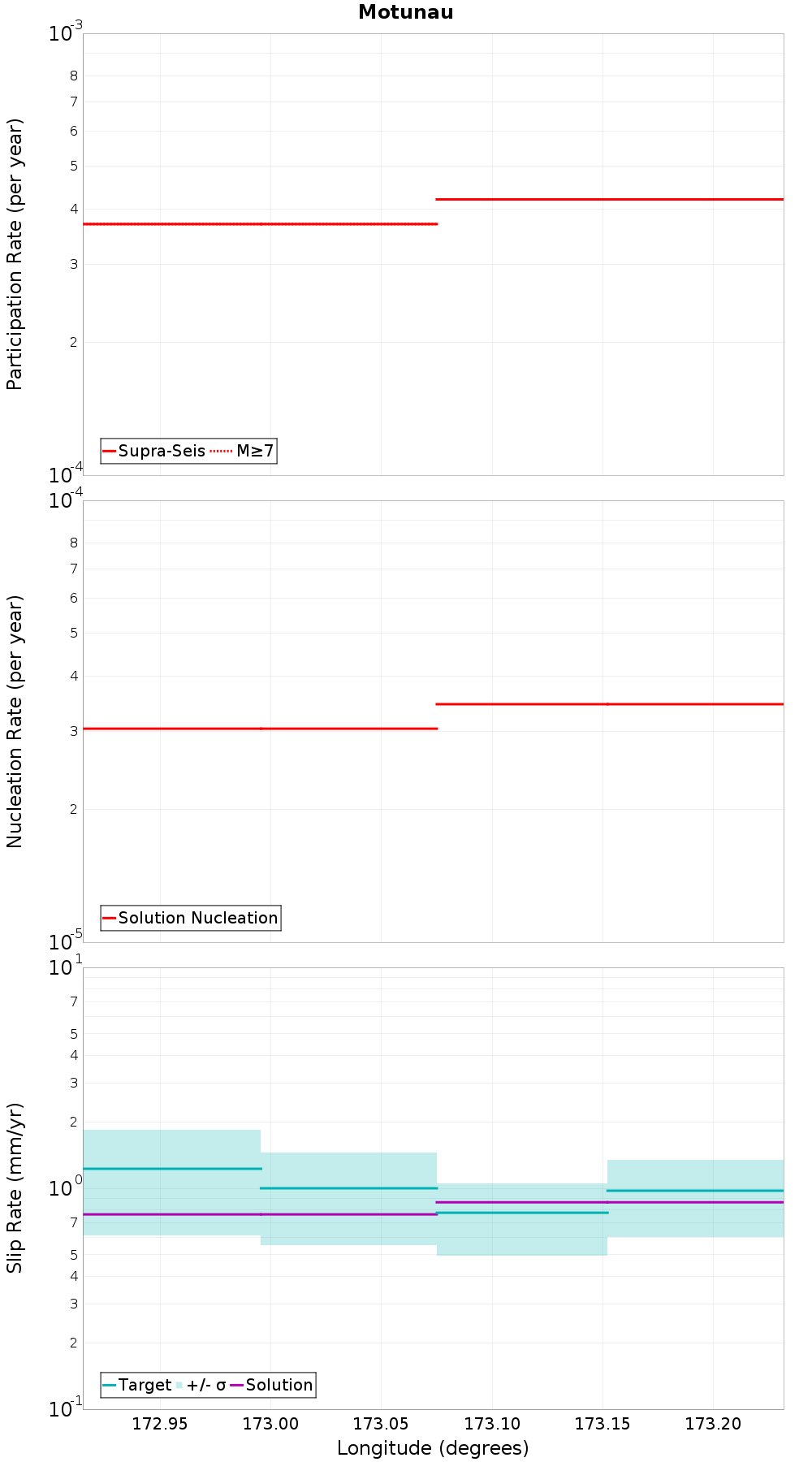

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 0.14 km away
North Canterbury Shelf 2, 0.72 km away
Leithfield - NCVI - NCVII, 1.34 km away
AmberBlyth, 2.59 km away
Point Gibson, 4.6 km away
North Canterbury Shelf 4, 6 km away
OmihiLwrHuru, 8.85 km away
Waikuku, 9.01 km away
Pegasus Bay, 11.59 km away
Boby Stream, 13.14 km away

North Canterbury Shelf 11, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate9.8383534E-5

North Canterbury Shelf 2, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate5.0794442E-5

Leithfield - NCVI - NCVII, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?true
Co-rupture Count193
Co-rupture Rate1.2693122E-4

AmberBlyth, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?true
Co-rupture Count706
Co-rupture Rate2.741281E-5

Point Gibson, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?true
Co-rupture Count481
Co-rupture Rate3.6047594E-4

North Canterbury Shelf 4, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.0794442E-5

Pegasus Bay, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?true
Directly Connected?false
Co-rupture Count265
Co-rupture Rate9.774026E-6
