Opawa Details
| Property | Value |
|---|---|
| Rupture Count | 3,087 |
| Ruptures Above Sect Min Mag | 3,086 |
| Ruptures w/ Nonzero Rates | 26 |
| Magnitude Range | [6.77, 8.06] |
| Length Range | [19, 356] km |
| Total Rate | 1.180815E-4 /yr |
| Multi-Fault Rate | 1.180815E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 39 |
Table Of Contents

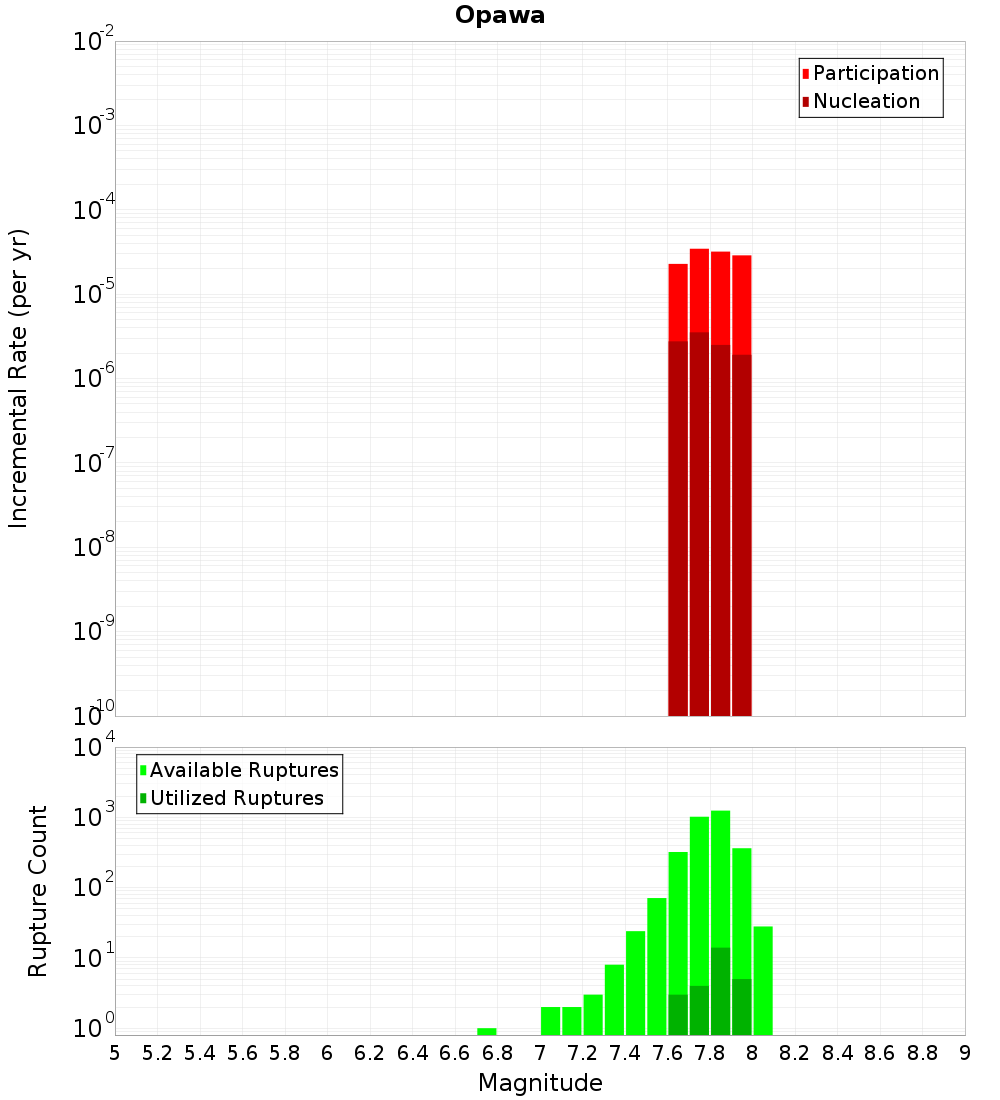

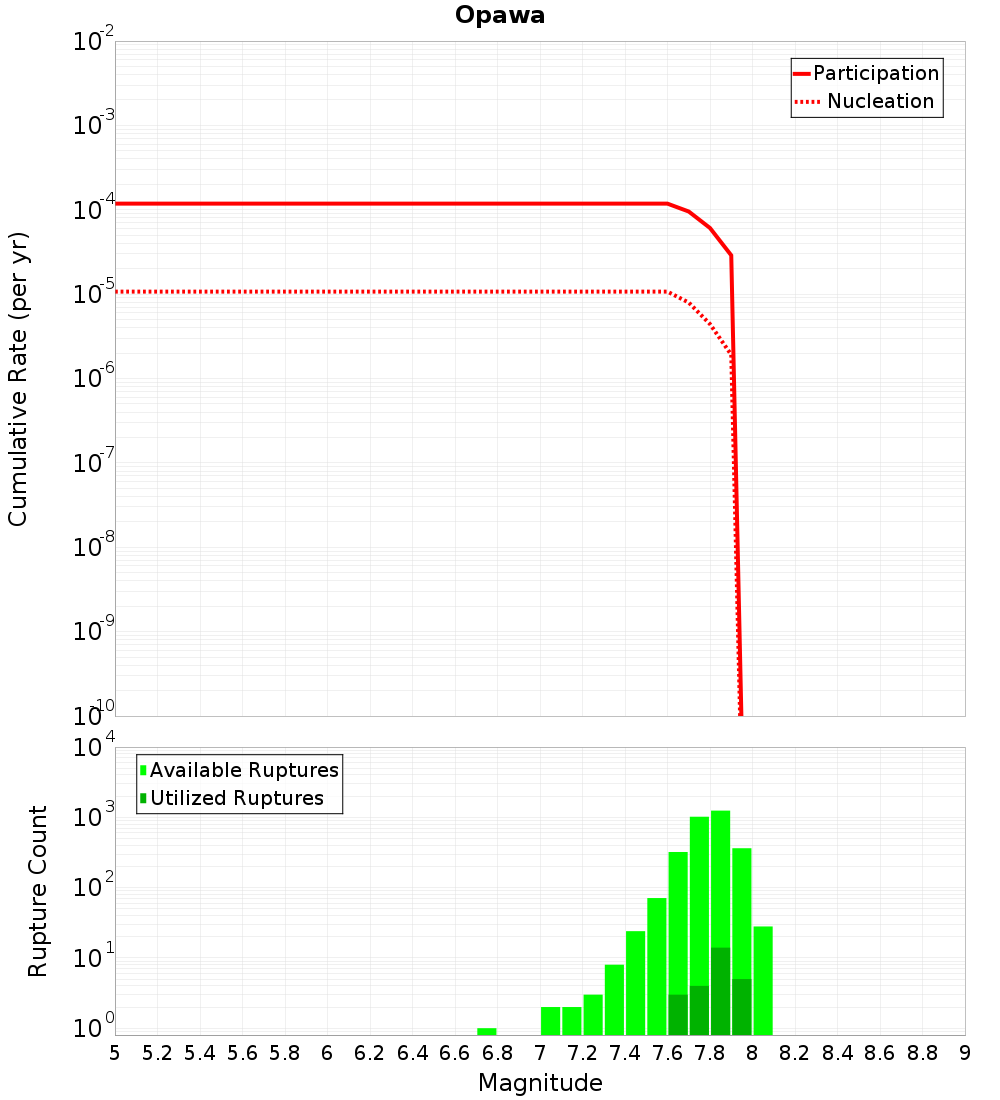

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

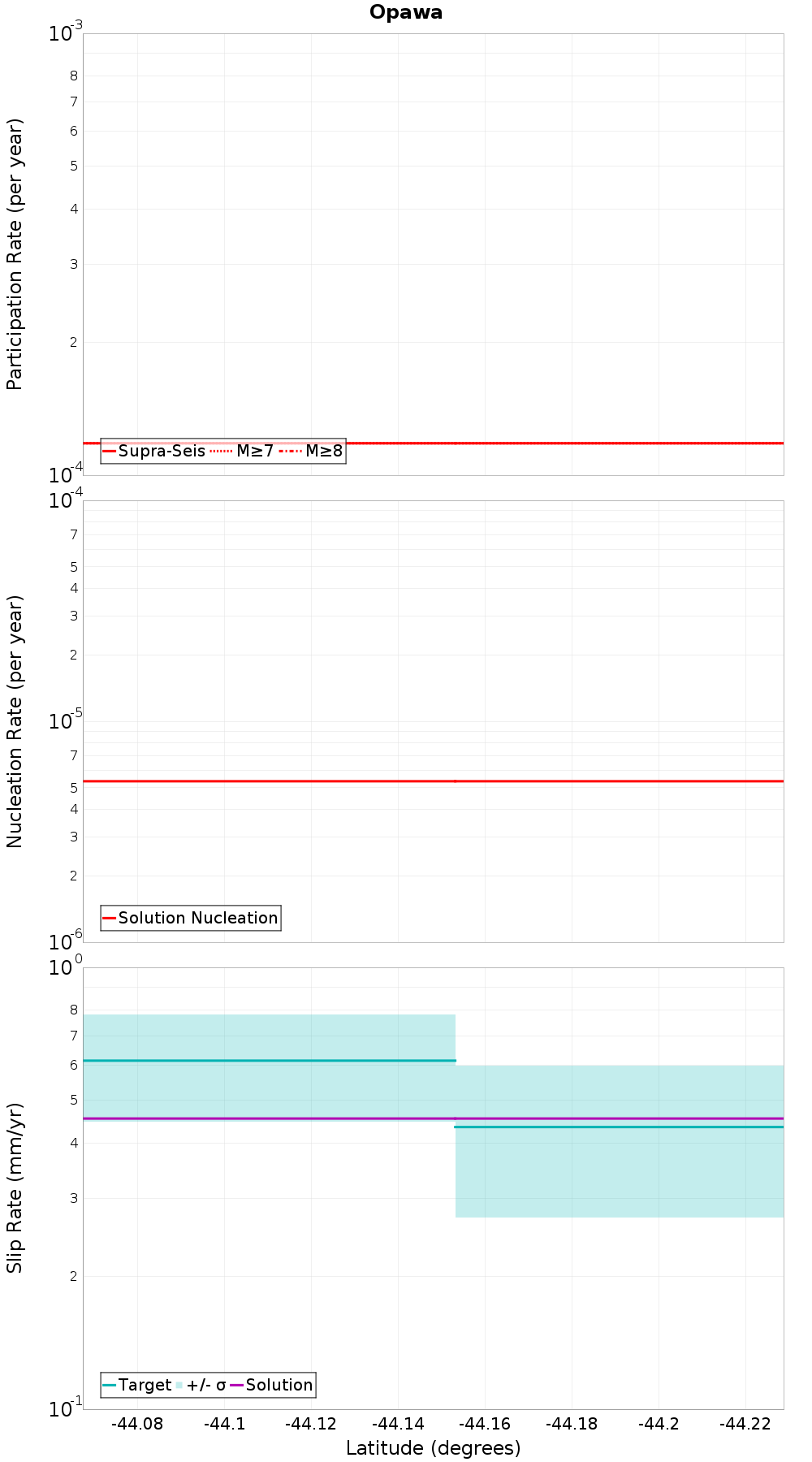

Along-Strike Values
Moment-Rates and b-Values

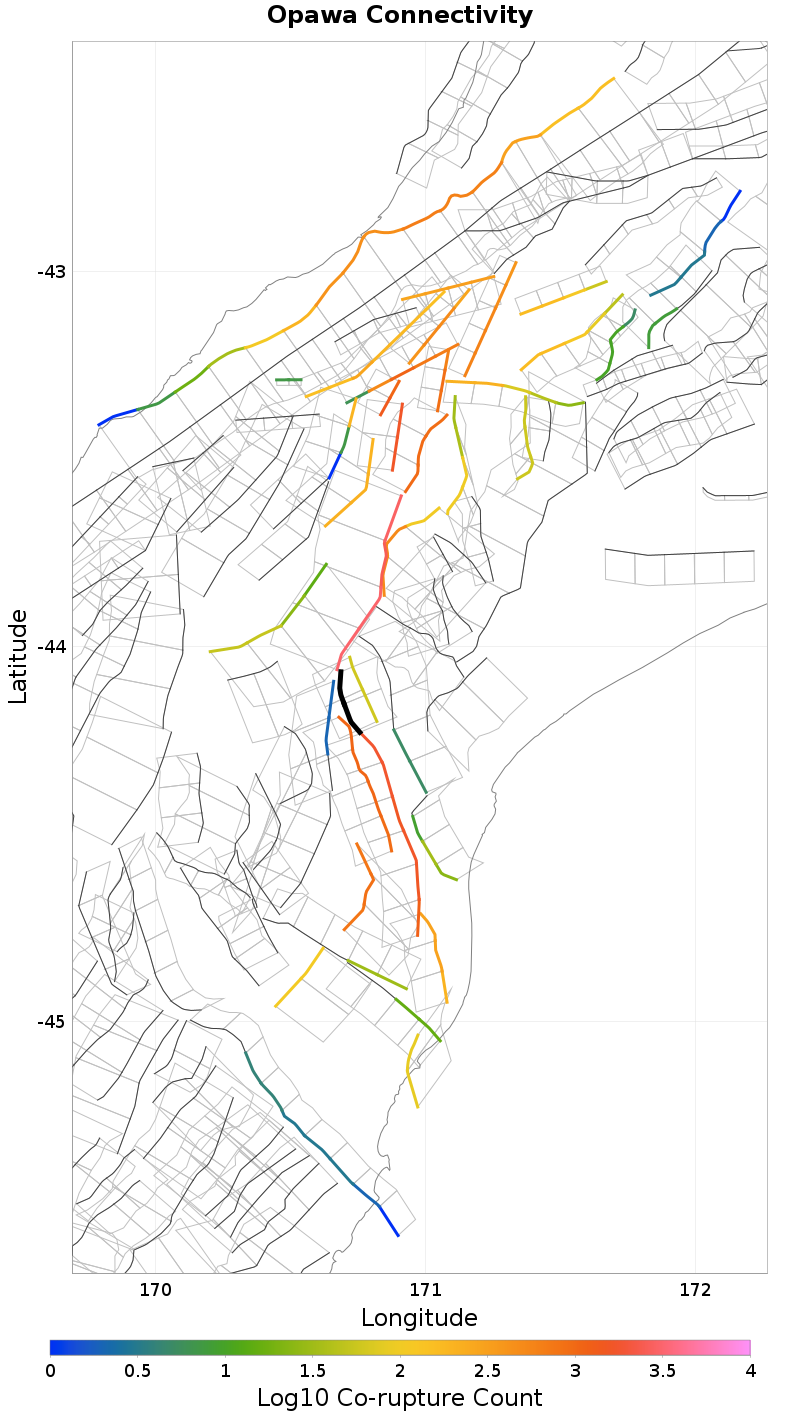

Connectivity
 |  |
|---|
Nearby Sections
Albury, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 1.9300607E-5 |
Sugarloaf, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunters, 0.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,240 |
| Co-rupture Rate | 1.03819286E-4 |
Fox Peak, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,447 |
| Co-rupture Rate | 8.710042E-5 |
Chamberlain, 1.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,066 |
| Co-rupture Rate | 3.6639198E-5 |
Dalgety, 1.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Irishman Creek, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 52 |
| Co-rupture Rate | 1.9300607E-5 |
Brothers, 8.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Catherine, 9.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hutt Peel, 9.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Edith, 14.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
