Waipukurau - Poukawa Details

Property	Value
Rupture Count	577
Ruptures Above Sect Min Mag	565
Ruptures w/ Nonzero Rates	36
Magnitude Range	[6.68, 7.96]
Length Range	[19, 337] km
Total Rate	2.0806569E-4 /yr
Multi-Fault Rate	2.0806569E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

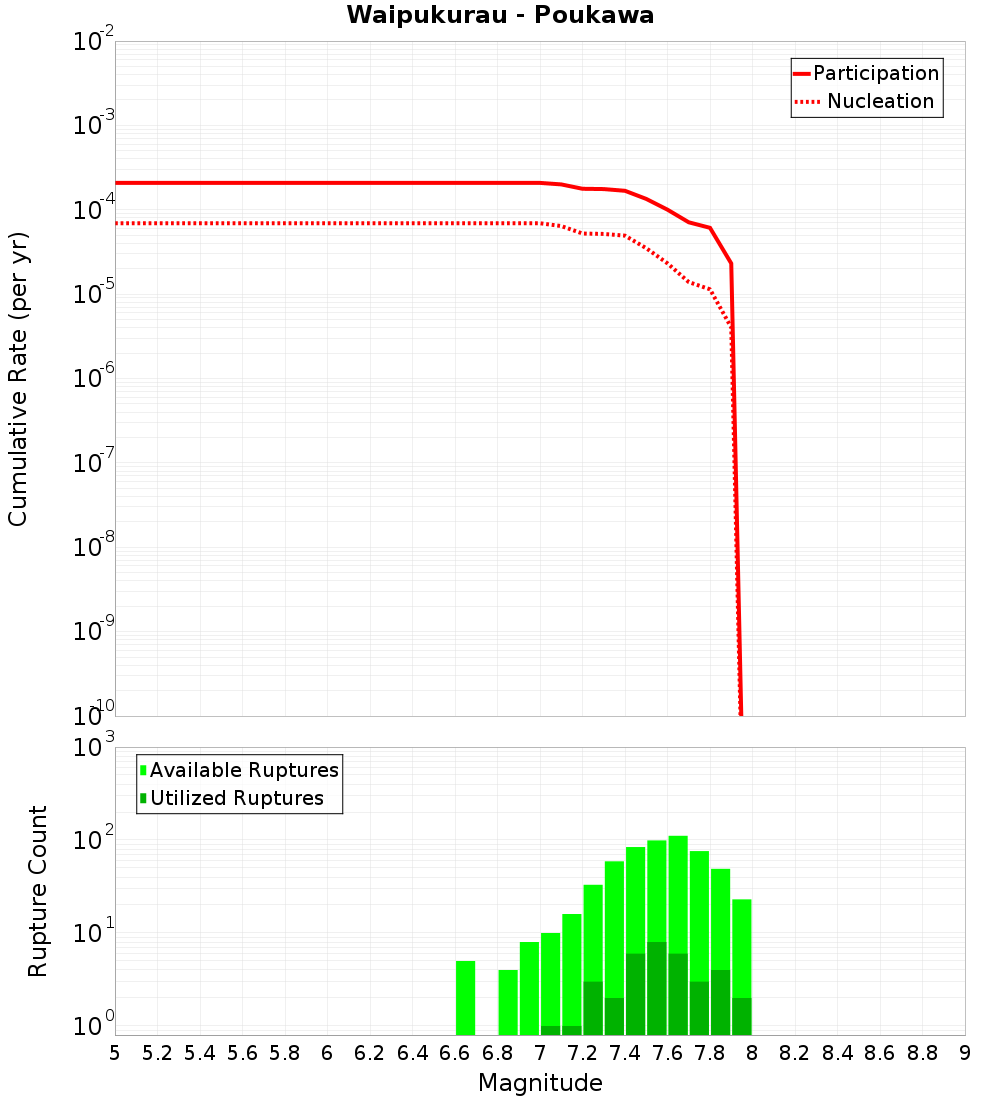

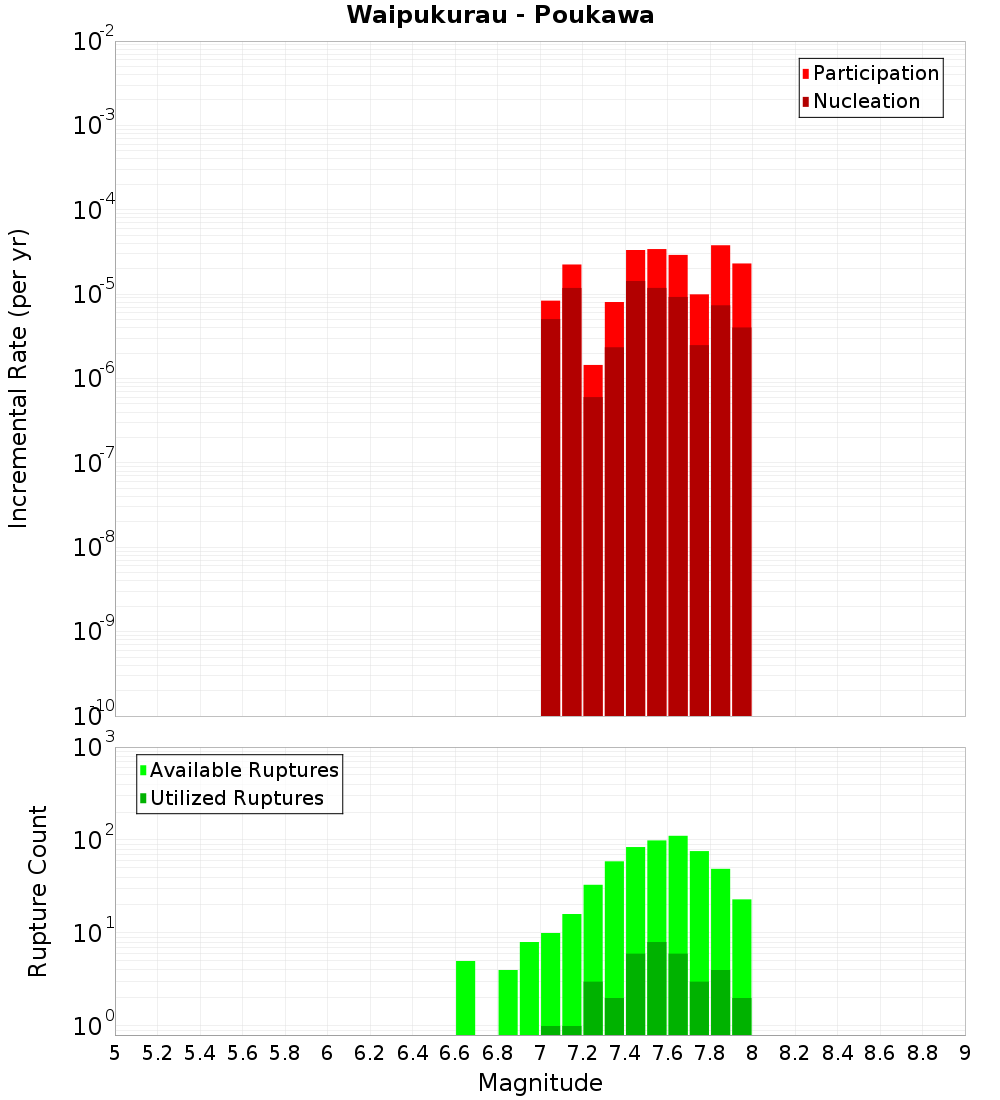

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

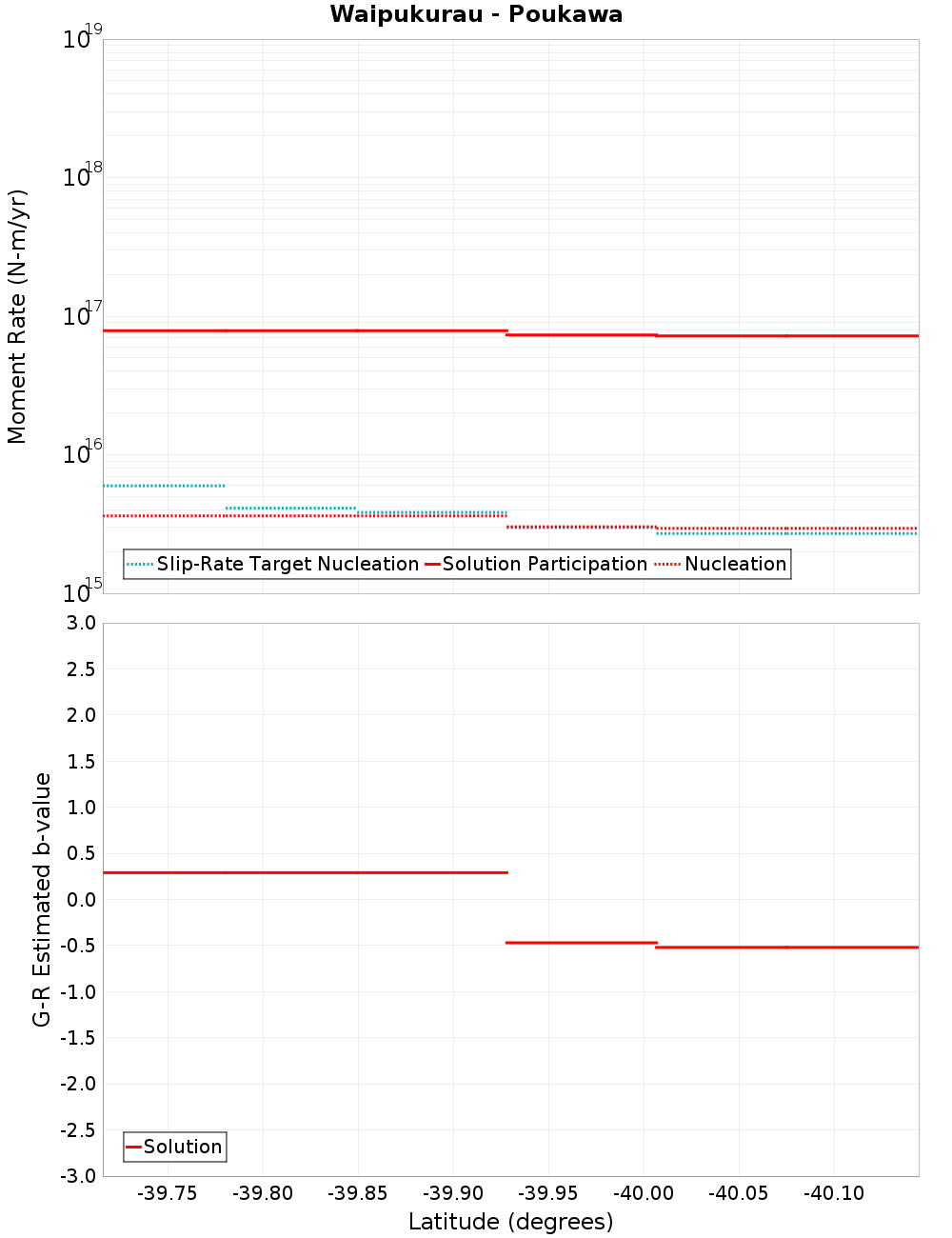

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awanui, 0 km away
Clear Hills - Waikopiro, 0.35 km away
Oruawharo - Mangatoro, 3.21 km away
Tukituki Thrust, 3.57 km away
Te Heka, 5.65 km away
Ruataniwha, 13.21 km away

Awanui, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	true
Co-rupture Count	347
Co-rupture Rate	1.12051384E-4

Clear Hills - Waikopiro, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	true
Co-rupture Count	195
Co-rupture Rate	1.3794305E-4

Oruawharo - Mangatoro, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	true
Co-rupture Count	265
Co-rupture Rate	8.3238185E-5

Tukituki Thrust, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	6.0586266E-5

Te Heka, 5.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	3.261511E-5

Ruataniwha, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDQuMFBrZEh5
Connected?	true
Directly Connected?	false
Co-rupture Count	29
Co-rupture Rate	0.0
