Blue Mountain Details
| Property | Value |
|---|---|
| Rupture Count | 4,603 |
| Ruptures Above Sect Min Mag | 4,603 |
| Ruptures w/ Nonzero Rates | 40 |
| Magnitude Range | [7.29, 8.29] |
| Length Range | [39, 539] km |
| Total Rate | 9.962913E-5 /yr |
| Multi-Fault Rate | 9.962913E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 63 |
Table Of Contents

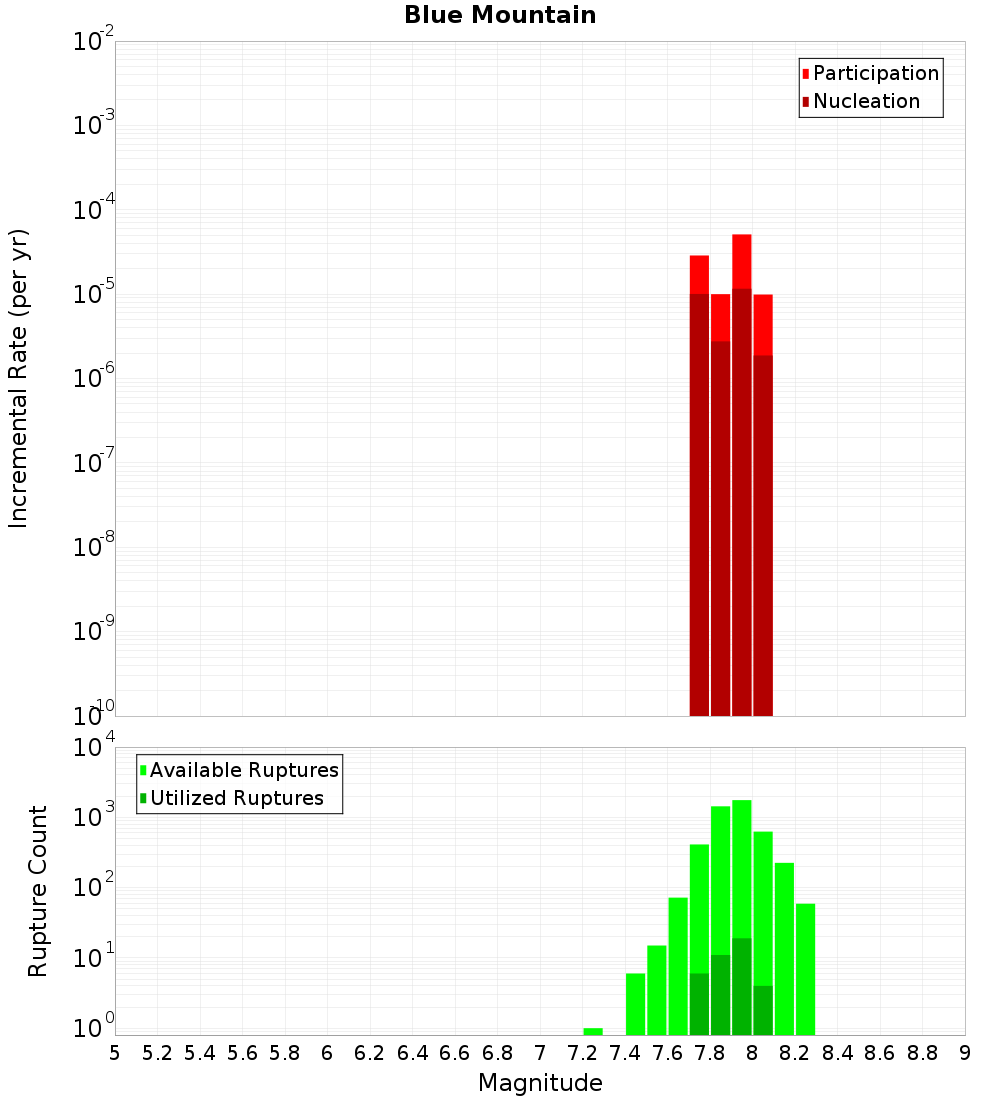

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

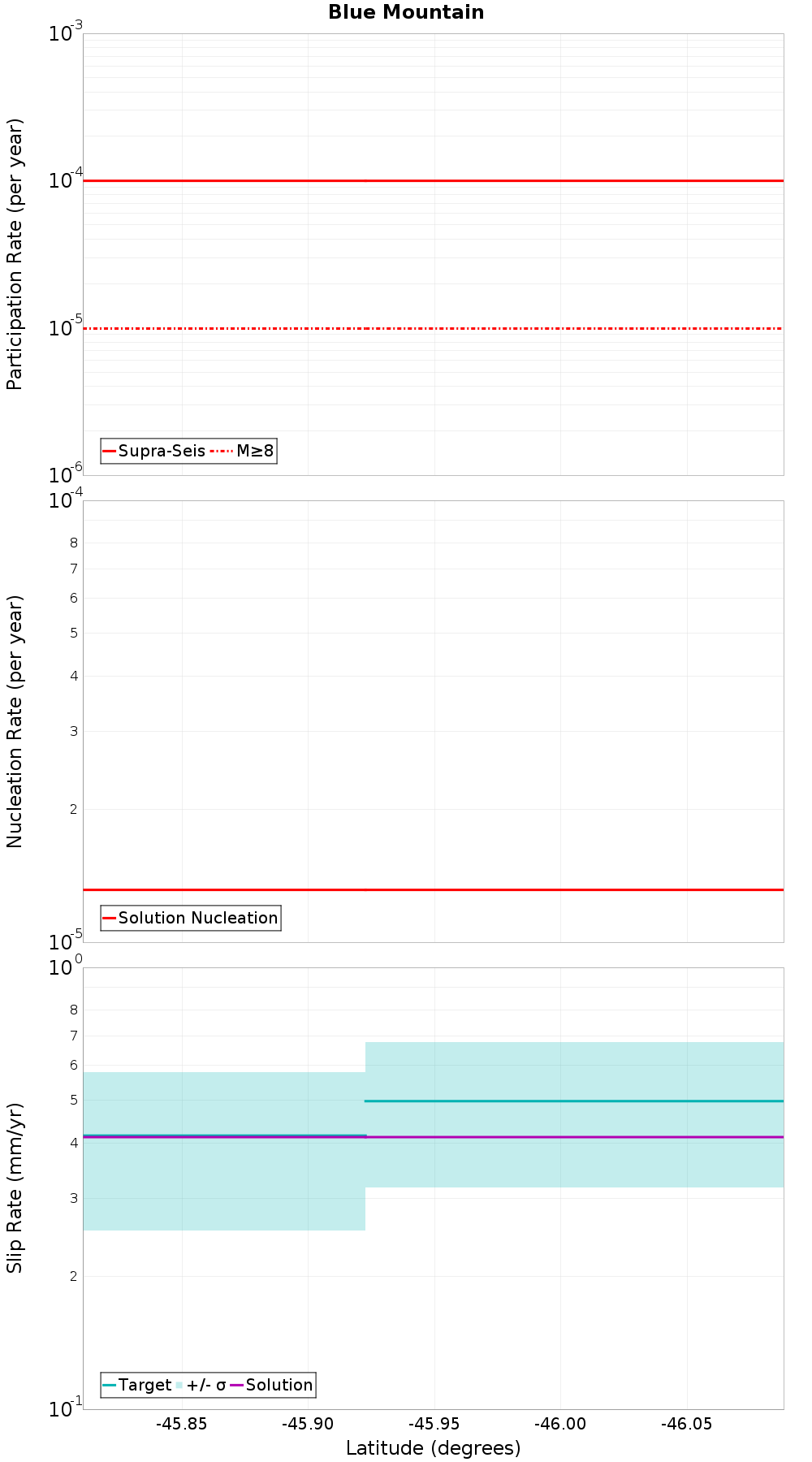

Along-Strike Values

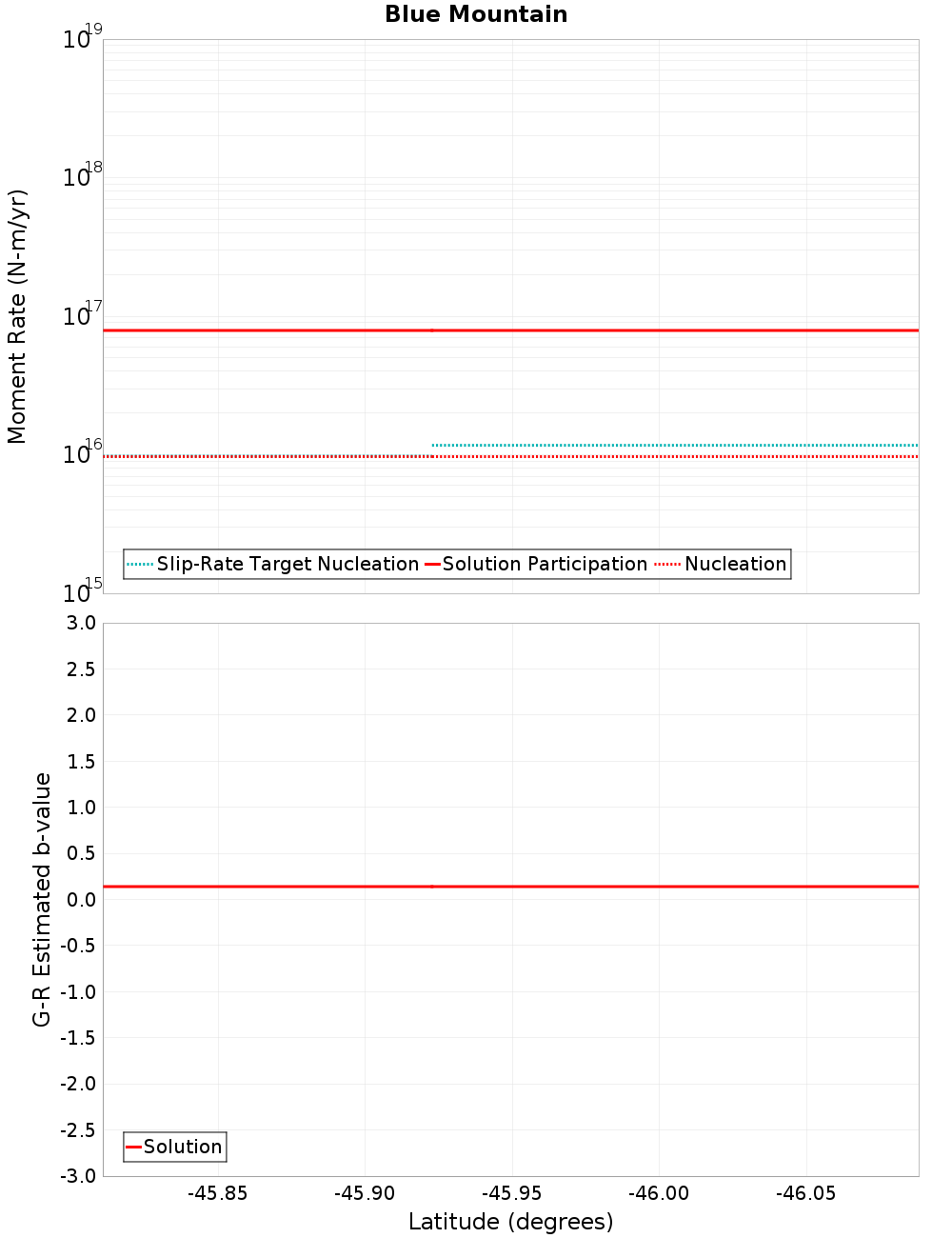

Moment-Rates and b-Values

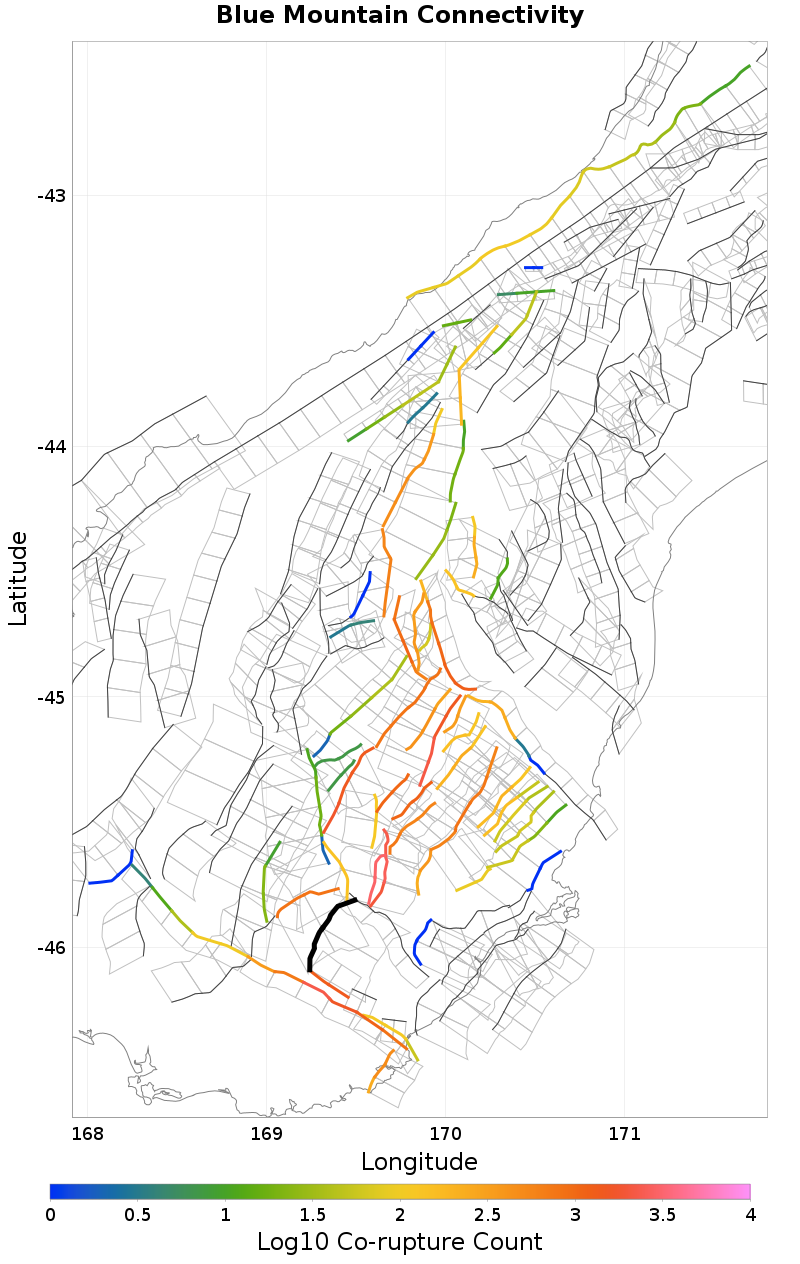

Connectivity
 |  |
|---|
Nearby Sections
Tuapeka, 0.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Beacon Hill, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,402 |
| Co-rupture Rate | 0.0 |
Teviot, 0.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 139 |
| Co-rupture Rate | 0.0 |
Backbone, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,992 |
| Co-rupture Rate | 3.1421105E-6 |
Beaumont River, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,589 |
| Co-rupture Rate | 9.648702E-5 |
Spylaw, 4.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 807 |
| Co-rupture Rate | 0.0 |
Clifton, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hillfoot, 6.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,291 |
| Co-rupture Rate | 5.7932168E-5 |
Little Hillfoot, 12.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 110 |
| Co-rupture Rate | 0.0 |
Hyde South - The Twins, 14.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 388 |
| Co-rupture Rate | 2.112841E-5 |
