Maimai: South Details

Property	Value
Rupture Count	10,713
Ruptures Above Sect Min Mag	10,708
Ruptures w/ Nonzero Rates	55
Magnitude Range	[6.59, 8.47]
Length Range	[15, 1,039] km
Total Rate	7.2222036E-5 /yr
Multi-Fault Rate	7.2222036E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	66

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

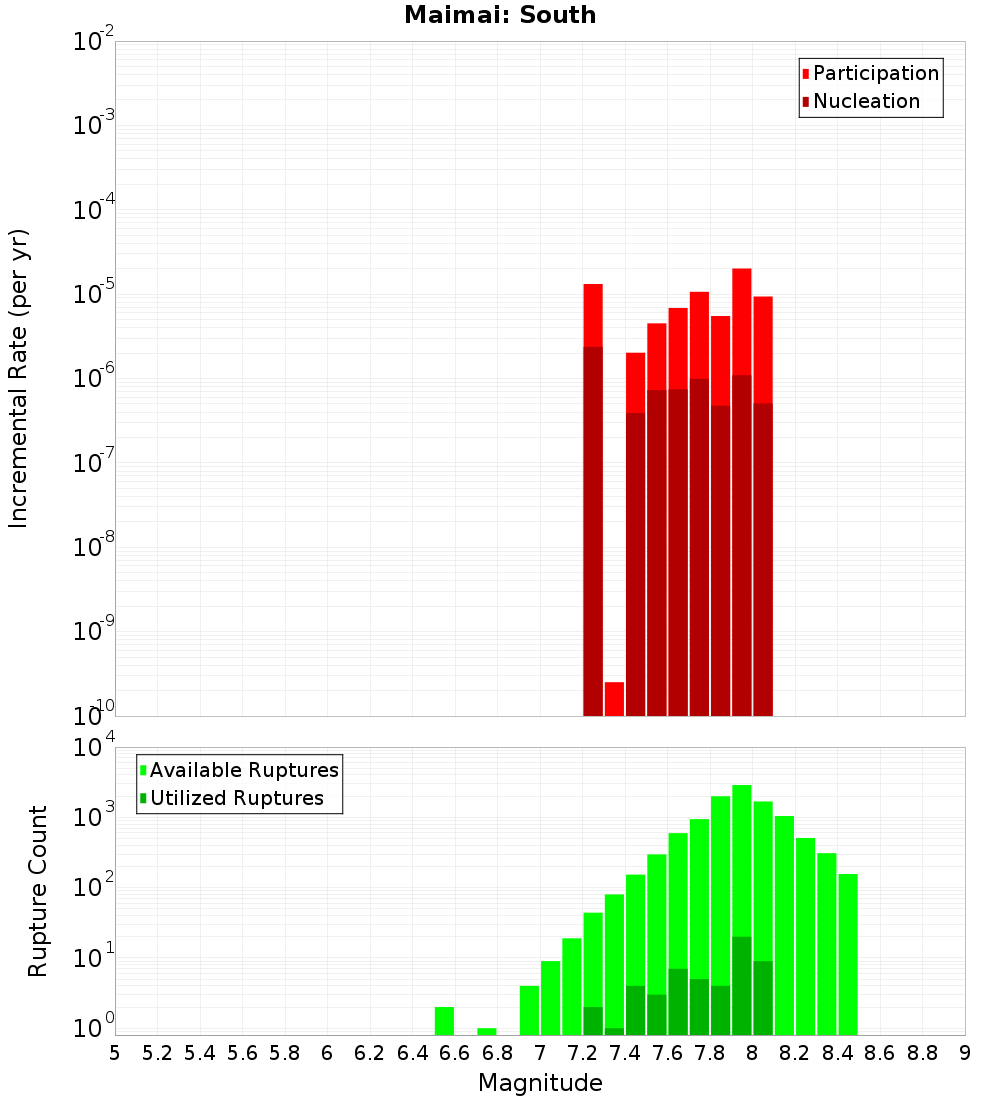

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

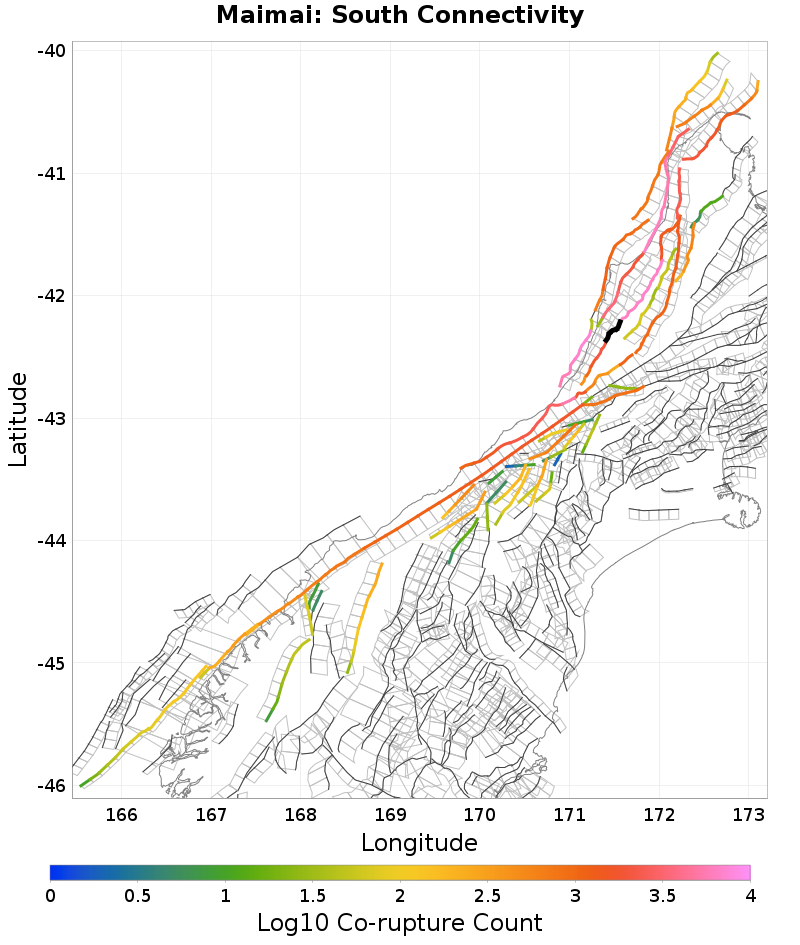

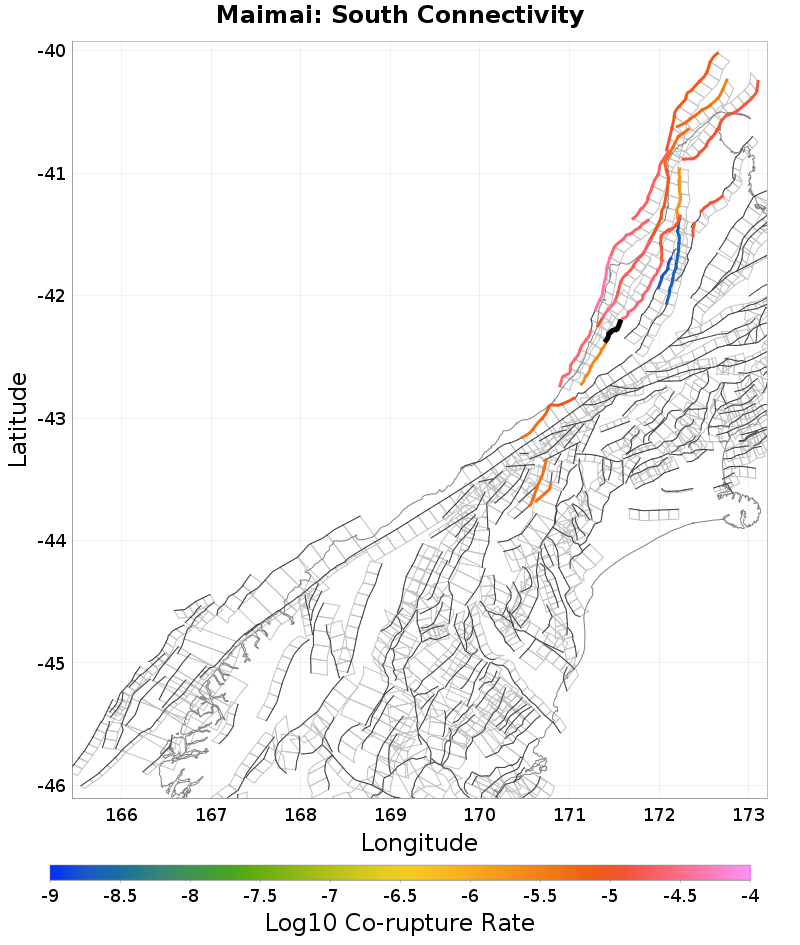

Connectivity

Nearby Sections

Fault Section
Maimai: Brunner Anticline, 0 km away
Maimai, 0.09 km away
Paparoa West, 0.18 km away
Cape Foulwind 1, 0.42 km away
Cape Foulwind 2, 4.96 km away
Lyell South, 11.15 km away

Maimai: Brunner Anticline, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	2,127
Co-rupture Rate	2.657912E-6

Maimai, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	6,357
Co-rupture Rate	2.3304721E-5

Paparoa West, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	3,485
Co-rupture Rate	2.9398745E-5

Cape Foulwind 1, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	7,311
Co-rupture Rate	2.4616533E-5

Cape Foulwind 2, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	4.133367E-5

Lyell South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	0.0
