Mt Sutton Details

PropertyValue
Rupture Count120
Ruptures Above Sect Min Mag118
Ruptures w/ Nonzero Rates17
Magnitude Range[6.88, 7.89]
Length Range[22, 252] km
Total Rate1.69299E-4 /yr
Multi-Fault Rate8.0571335E-5 /yr (47.59%)
Directly-Connected Faults4
All Co-Rupturing Faults11

Table Of Contents

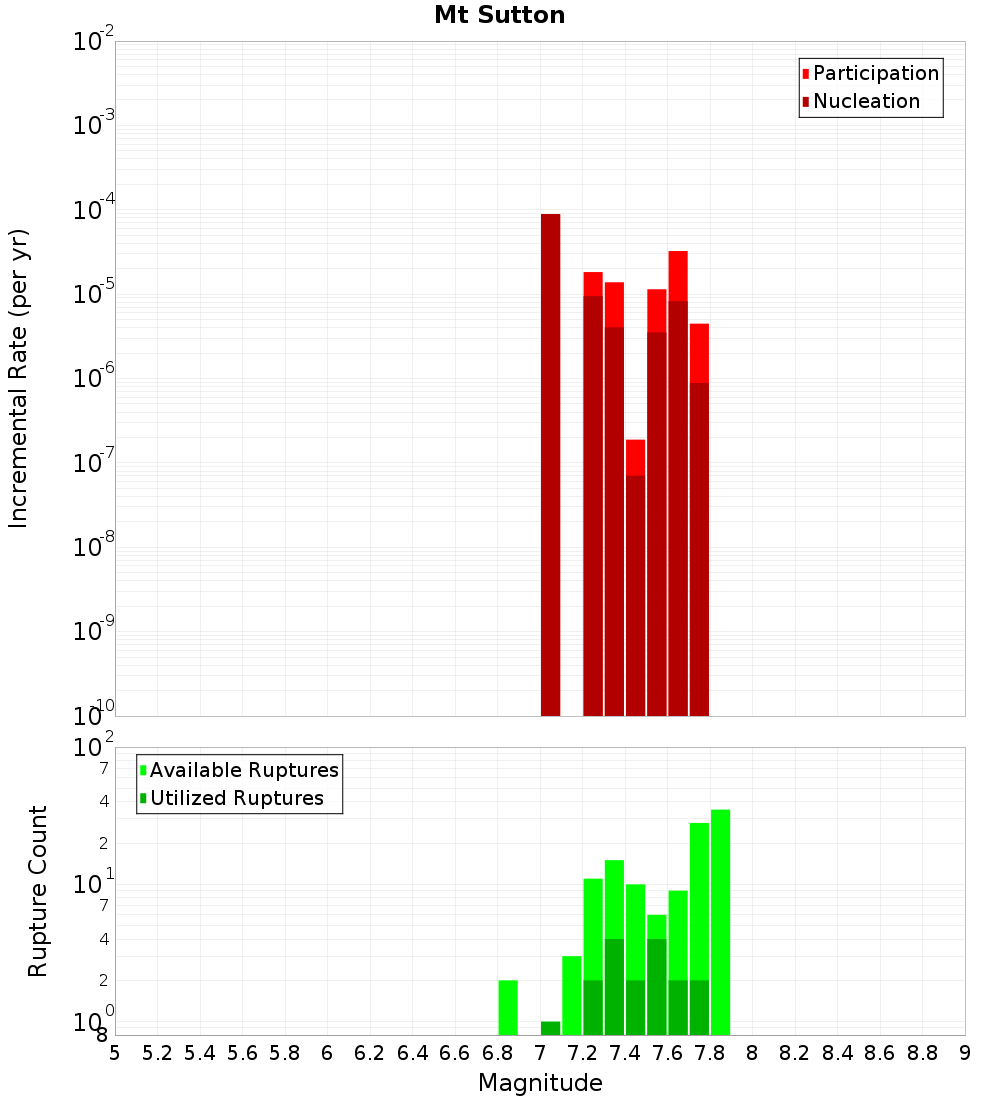

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

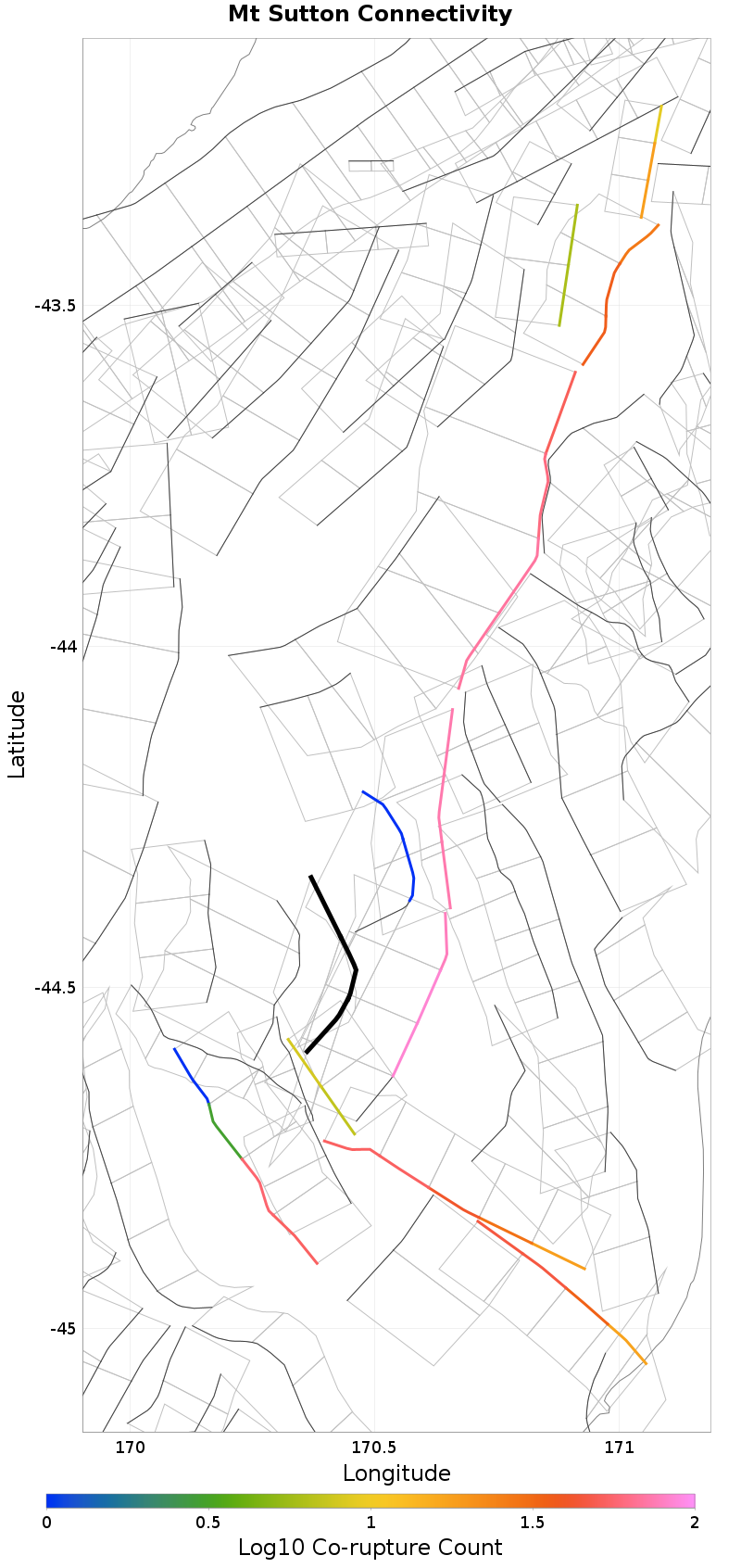

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kirkliston, 0.16 km away
Middle Range, 0.17 km away
Waitangi, 0.3 km away
Dryburgh, 0.33 km away
Fern Gully, 0.33 km away
Grampian, 0.7 km away
Awahokomo, 2.07 km away
Gibson, 4.51 km away
Stonewall, 4.67 km away

Kirkliston, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate4.4401426E-5

Middle Range, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?true
Directly Connected?true
Co-rupture Count56
Co-rupture Rate4.414232E-6

Waitangi, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate2.2991364E-5

Fern Gully, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grampian, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.0939631E-5

Awahokomo, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 4.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate2.9692585E-5
