Wellington: Tararua 3 Details

Property	Value
Rupture Count	47,763
Ruptures Above Sect Min Mag	47,758
Ruptures w/ Nonzero Rates	87
Magnitude Range	[6.67, 8.45]
Length Range	[16, 934] km
Total Rate	7.273418E-4 /yr
Multi-Fault Rate	7.273418E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

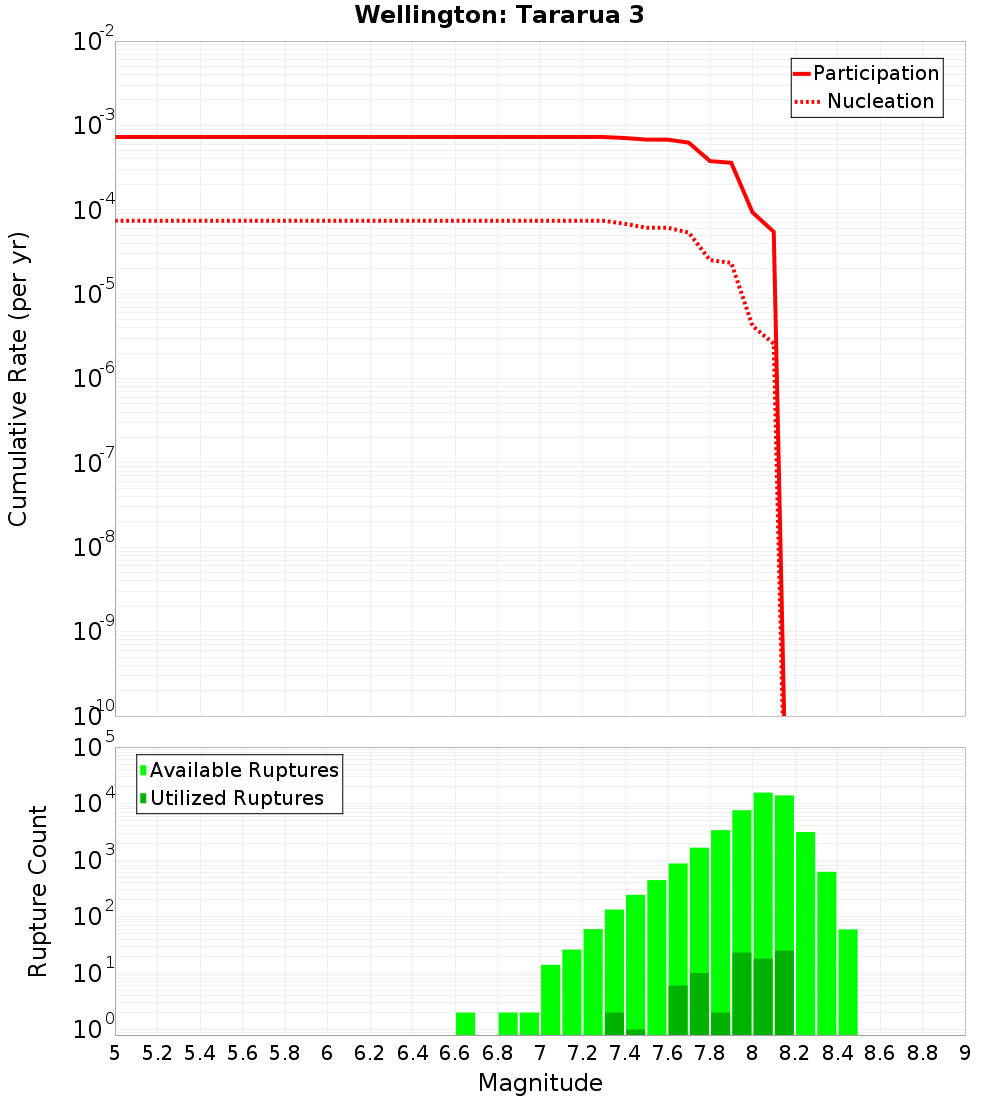

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

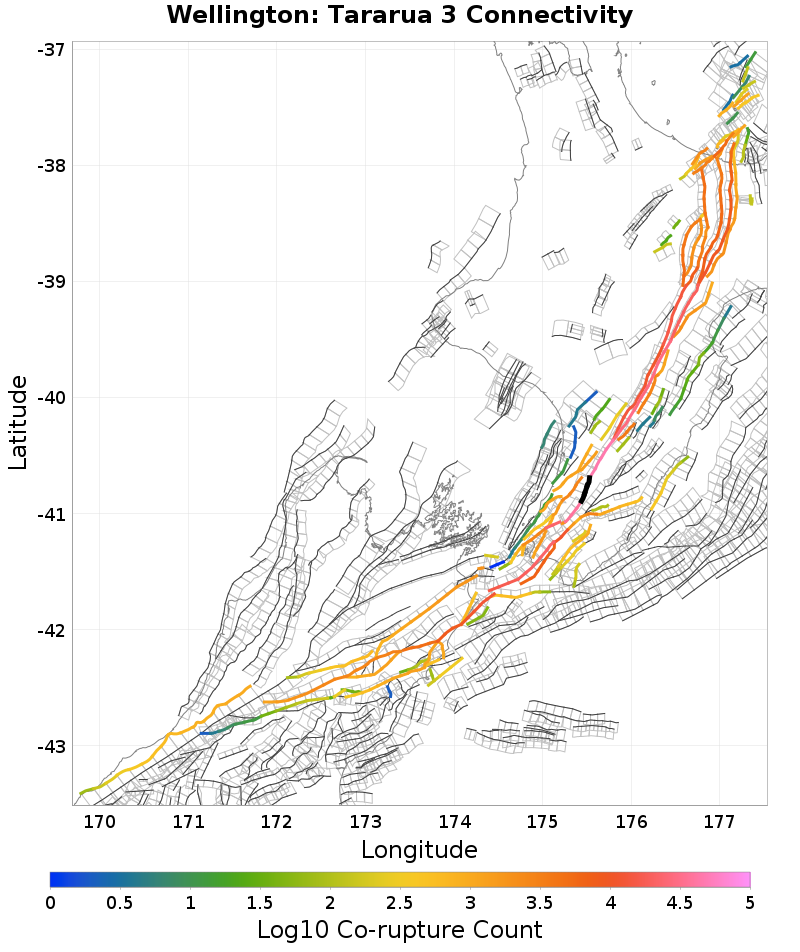

Connectivity

Nearby Sections

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.33 km away
Tokomaru, 1.27 km away
Northern Ohariu, 1.84 km away
Gibbs, 6.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.35 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.31 km away

Wellington: Tararua 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	38,760
Co-rupture Rate	1.231226E-4

Wellington: Pahiatua, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	45,994
Co-rupture Rate	6.9726905E-4

Otaki Forks: 2, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	2,812
Co-rupture Rate	3.7884492E-6

Tokomaru, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	1,042
Co-rupture Rate	3.0082341E-5

Northern Ohariu, 1.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	1,409
Co-rupture Rate	3.0072797E-5

Gibbs, 6.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	false
Co-rupture Count	1,330
Co-rupture Rate	2.7062017E-5

Wairarapa: 3, 9.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 9.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 11.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	false
Co-rupture Count	1,550
Co-rupture Rate	3.7884492E-6

Masterton, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	4.110753E-6

Carterton, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	true
Co-rupture Count	2,988
Co-rupture Rate	4.188936E-4

Wairarapa: 2, 14.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDYuMHhrWlpv
Connected?	true
Directly Connected?	false
Co-rupture Count	11,240
Co-rupture Rate	4.94993E-6
