Volkner 3 Details
| Property | Value |
|---|---|
| Rupture Count | 126 |
| Ruptures Above Sect Min Mag | 125 |
| Ruptures w/ Nonzero Rates | 30 |
| Magnitude Range | [6.79, 8.17] |
| Length Range | [17, 501] km |
| Total Rate | 3.234766E-6 /yr |
| Multi-Fault Rate | 3.234766E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 39 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

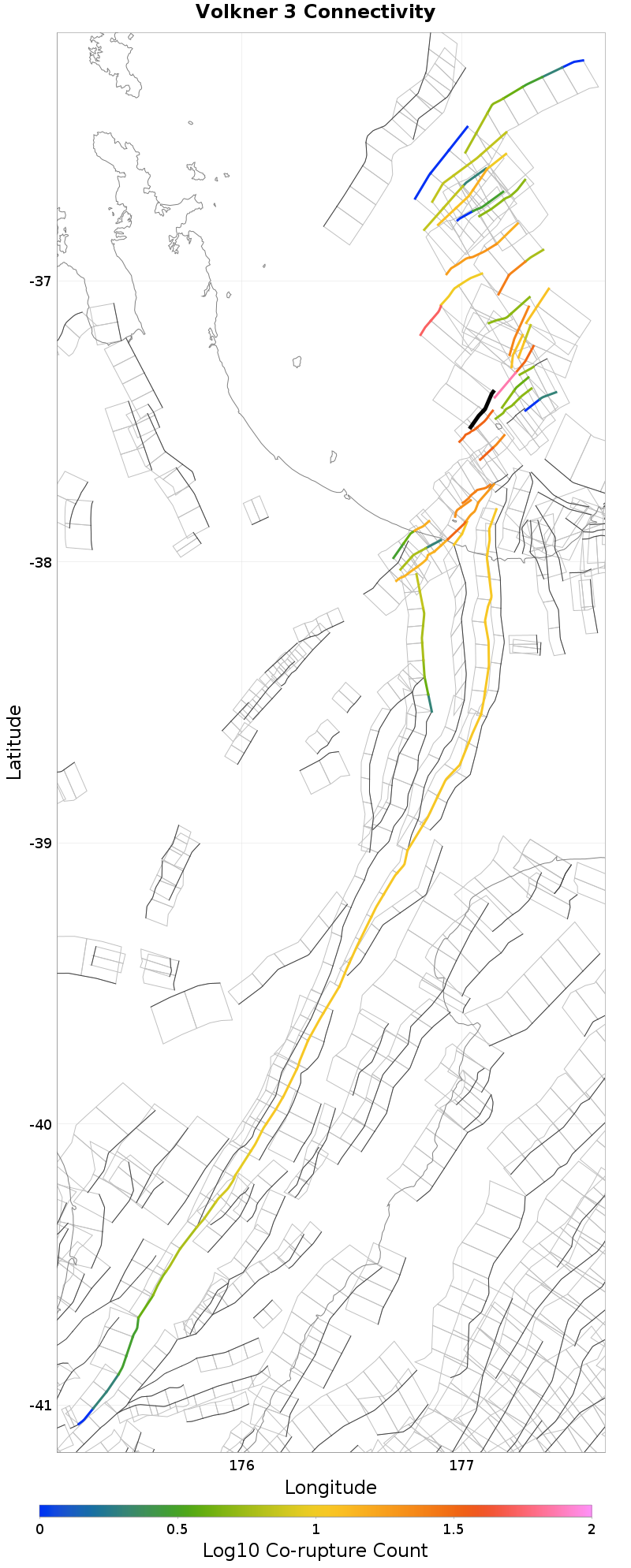

Connectivity
 |  |
|---|
Nearby Sections
Tuakana 6, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 1.3272862E-6 |
Volkner 4, 1.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 73 |
| Co-rupture Rate | 2.0569707E-6 |
Whakaari 4, 1.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 1.2816049E-6 |
Te Arawa 1, 5.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.2815871E-6 |
Te Arawa 2, 6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.8310112E-7 |
Otara West 1, 8.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.8299916E-7 |
Tuakana 7, 8.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 3.3512235E-11 |
Calypso 2, 9.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 34 |
| Co-rupture Rate | 1.1948077E-6 |
Tuatoru 1, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuatoru 2, 12.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.0970231E-12 |
Te Arawa 3, 12.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.2815871E-6 |
Otara West 2, 12.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNDcuMFB5TnZ0 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 4.394536E-7 |
