Barefell Details

Property	Value
Rupture Count	3,298
Ruptures Above Sect Min Mag	3,297
Ruptures w/ Nonzero Rates	66
Magnitude Range	[6.91, 8.46]
Length Range	[18, 803] km
Total Rate	4.4460586E-4 /yr
Multi-Fault Rate	4.4460586E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	125

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

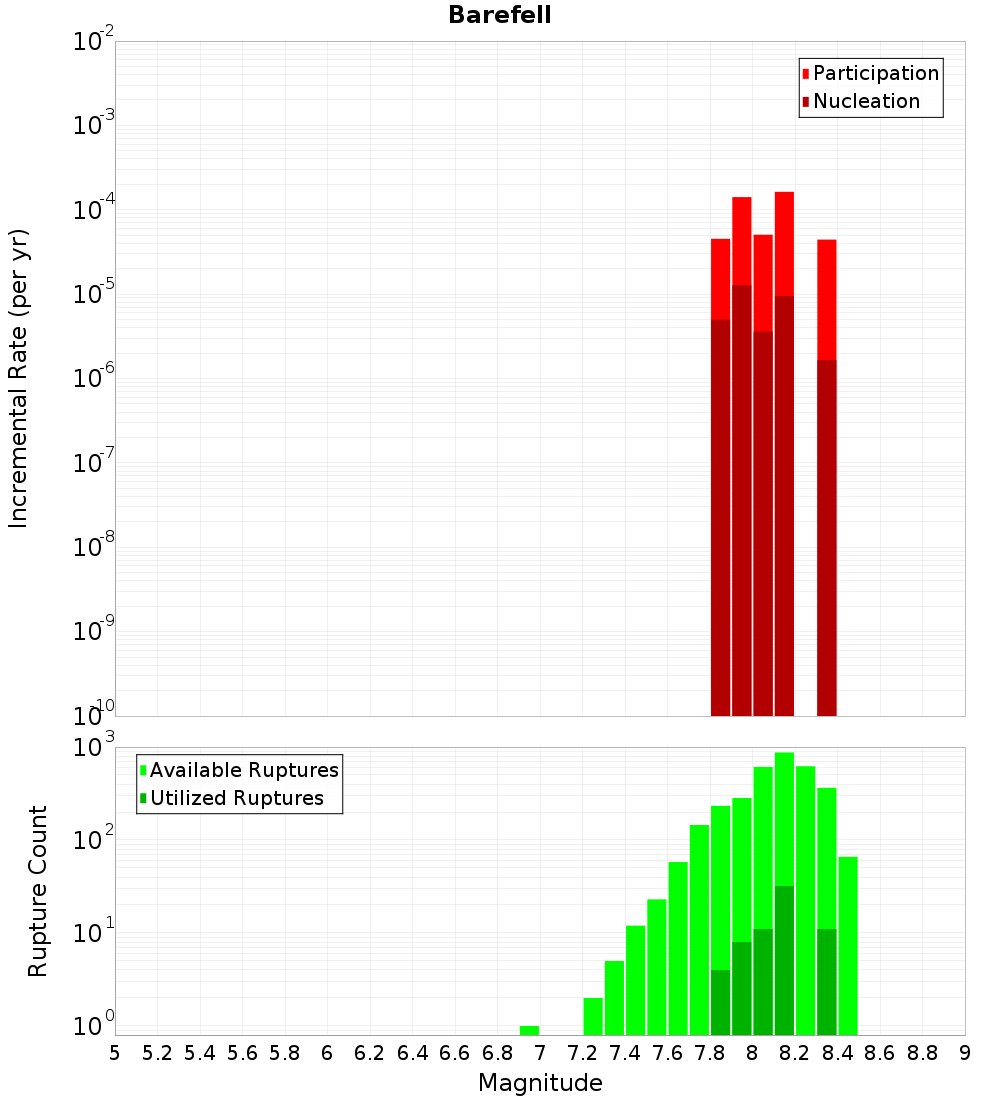

Magnitude-Frequency Distribution

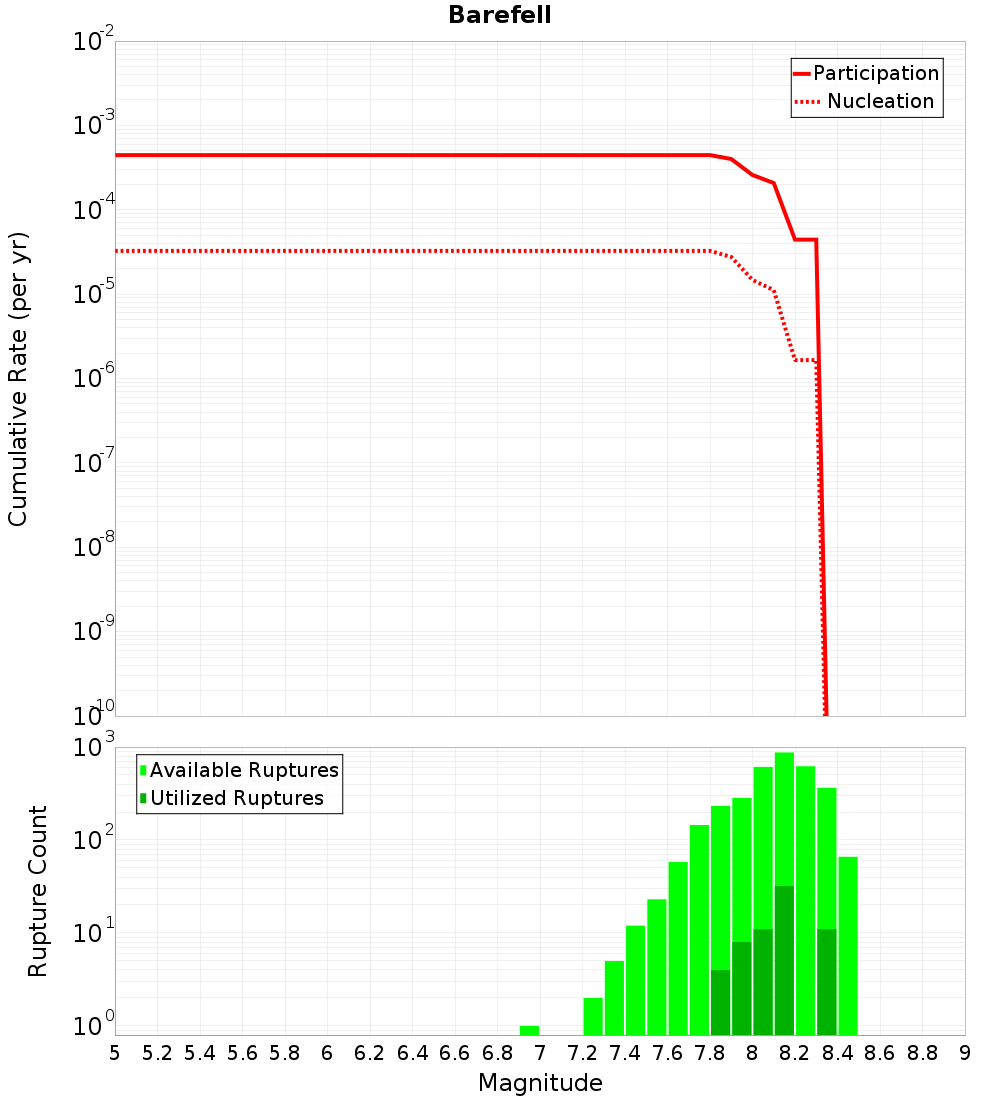

Incremental	Cumulative

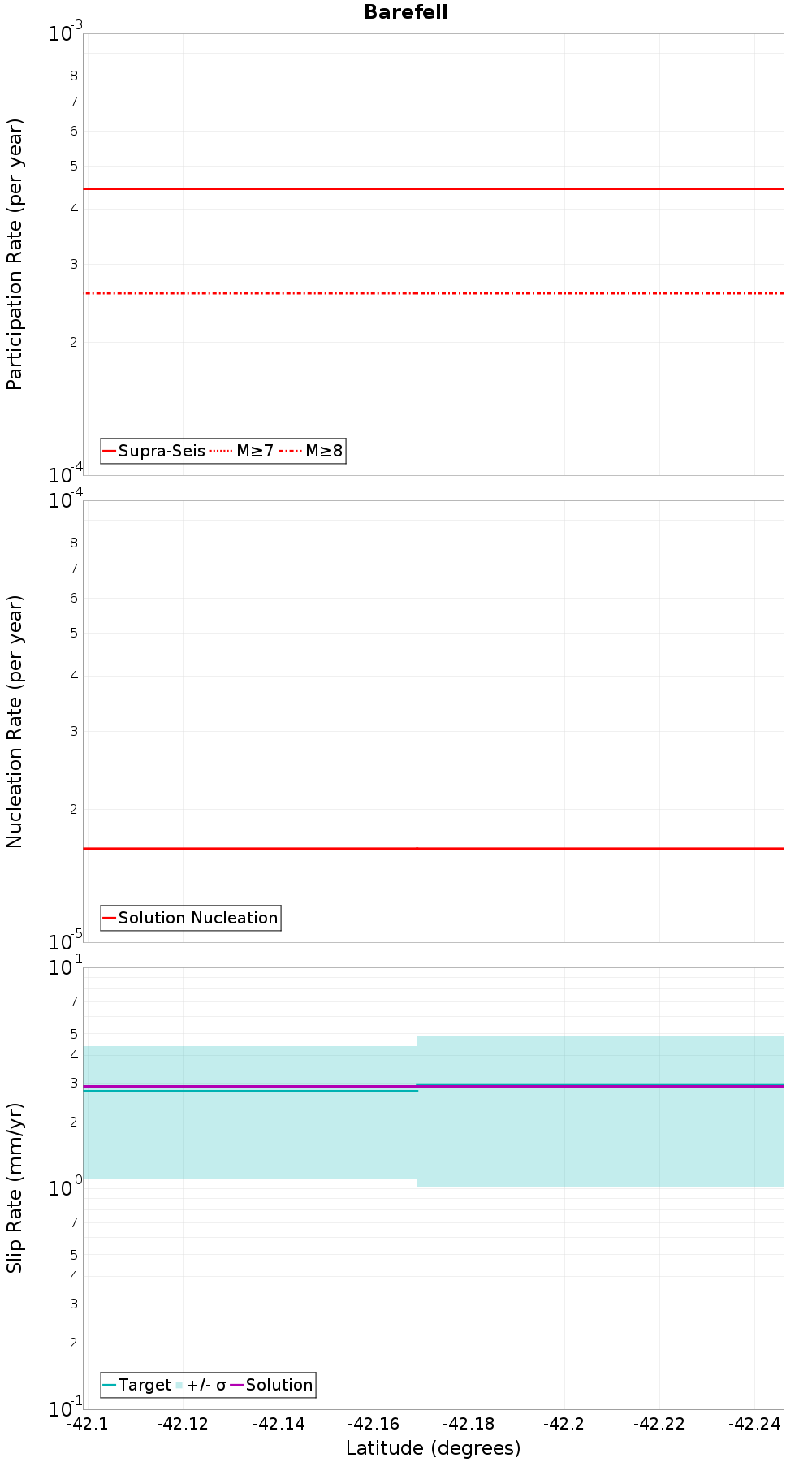

Along-Strike Values

Moment-Rates and b-Values

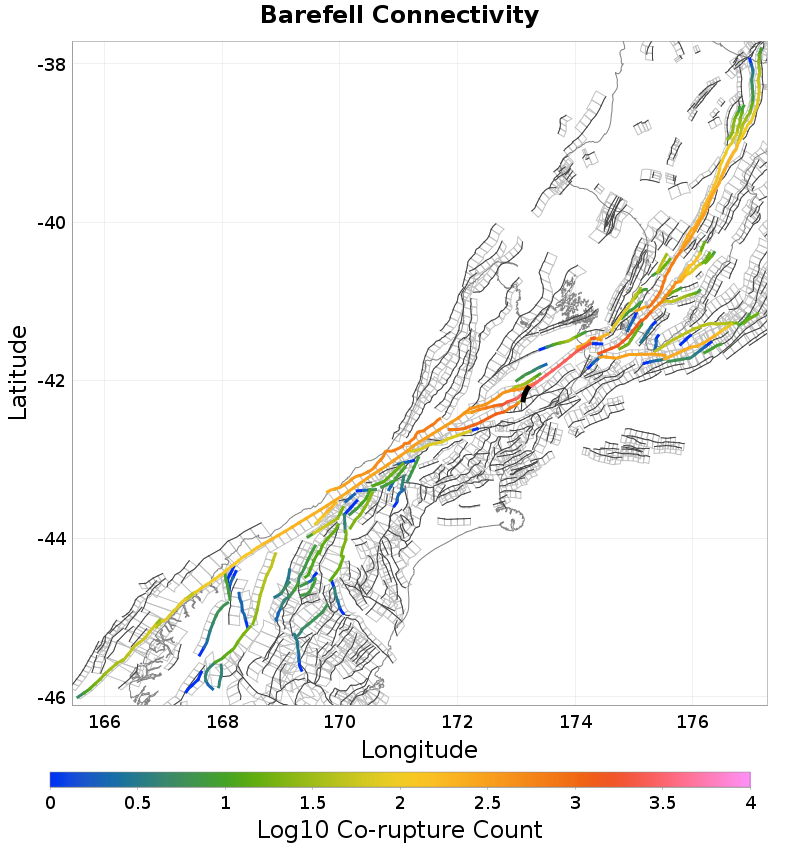

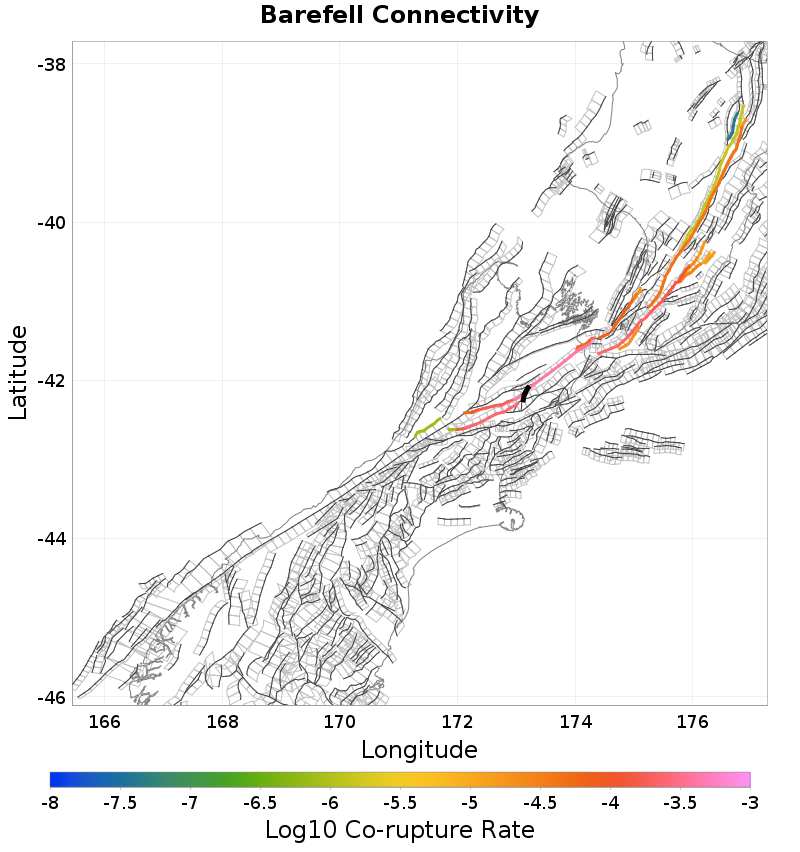

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Clarence: Central, 0.11 km away
Awatere: Southwest, 0.18 km away
Fowlers, 0.22 km away
Shingle Peak, 0.27 km away
Dillon, 1.26 km away
Waihopai, 5.87 km away
Elliott, 8.62 km away
Acheron, 9.05 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,777
Co-rupture Rate	4.4460586E-4

Clarence: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	false
Co-rupture Count	657
Co-rupture Rate	2.549177E-4

Awatere: Southwest, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	441
Co-rupture Rate	0.0

Fowlers, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,687
Co-rupture Rate	4.3795008E-4

Shingle Peak, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	37
Co-rupture Rate	0.0

Dillon, 1.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihopai, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	0.0

Elliott, 8.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Acheron, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
