Cluden Details

Property	Value
Rupture Count	1,707
Ruptures Above Sect Min Mag	1,705
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.84, 8.46]
Length Range	[17, 698] km
Total Rate	8.871361E-5 /yr
Multi-Fault Rate	8.871361E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	73

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

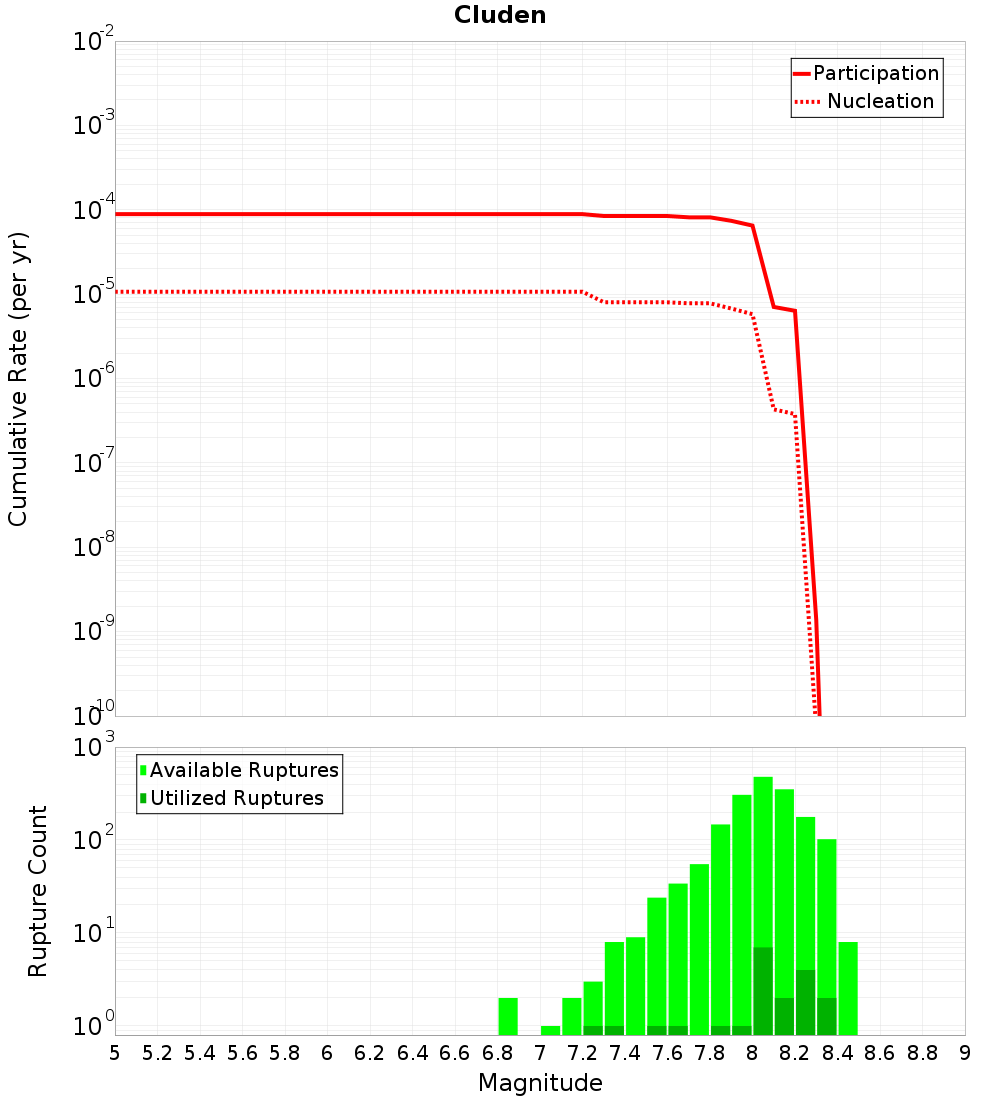

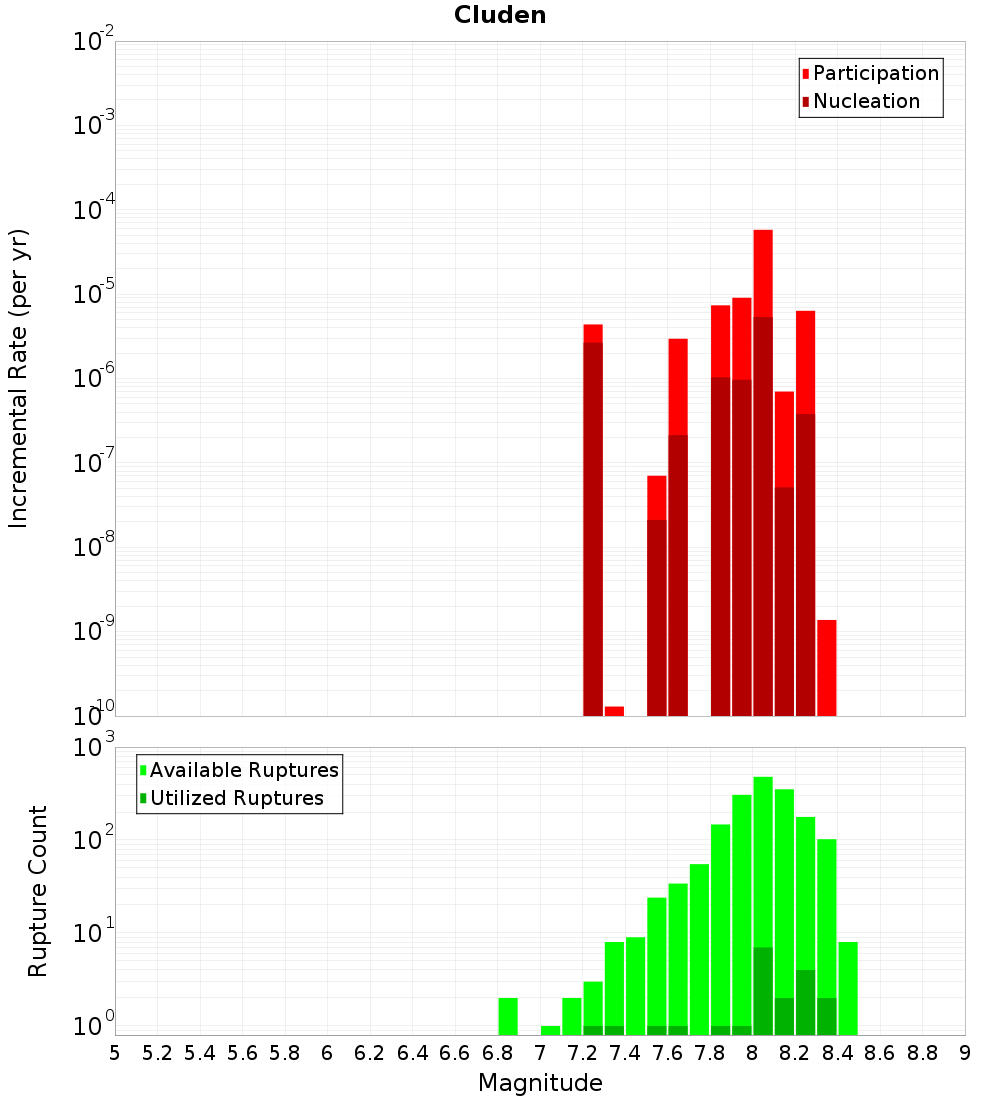

Magnitude-Frequency Distribution

Incremental	Cumulative

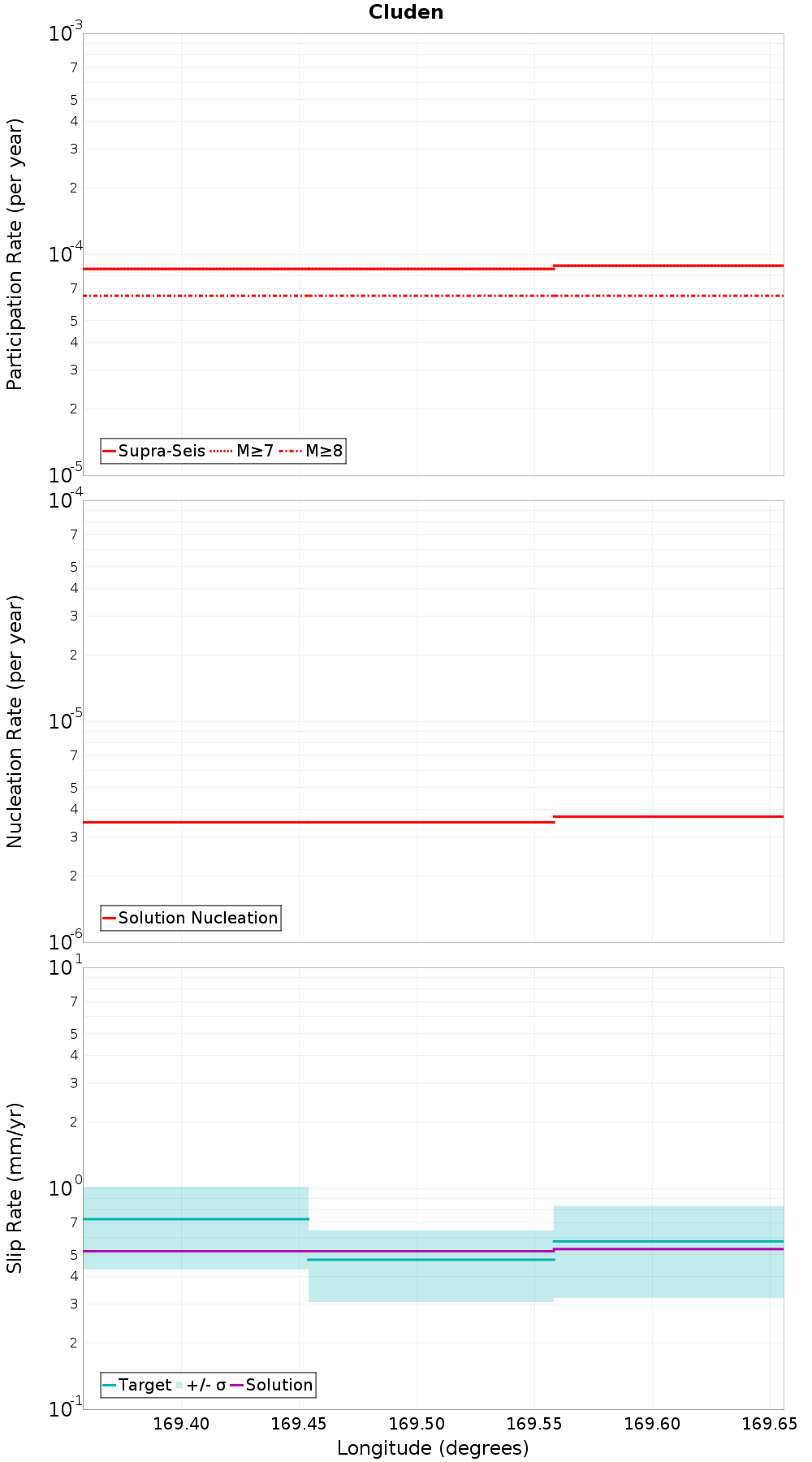

Along-Strike Values

Moment-Rates and b-Values

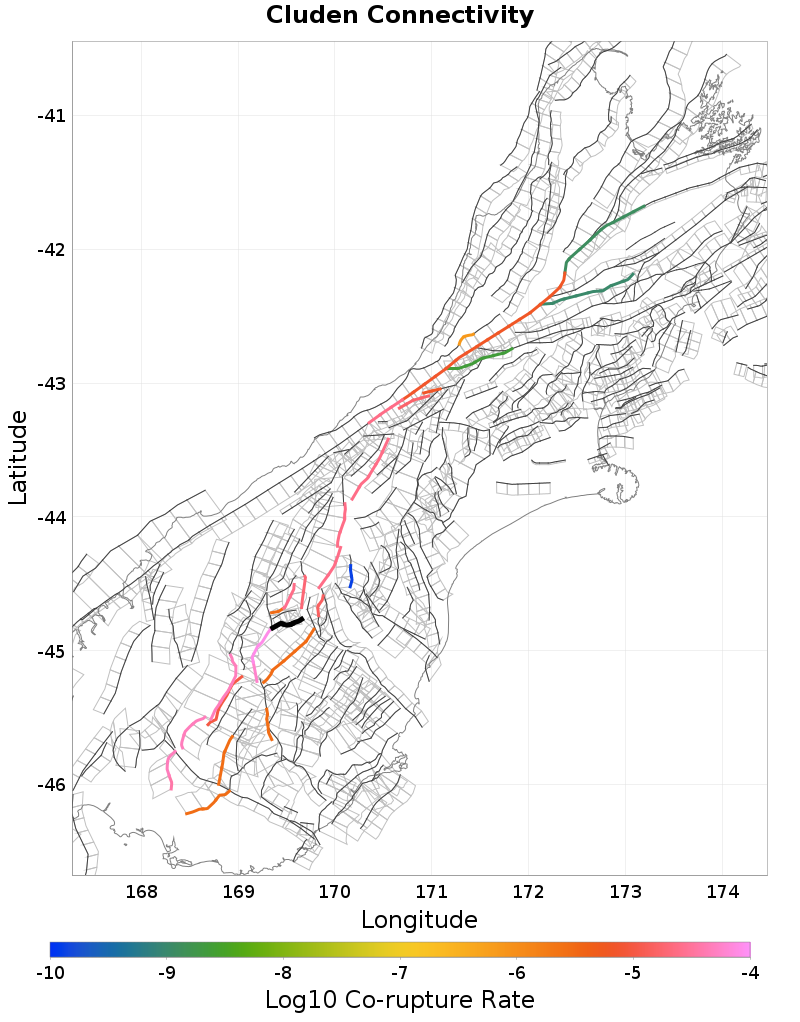

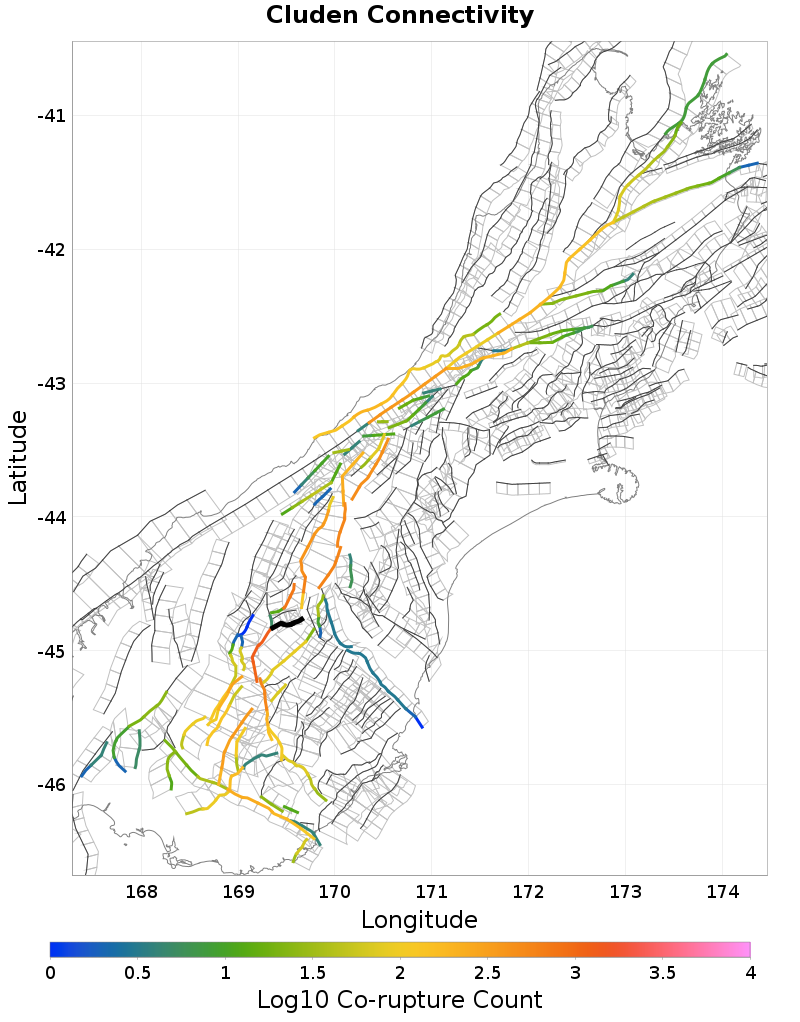

Connectivity

Nearby Sections

Fault Section
Lindis River, 0.04 km away
Grandview, 0.14 km away
Goodger, 0.21 km away
Dromedary, 0.38 km away
Pisa, 1.98 km away
Dunstan, 3.56 km away
Paddys Ridge, 6.25 km away
Blue Lake, 7.31 km away
Motatapu, 8.82 km away
Wanaka, 12.27 km away
Rocks Creek, 12.62 km away
Omarama Saddle, 13.48 km away

Lindis River, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	739
Co-rupture Rate	2.7049413E-5

Grandview, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Goodger, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dromedary, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	594
Co-rupture Rate	1.9143641E-5

Pisa, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,268
Co-rupture Rate	8.138235E-5

Dunstan, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	84
Co-rupture Rate	2.959562E-6

Paddys Ridge, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Blue Lake, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motatapu, 8.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wanaka, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rocks Creek, 12.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Omarama Saddle, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	1.4769219E-5
