Mossburn Details
| Property | Value |
|---|---|
| Rupture Count | 6,849 |
| Ruptures Above Sect Min Mag | 6,849 |
| Ruptures w/ Nonzero Rates | 43 |
| Magnitude Range | [7.14, 8.61] |
| Length Range | [26, 1,002] km |
| Total Rate | 1.5995858E-4 /yr |
| Multi-Fault Rate | 4.808961E-5 /yr (30.06%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 105 |
Table Of Contents

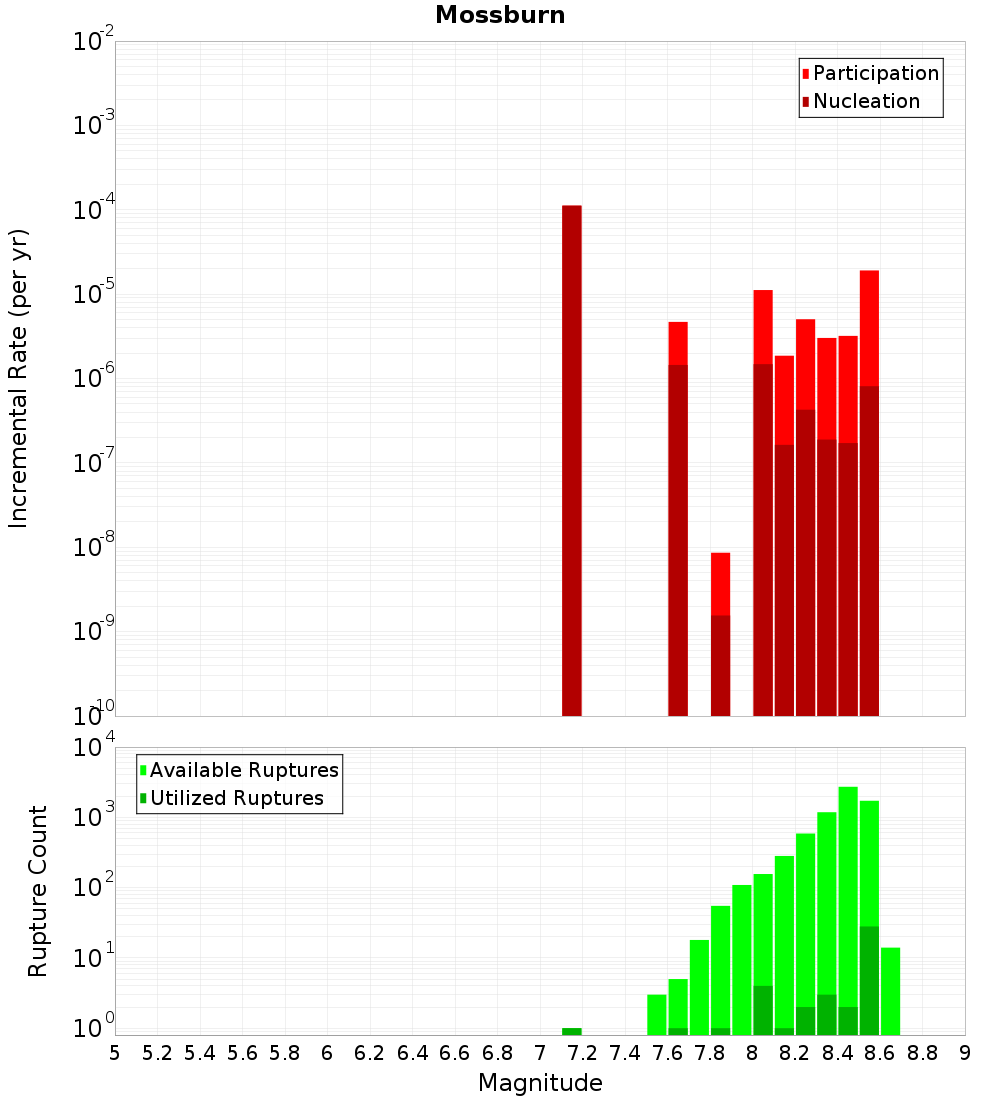

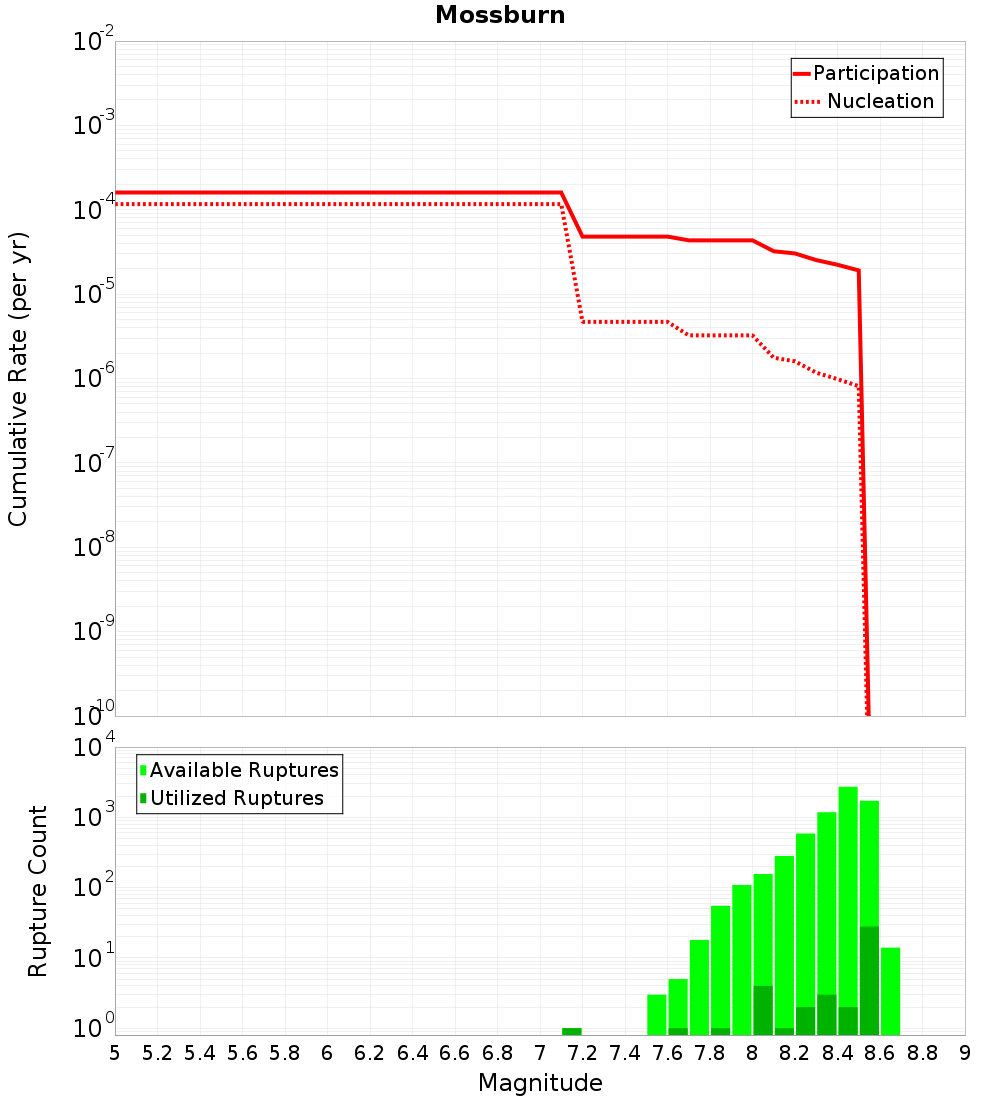

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

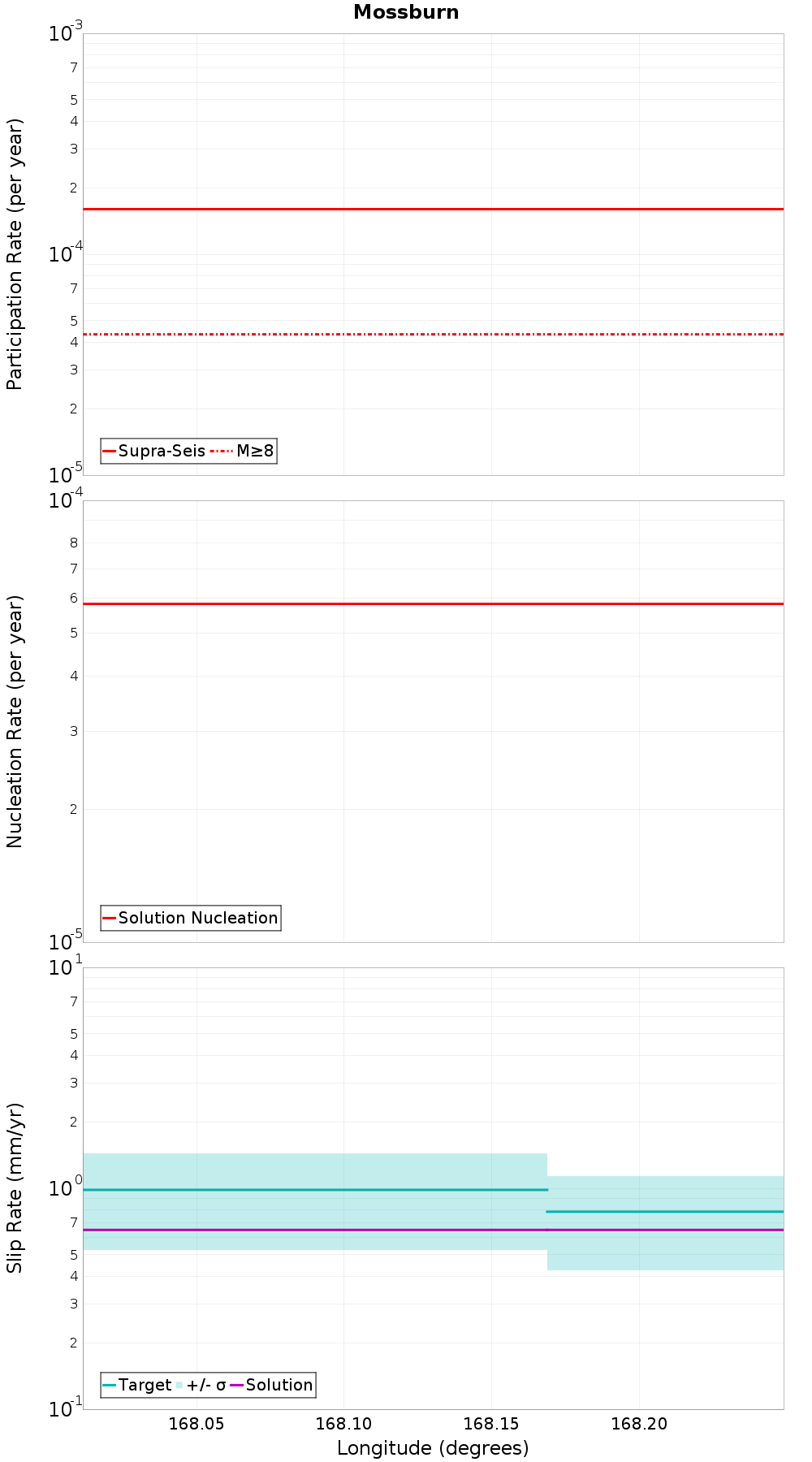

Along-Strike Values

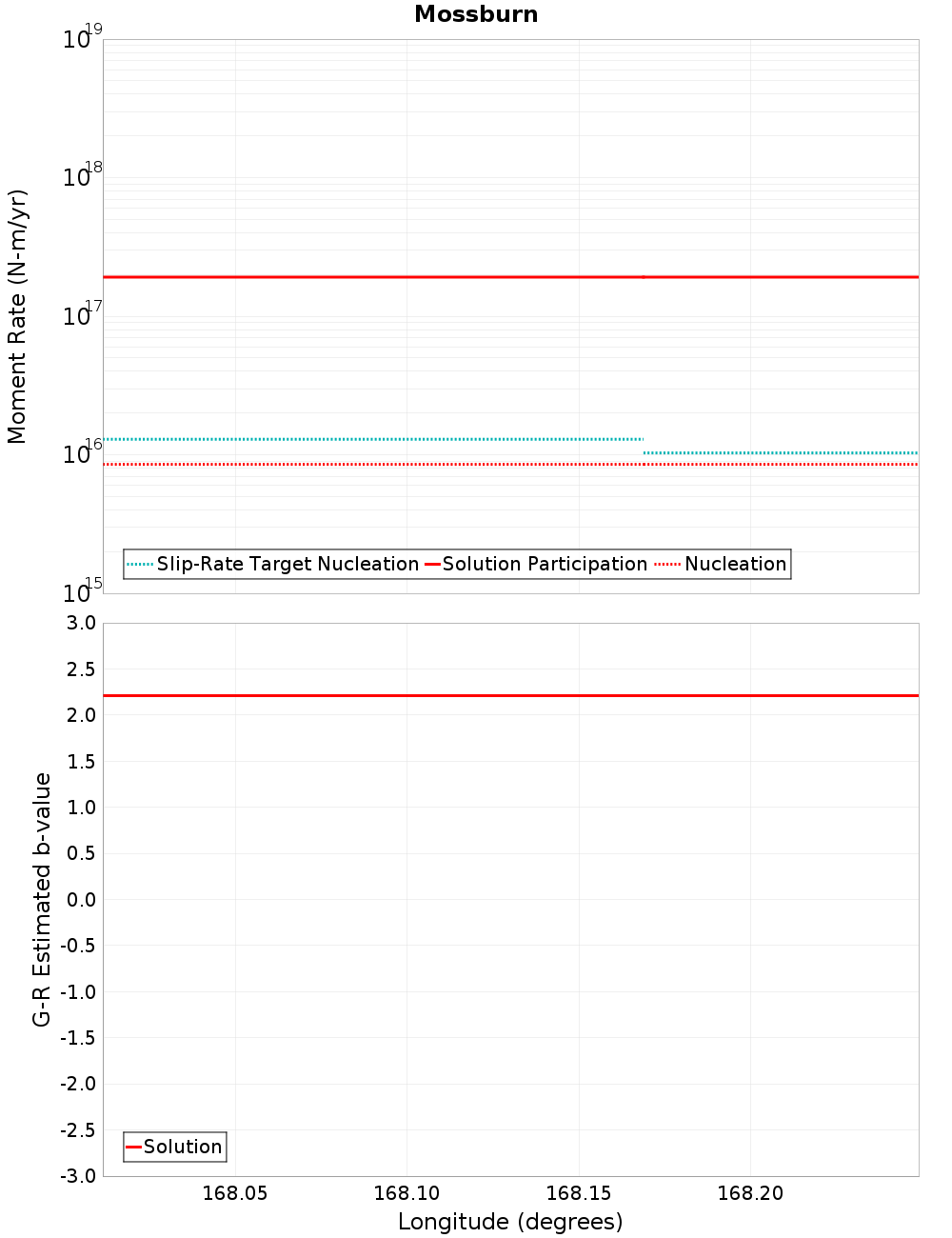

Moment-Rates and b-Values

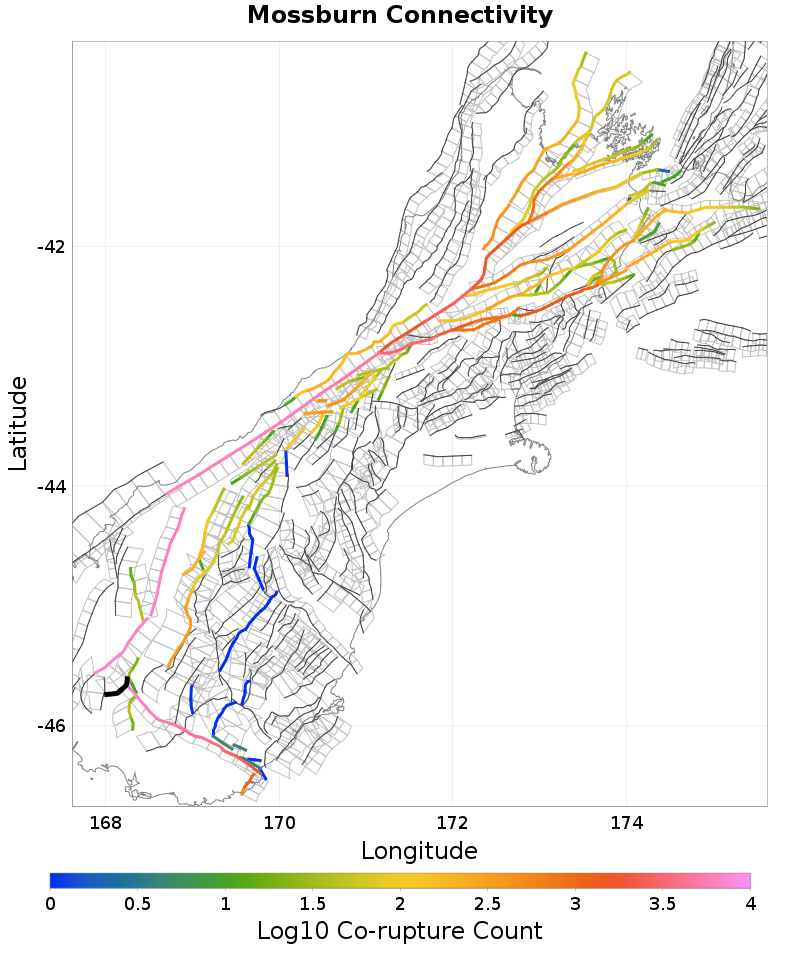

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Moonlight South, 0.18 km away |
| Hokonui, 1.17 km away |
| Acton, 1.57 km away |
| Tin Hut, 2.3 km away |
| White Hill, 12.87 km away |
| Mid Dome, 14.2 km away |
| McKerchar, 14.52 km away |
Moonlight South, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,841 |
| Co-rupture Rate | 4.1778592E-5 |
Hokonui, 1.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,163 |
| Co-rupture Rate | 4.8080907E-5 |
Acton, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 8.614587E-9 |
Tin Hut, 2.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Hill, 12.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 44 |
| Co-rupture Rate | 9.186204E-6 |
Mid Dome, 14.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
McKerchar, 14.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
