Ngatoro South 5 Details
| Property | Value |
|---|---|
| Rupture Count | 111 |
| Ruptures Above Sect Min Mag | 108 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.66, 7.83] |
| Length Range | [14, 184] km |
| Total Rate | 3.0641486E-6 /yr |
| Multi-Fault Rate | 3.0641486E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

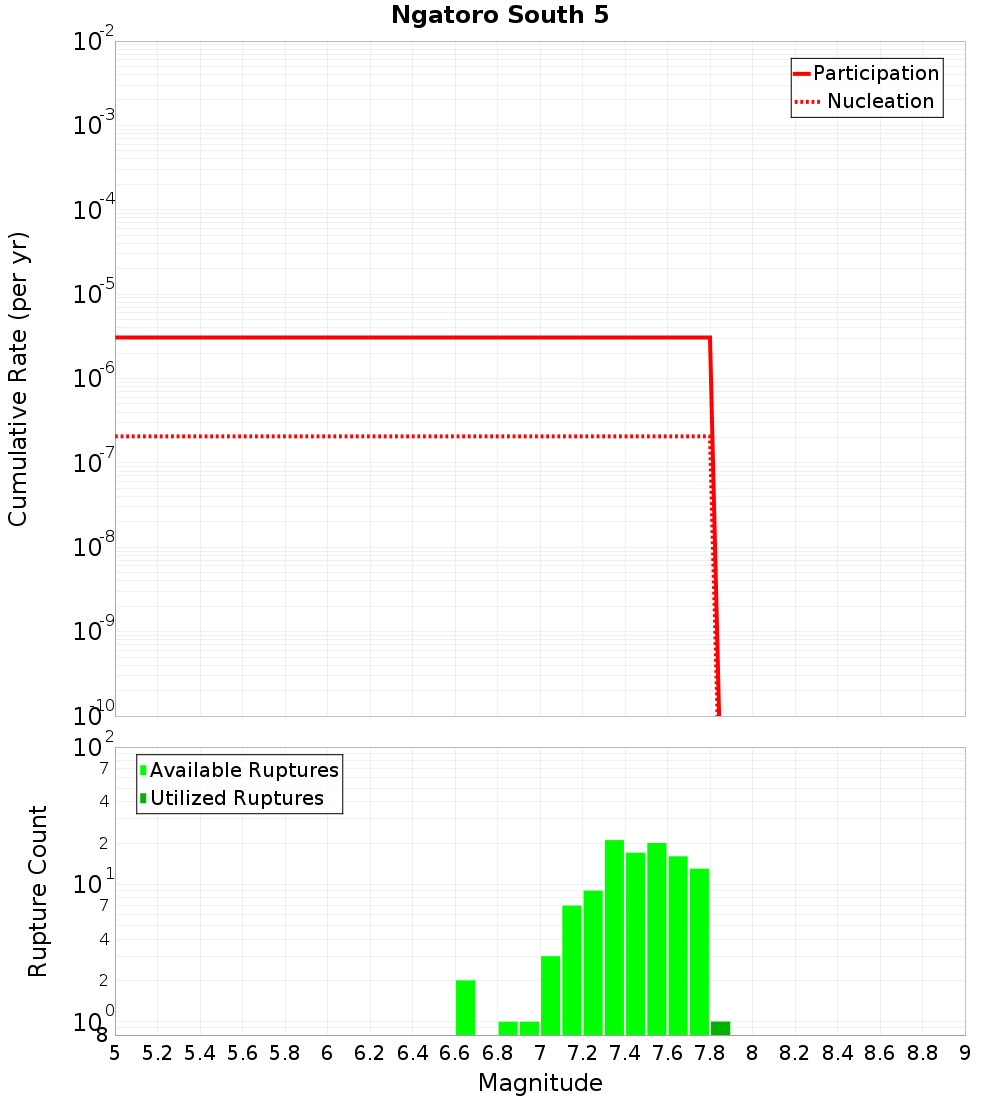

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

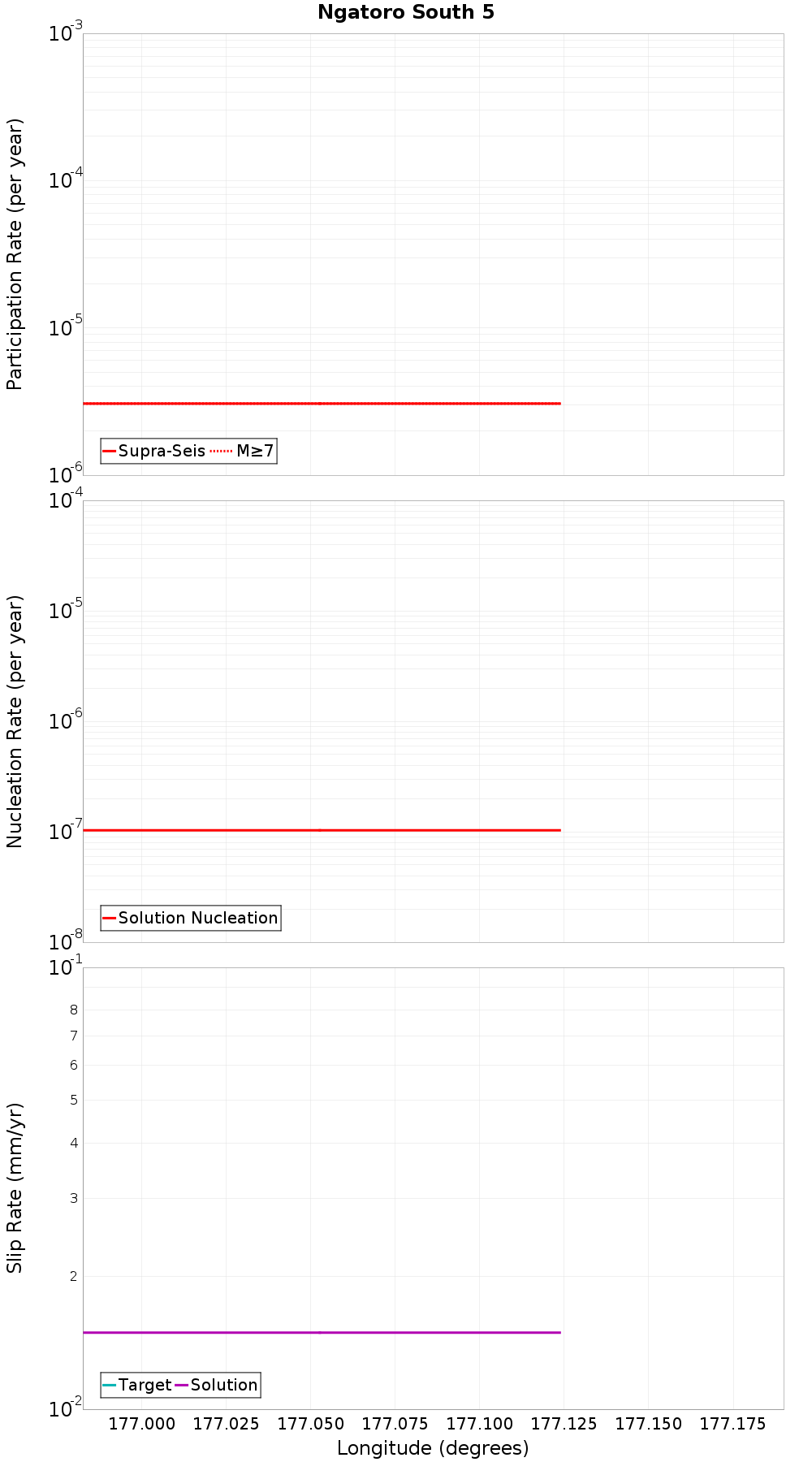

Along-Strike Values

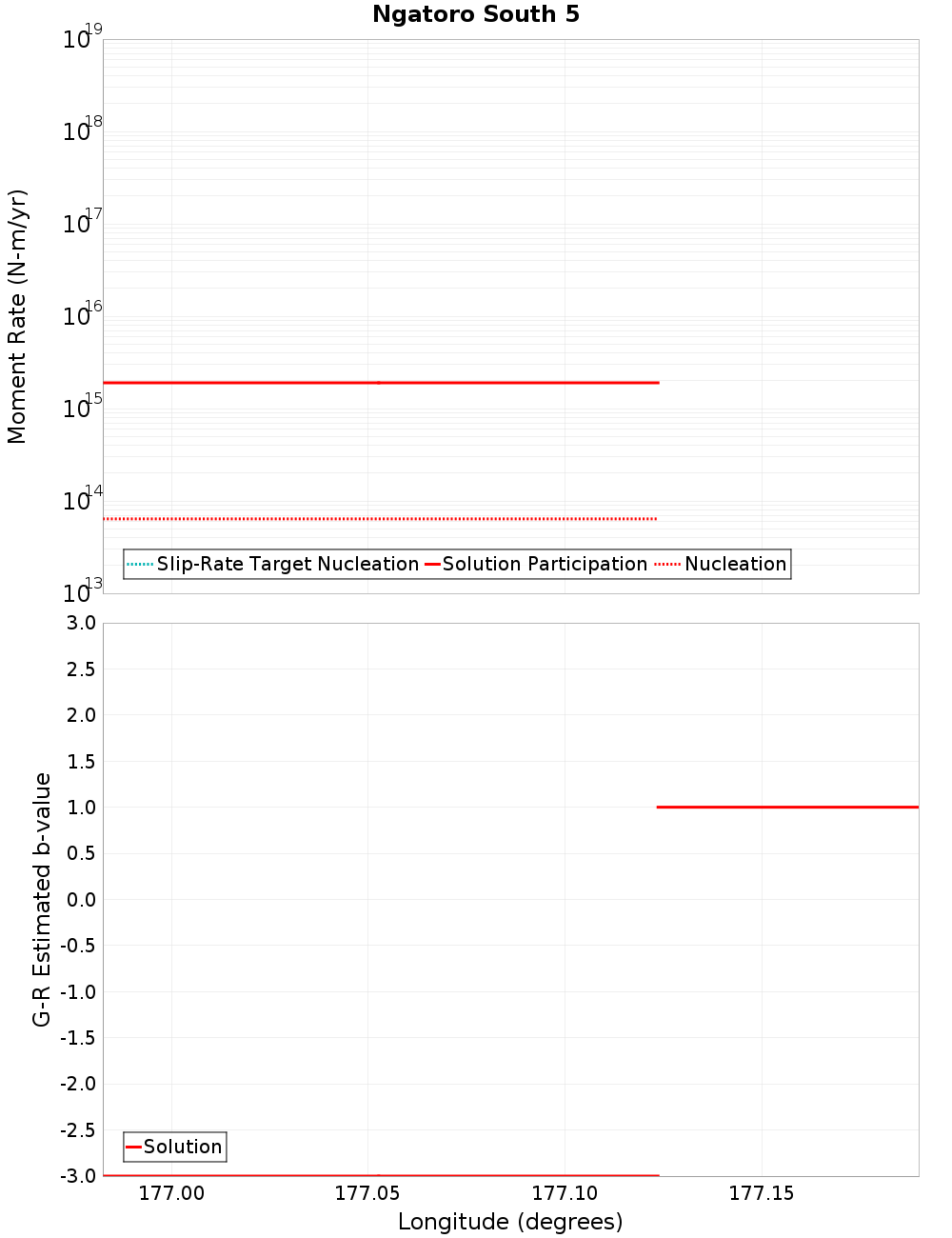

Moment-Rates and b-Values

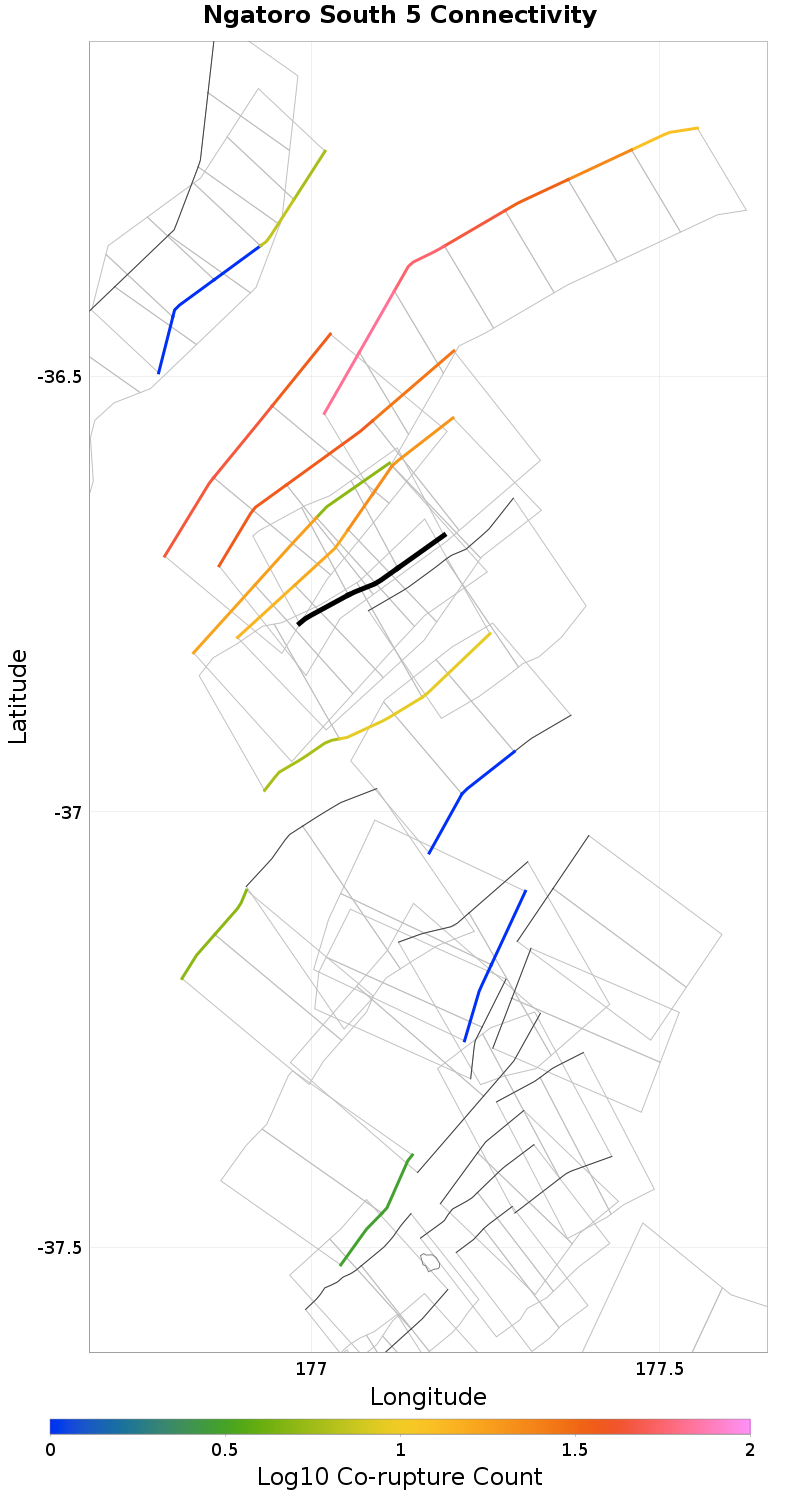

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ohena 4, 0.16 km away |
| Ohena 2, 0.16 km away |
| Ohena 5, 0.23 km away |
| Ohena 3, 0.25 km away |
| Ngatoro West 1, 0.33 km away |
| Ngatoro South 2, 2.58 km away |
| Tauranga Trough West 2, 10.46 km away |
Ohena 4, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 37 |
| Co-rupture Rate | 3.0641486E-6 |
Ohena 2, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 31 |
| Co-rupture Rate | 0.0 |
Ohena 5, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 45 |
| Co-rupture Rate | 3.0641486E-6 |
Ohena 3, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Ngatoro West 1, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 66 |
| Co-rupture Rate | 3.0641486E-6 |
Ngatoro South 2, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough West 2, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
