Whakatane: South Details

PropertyValue
Rupture Count17,122
Ruptures Above Sect Min Mag17,120
Ruptures w/ Nonzero Rates32
Magnitude Range[7.04, 8.60]
Length Range[26, 1,115] km
Total Rate3.9222333E-4 /yr
Multi-Fault Rate1.137022E-4 /yr (28.99%)
Directly-Connected Faults5
All Co-Rupturing Faults108

Table Of Contents

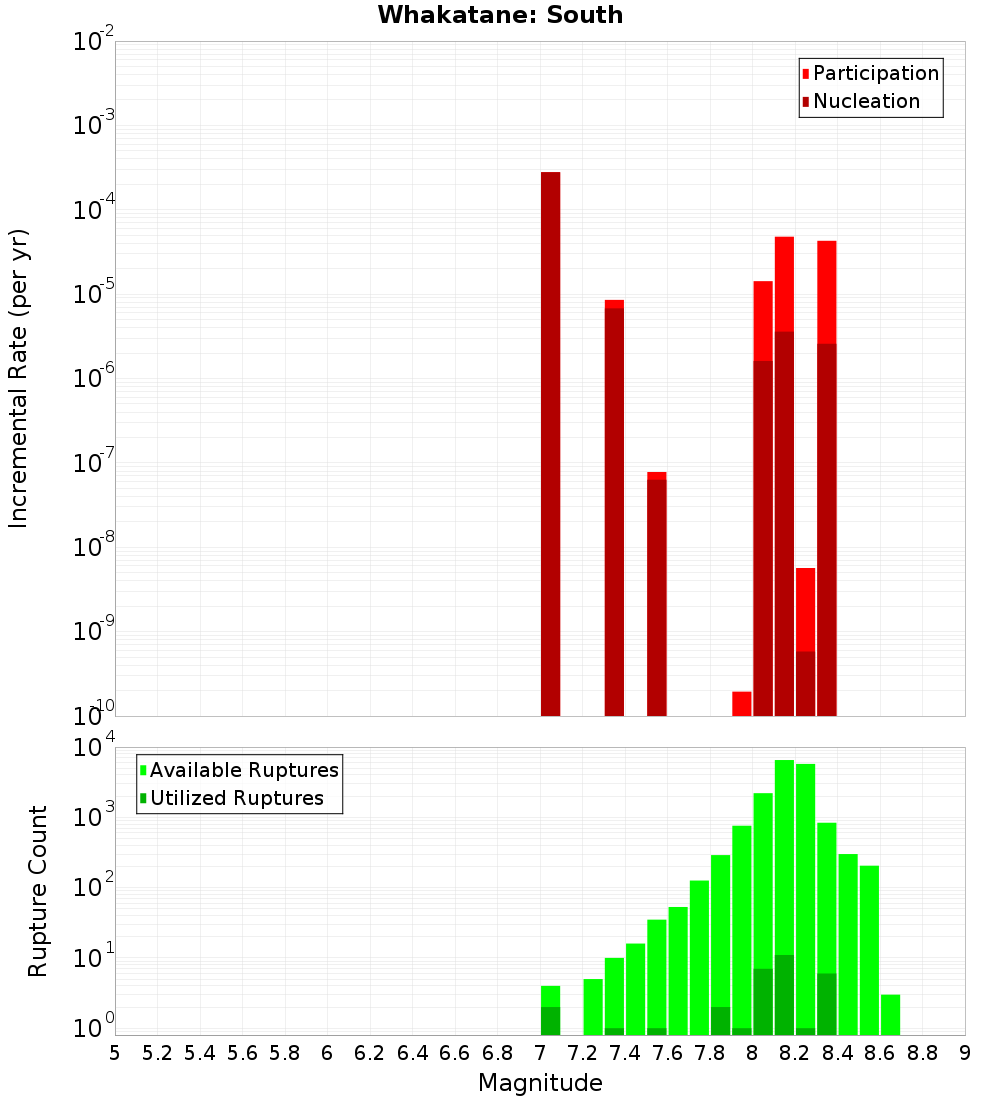

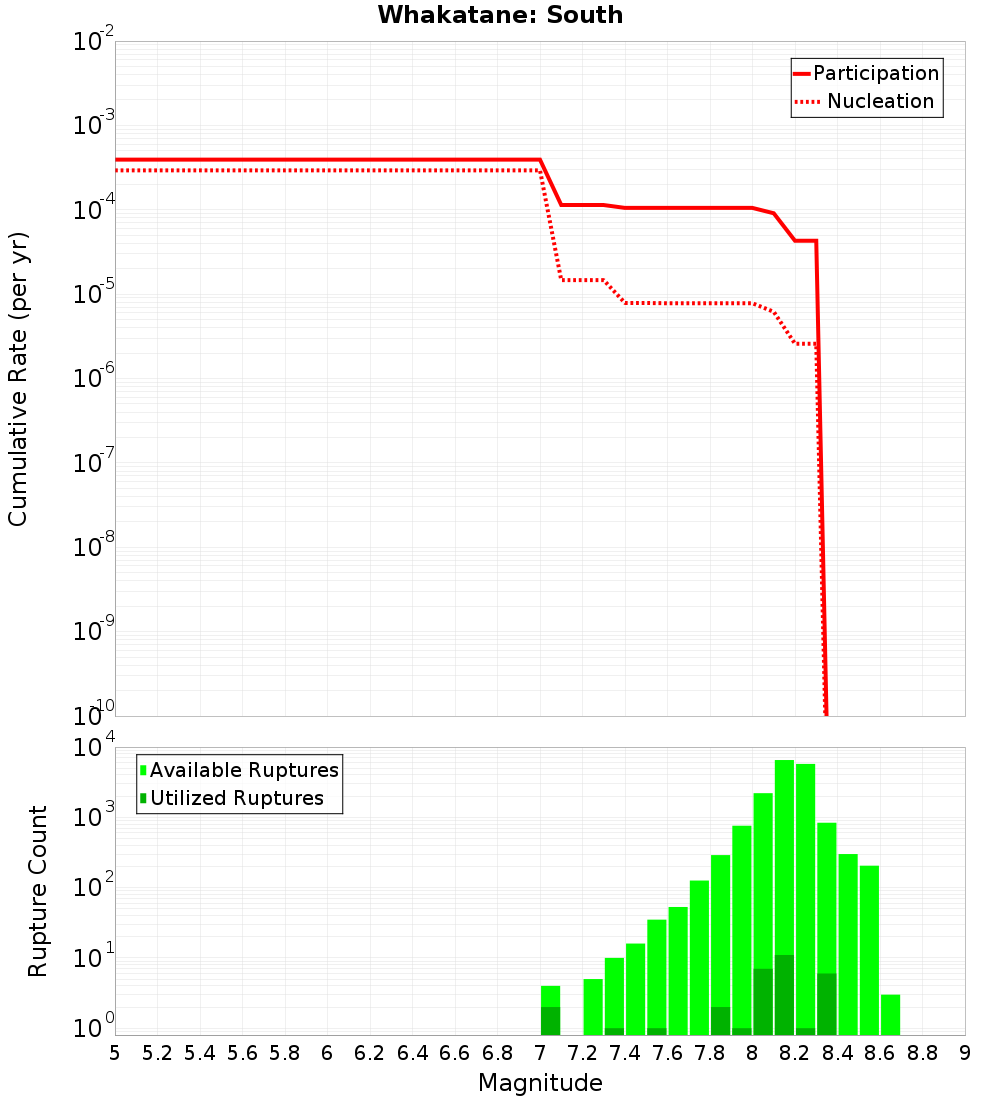

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

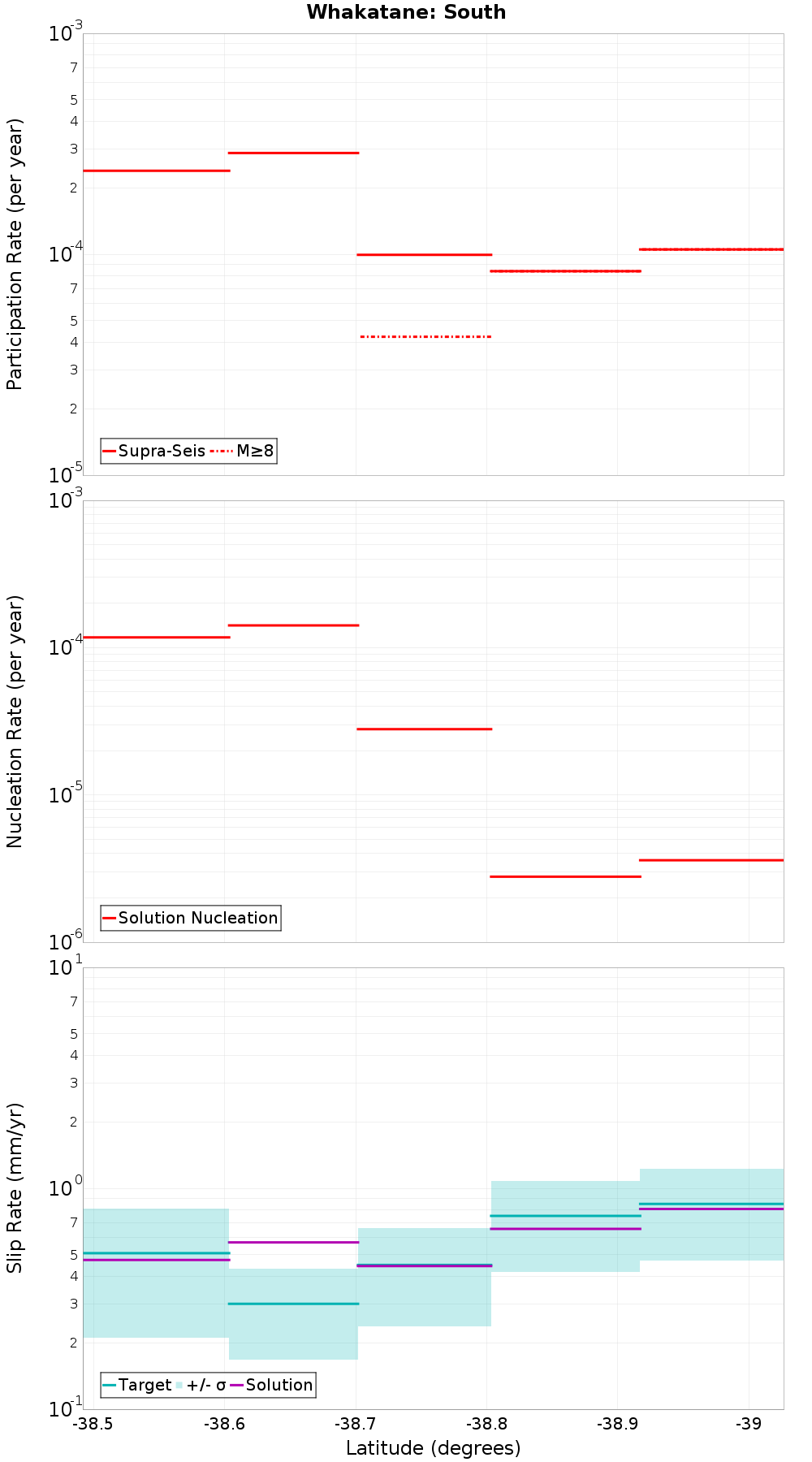

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimana: South, 0 km away
Whakatane: North, 0 km away
Mohaka: North, 0 km away
Waiohau: South, 4.68 km away
Waimana: North, 5.62 km away
Waiotahi: South, 5.93 km away
Waiotahi: North, 10.06 km away
Waiohau: North, 11.09 km away
Ruahine: North, 11.52 km away
Te Whaiti South, 11.9 km away
Patoka - Rangiora, 12.37 km away
Wheao: South, 14.53 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?true
Co-rupture Count574
Co-rupture Rate0.0

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?true
Co-rupture Count12,514
Co-rupture Rate8.627164E-6

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?true
Co-rupture Count14,821
Co-rupture Rate1.0507523E-4

Waiohau: South, 4.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?true
Co-rupture Count2,789
Co-rupture Rate2.1354406E-5

Waimana: North, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count847
Co-rupture Rate1.9451392E-10

Waiotahi: South, 5.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Waiotahi: North, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Waiohau: North, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count650
Co-rupture Rate0.0

Ruahine: North, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count2,292
Co-rupture Rate0.0

Te Whaiti South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?true
Co-rupture Count92
Co-rupture Rate0.0

Patoka - Rangiora, 12.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?true
Directly Connected?false
Co-rupture Count941
Co-rupture Rate3.852582E-5

Wheao: South, 14.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTMuMFVYZ0RN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
