Hundalee Details

PropertyValue
Rupture Count13,832
Ruptures Above Sect Min Mag13,812
Ruptures w/ Nonzero Rates383
Magnitude Range[6.55, 8.37]
Length Range[16, 836] km
Total Rate6.5515086E-4 /yr
Multi-Fault Rate6.5515086E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults135

Table Of Contents

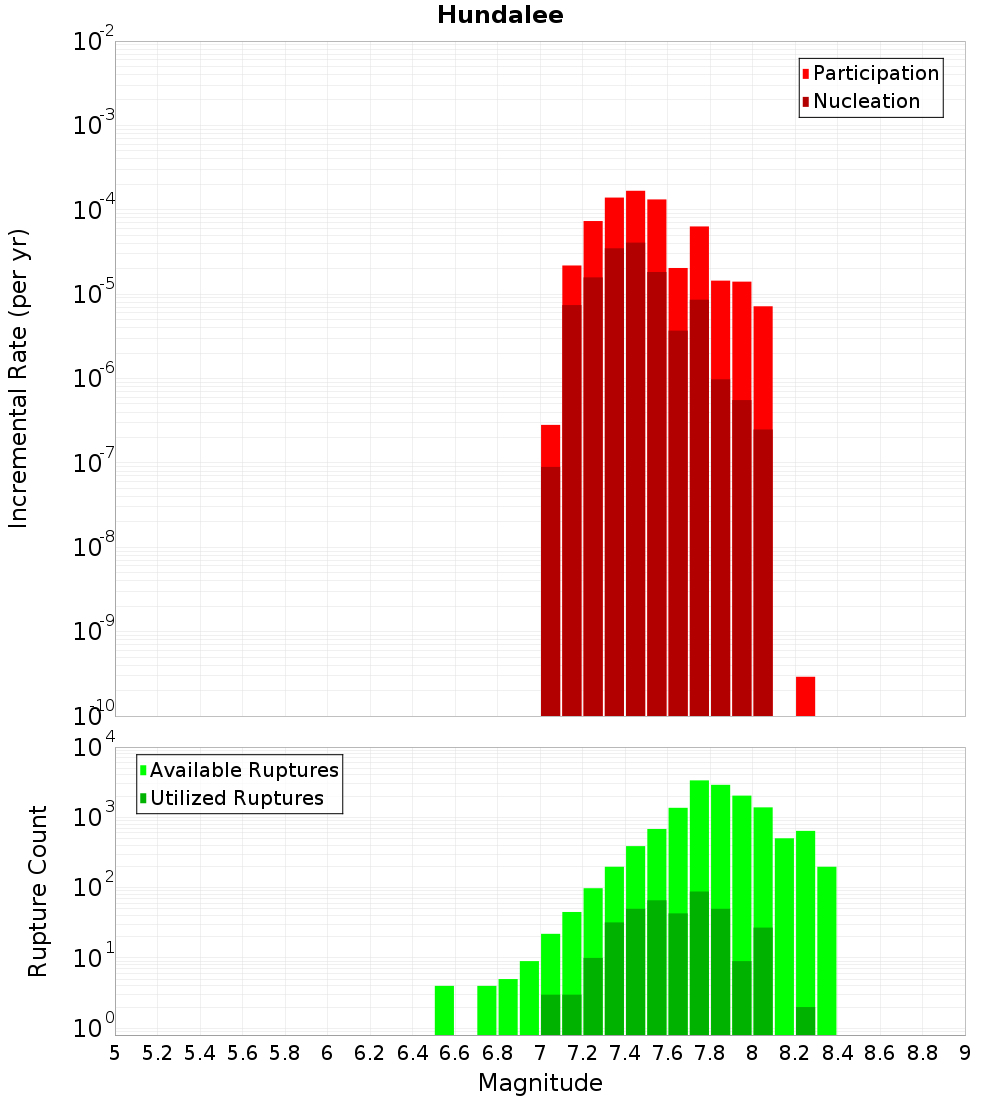

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

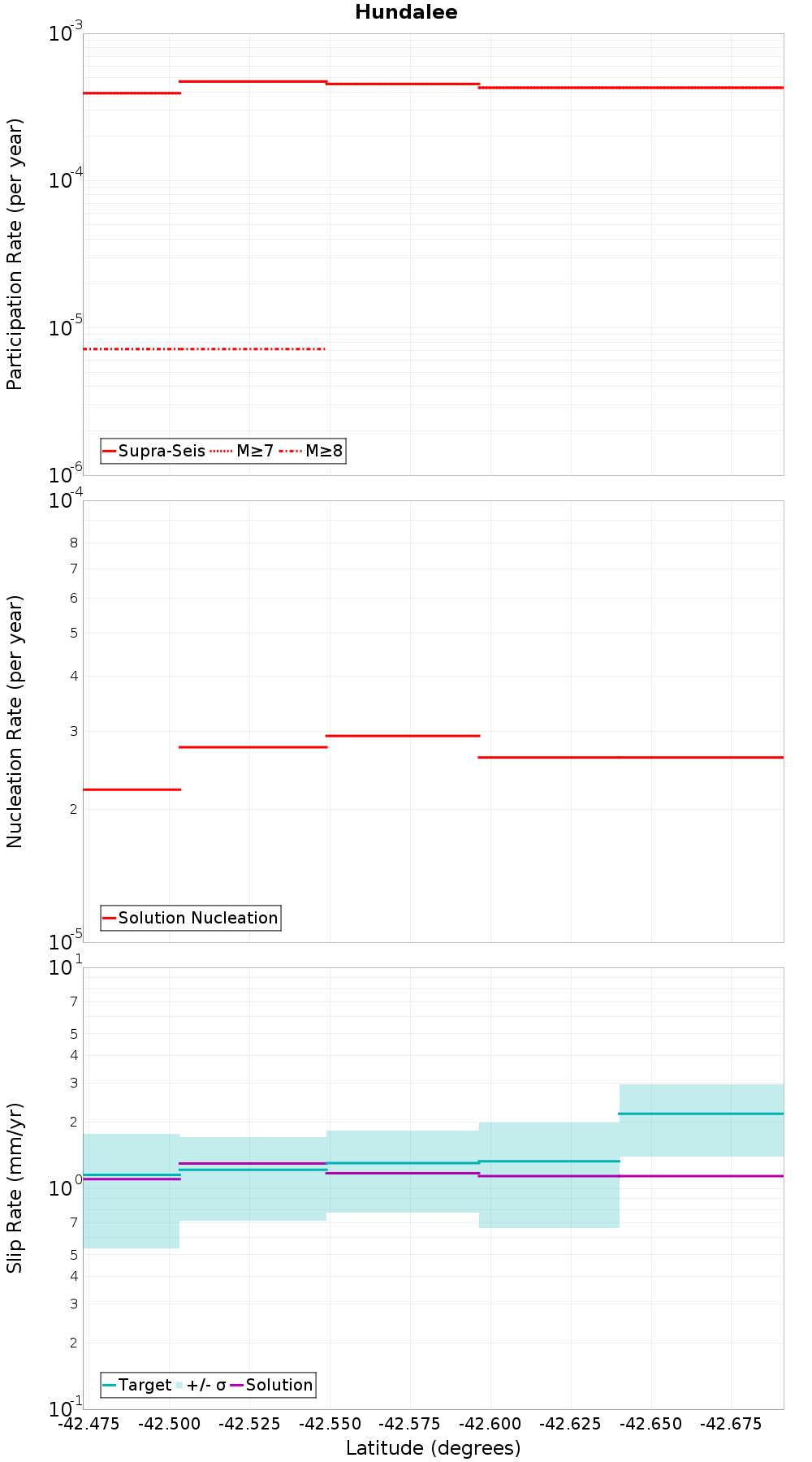

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

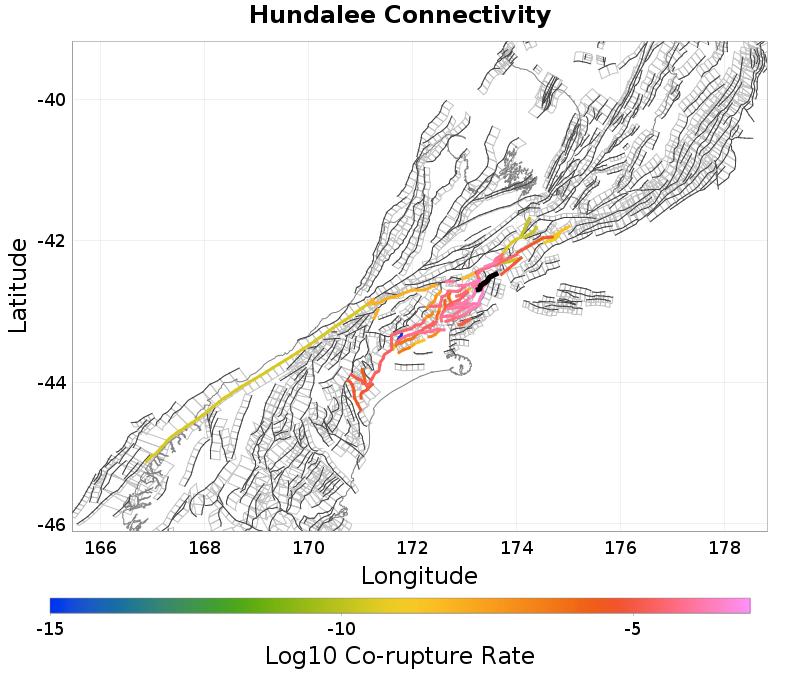

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
StoneJug, 0.05 km away
Leader: Central, 0.25 km away
The Humps, 0.25 km away
Hawkswood, 0.87 km away
Kaiwara North, 3.47 km away
Conway Trough West, 5.24 km away
Leader: South, 5.67 km away
Offshore Splay Thrust, 6.67 km away
Hope: Conway, 7.09 km away
Kowhai, 7.44 km away
Upper Kowhai - Manakau, 9 km away
Kaikoura 2, 9.44 km away
Leonard Mound, 9.87 km away
Leader: North, 12.83 km away

StoneJug, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate0.0

Leader: Central, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count2,305
Co-rupture Rate4.8141264E-5

The Humps, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count8,710
Co-rupture Rate1.6947955E-4

Hawkswood, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count4,582
Co-rupture Rate3.1616914E-4

Kaiwara North, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count516
Co-rupture Rate1.4714373E-4

Conway Trough West, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count182
Co-rupture Rate1.2899358E-4

Offshore Splay Thrust, 6.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count5,254
Co-rupture Rate8.803776E-6

Hope: Conway, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count2,110
Co-rupture Rate4.8141264E-5

Kowhai, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count2,206
Co-rupture Rate2.3461897E-4

Upper Kowhai - Manakau, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count621
Co-rupture Rate7.631991E-5

Kaikoura 2, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leonard Mound, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count123
Co-rupture Rate3.4960867E-5

Leader: North, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count1,422
Co-rupture Rate4.8136728E-5
