Roaring Lion Details

PropertyValue
Rupture Count9,807
Ruptures Above Sect Min Mag9,806
Ruptures w/ Nonzero Rates109
Magnitude Range[7.21, 8.43]
Length Range[33, 800] km
Total Rate9.1645044E-5 /yr
Multi-Fault Rate9.1645044E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults87

Table Of Contents

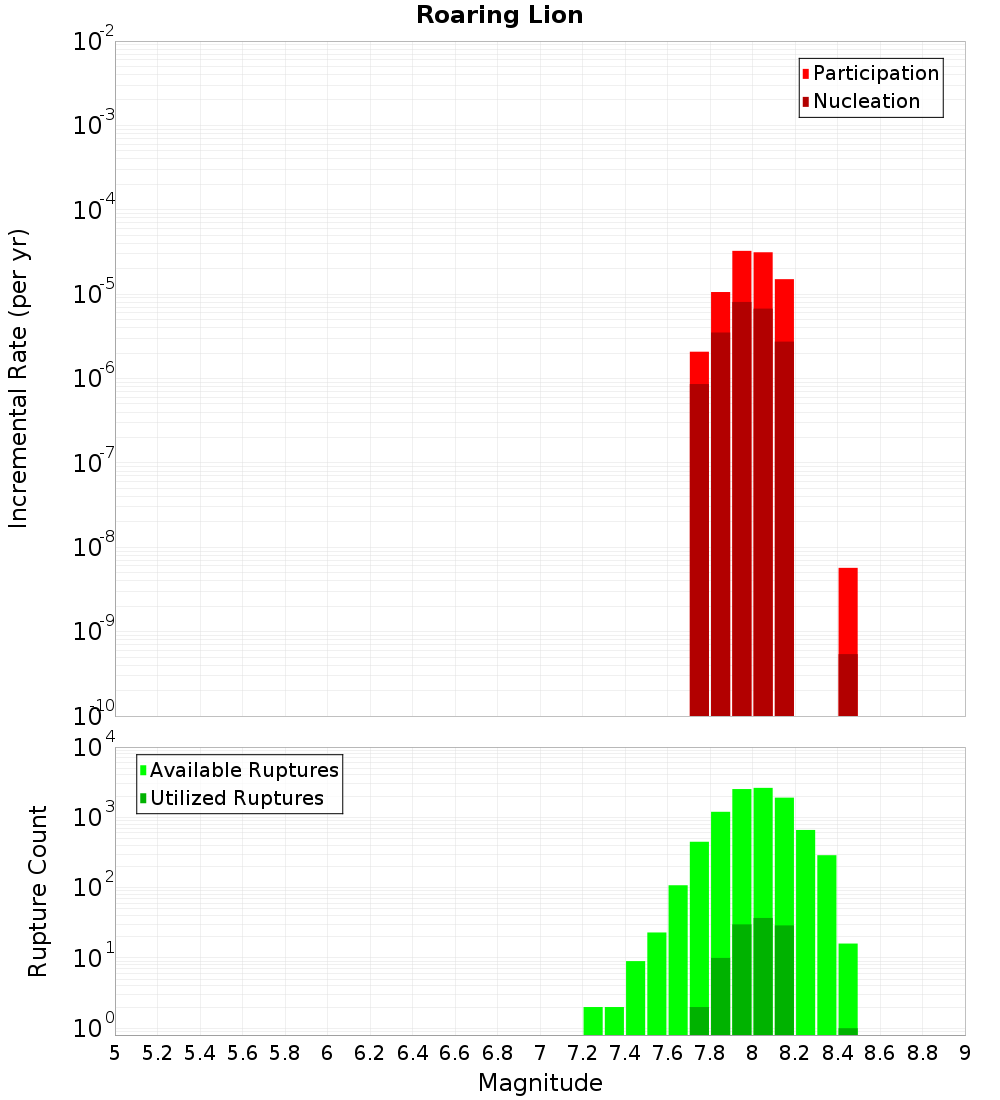

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

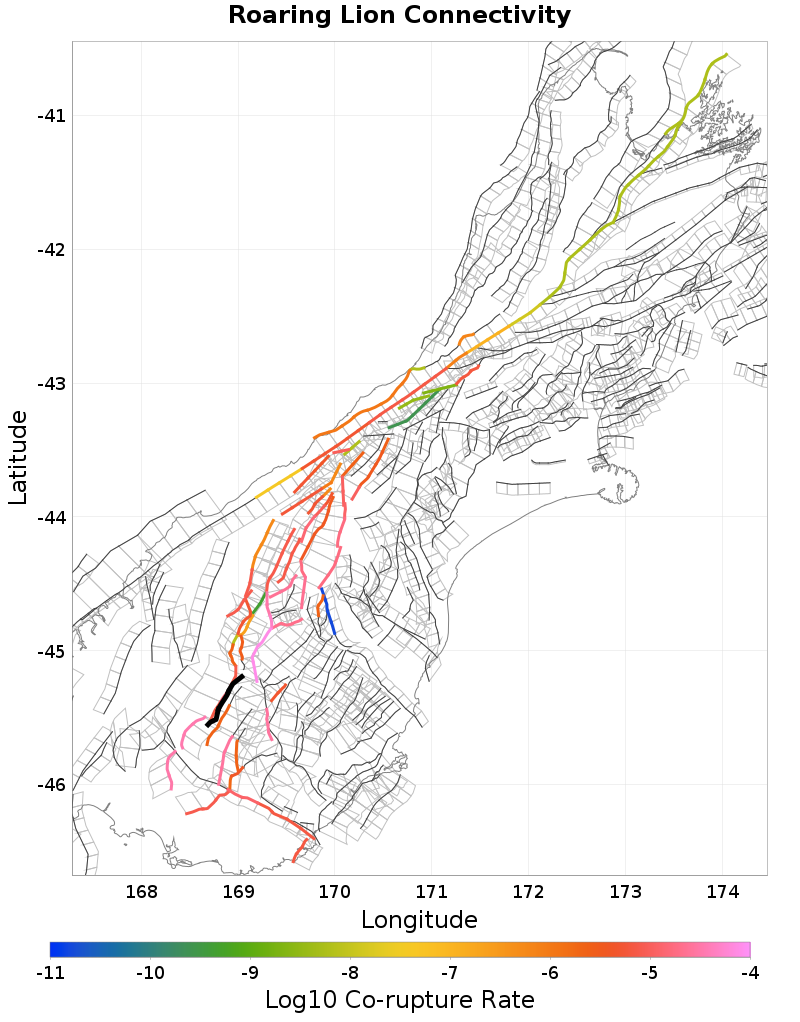

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Old Man, 0.17 km away
Galloway Shanty, 0.37 km away
Nevis, 0.43 km away
Pisa, 1.94 km away
Garvie, 2.75 km away
Teviot, 4.71 km away
Mid Dome, 5.34 km away
Roaring Meg, 6.16 km away
Waikaia, 6.18 km away
Dunstan, 6.38 km away
Wendon Valley, 10.51 km away
Lake Onslow, 10.7 km away
NW Cardrona South, 10.86 km away
Galloway, 13.77 km away

Old Man, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count334
Co-rupture Rate2.6689517E-5

Galloway Shanty, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count239
Co-rupture Rate4.7662184E-6

Nevis, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count2,862
Co-rupture Rate1.47576275E-5

Pisa, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count9,543
Co-rupture Rate7.943998E-5

Garvie, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count1,399
Co-rupture Rate2.2219563E-6

Teviot, 4.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count1,103
Co-rupture Rate0.0

Mid Dome, 5.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?true
Co-rupture Count2,400
Co-rupture Rate3.3715623E-5

Roaring Meg, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count582
Co-rupture Rate2.8117383E-6

Waikaia, 6.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count903
Co-rupture Rate2.6689517E-5

Dunstan, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate0.0

Wendon Valley, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate2.2196036E-6

Lake Onslow, 10.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?true
Directly Connected?false
Co-rupture Count1,200
Co-rupture Rate2.3142159E-6

Galloway, 13.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNTguMFZxWVRE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
