Bennett Knoll Details

PropertyValue
Rupture Count3,447
Ruptures Above Sect Min Mag3,443
Ruptures w/ Nonzero Rates54
Magnitude Range[7.05, 8.29]
Length Range[25, 453] km
Total Rate2.7844272E-4 /yr
Multi-Fault Rate2.7844272E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults38

Table Of Contents

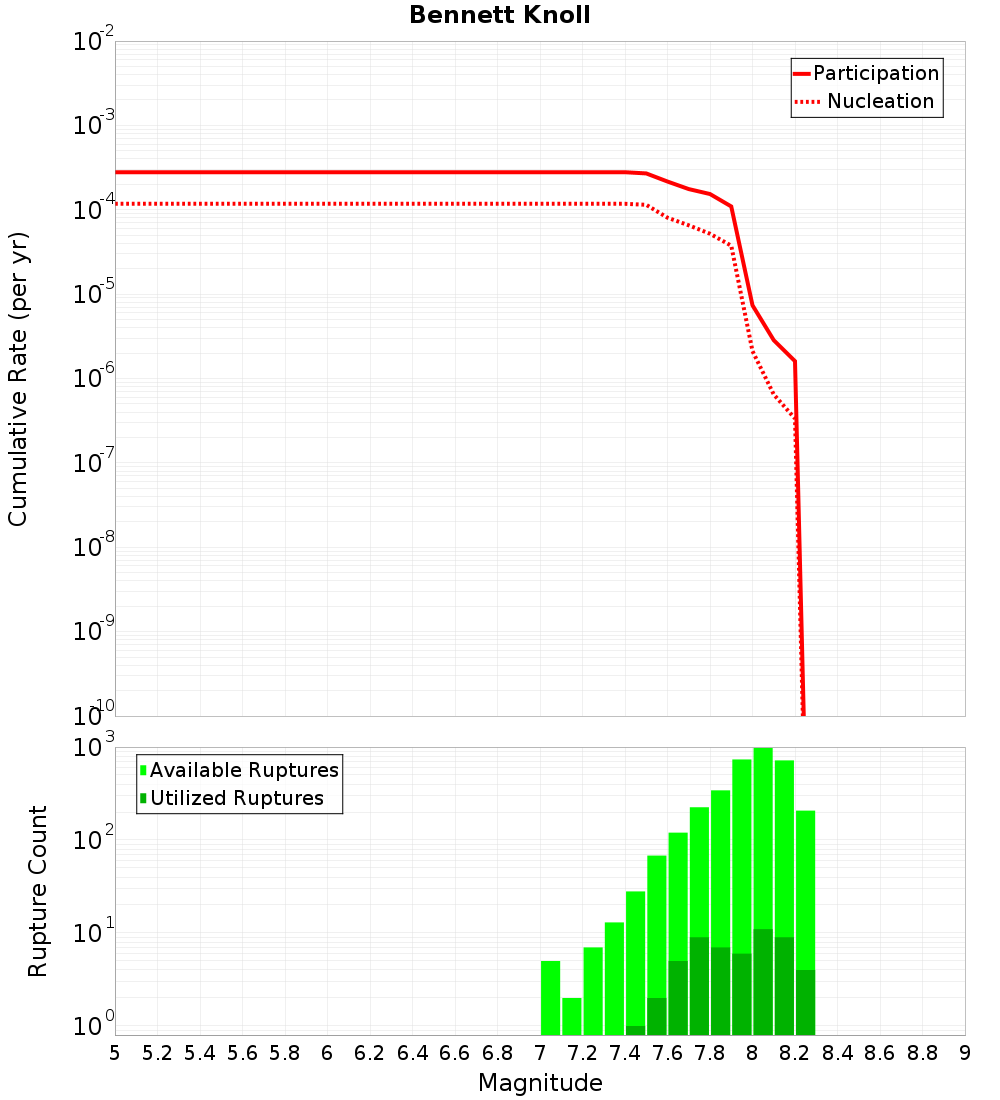

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

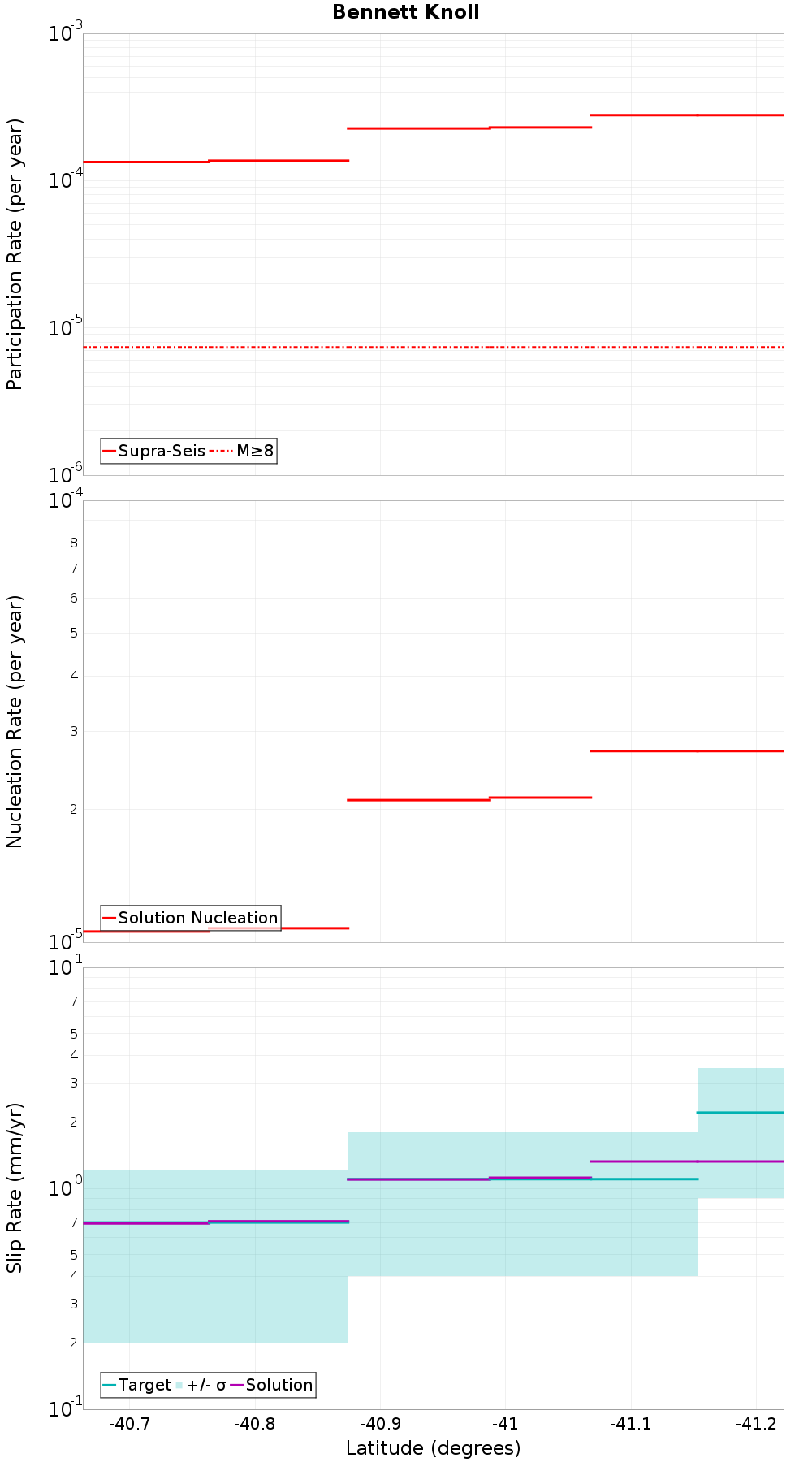

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

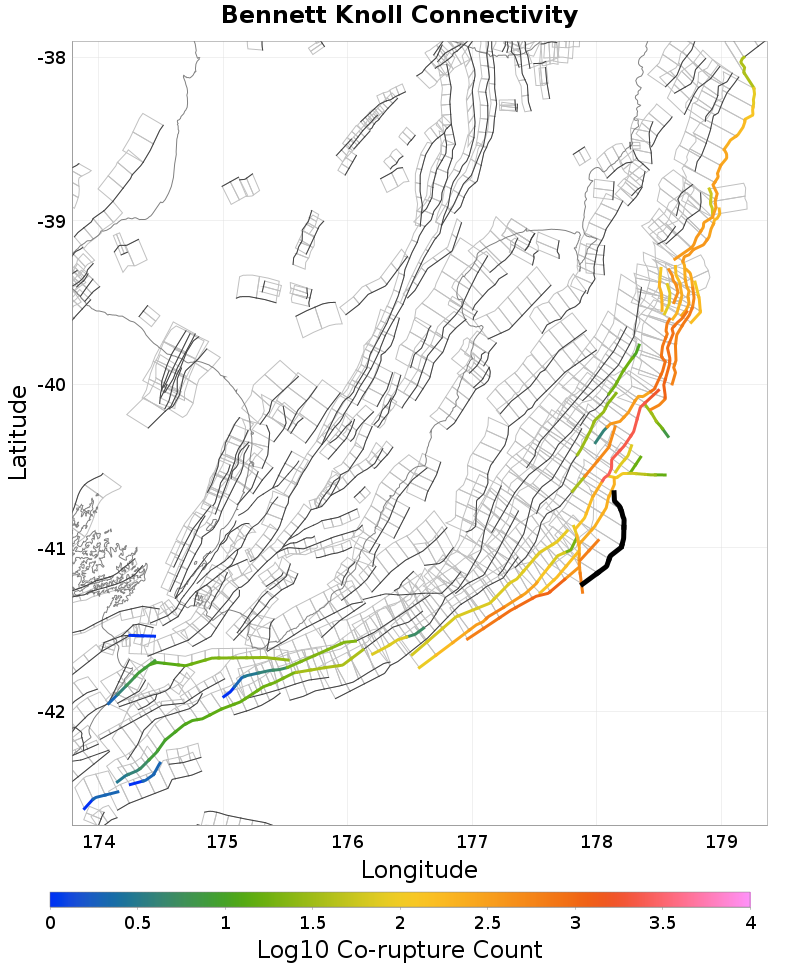

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
BKSmt-West, 0.21 km away
F16 - Central, 1.07 km away
F17 - South, 5.32 km away
Akitio Ridge, 5.44 km away
F17 - Central, 6.66 km away
BKSmt-North, 7.43 km away
F16 - South, 8.18 km away
Akitio Trough West, 11.25 km away
Aorangi Ridge, 12.35 km away
F14 - North, 12.97 km away

BKSmt-West, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count713
Co-rupture Rate7.405348E-5

F16 - Central, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate3.1824184E-5

F17 - South, 5.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count1,094
Co-rupture Rate2.0438925E-4

Akitio Ridge, 5.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count2,716
Co-rupture Rate2.3880059E-5

F17 - Central, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count660
Co-rupture Rate0.0

BKSmt-North, 7.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?false
Co-rupture Count101
Co-rupture Rate2.4910353E-6

F16 - South, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate0.0

Akitio Trough West, 11.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count531
Co-rupture Rate3.9646926E-5

Aorangi Ridge, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?false
Co-rupture Count645
Co-rupture Rate1.044651E-4

F14 - North, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?false
Co-rupture Count75
Co-rupture Rate9.524203E-6
