Marlborough Slope 11 Details
| Property | Value |
|---|---|
| Rupture Count | 240 |
| Ruptures Above Sect Min Mag | 236 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.45, 8.33] |
| Length Range | [10, 565] km |
| Total Rate | 1.9212923E-4 /yr |
| Multi-Fault Rate | 1.9212923E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

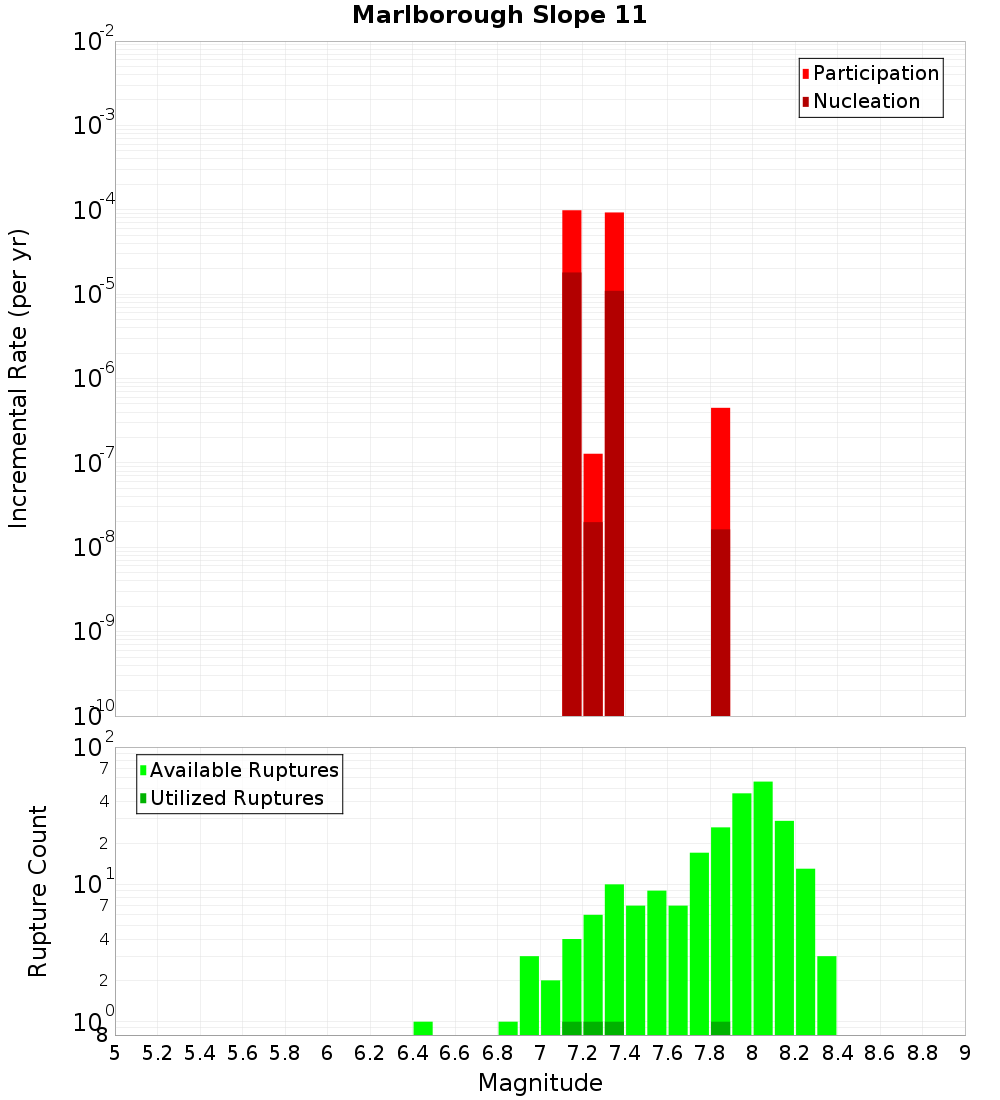

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

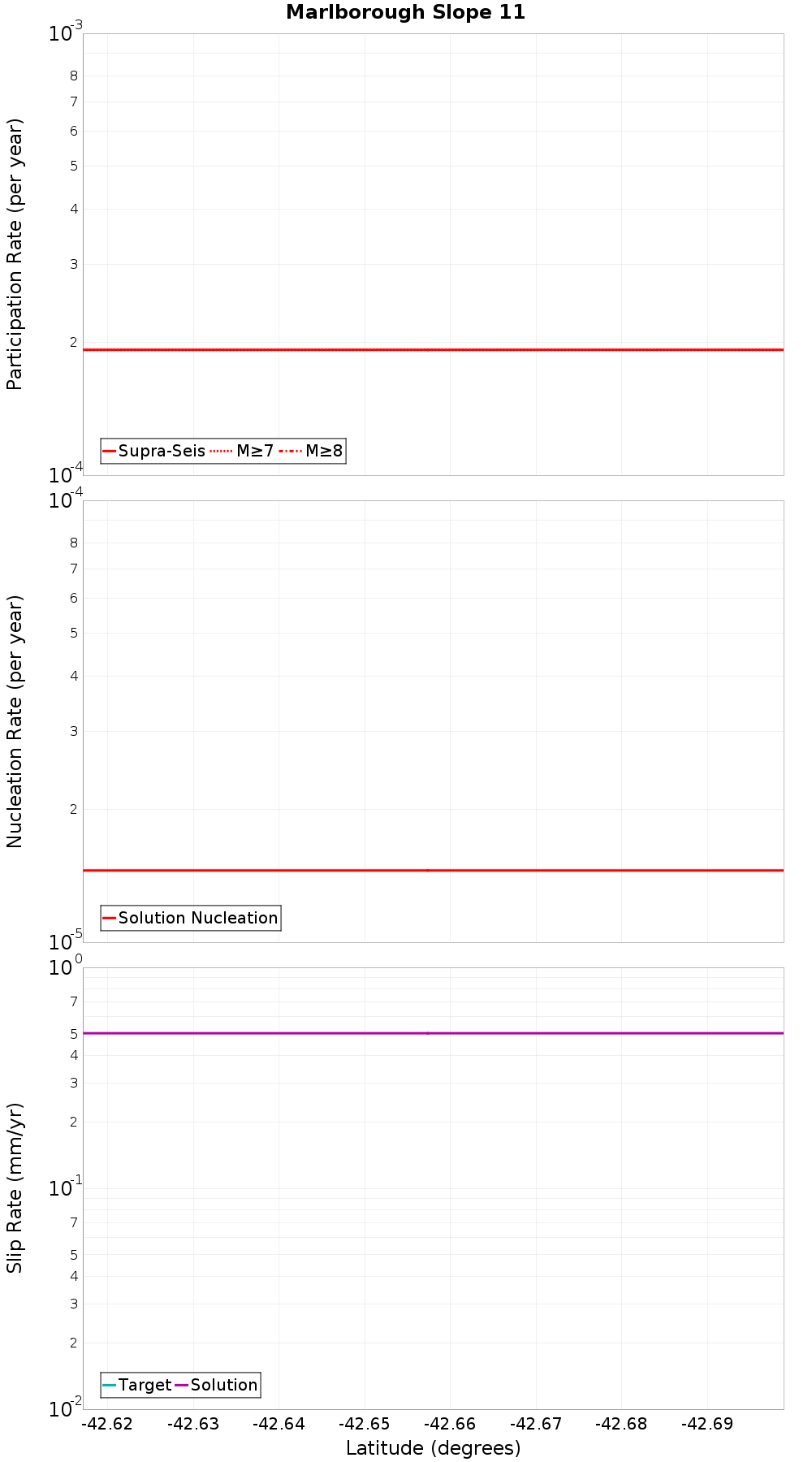

Along-Strike Values

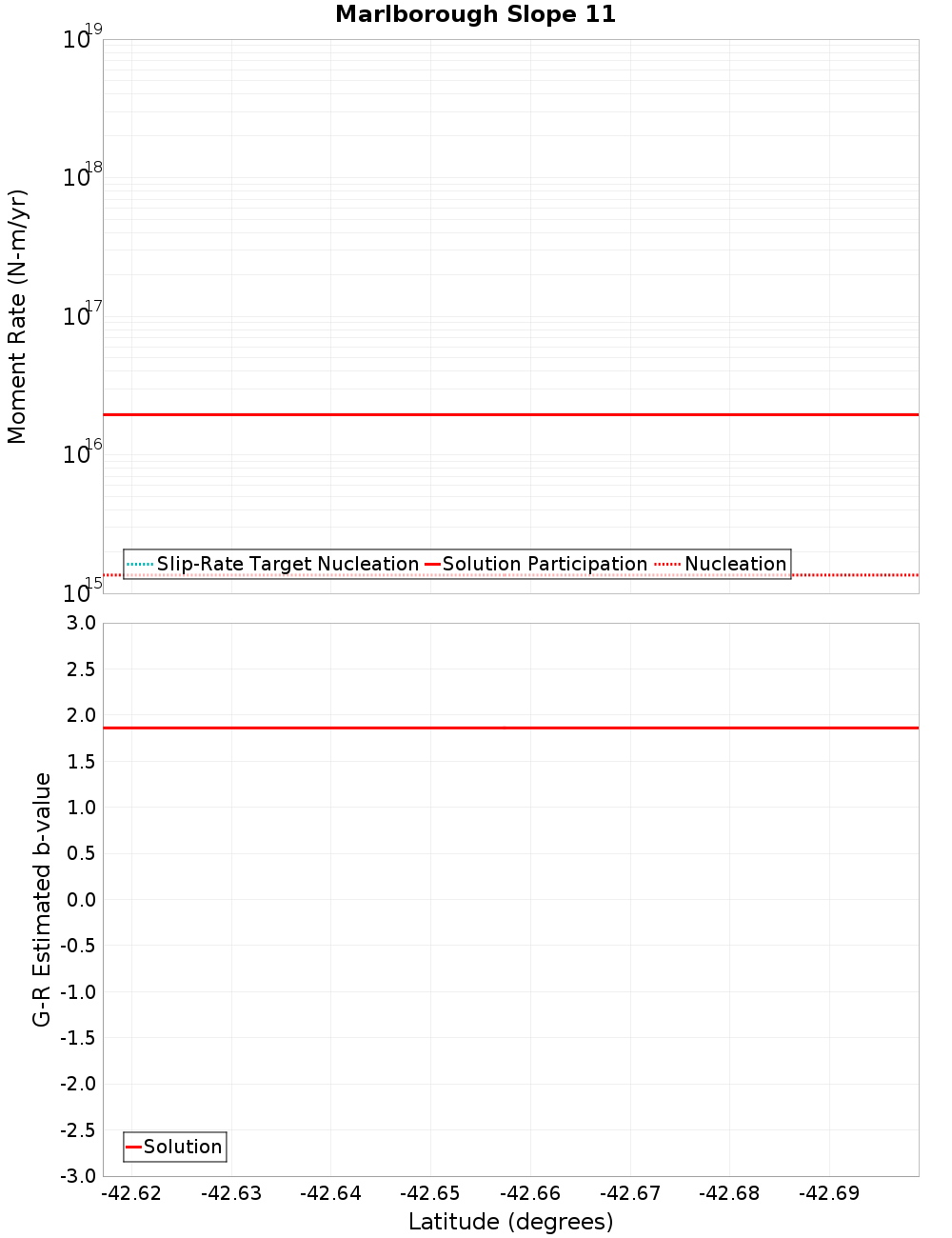

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 9, 1.67 km away |
| Conway Trough East, 8.48 km away |
| Marlborough Slope 10, 8.8 km away |
| Marlborough Slope 2, 9.5 km away |
Marlborough Slope 9, 1.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Conway Trough East, 8.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.9167979E-4 |
Marlborough Slope 10, 8.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.9167979E-4 |
Marlborough Slope 2, 9.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 221 |
| Co-rupture Rate | 4.4944753E-7 |
