Rapuwai Details

PropertyValue
Rupture Count748
Ruptures Above Sect Min Mag746
Ruptures w/ Nonzero Rates35
Magnitude Range[6.88, 8.23]
Length Range[20, 506] km
Total Rate1.2082756E-4 /yr
Multi-Fault Rate1.2082756E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults64

Table Of Contents

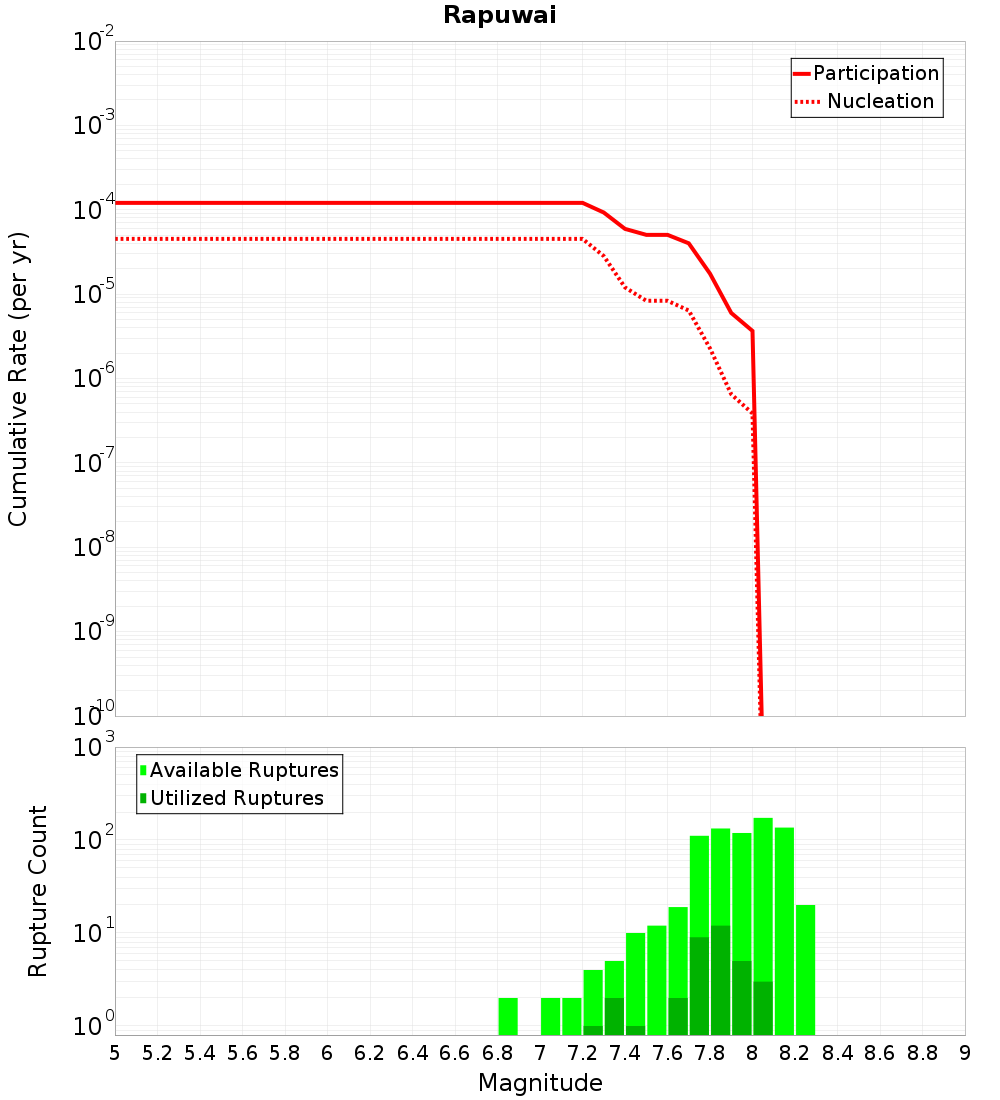

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

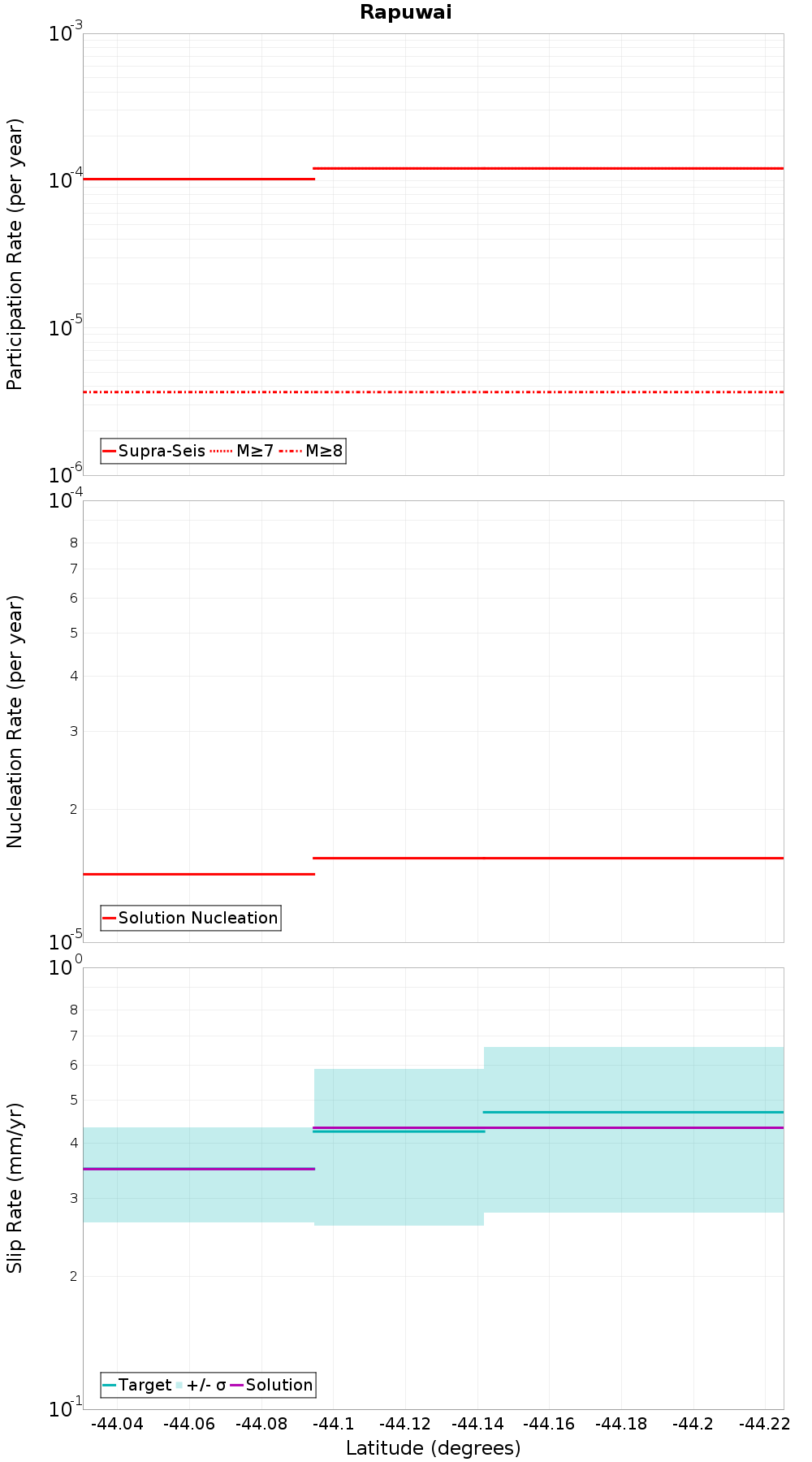

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

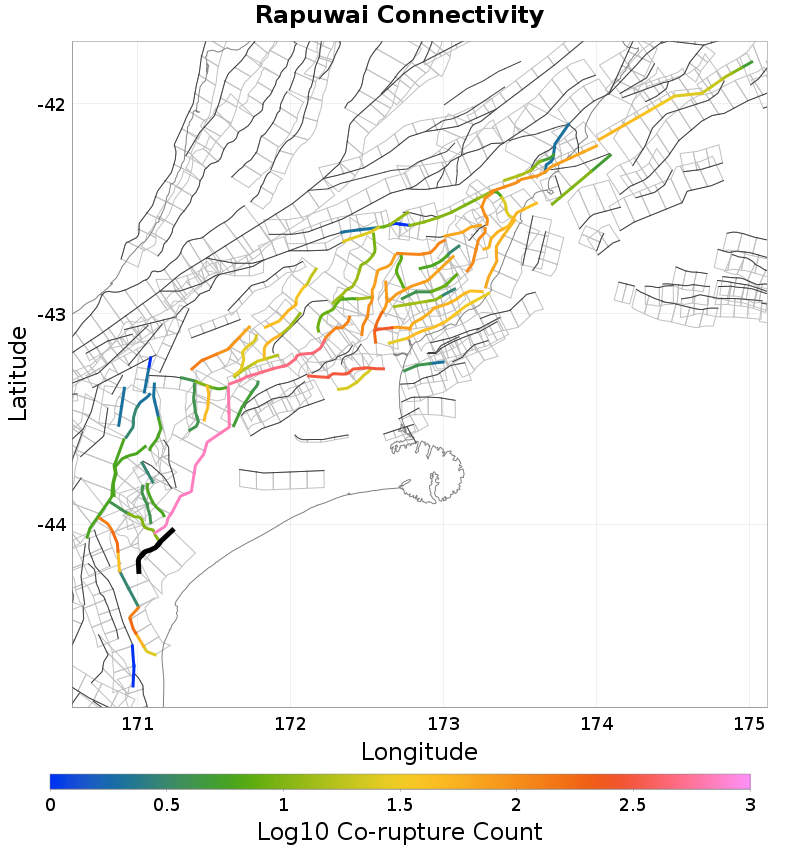

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Sugarloaf, 0.81 km away
Brothers, 3.77 km away
Hutt Peel, 4.18 km away
Maungati, 4.77 km away
Edith, 8.93 km away
Catherine, 10.69 km away
Albury, 14.9 km away

Sugarloaf, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate0.0

Brothers, 3.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count172
Co-rupture Rate2.530736E-5

Hutt Peel, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate5.0429073E-5

Maungati, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate3.716134E-5

Edith, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate7.039848E-5

Catherine, 10.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Albury, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEVua2Ny
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
