Alfredton North Details
| Property | Value |
|---|---|
| Rupture Count | 3,346 |
| Ruptures Above Sect Min Mag | 3,343 |
| Ruptures w/ Nonzero Rates | 73 |
| Magnitude Range | [6.65, 8.57] |
| Length Range | [15, 1,083] km |
| Total Rate | 1.039596E-4 /yr |
| Multi-Fault Rate | 1.039596E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 95 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

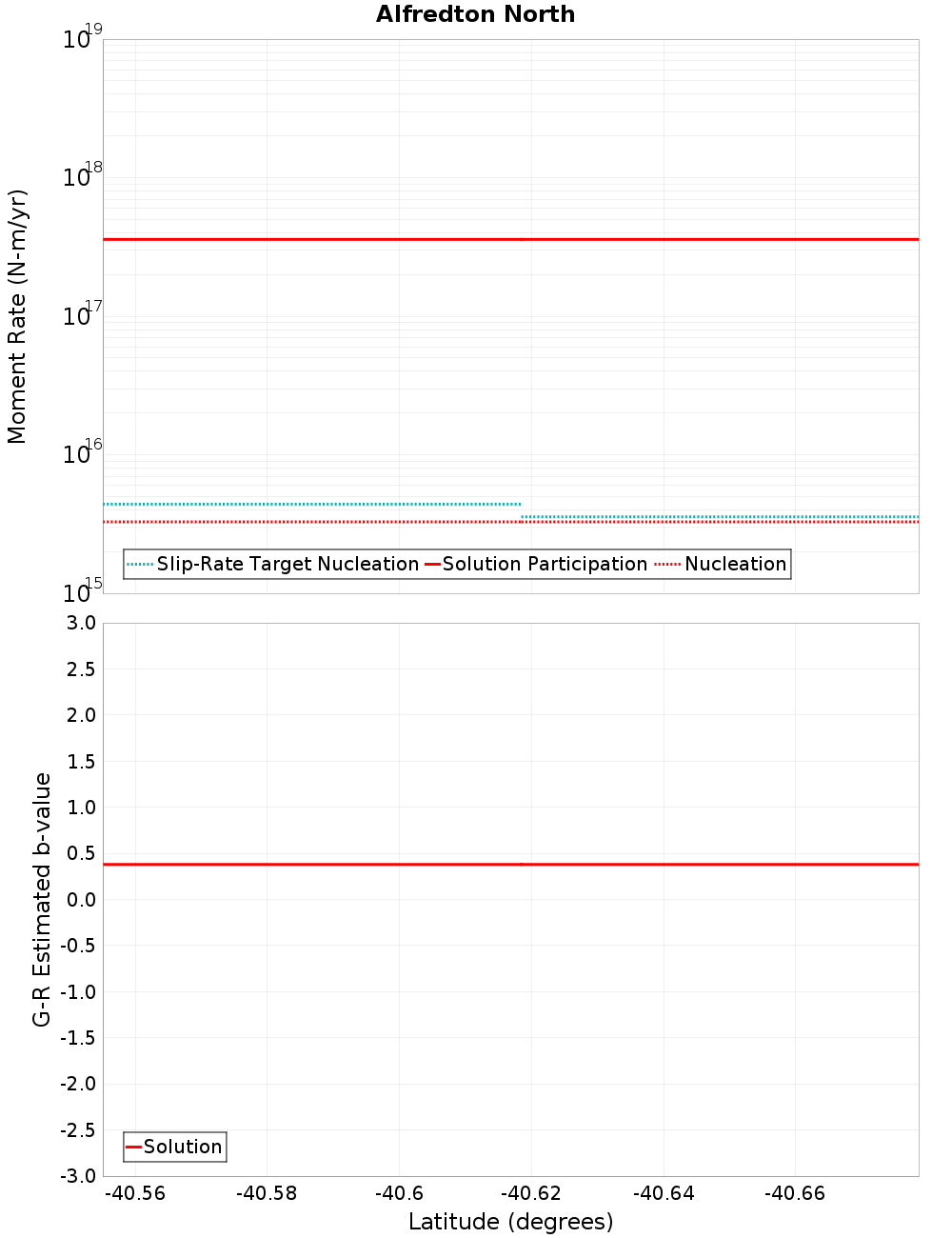

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alfredton South, 0 km away |
| Saunders Road, 0 km away |
| Pa Valley, 0.21 km away |
| Makuri - Waewaepa, 0.29 km away |
| Dreyers Rock, 5.16 km away |
| Pahiatua, 12.96 km away |
| Waitawhiti, 14.48 km away |
Alfredton South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,322 |
| Co-rupture Rate | 1.6556001E-5 |
Saunders Road, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pa Valley, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Makuri - Waewaepa, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,543 |
| Co-rupture Rate | 9.808217E-5 |
Dreyers Rock, 5.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,293 |
| Co-rupture Rate | 7.8710094E-5 |
Pahiatua, 12.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitawhiti, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
