Landsborough 2 Details

Property	Value
Rupture Count	26,782
Ruptures Above Sect Min Mag	26,778
Ruptures w/ Nonzero Rates	169
Magnitude Range	[6.79, 8.47]
Length Range	[19, 783] km
Total Rate	1.2357054E-4 /yr
Multi-Fault Rate	1.2356992E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	240

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

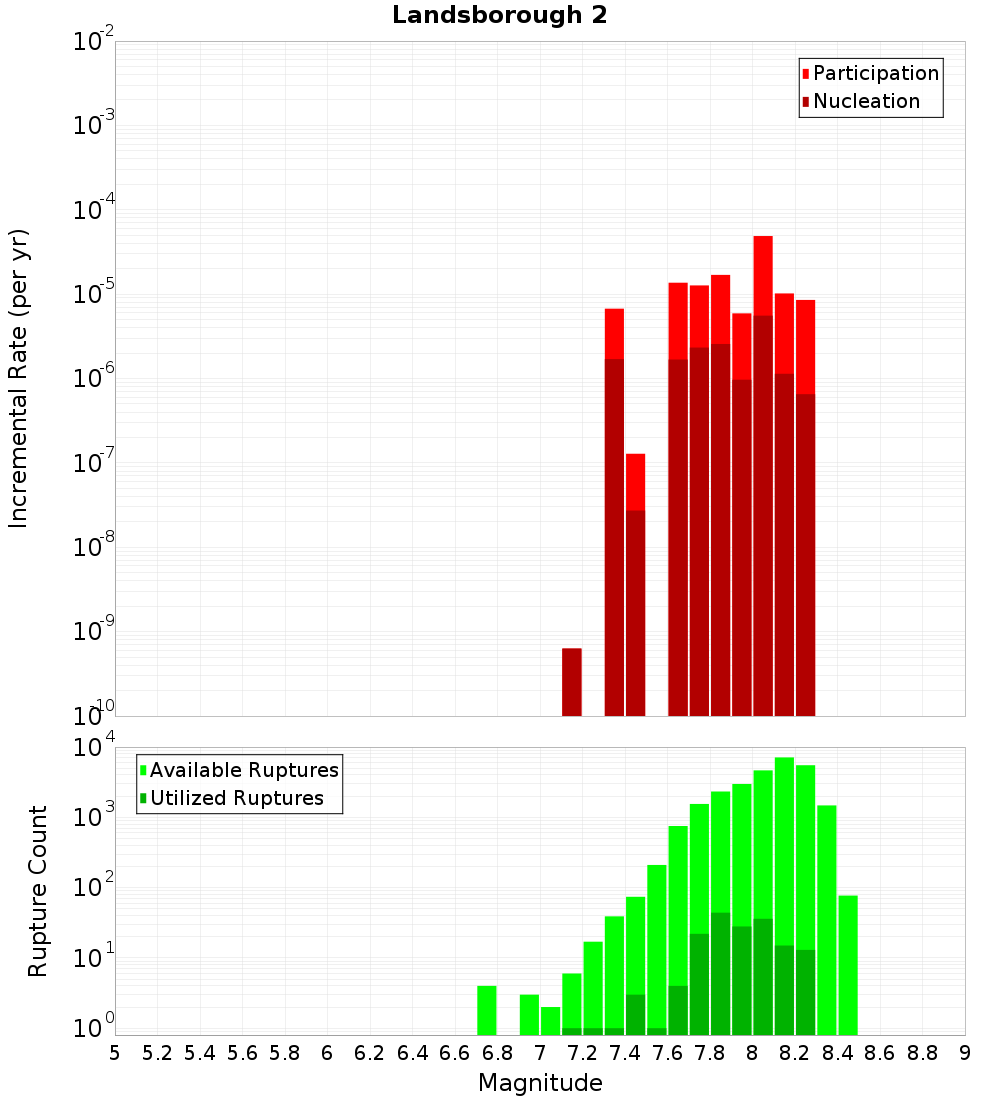

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

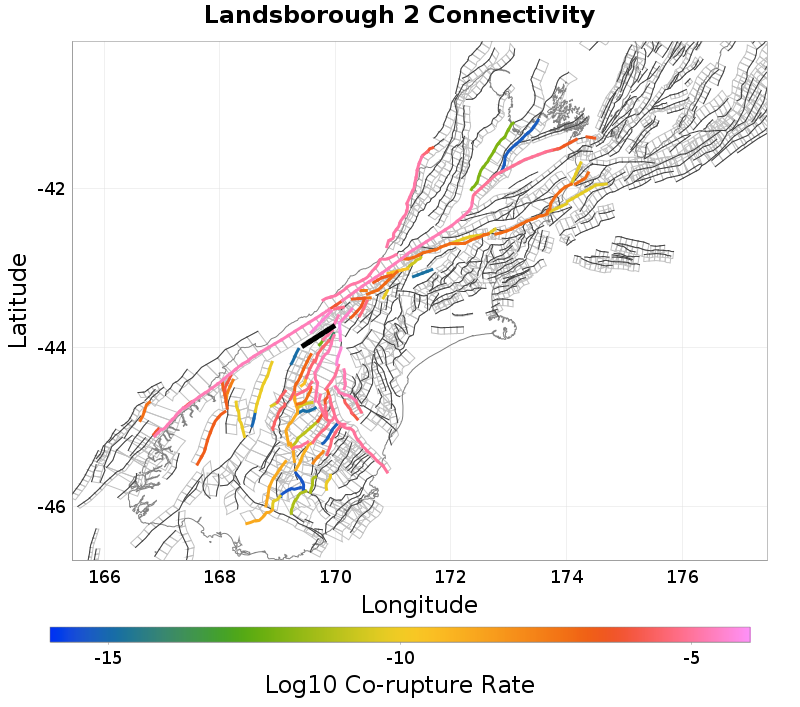

Connectivity

Nearby Sections

Fault Section
McKerrow - Douglas Duplex, 0 km away
Great Groove, 0.23 km away
Huxley, 0.41 km away
Hopkins, 1.13 km away
Karangarua, 3.37 km away
Barrier Range, 4.34 km away
Alpine: Jacksons to Kaniere, 4.68 km away
Wanaka, 8.15 km away
Ostler North, 9.22 km away
Straight Creek, 9.31 km away
Black Blob - Haast Ridge, 9.83 km away
Liebig North, 10.63 km away
Hunter Valley, 10.99 km away
Murchison 1 - Ice Lake, 13.81 km away

McKerrow - Douglas Duplex, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	9,759
Co-rupture Rate	1.9753841E-5

Great Groove, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	7,142
Co-rupture Rate	7.527606E-5

Huxley, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	3,154
Co-rupture Rate	1.1450708E-5

Hopkins, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	2,775
Co-rupture Rate	3.0610659E-6

Karangarua, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	5,311
Co-rupture Rate	4.2360803E-5

Barrier Range, 4.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	3,174
Co-rupture Rate	1.8302206E-5

Alpine: Jacksons to Kaniere, 4.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	10,304
Co-rupture Rate	4.1801795E-5

Wanaka, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	1,133
Co-rupture Rate	1.2504703E-15

Ostler North, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	391
Co-rupture Rate	4.075489E-5

Straight Creek, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	2,795
Co-rupture Rate	6.939769E-6

Black Blob - Haast Ridge, 9.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	6,803
Co-rupture Rate	2.8239861E-5

Liebig North, 10.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	455
Co-rupture Rate	4.4438957E-6

Hunter Valley, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	143
Co-rupture Rate	1.2626553E-7

Murchison 1 - Ice Lake, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	6,623
Co-rupture Rate	3.0579906E-7
