Maimai: Brunner Anticline Details
| Property | Value |
|---|---|
| Rupture Count | 2,715 |
| Ruptures Above Sect Min Mag | 2,711 |
| Ruptures w/ Nonzero Rates | 29 |
| Magnitude Range | [6.79, 8.57] |
| Length Range | [19, 1,039] km |
| Total Rate | 8.168264E-5 /yr |
| Multi-Fault Rate | 5.9188733E-5 /yr (72.46%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 54 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

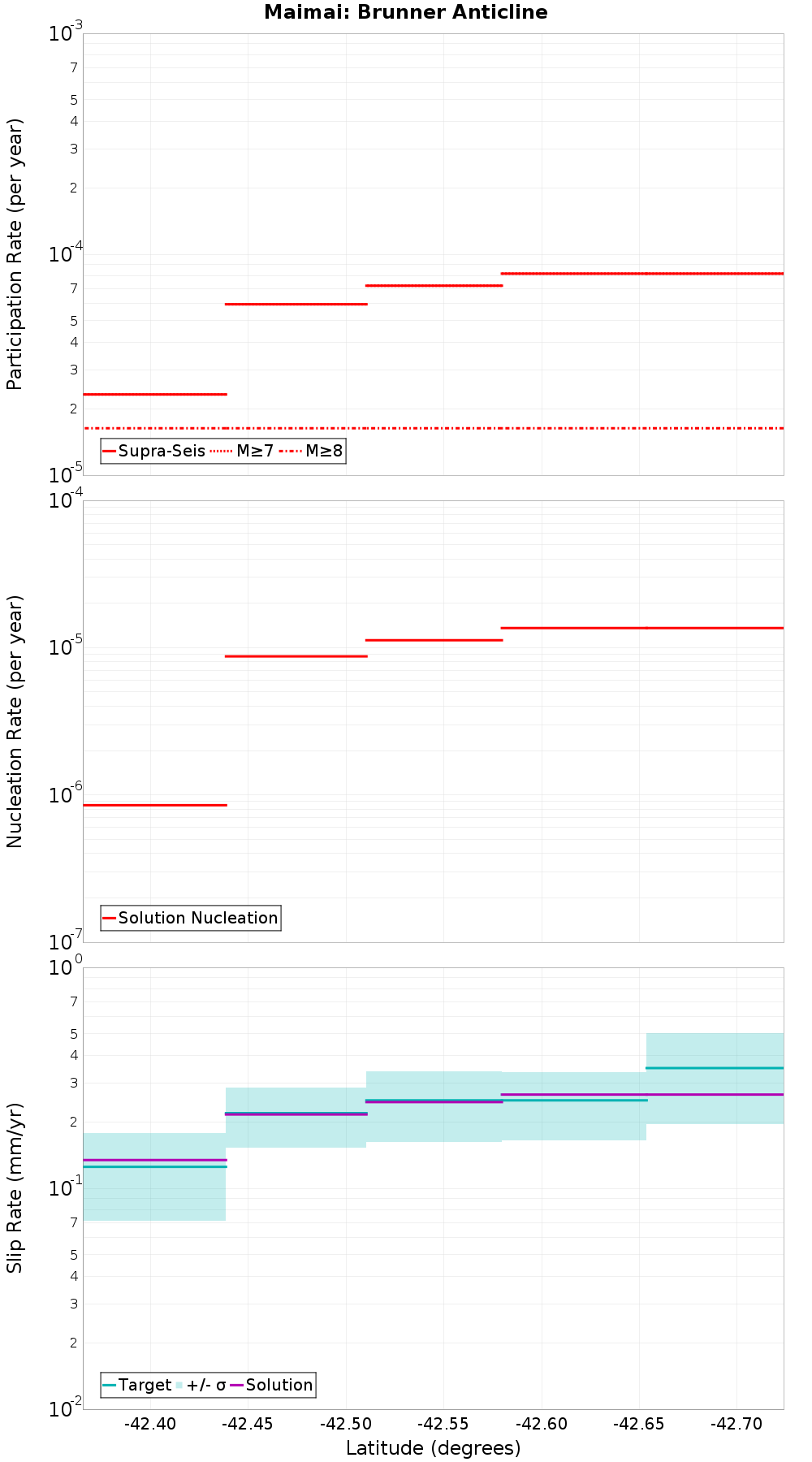

Along-Strike Values
Moment-Rates and b-Values

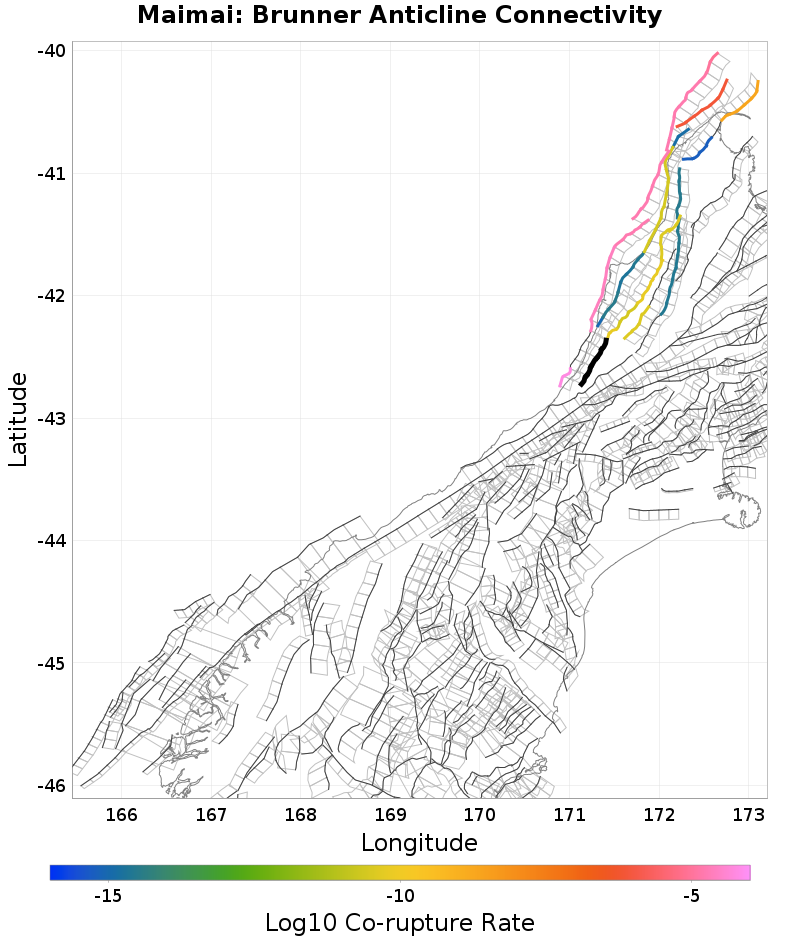

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maimai: South, 0 km away |
| Cape Foulwind 1, 0.41 km away |
| Hohonu South, 7.36 km away |
| Paparoa West, 7.72 km away |
| Hohonu, 8.83 km away |
Maimai: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,127 |
| Co-rupture Rate | 6.236834E-11 |
Cape Foulwind 1, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 608 |
| Co-rupture Rate | 7.917104E-5 |
Hohonu South, 7.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Paparoa West, 7.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 676 |
| Co-rupture Rate | 3.1868274E-15 |
Hohonu, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
