Mossburn Details

Property	Value
Rupture Count	6,849
Ruptures Above Sect Min Mag	6,849
Ruptures w/ Nonzero Rates	135
Magnitude Range	[7.14, 8.61]
Length Range	[26, 1,002] km
Total Rate	1.1058523E-4 /yr
Multi-Fault Rate	6.111023E-5 /yr (55.26%)
Directly-Connected Faults	2
All Co-Rupturing Faults	105

Table Of Contents

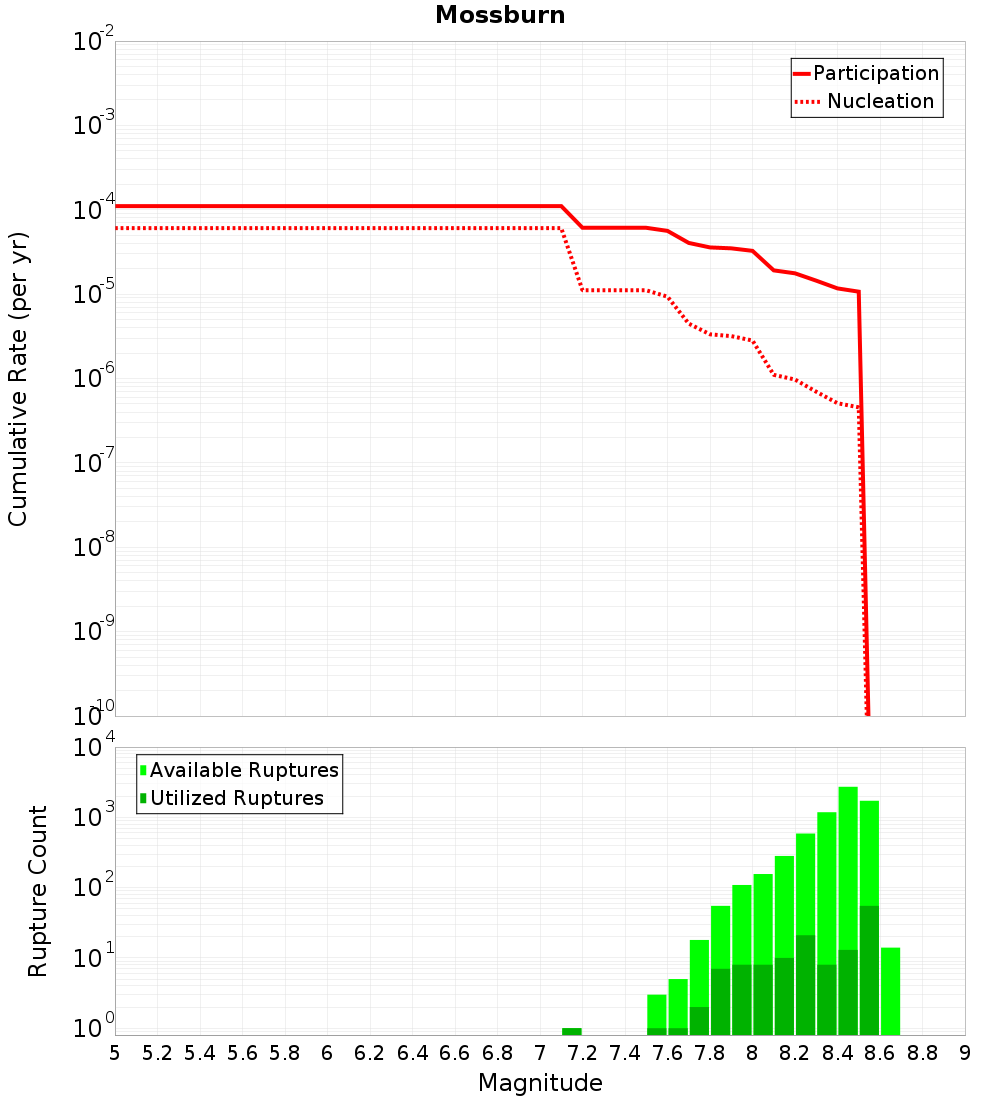

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

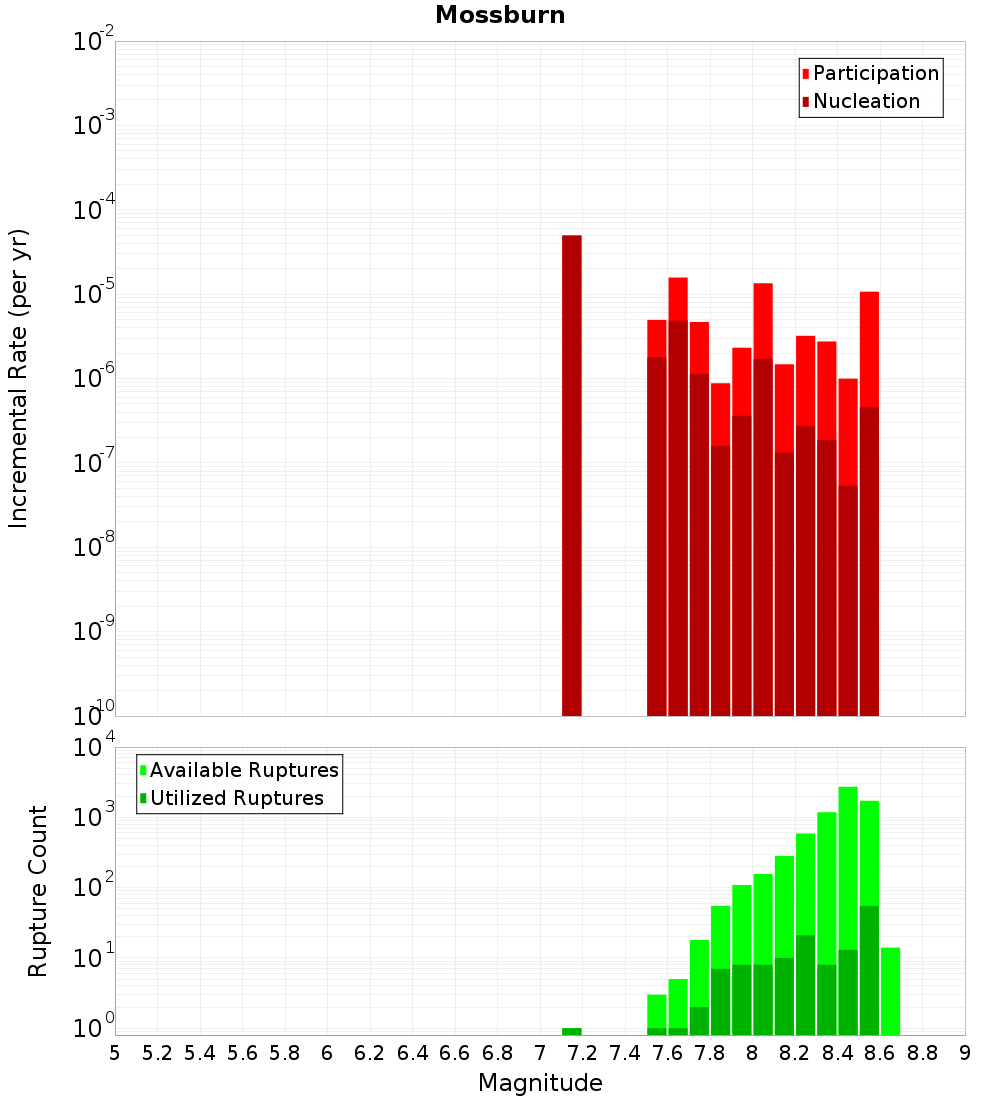

Magnitude-Frequency Distribution

Incremental	Cumulative

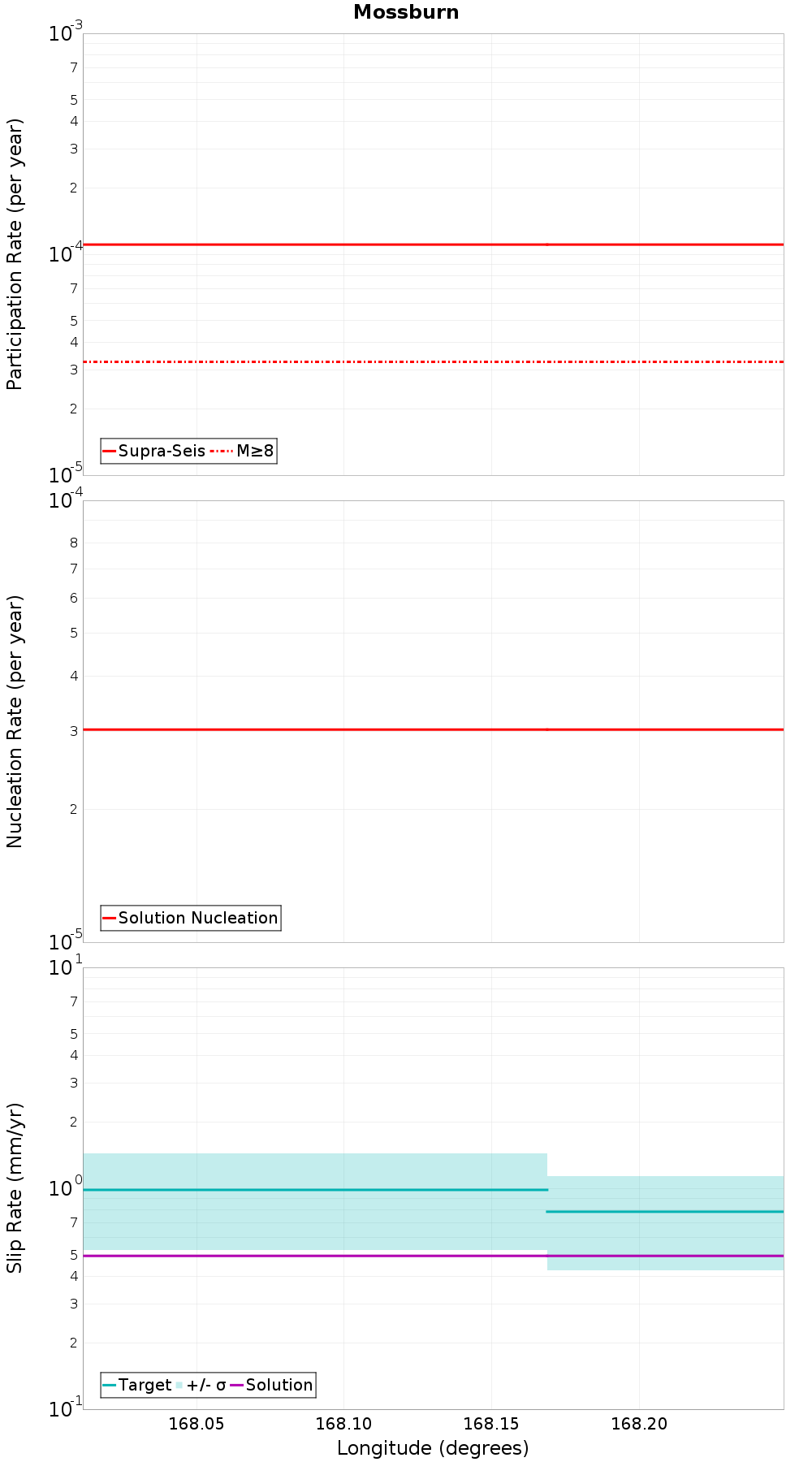

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Moonlight South, 0.18 km away
Hokonui, 1.17 km away
Acton, 1.57 km away
Tin Hut, 2.3 km away
White Hill, 12.87 km away
Mid Dome, 14.2 km away
McKerchar, 14.52 km away

Moonlight South, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	6,841
Co-rupture Rate	2.6884289E-5

Hokonui, 1.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	6,163
Co-rupture Rate	6.110999E-5

Acton, 1.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	8.5491365E-7

Tin Hut, 2.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Hill, 12.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	44
Co-rupture Rate	7.104995E-6

Mid Dome, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

McKerchar, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
