Motuokura North Details
| Property | Value |
|---|---|
| Rupture Count | 911 |
| Ruptures Above Sect Min Mag | 908 |
| Ruptures w/ Nonzero Rates | 63 |
| Magnitude Range | [6.80, 8.13] |
| Length Range | [20, 440] km |
| Total Rate | 7.6799115E-5 /yr |
| Multi-Fault Rate | 7.6799115E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 29 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

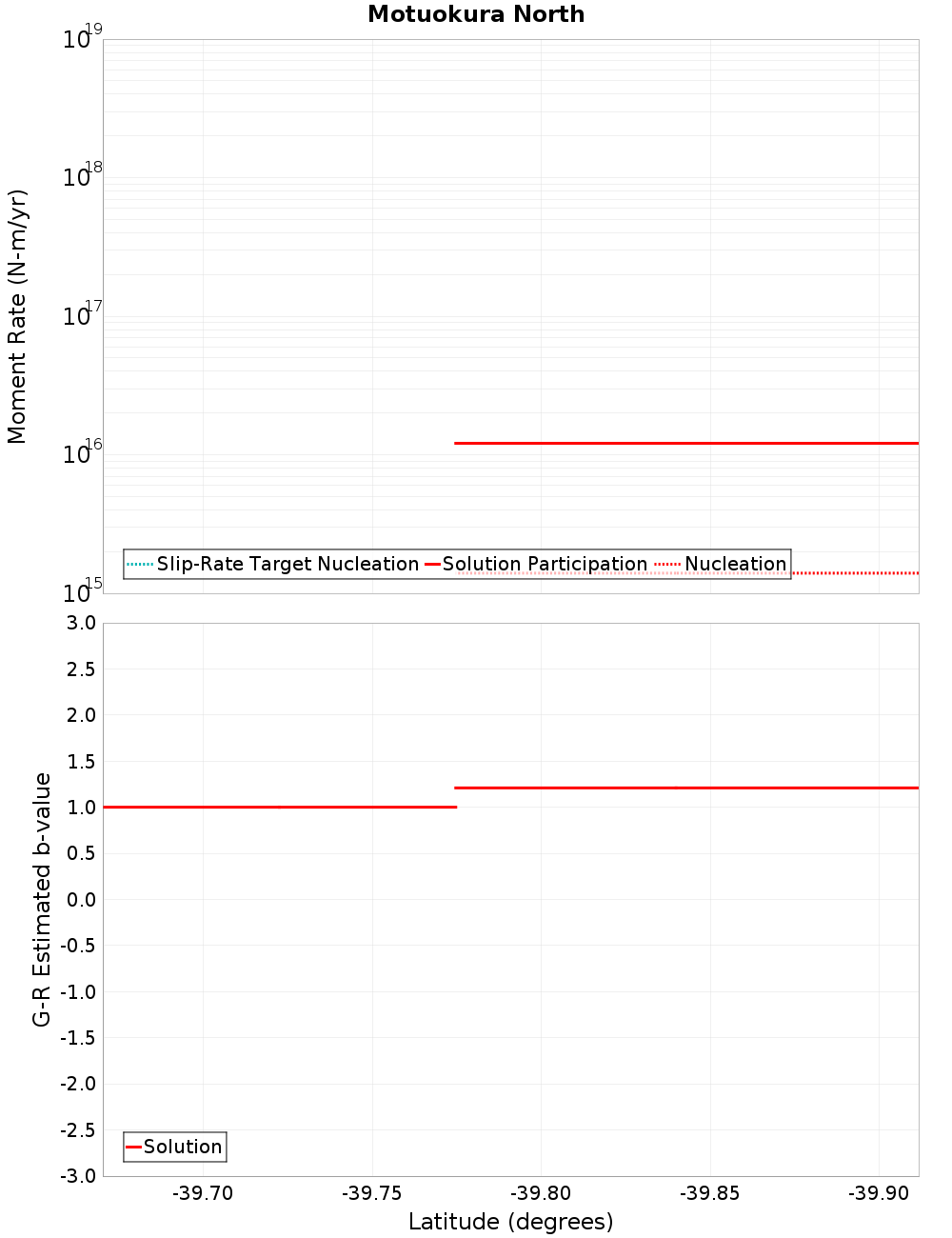

Moment-Rates and b-Values

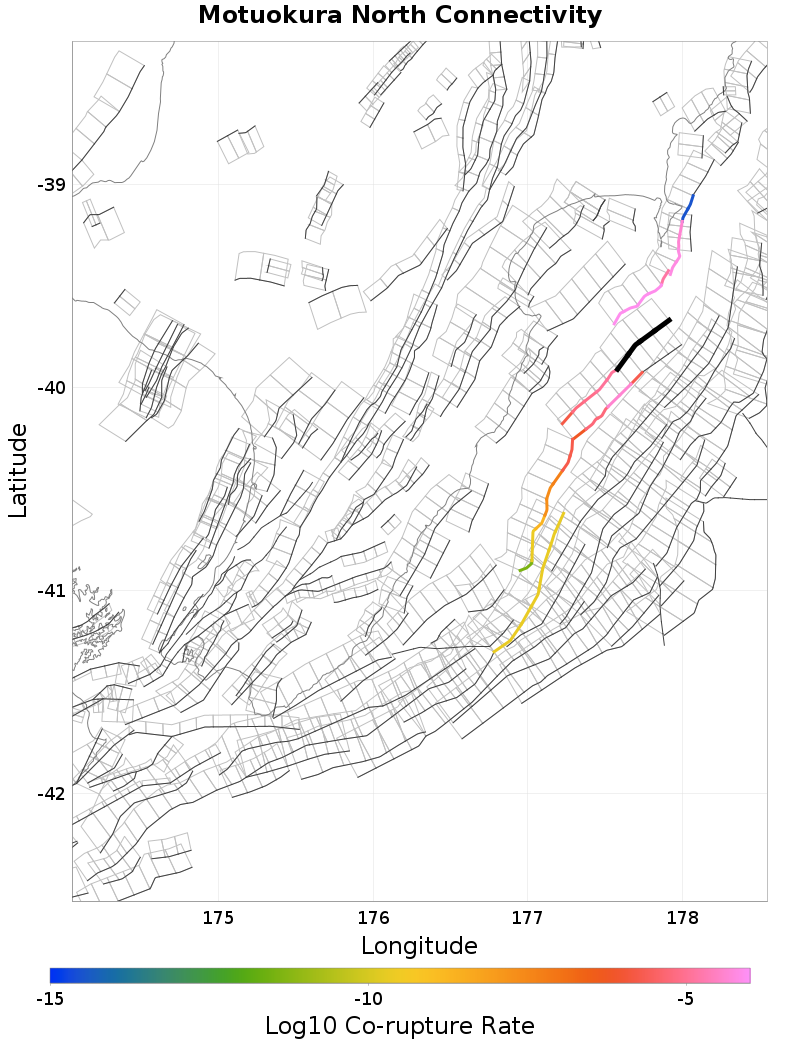

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura Ridge, 0 km away |
| Motu o Kura East, 7.07 km away |
| Lachlan 1 & 2, 10.61 km away |
Motu o Kura Ridge, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 610 |
| Co-rupture Rate | 1.1379944E-5 |
Motu o Kura East, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 252 |
| Co-rupture Rate | 4.0170253E-5 |
Lachlan 1 & 2, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 359 |
| Co-rupture Rate | 7.67989E-5 |
