North Mernoo E2-2 Details
| Property | Value |
|---|---|
| Rupture Count | 90 |
| Ruptures Above Sect Min Mag | 85 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.37, 7.72] |
| Length Range | [9, 193] km |
| Total Rate | 4.5559543E-9 /yr |
| Multi-Fault Rate | 4.5559543E-9 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

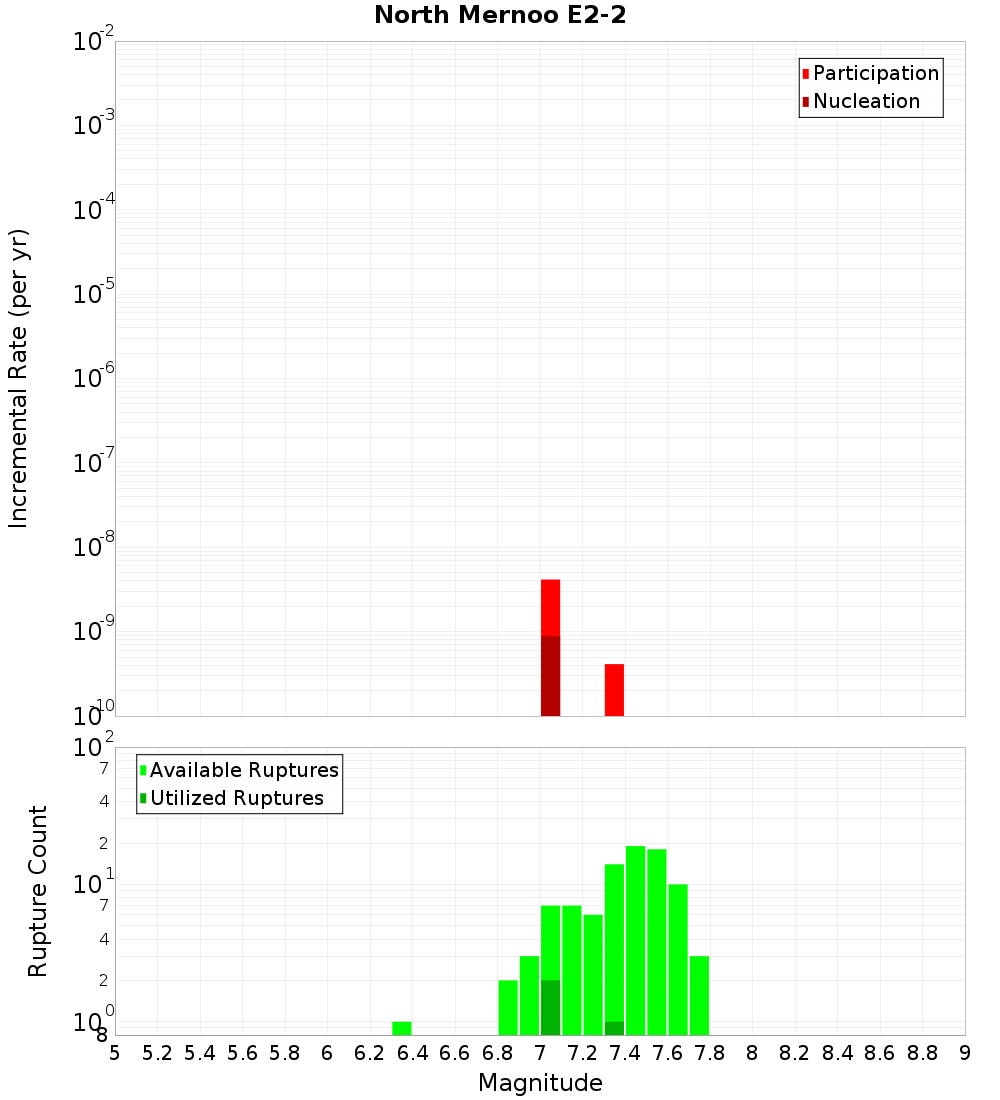

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

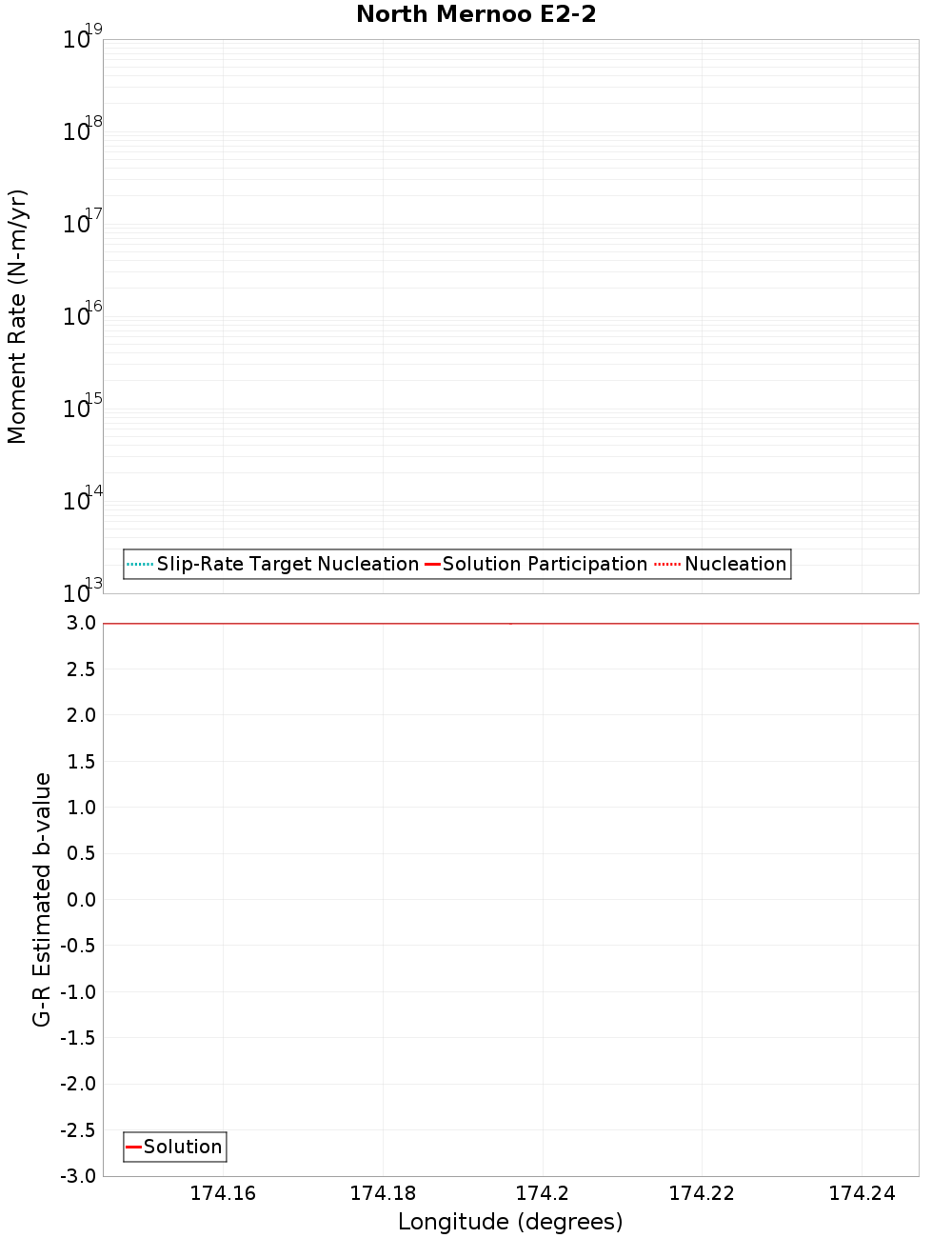

Moment-Rates and b-Values

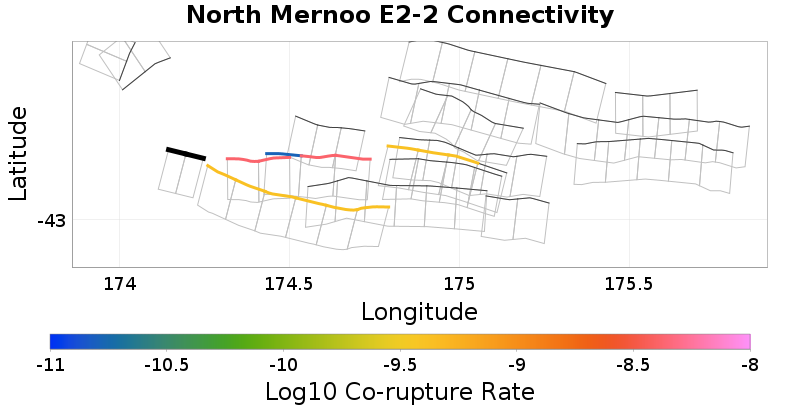

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| North Mernoo E2-1, 1.89 km away |
| North Mernoo Fa-2, 5.75 km away |
North Mernoo E2-1, 1.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 77 |
| Co-rupture Rate | 4.2826478E-10 |
North Mernoo Fa-2, 5.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 4.1276893E-9 |
