Pohangina Details

PropertyValue
Rupture Count695
Ruptures Above Sect Min Mag694
Ruptures w/ Nonzero Rates60
Magnitude Range[7.12, 8.21]
Length Range[28, 425] km
Total Rate5.7486377E-5 /yr
Multi-Fault Rate5.6368568E-5 /yr (98.06%)
Directly-Connected Faults2
All Co-Rupturing Faults62

Table Of Contents

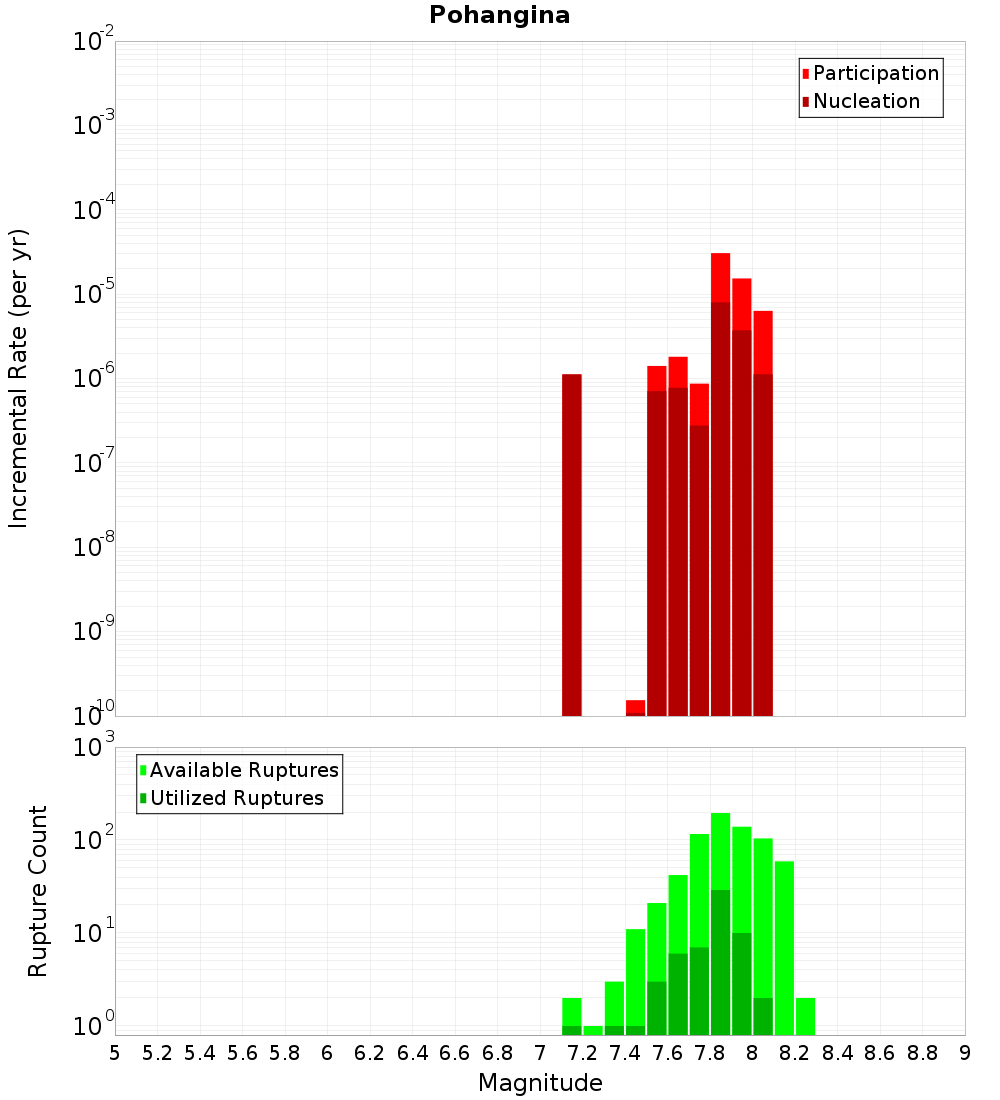

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

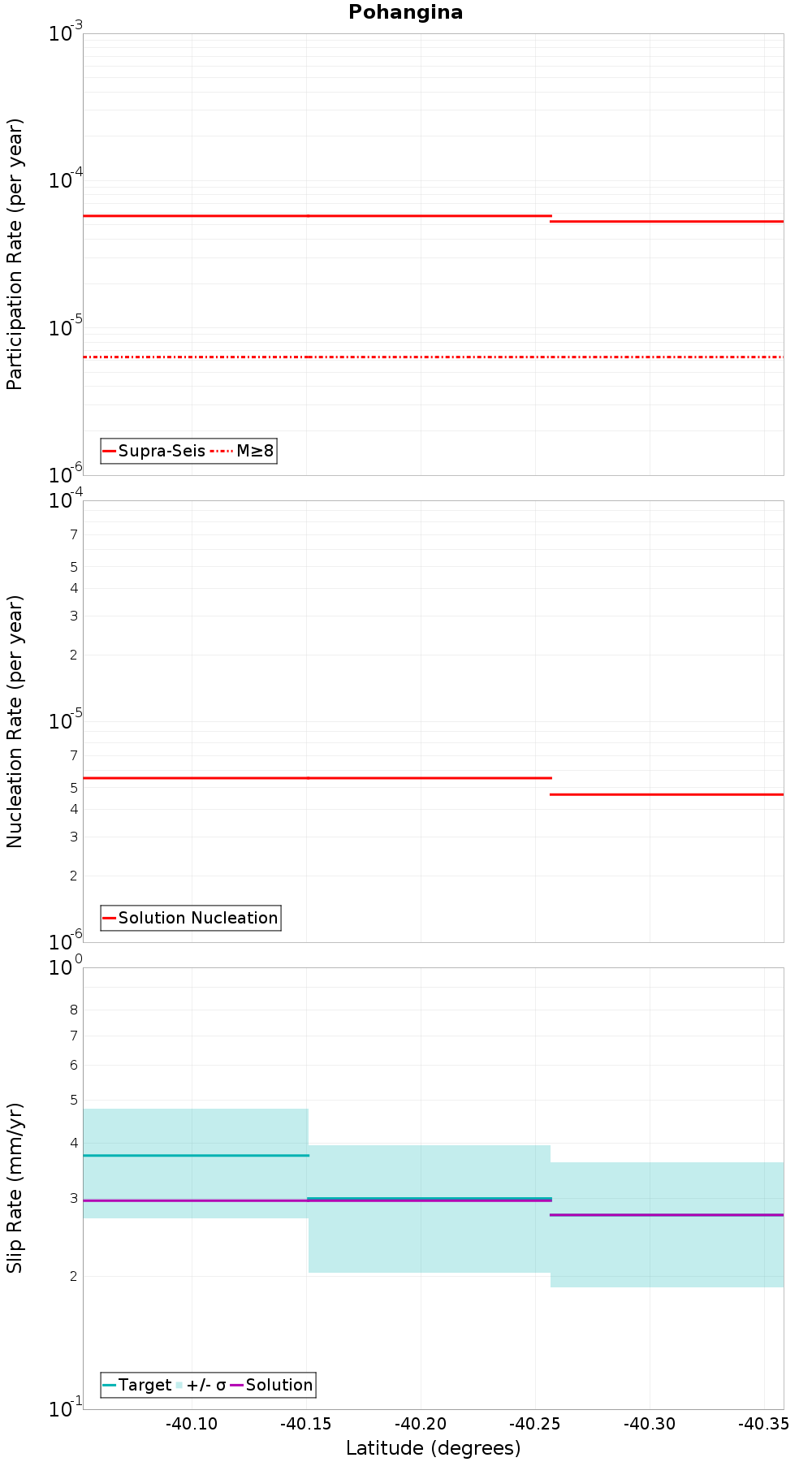

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

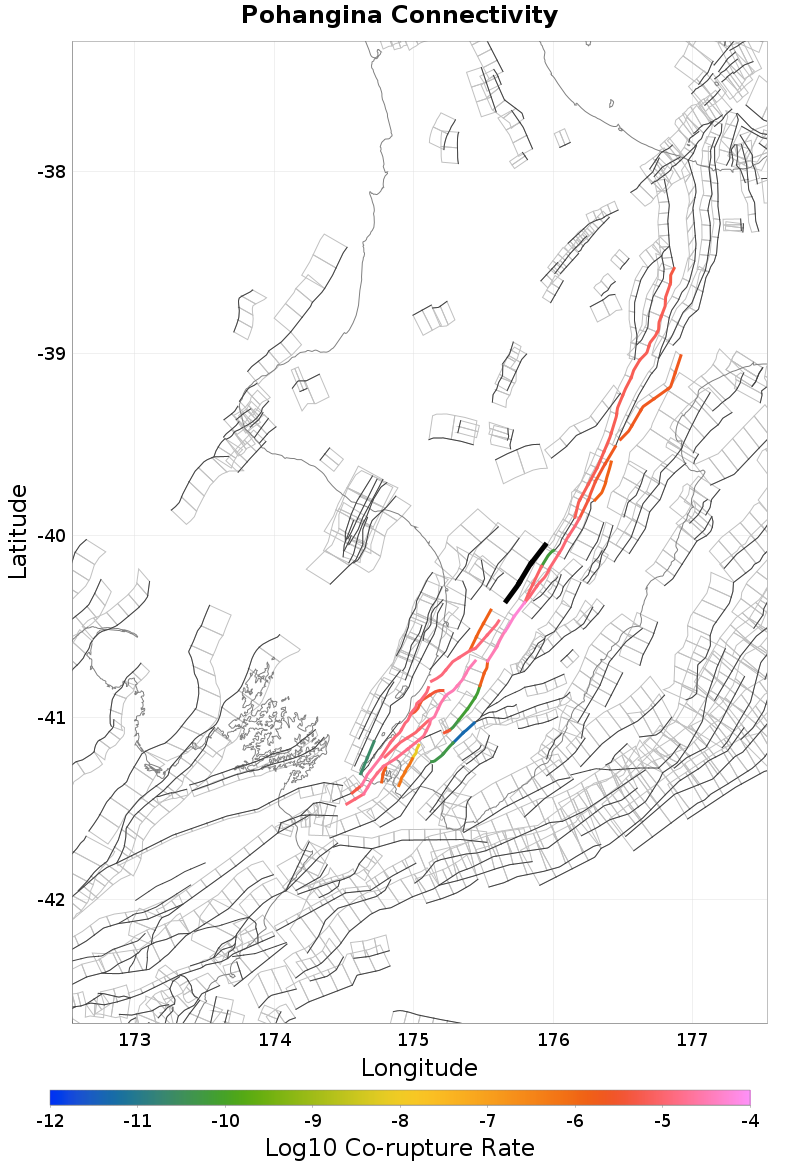

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ruahine: South, 5.25 km away
Wellington: Pahiatua, 9.35 km away
Mohaka: South, 9.44 km away
Taonui, 9.68 km away
Tokomaru, 9.88 km away
Rangefront, 12.41 km away
Woodville, 12.61 km away
Rauoterangi, 12.82 km away
Northern Ohariu, 13.14 km away

Ruahine: South, 5.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count231
Co-rupture Rate8.391823E-6

Wellington: Pahiatua, 9.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count686
Co-rupture Rate5.6368568E-5

Mohaka: South, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count183
Co-rupture Rate1.0560458E-5

Taonui, 9.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Tokomaru, 9.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.3917356E-6

Rangefront, 12.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Woodville, 12.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rauoterangi, 12.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate1.2250808E-5
