Rangitaiki 1 Details

Property	Value
Rupture Count	6,095
Ruptures Above Sect Min Mag	6,093
Ruptures w/ Nonzero Rates	657
Magnitude Range	[6.52, 8.44]
Length Range	[9, 761] km
Total Rate	3.7434496E-4 /yr
Multi-Fault Rate	3.7434496E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	81

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

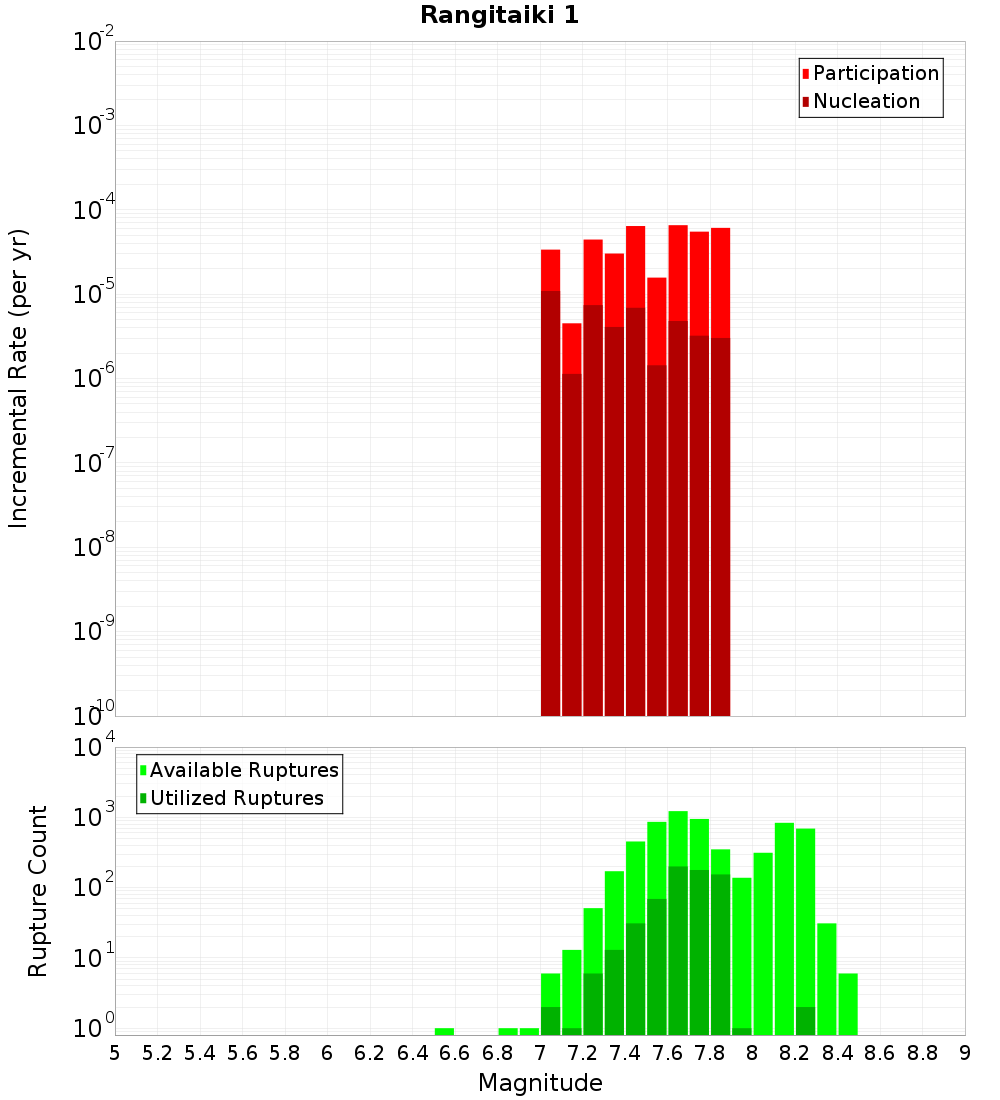

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

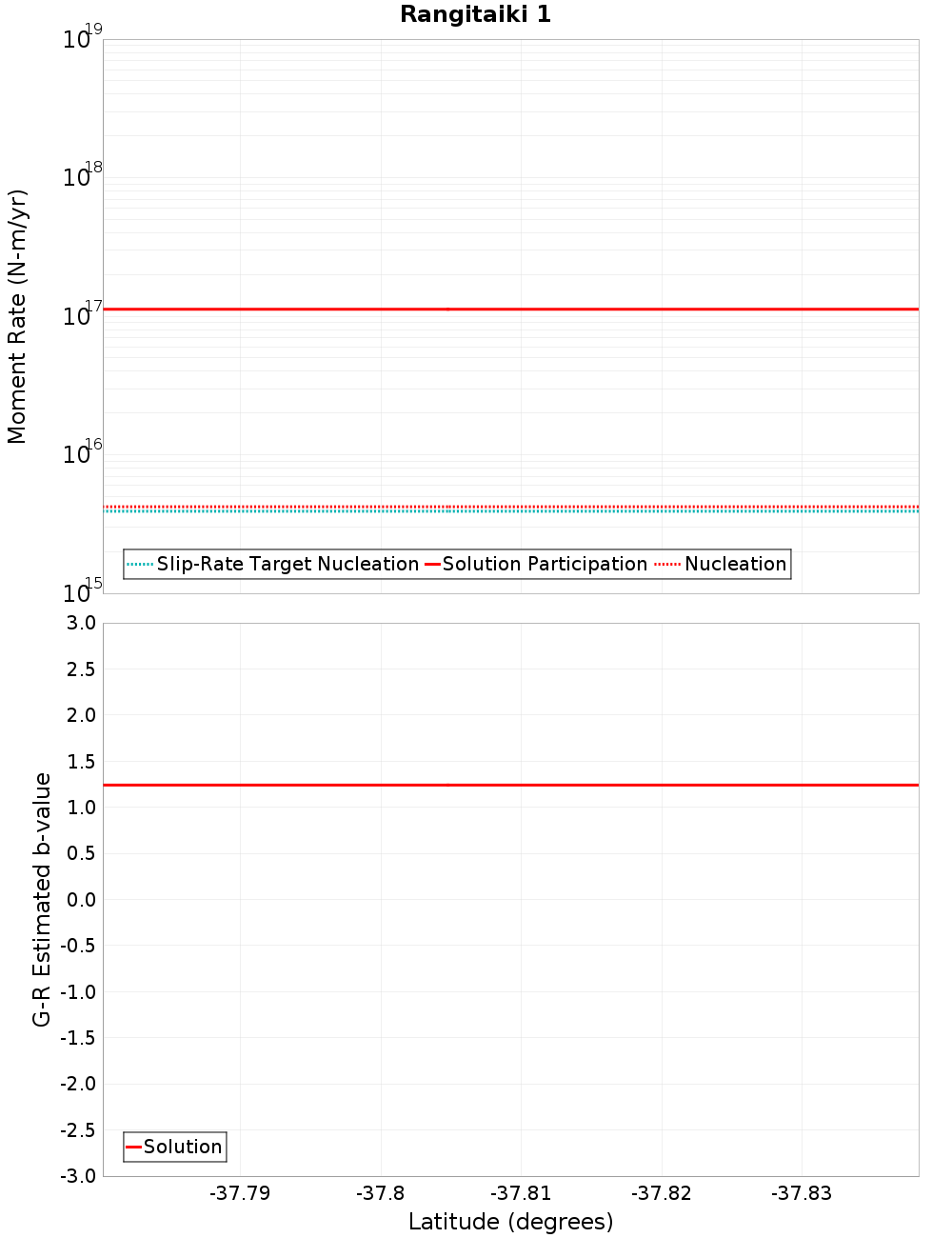

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Keepa, 4.88 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.7 km away
Calypso 2, 14.65 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	3,163
Co-rupture Rate	1.8536391E-4

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	true
Co-rupture Count	8,177
Co-rupture Rate	4.763777E-4

Keepa, 4.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	376
Co-rupture Rate	2.3039854E-6

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	1,257
Co-rupture Rate	6.287128E-5

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	2,594
Co-rupture Rate	8.511743E-5

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	1,845
Co-rupture Rate	2.3754196E-4

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	1,597
Co-rupture Rate	1.5093118E-4

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	796
Co-rupture Rate	3.7132547E-6

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	2,561
Co-rupture Rate	1.3767963E-4

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	731
Co-rupture Rate	2.9144428E-5

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	547
Co-rupture Rate	2.0457104E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	1.2674023E-5
