Rock Garden - Ritchie East 1 Details

PropertyValue
Rupture Count43,656
Ruptures Above Sect Min Mag43,653
Ruptures w/ Nonzero Rates77
Magnitude Range[7.06, 8.56]
Length Range[26, 855] km
Total Rate1.8820836E-5 /yr
Multi-Fault Rate1.8820836E-5 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults104

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

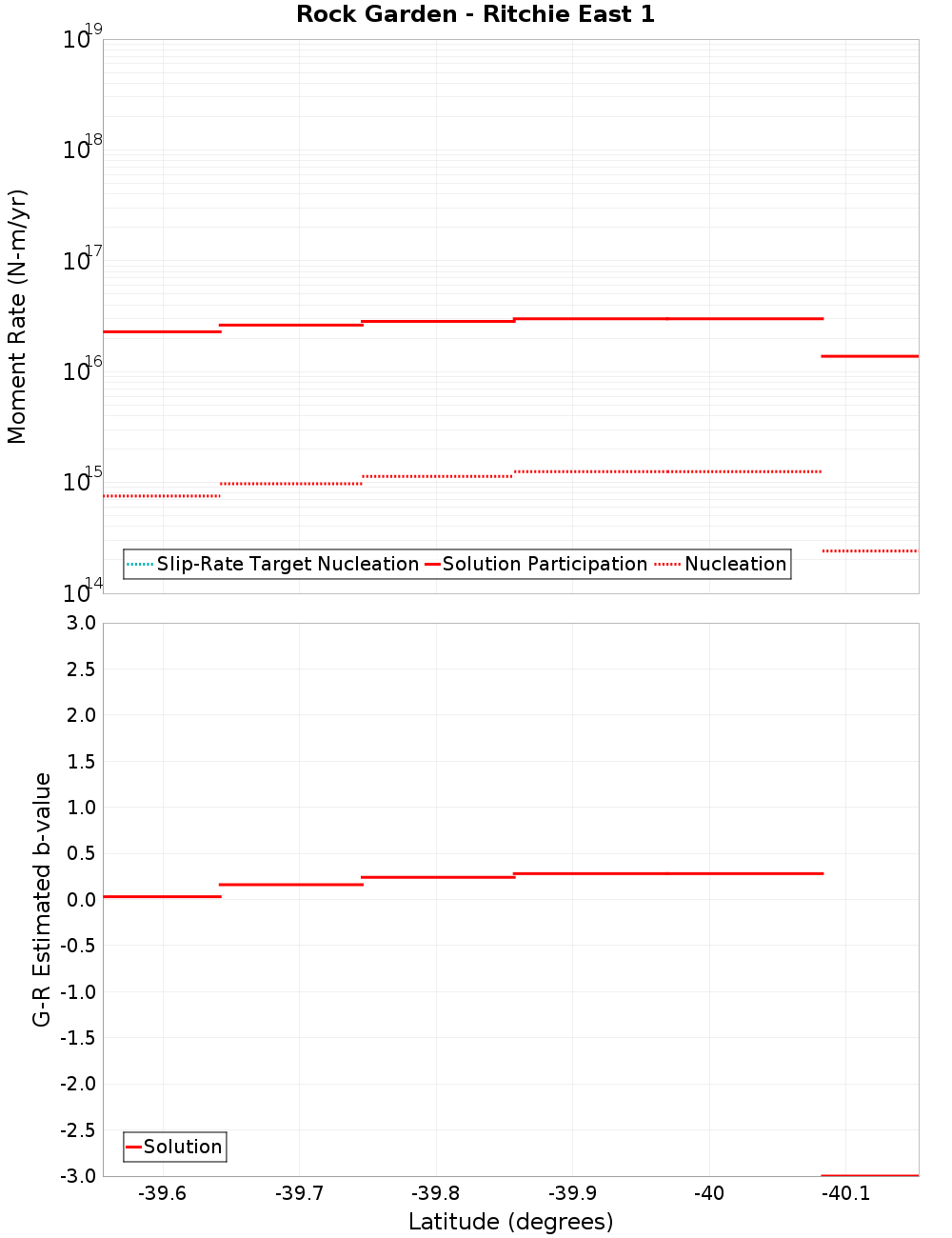

Moment-Rates and b-Values

(top)

Along-strike plot

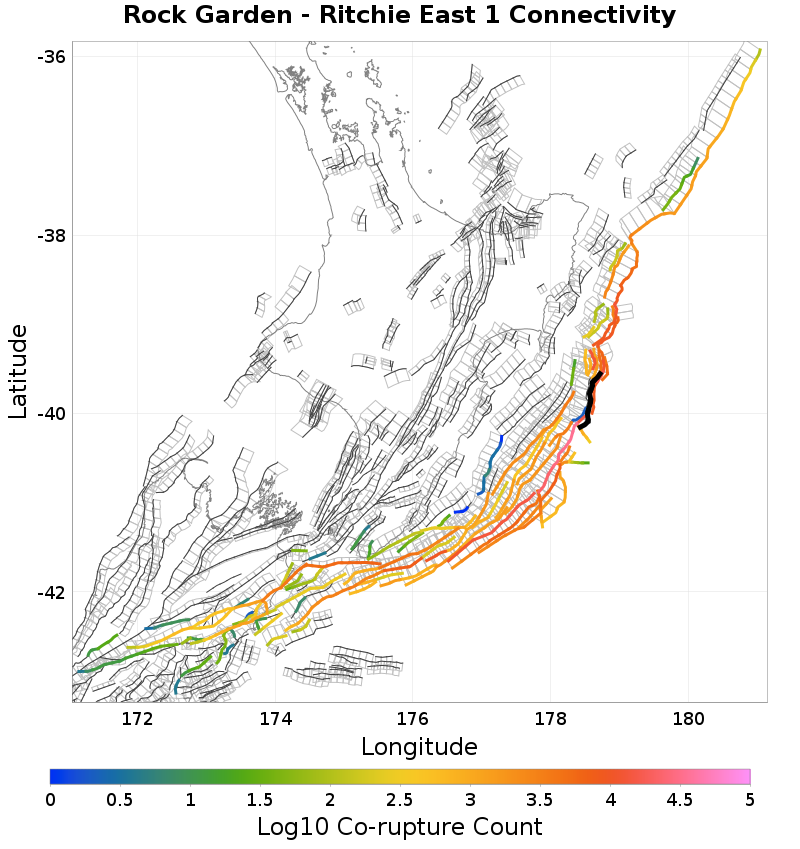

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rock Garden - Ritchie East, 0.01 km away
Rock Garden South east, 0.35 km away
Whaiti Ridge, 0.62 km away
Akitio Ridge, 0.75 km away
Pakupaku Ridge, 1.28 km away
Te Kapu Bank East, 2.2 km away
Pakupaku Ridge East, 2.98 km away
Ritchie Ridge, 3.74 km away
Te Kapu Bank, 5.61 km away
Ritchie Ridge 1, 5.61 km away
Paoanui Ridge North, 6.99 km away
Ritchie West 1, 10.65 km away
Porangahau Northeast, 13.27 km away

Rock Garden - Ritchie East, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count3,392
Co-rupture Rate3.430265E-15

Rock Garden South east, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count930
Co-rupture Rate0.0

Whaiti Ridge, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count5,004
Co-rupture Rate1.5324188E-13

Akitio Ridge, 0.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count34,511
Co-rupture Rate1.8813535E-5

Pakupaku Ridge, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count17,491
Co-rupture Rate2.090214E-6

Te Kapu Bank East, 2.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count1,629
Co-rupture Rate6.3952994E-6

Pakupaku Ridge East, 2.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count5,707
Co-rupture Rate1.5675684E-9

Ritchie Ridge, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count742
Co-rupture Rate0.0

Te Kapu Bank, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count12,390
Co-rupture Rate9.374452E-7

Ritchie Ridge 1, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count853
Co-rupture Rate4.8504484E-16

Paoanui Ridge North, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?true
Co-rupture Count3,516
Co-rupture Rate7.860473E-9

Ritchie West 1, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate0.0

Porangahau Northeast, 13.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H
Connected?true
Directly Connected?false
Co-rupture Count2,087
Co-rupture Rate7.860471E-9
