The Wolds Details
| Property | Value |
|---|---|
| Rupture Count | 152 |
| Ruptures Above Sect Min Mag | 151 |
| Ruptures w/ Nonzero Rates | 49 |
| Magnitude Range | [6.85, 7.94] |
| Length Range | [16, 222] km |
| Total Rate | 1.1293532E-4 /yr |
| Multi-Fault Rate | 1.1293532E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 32 |
Table Of Contents

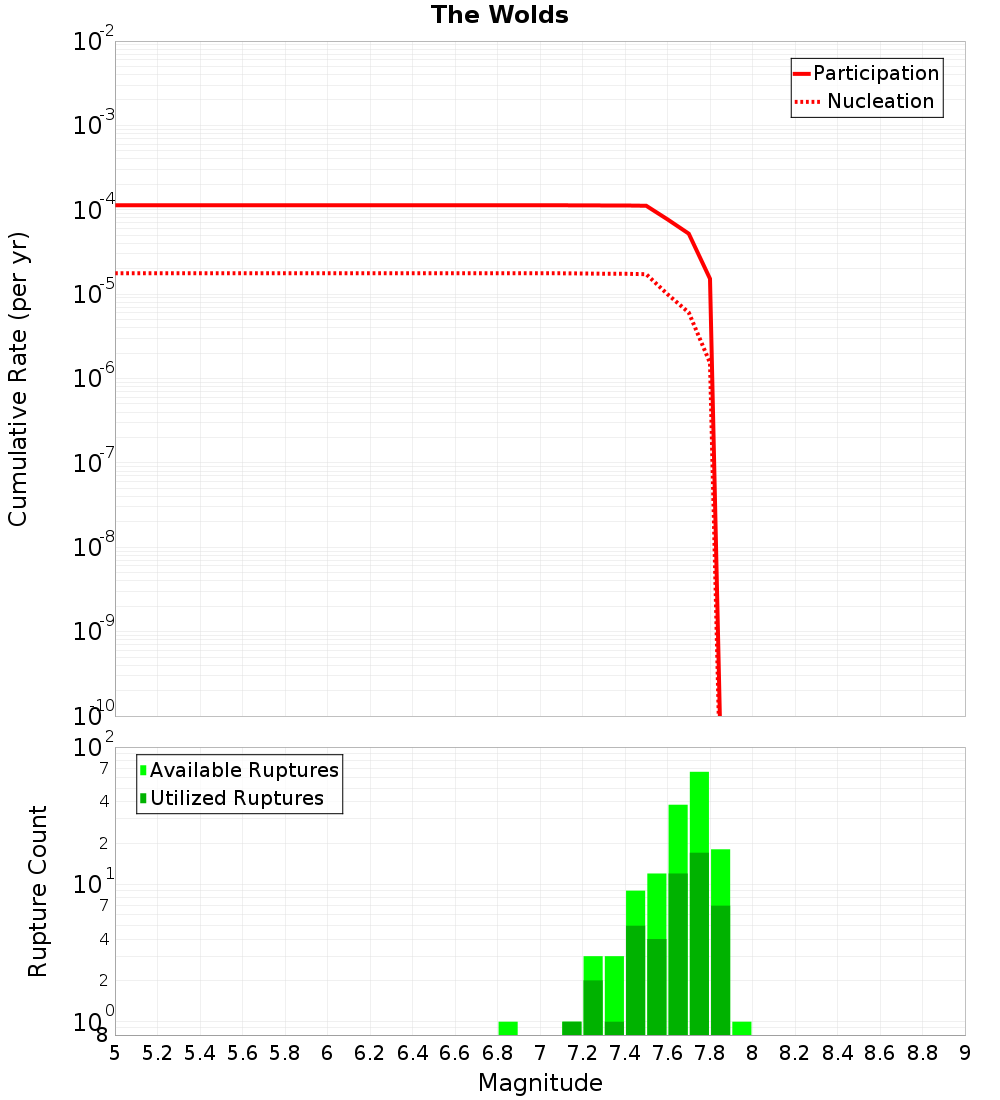

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

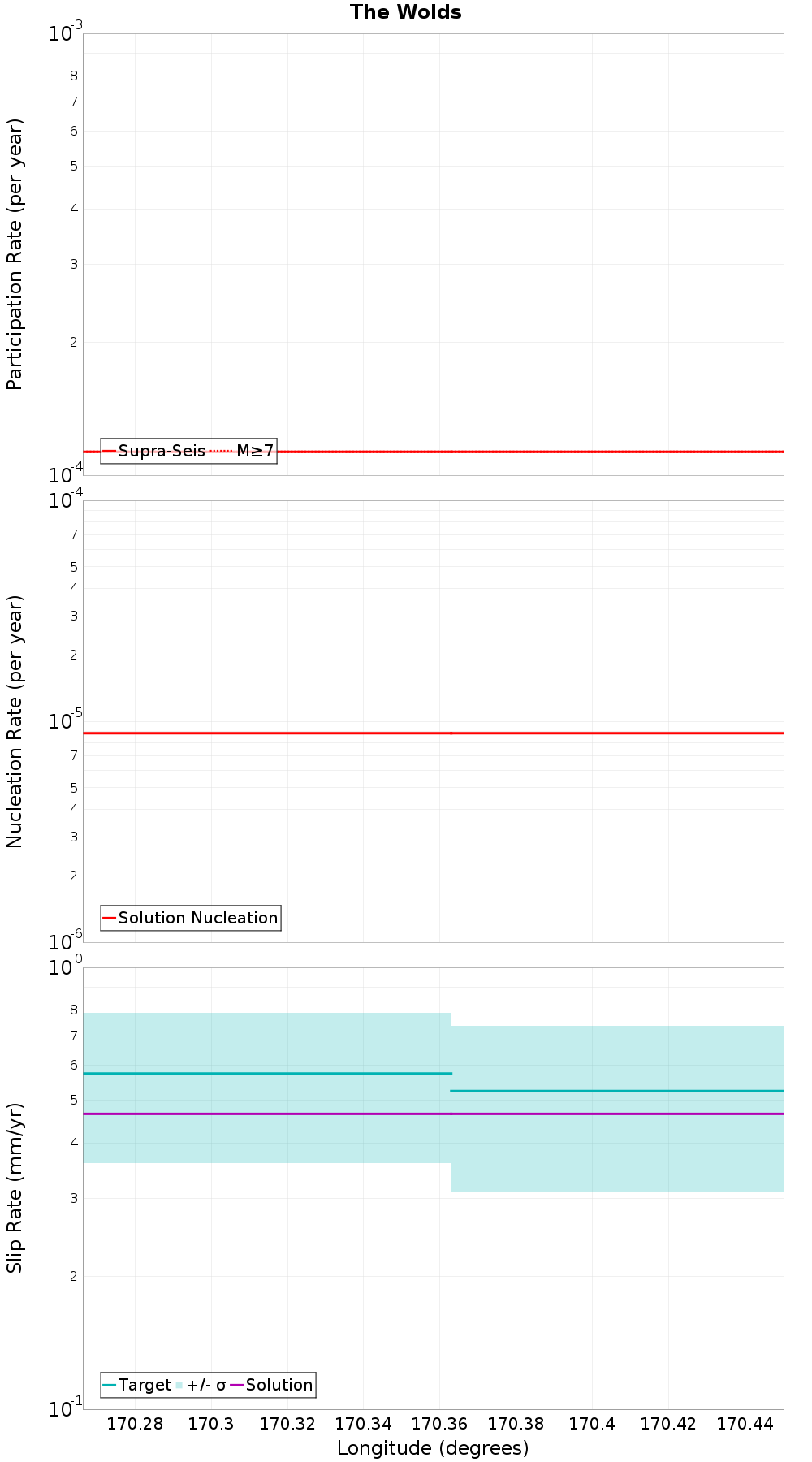

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Dalgety, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 60 |
| Co-rupture Rate | 6.284746E-5 |
Chamberlain, 2.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 76 |
| Co-rupture Rate | 4.9943603E-5 |
Irishman Creek, 6.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 70 |
| Co-rupture Rate | 3.8497965E-5 |
Albury, 8.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunters, 9.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 31 |
| Co-rupture Rate | 8.144957E-6 |
Fox Peak, 9.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 71 |
| Co-rupture Rate | 7.393954E-7 |
Grampian, 10.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kirkliston, 10.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 6.2838146E-5 |
