White Hill Details
| Property | Value |
|---|---|
| Rupture Count | 715 |
| Ruptures Above Sect Min Mag | 714 |
| Ruptures w/ Nonzero Rates | 88 |
| Magnitude Range | [7.08, 8.53] |
| Length Range | [23, 835] km |
| Total Rate | 1.9545491E-4 /yr |
| Multi-Fault Rate | 1.9545348E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 44 |
Table Of Contents

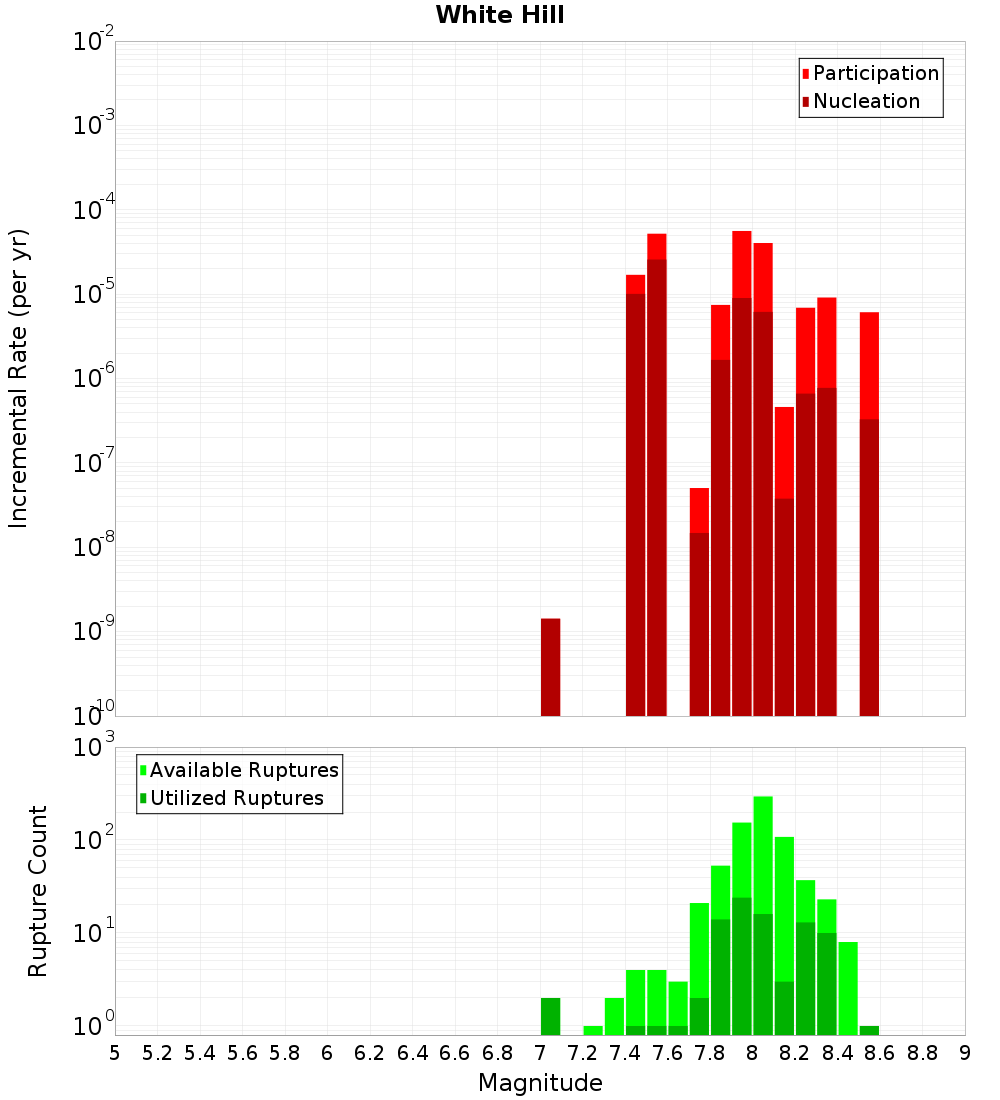

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

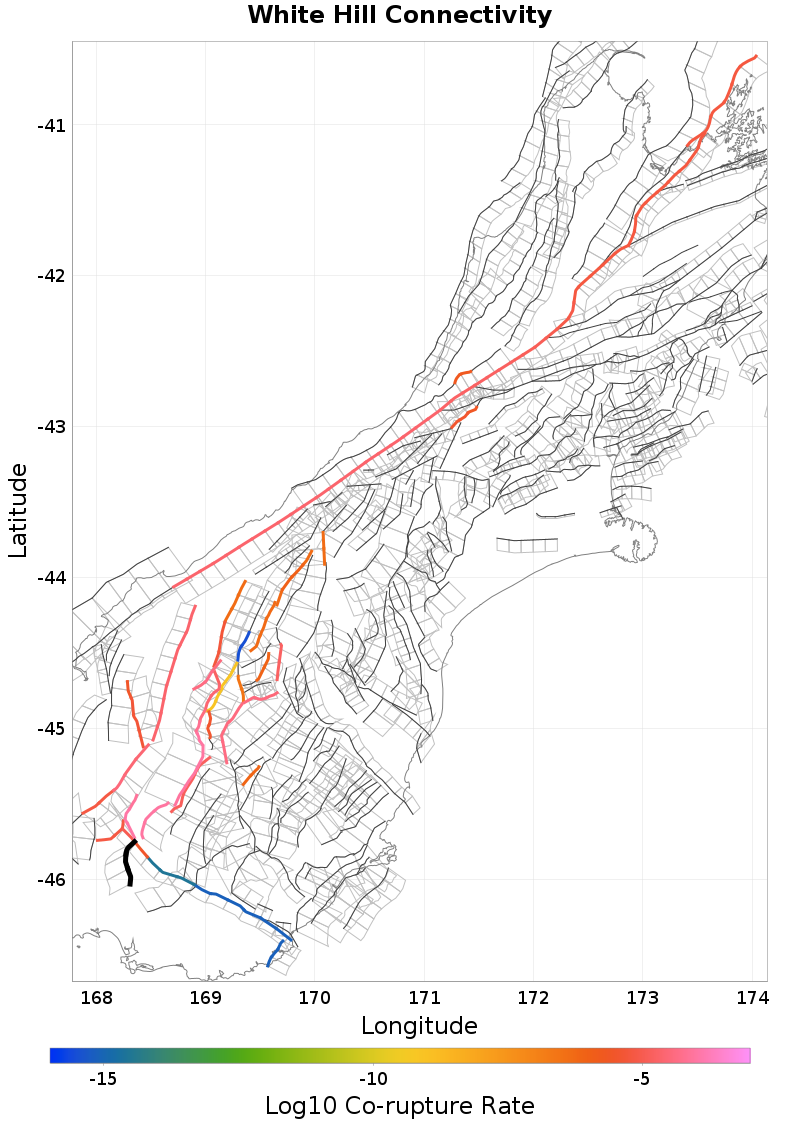

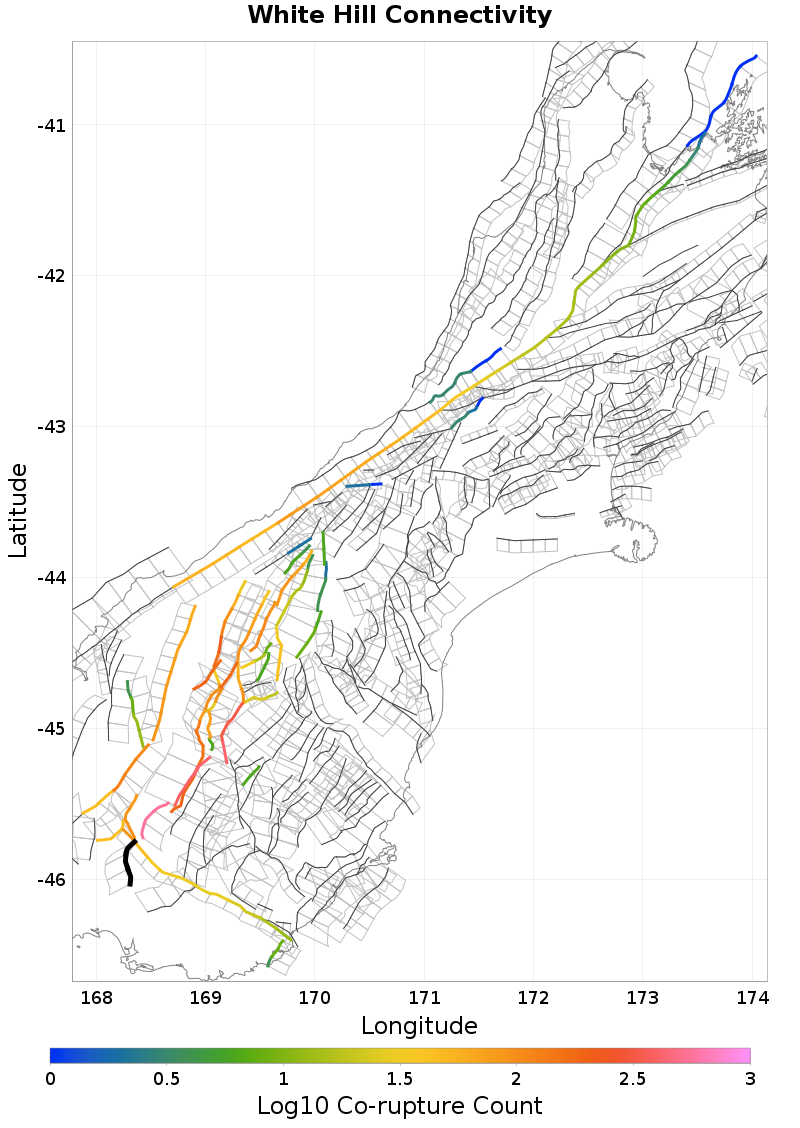

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hokonui, 0.25 km away |
| Acton, 3.1 km away |
| Mid Dome, 6.67 km away |
| Mossburn, 12.87 km away |
Hokonui, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 90 |
| Co-rupture Rate | 1.0261007E-5 |
Acton, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 1.08318985E-4 |
Mid Dome, 6.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 565 |
| Co-rupture Rate | 9.303602E-5 |
Mossburn, 12.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjAuMEdDS05H | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 44 |
| Co-rupture Rate | 7.104995E-6 |
