BooBoo Details

Property	Value
Rupture Count	126,163
Ruptures Above Sect Min Mag	126,154
Ruptures w/ Nonzero Rates	220
Magnitude Range	[6.84, 8.68]
Length Range	[18, 1,082] km
Total Rate	7.620179E-4 /yr
Multi-Fault Rate	7.620179E-4 /yr (100.00%)
Directly-Connected Faults	15
All Co-Rupturing Faults	259

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

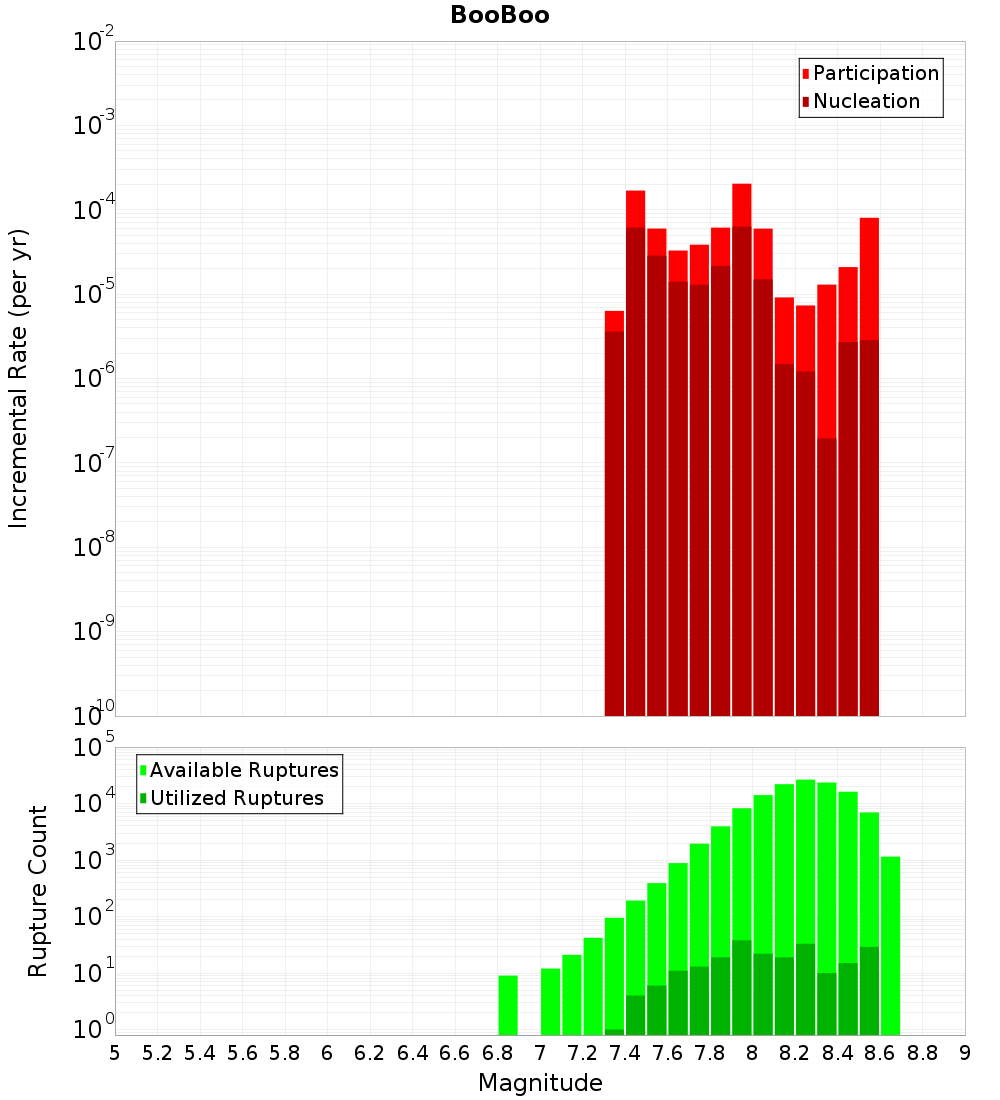

Magnitude-Frequency Distribution

Incremental	Cumulative

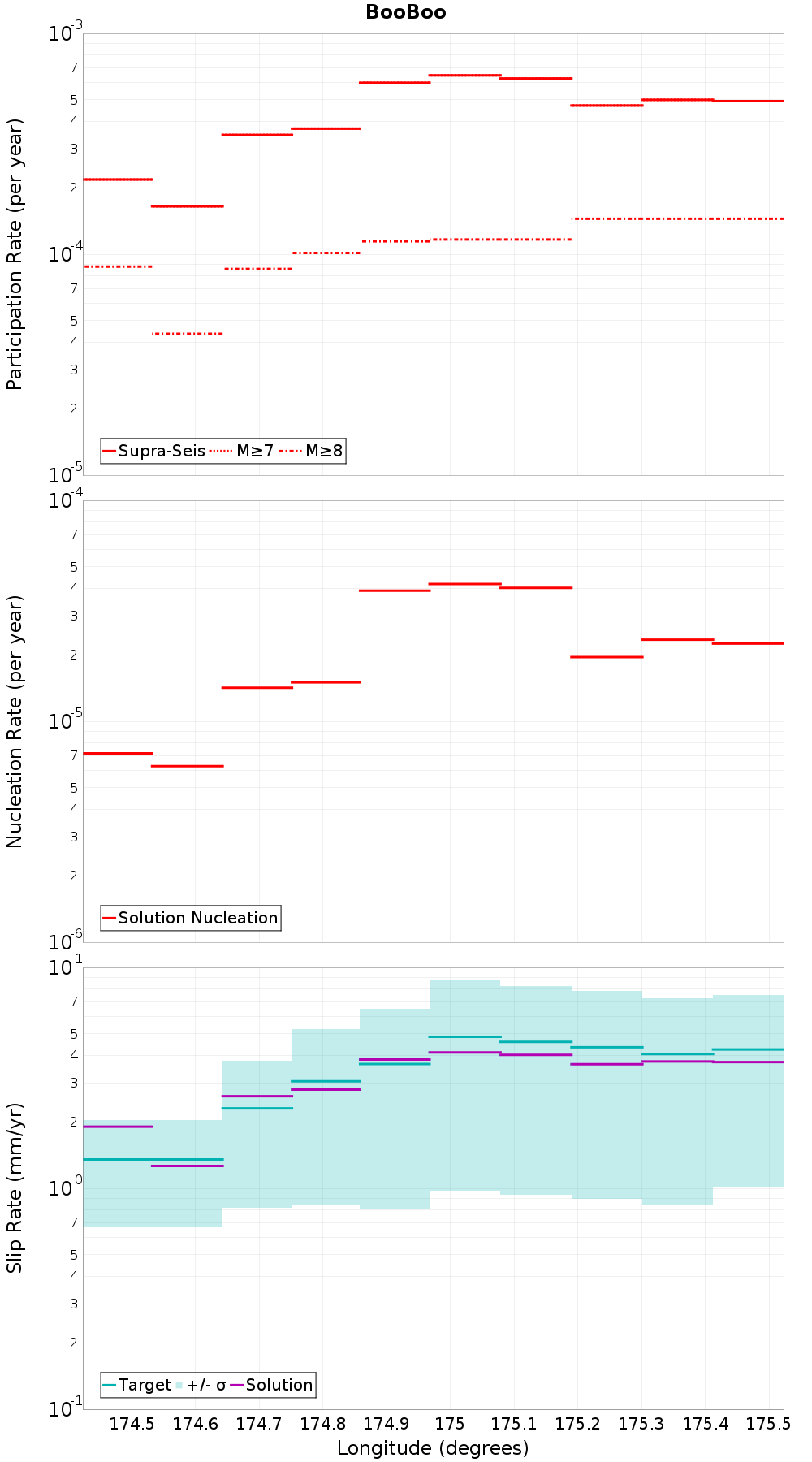

Along-Strike Values

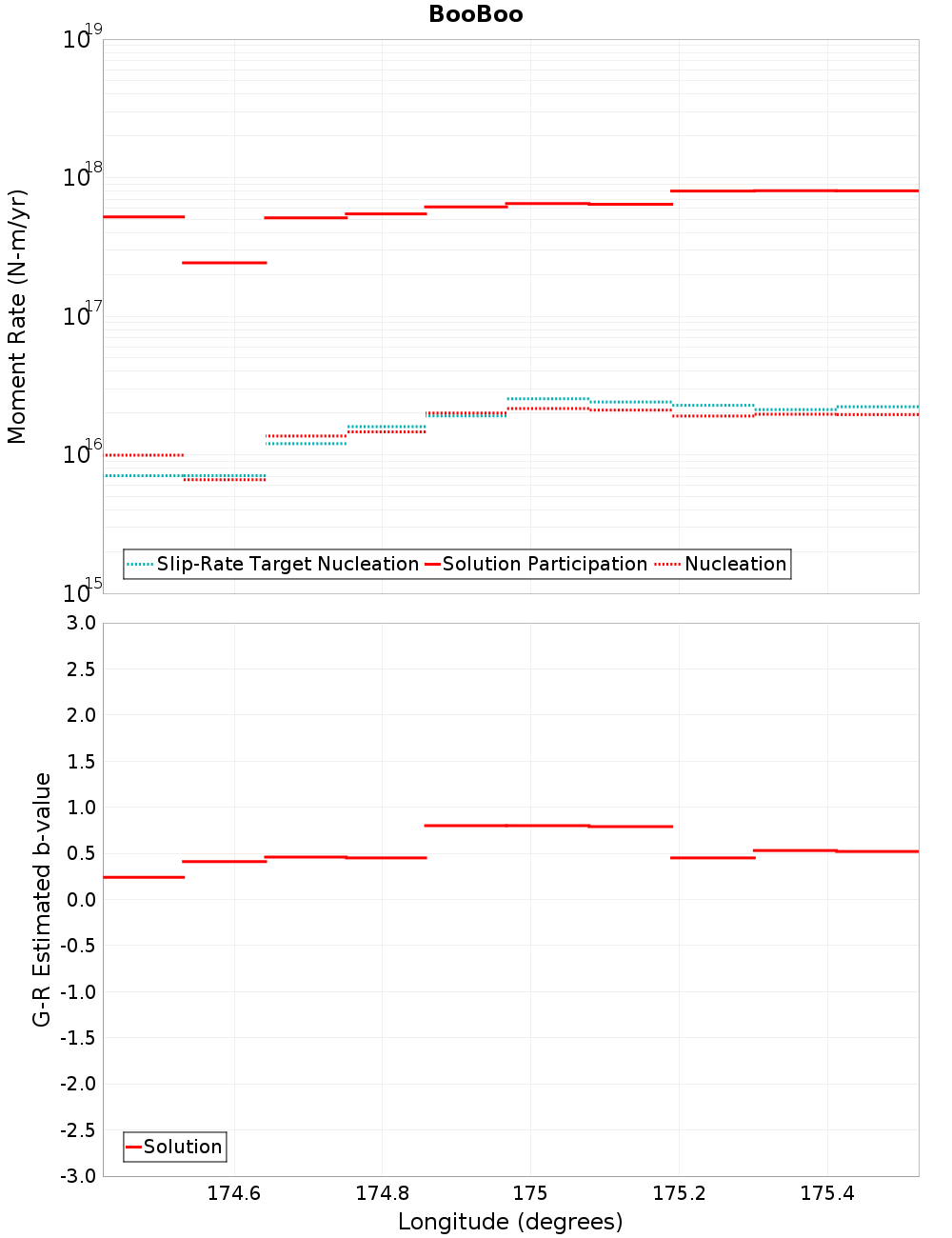

Moment-Rates and b-Values

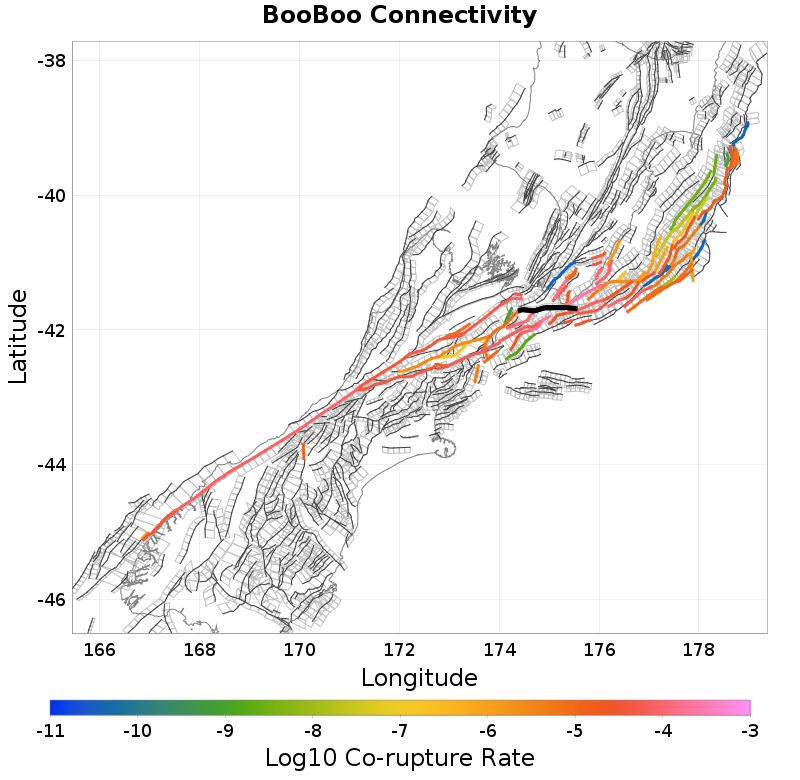

Connectivity

Nearby Sections

Fault Section	Fault Section
Opouawe - Uruti, 0.13 km away	London Hill, 7.46 km away
Pahaua, 0.16 km away	Cloudy 3, 7.74 km away
Needles, 0.17 km away	Upper Slope, 9.5 km away
Campbell Bank, 0.23 km away	Needles East 2, 10.51 km away
Pahaua SE1, 0.69 km away	Wharekauhau, 10.67 km away
Vernon 4, 1.64 km away	Dry River - Huangarua: 1, 10.86 km away
Ngapotiki, 3.23 km away	Pahaua SE2, 11.65 km away
Palliser - Kaiwhata, 4.24 km away	Te Rapa 2, 13.57 km away
Wairarapa: Needles, 5.6 km away	Wairarapa: 1, 14.77 km away
Otaraia, 5.89 km away	Vernon 3, 14.97 km away
Glendhu Ridge, 6.94 km away

Opouawe - Uruti, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	60,018
Co-rupture Rate	1.1134221E-4

Pahaua, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	22,815
Co-rupture Rate	5.0116818E-5

Needles, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	83,122
Co-rupture Rate	8.494723E-6

Campbell Bank, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	7,783
Co-rupture Rate	1.1728786E-4

Pahaua SE1, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	224
Co-rupture Rate	2.8604529E-5

Vernon 4, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,244
Co-rupture Rate	9.80233E-5

Ngapotiki, 3.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	860
Co-rupture Rate	2.2300488E-5

Palliser - Kaiwhata, 4.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	18,170
Co-rupture Rate	2.6163016E-4

Wairarapa: Needles, 5.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,549
Co-rupture Rate	0.0

Otaraia, 5.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	1.8108122E-4

Glendhu Ridge, 6.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	2.8604529E-5

London Hill, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	2,874
Co-rupture Rate	7.513376E-10

Cloudy 3, 7.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,674
Co-rupture Rate	5.407083E-5

Upper Slope, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	7,628
Co-rupture Rate	1.8197519E-4

Needles East 2, 10.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,298
Co-rupture Rate	0.0

Wharekauhau, 10.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,832
Co-rupture Rate	0.0

Dry River - Huangarua: 1, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,877
Co-rupture Rate	5.406355E-5

Pahaua SE2, 11.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	81
Co-rupture Rate	0.0

Te Rapa 2, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	4,352
Co-rupture Rate	2.4162821E-4

Wairarapa: 1, 14.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	696
Co-rupture Rate	3.3945728E-11

Vernon 3, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	39
Co-rupture Rate	0.0
