F17 - South Details

PropertyValue
Rupture Count13,935
Ruptures Above Sect Min Mag13,931
Ruptures w/ Nonzero Rates109
Magnitude Range[7.16, 8.49]
Length Range[26, 599] km
Total Rate2.9416903E-4 /yr
Multi-Fault Rate2.9416903E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults57

Table Of Contents

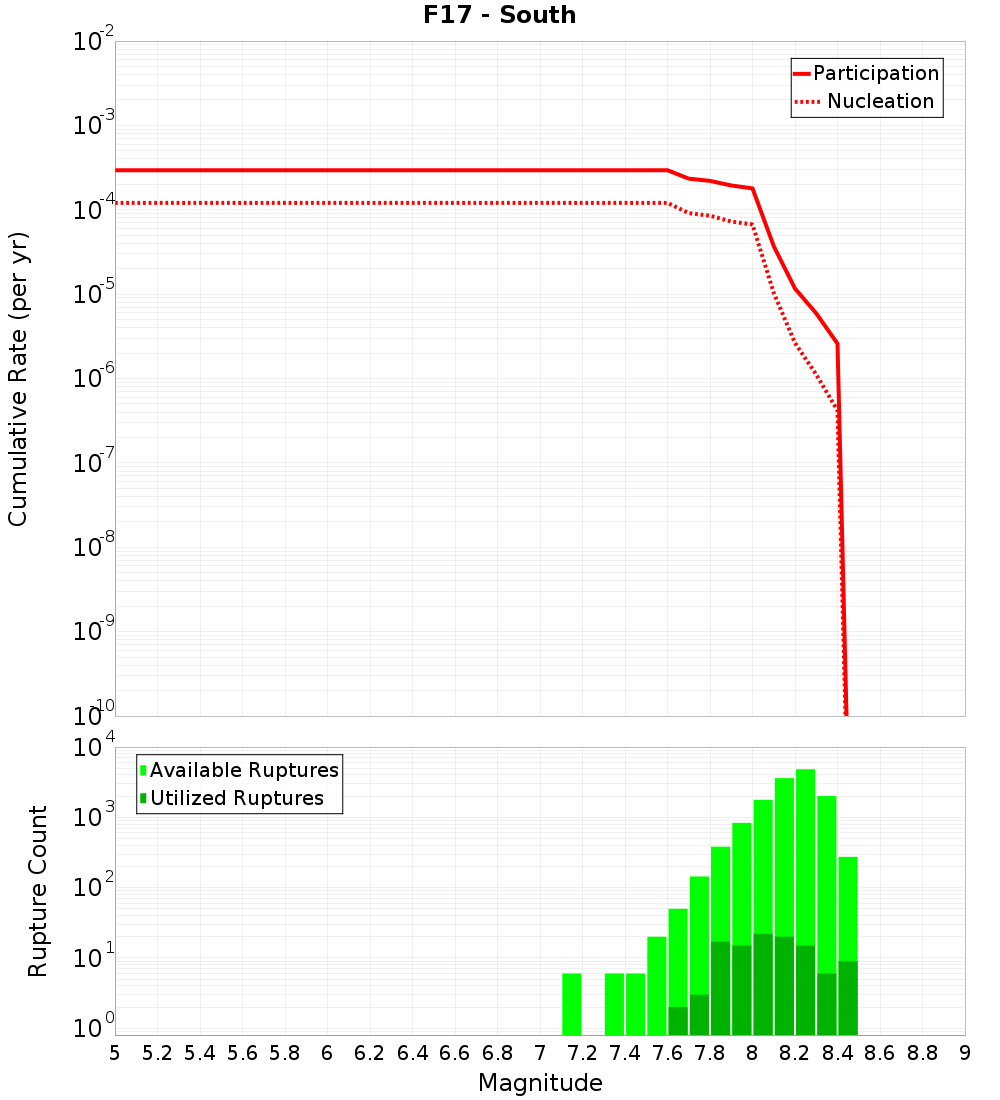

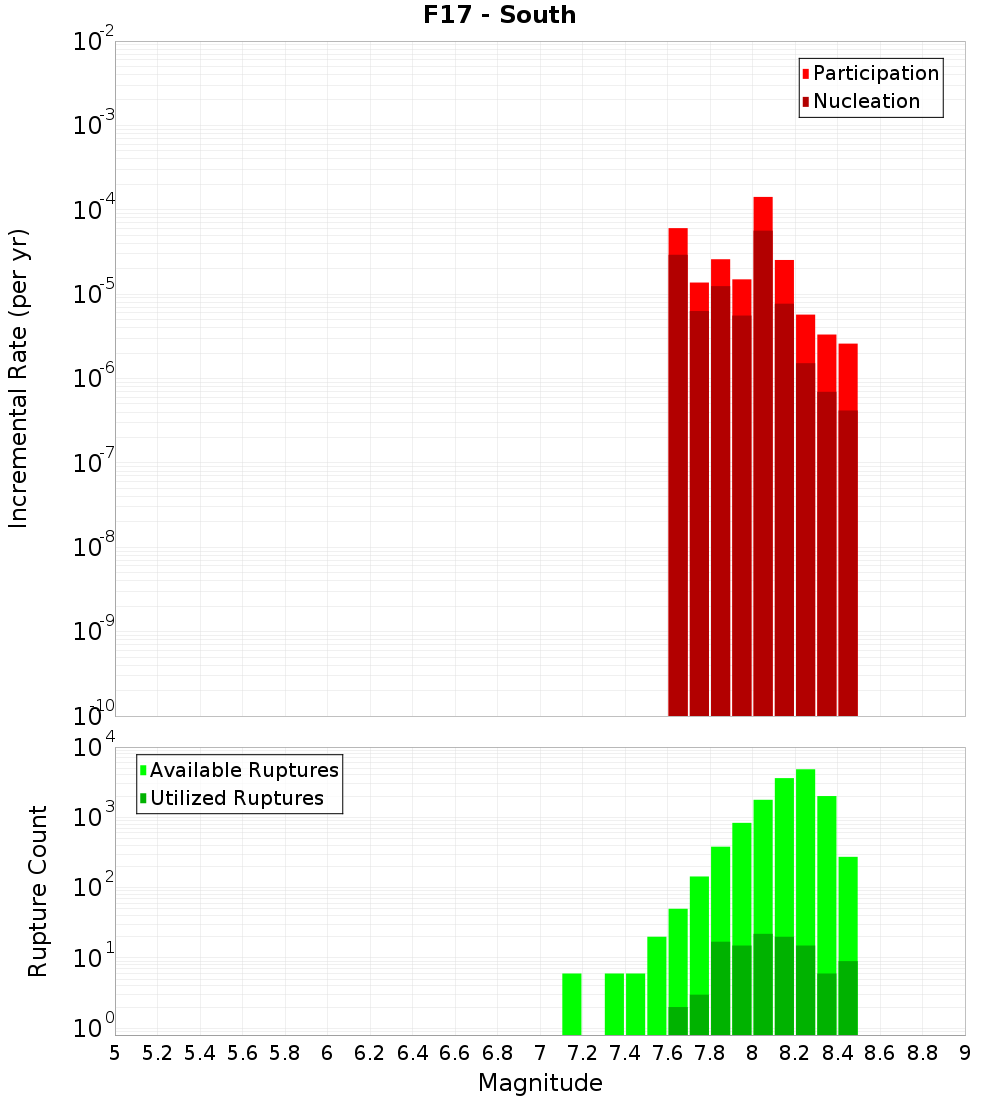

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

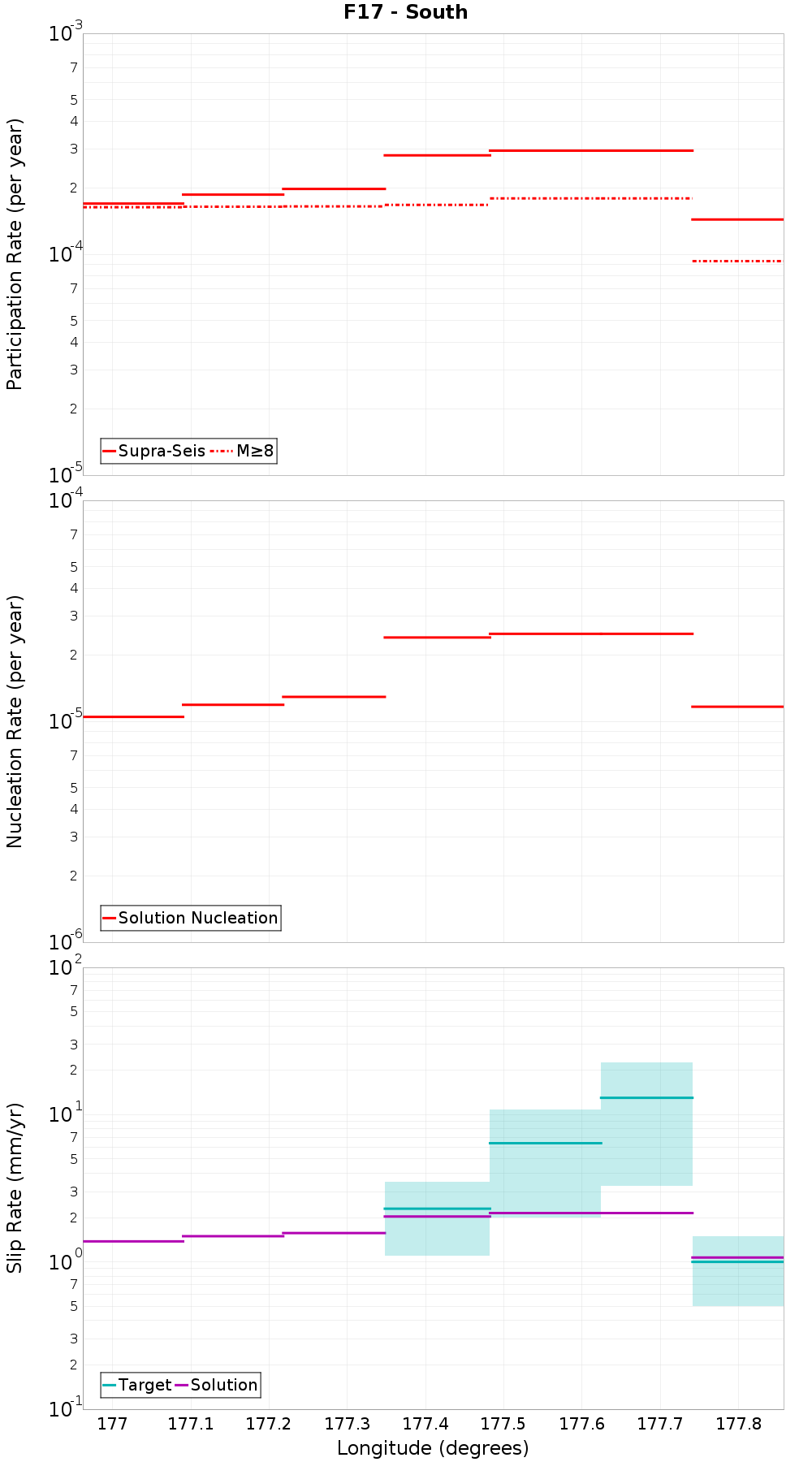

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

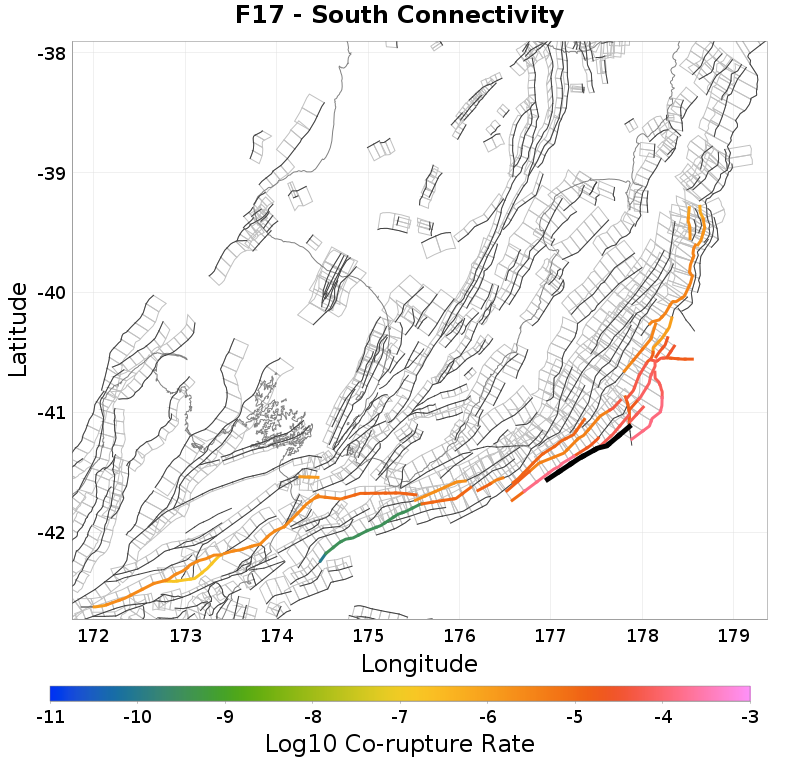

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
F16 - South, 0.02 km away
BKSmt-West, 0.41 km away
F17 - Central, 1.64 km away
Aorangi Ridge, 2.05 km away
Bennett Knoll, 5.32 km away
F16 - Central, 5.88 km away
Aorangi Trough, 5.98 km away
Pukeroro Ridge, 10.25 km away
Uruti Basin, 11.39 km away
Akitio Trough West, 11.75 km away
Porangahau Ridge, 12.1 km away
Akitio Ridge, 13.47 km away
Pukeroro 2, 14.86 km away

F16 - South, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count821
Co-rupture Rate6.0329035E-5

BKSmt-West, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count4,158
Co-rupture Rate1.3980299E-5

F17 - Central, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count3,130
Co-rupture Rate6.063787E-5

Aorangi Ridge, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count8,186
Co-rupture Rate1.6273899E-4

Bennett Knoll, 5.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count1,094
Co-rupture Rate1.3144774E-4

F16 - Central, 5.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count7,111
Co-rupture Rate7.934305E-5

Aorangi Trough, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count913
Co-rupture Rate5.883616E-5

Pukeroro Ridge, 10.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate1.1784942E-5

Uruti Basin, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akitio Trough West, 11.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count1,000
Co-rupture Rate5.9187805E-6

Porangahau Ridge, 12.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akitio Ridge, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count10,581
Co-rupture Rate5.545818E-5

Pukeroro 2, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count2,014
Co-rupture Rate1.25181705E-5
