Gunn Glacier Details
| Property | Value |
|---|---|
| Rupture Count | 28,942 |
| Ruptures Above Sect Min Mag | 28,940 |
| Ruptures w/ Nonzero Rates | 62 |
| Magnitude Range | [6.85, 8.54] |
| Length Range | [17, 673] km |
| Total Rate | 2.7877386E-4 /yr |
| Multi-Fault Rate | 2.7877386E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 181 |
Table Of Contents

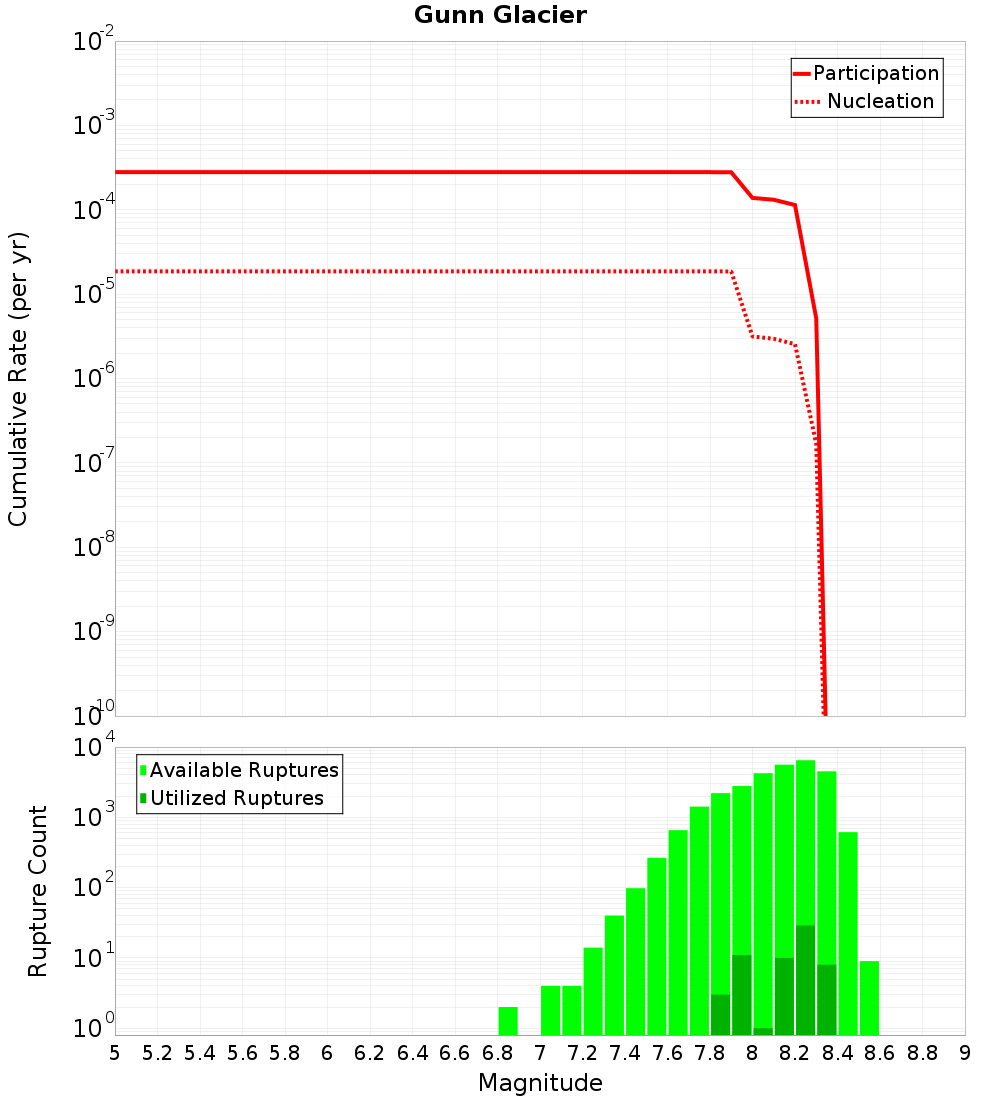

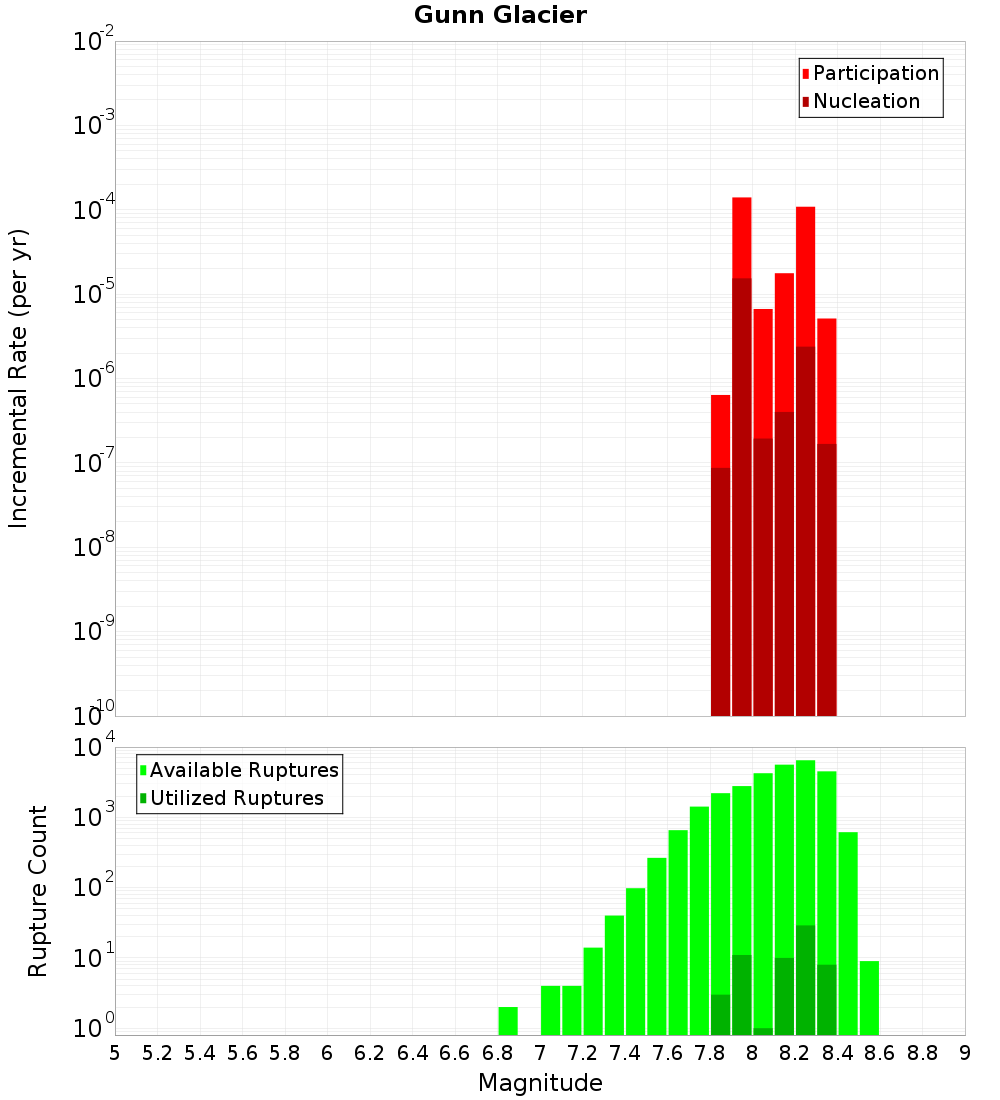

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

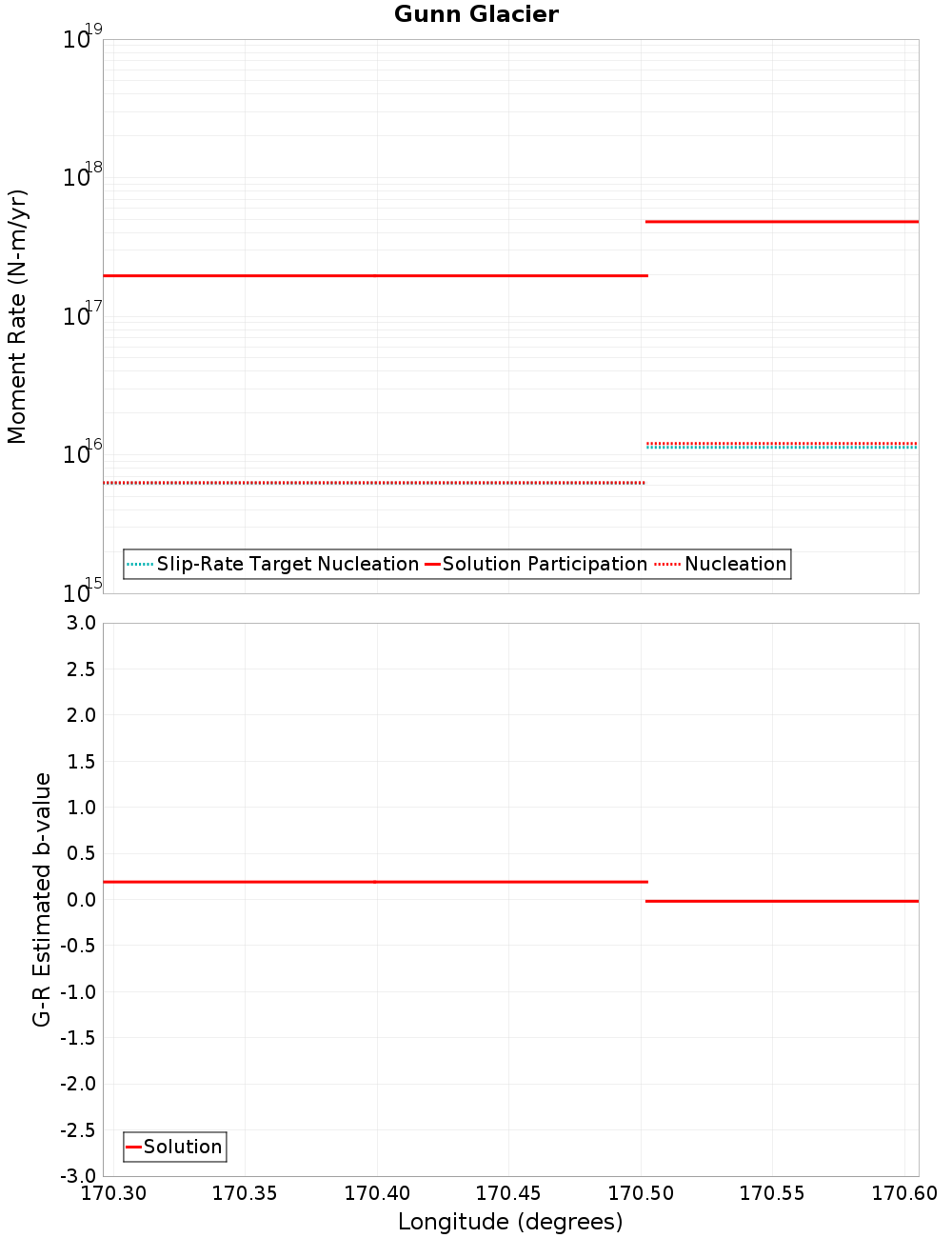

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Veil Stream, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 429 |
| Co-rupture Rate | 0.0 |
Alpine: Jacksons to Kaniere, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19,528 |
| Co-rupture Rate | 2.4932352E-4 |
Liebig North, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,711 |
| Co-rupture Rate | 1.4568357E-4 |
Murchison 1 - Ice Lake, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15,463 |
| Co-rupture Rate | 1.2386261E-4 |
Hohonu South, 0.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8,934 |
| Co-rupture Rate | 1.3944235E-5 |
Two Thumb Stream, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lord Range, 5.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,078 |
| Co-rupture Rate | 1.2254178E-4 |
Mt Roon, 5.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 312 |
| Co-rupture Rate | 0.0 |
Macaulay 2, 7.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 182 |
| Co-rupture Rate | 0.0 |
Observation, 8.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,292 |
| Co-rupture Rate | 1.4301576E-4 |
Black Blob - Haast Ridge, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5,248 |
| Co-rupture Rate | 1.6293674E-6 |
Mt Adams, 10.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 199 |
| Co-rupture Rate | 0.0 |
Lilybank, 11.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Potts Range, 12.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Jollie Range, 12.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fox Peak, 13.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
