Himatangi Details
| Property | Value |
|---|---|
| Rupture Count | 169 |
| Ruptures Above Sect Min Mag | 169 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [7.31, 8.08] |
| Length Range | [30, 222] km |
| Total Rate | 1.0215316E-4 /yr |
| Multi-Fault Rate | 1.0215316E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 29 |
Table Of Contents

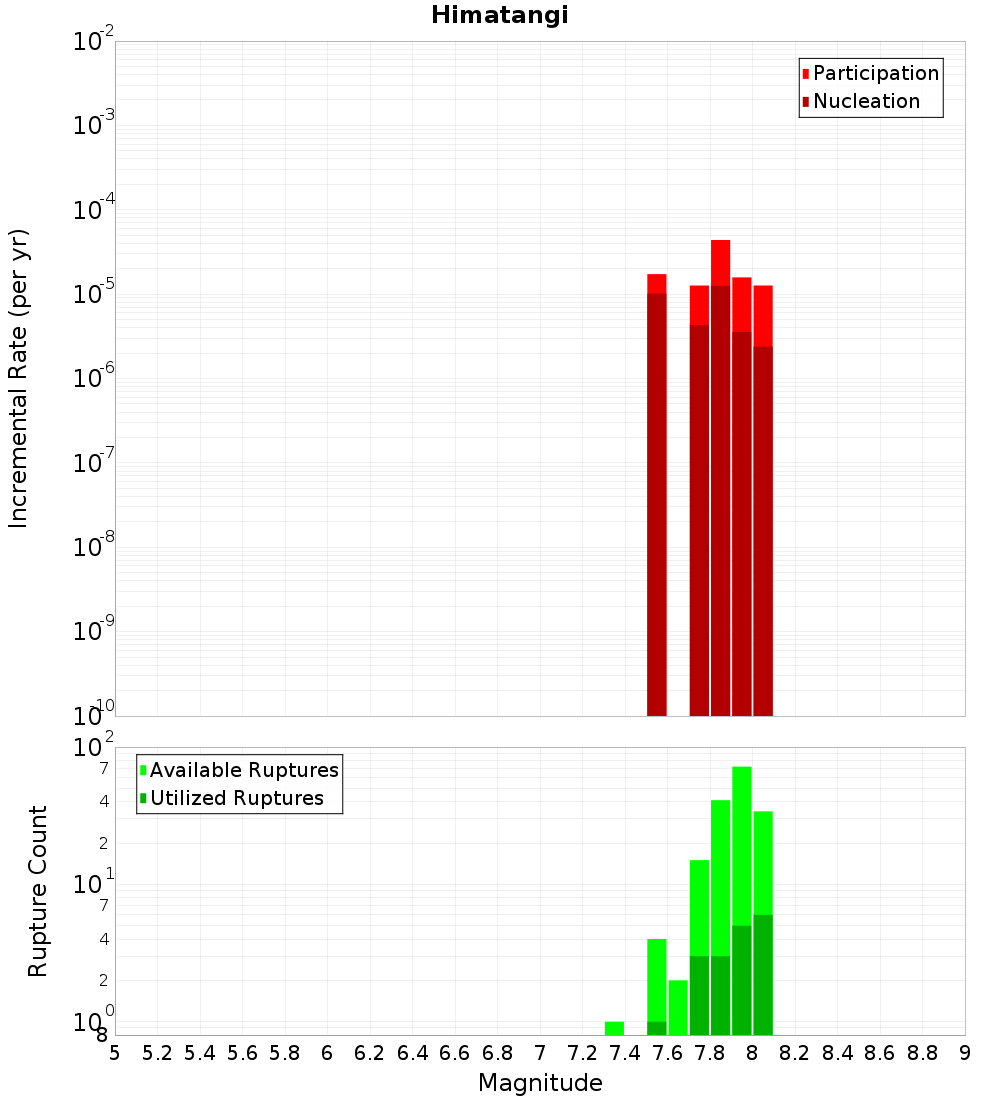

Magnitude-Frequency Distribution

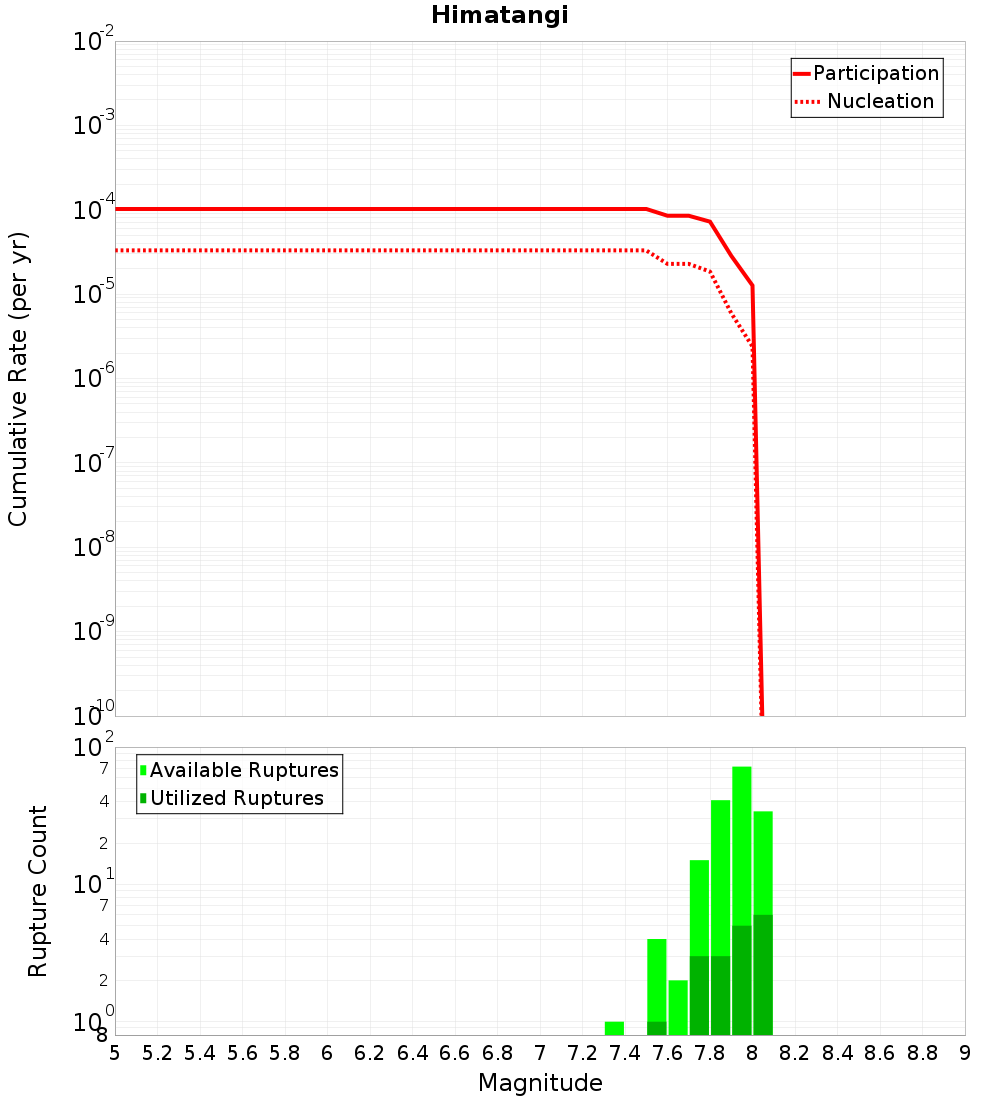

| Incremental | Cumulative |
|---|---|
 |  |

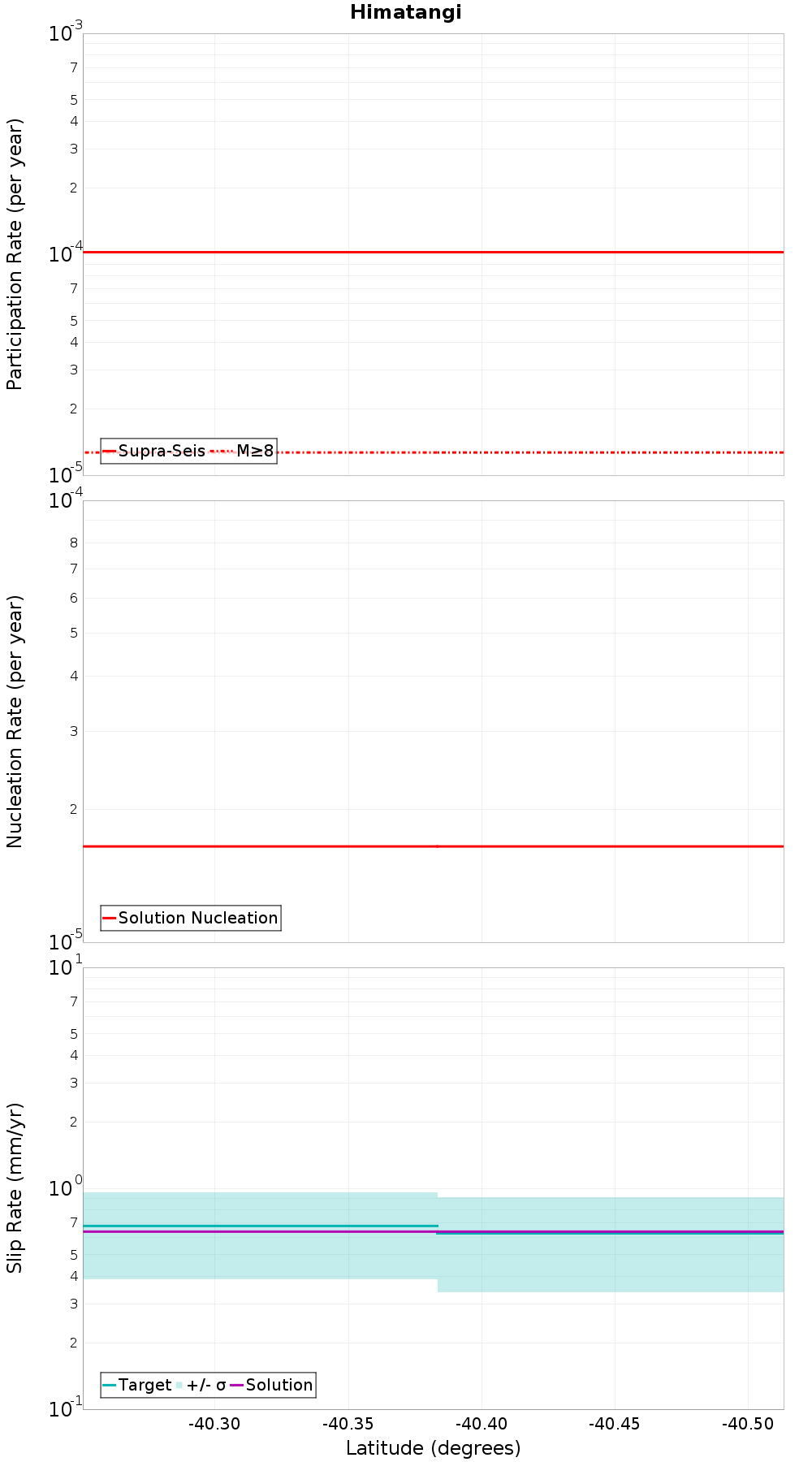

Along-Strike Values
Moment-Rates and b-Values

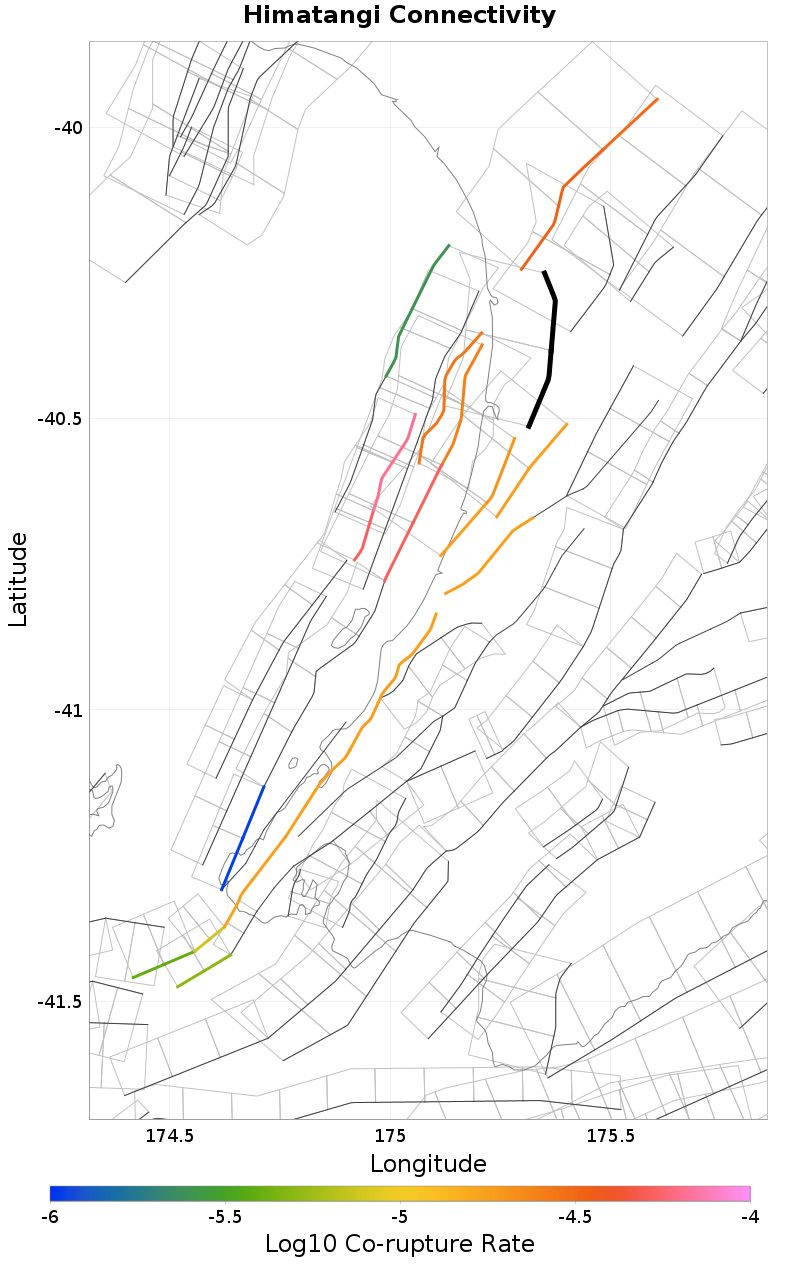

Connectivity
 |  |
|---|
Nearby Sections
Rangitikei Offshore 1, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 2.7567714E-5 |
Mascarin, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.4870483E-6 |
Poroutawhao, 1.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 2.0119067E-5 |
Mt Stewart, 3.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Levin Anticline, 3.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.7753056E-5 |
Leedstown, 3.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 102 |
| Co-rupture Rate | 3.369473E-5 |
Onepoto, 6.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 70 |
| Co-rupture Rate | 0.0 |
Otaheke North, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 5.213345E-5 |
Rauoterangi, 11.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fisherman 3, 12.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 69 |
| Co-rupture Rate | 6.4281034E-5 |
Tokomaru, 12.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Taonui, 13.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
