Huxley Details

Property	Value
Rupture Count	15,789
Ruptures Above Sect Min Mag	15,788
Ruptures w/ Nonzero Rates	52
Magnitude Range	[6.96, 8.51]
Length Range	[18, 663] km
Total Rate	7.6716016E-5 /yr
Multi-Fault Rate	7.6716016E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	147

Table Of Contents

Magnitude-Frequency Distribution

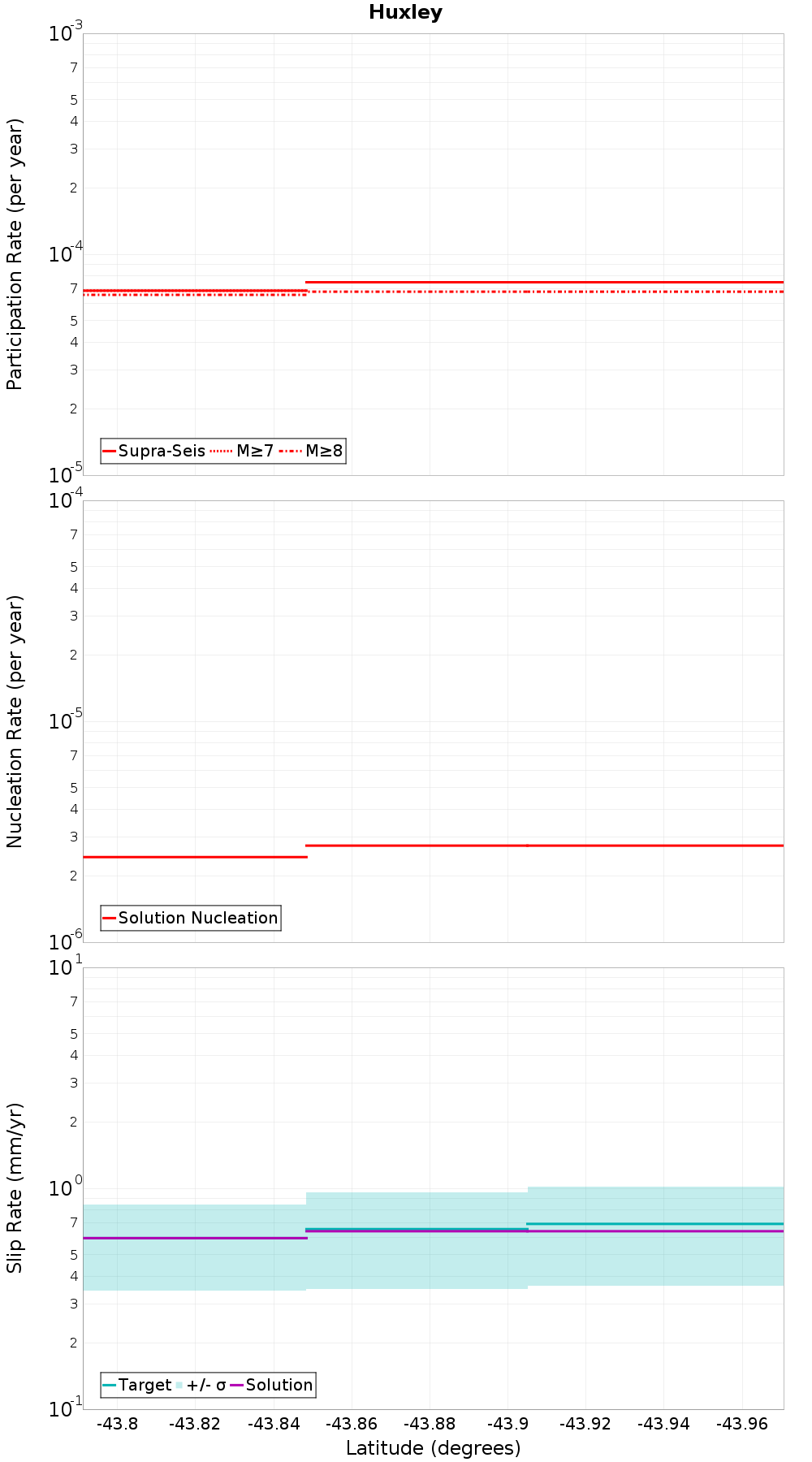

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

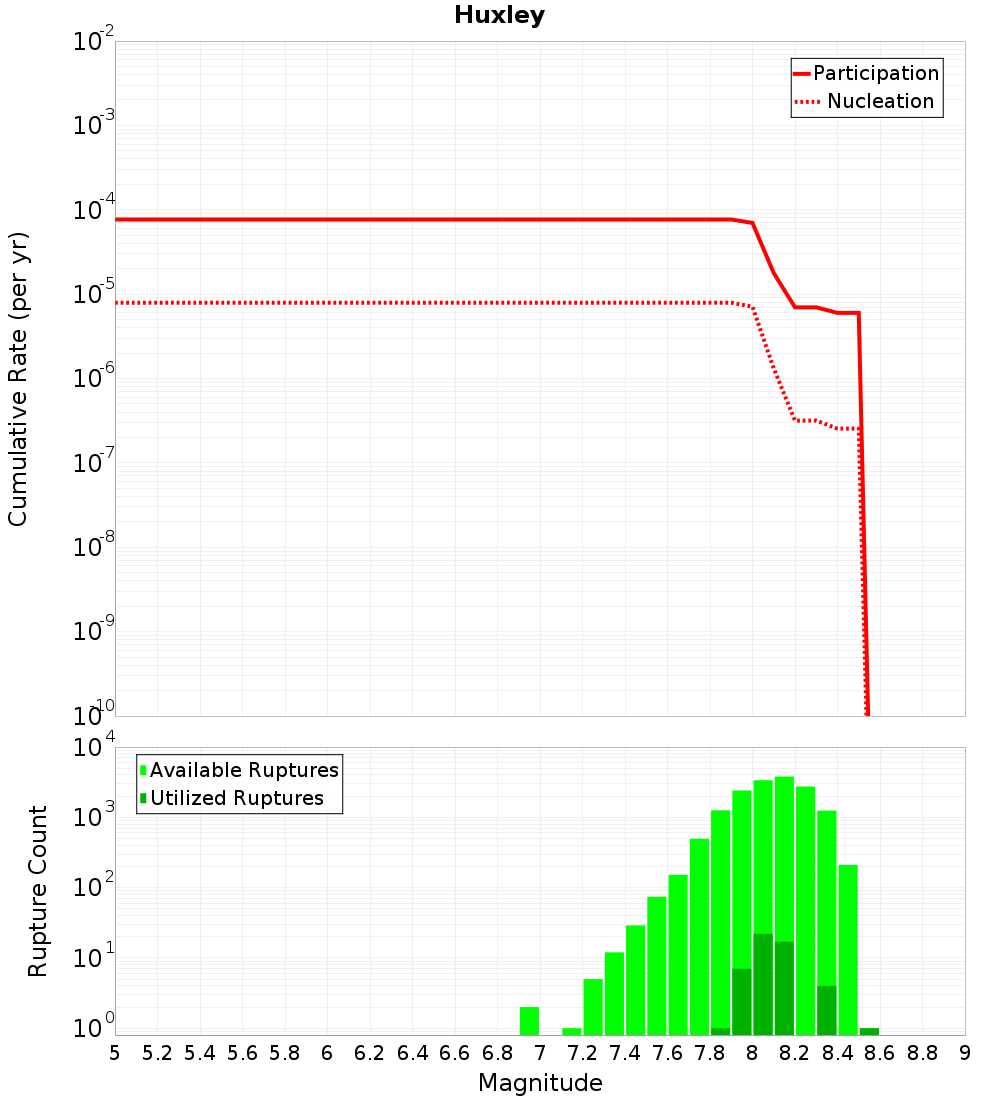

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Great Groove, 0.17 km away
Landsborough 2, 0.41 km away
Alpine: Jacksons to Kaniere, 1.78 km away
Hopkins, 3.39 km away
Karangarua, 4.17 km away
McKerrow - Douglas Duplex, 5.04 km away
Barrier Range, 5.79 km away
Ostler North, 10.15 km away
Black Blob - Haast Ridge, 14.73 km away
Liebig North, 14.98 km away

Great Groove, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	446
Co-rupture Rate	0.0

Landsborough 2, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	3,154
Co-rupture Rate	3.273086E-10

Alpine: Jacksons to Kaniere, 1.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	5,113
Co-rupture Rate	6.642594E-5

Hopkins, 3.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	9,570
Co-rupture Rate	7.25515E-5

Karangarua, 4.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	2,502
Co-rupture Rate	7.5209387E-6

McKerrow - Douglas Duplex, 5.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	6,676
Co-rupture Rate	9.3791584E-7

Barrier Range, 5.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	4,239
Co-rupture Rate	2.0787618E-6

Ostler North, 10.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Black Blob - Haast Ridge, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	798
Co-rupture Rate	0.0

Liebig North, 14.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	146
Co-rupture Rate	0.0
