Kermadec Trench Details
| Property | Value |
|---|---|
| Rupture Count | 5,024 |
| Ruptures Above Sect Min Mag | 5,010 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [7.19, 8.66] |
| Length Range | [28, 817] km |
| Total Rate | 4.4936914E-5 /yr |
| Multi-Fault Rate | 4.4936914E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

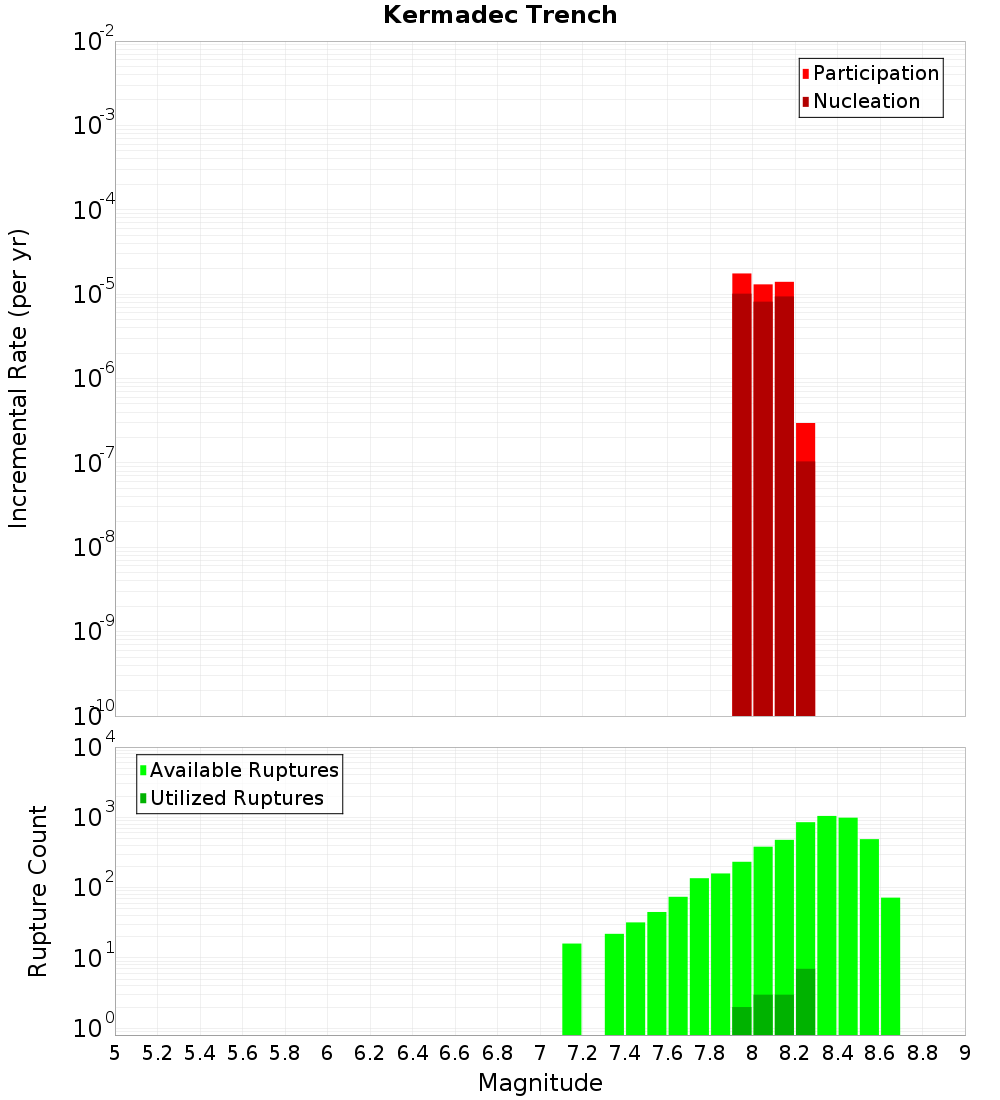

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

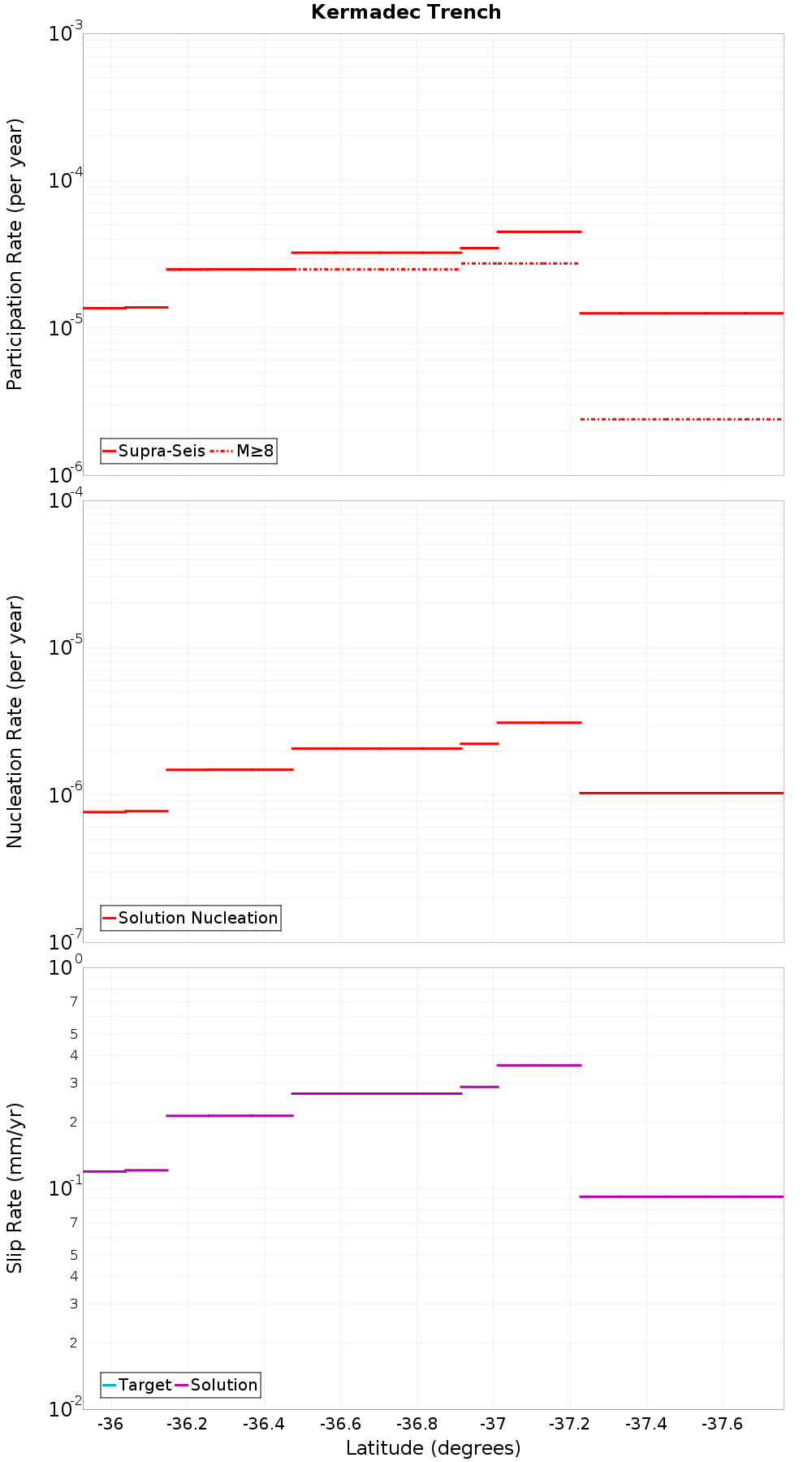

Along-Strike Values
Moment-Rates and b-Values

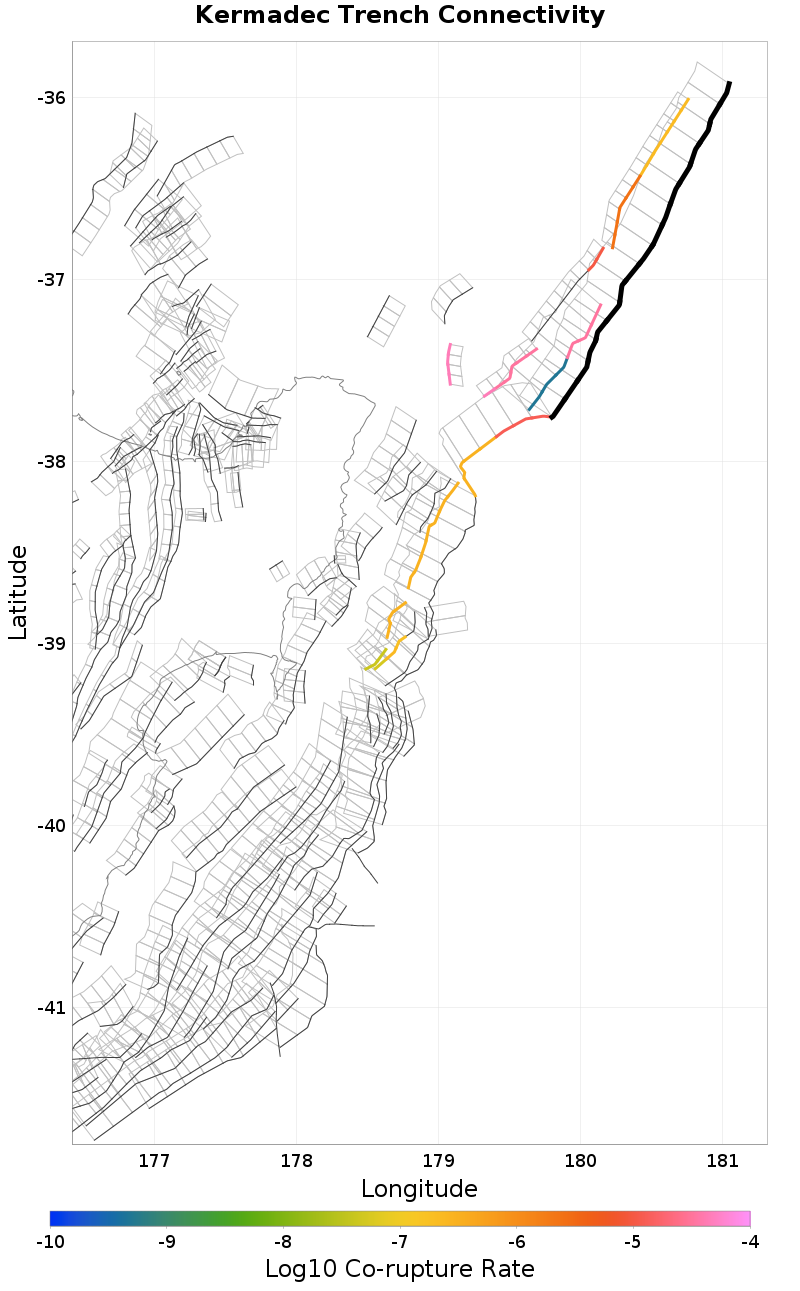

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria, 0 km away |
| Awanui 3, 2.16 km away |
| Kermadec Trench slope1, 2.56 km away |
| Awanui 2, 4.91 km away |
| Awanui 1, 13.5 km away |
Ruatoria, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,431 |
| Co-rupture Rate | 1.2553257E-5 |
Awanui 3, 2.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 797 |
| Co-rupture Rate | 2.396188E-6 |
Kermadec Trench slope1, 2.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 739 |
| Co-rupture Rate | 3.2384138E-5 |
Awanui 2, 4.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 208 |
| Co-rupture Rate | 1.01570695E-5 |
Awanui 1, 13.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 297 |
| Co-rupture Rate | 4.4639935E-5 |
