Stonewall Details

Property	Value
Rupture Count	1,381
Ruptures Above Sect Min Mag	1,377
Ruptures w/ Nonzero Rates	38
Magnitude Range	[6.87, 8.19]
Length Range	[19, 328] km
Total Rate	7.064579E-5 /yr
Multi-Fault Rate	7.064579E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

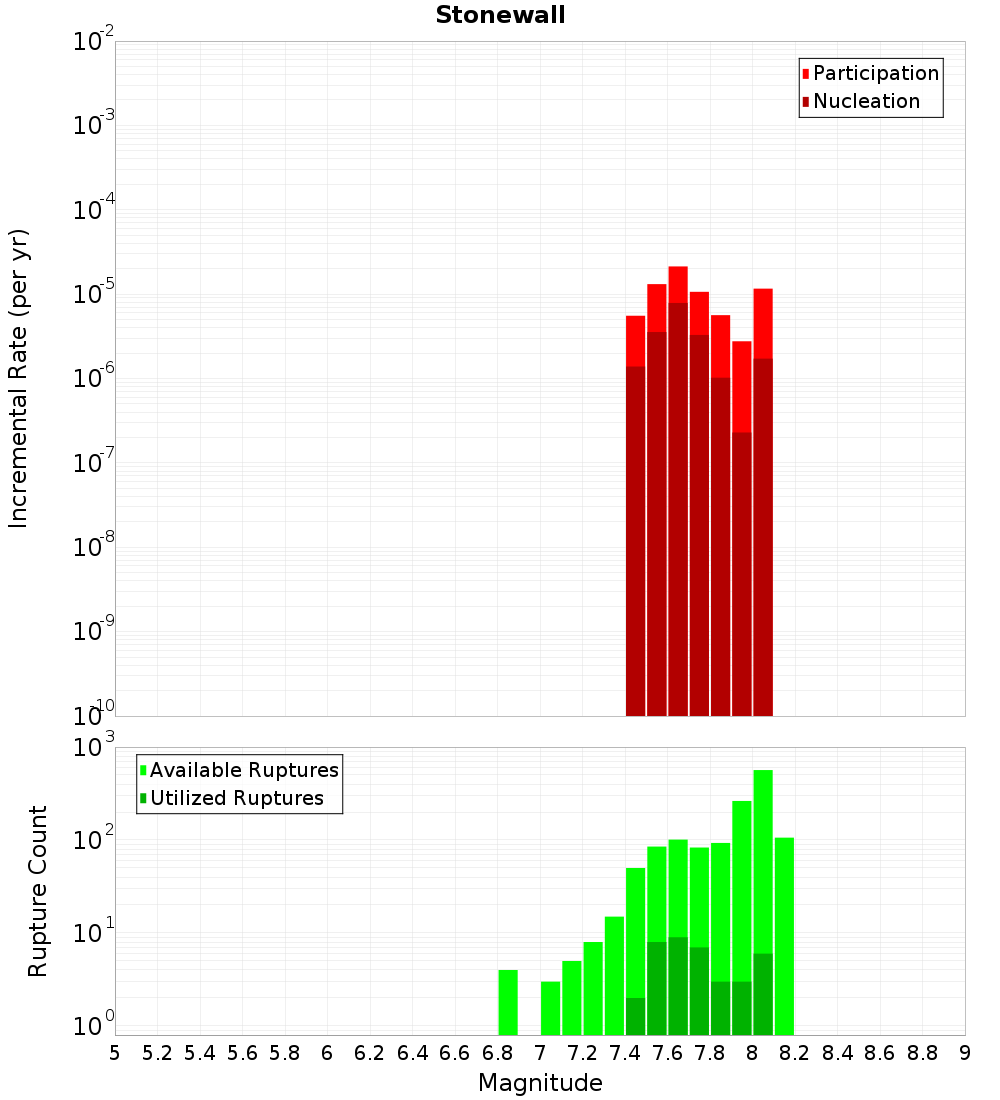

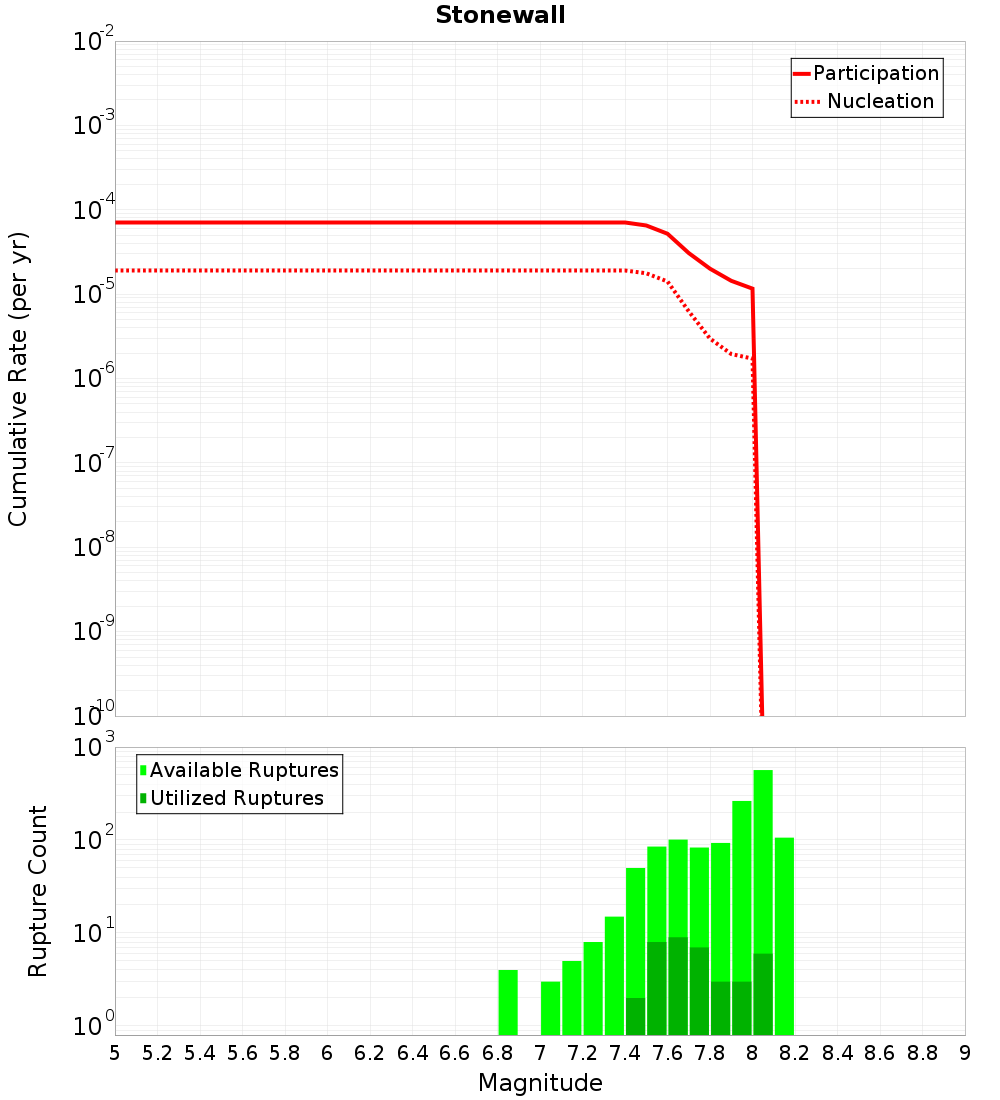

Magnitude-Frequency Distribution

Incremental	Cumulative

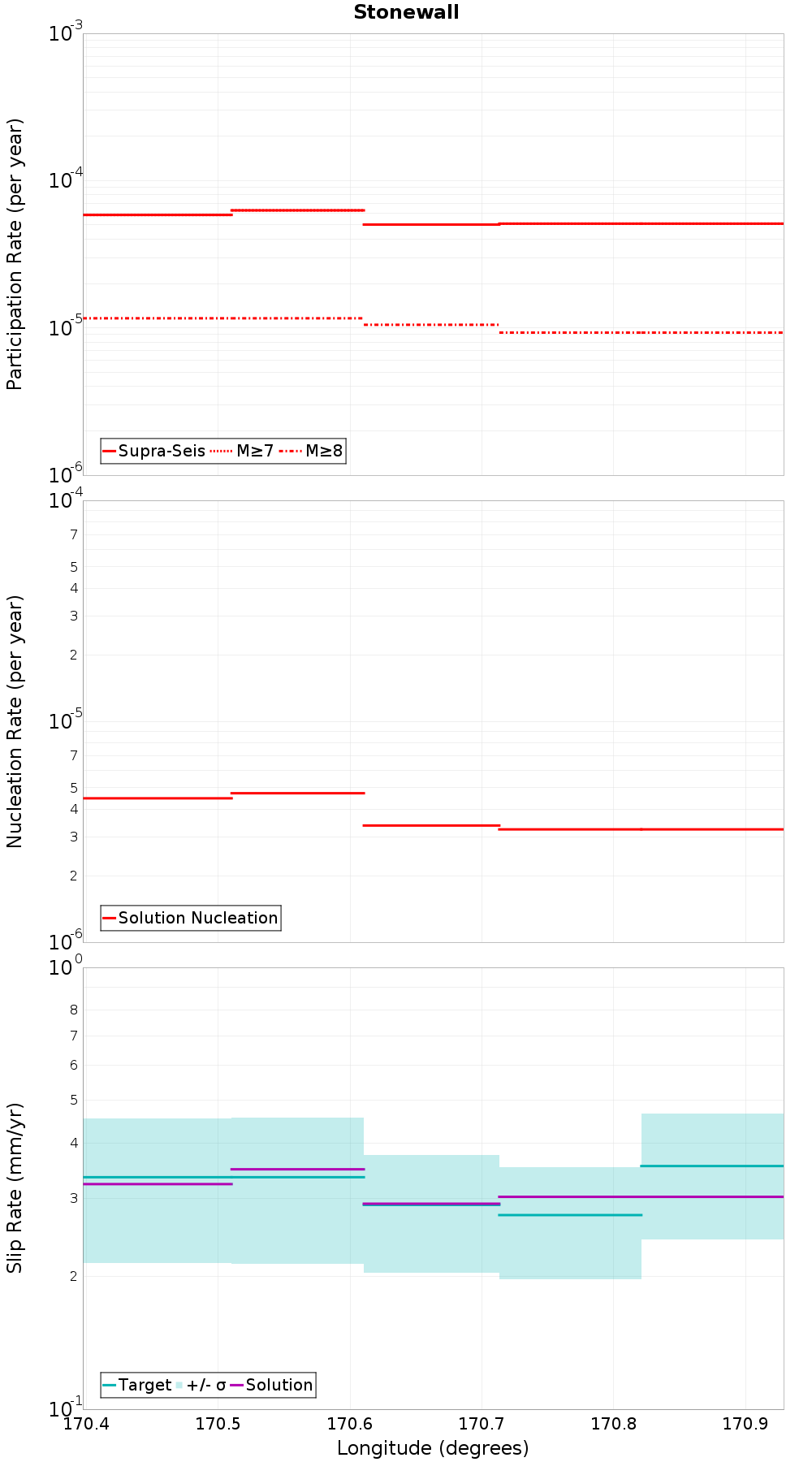

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Campbell Hills, 0.11 km away
Hunters, 0.28 km away
Dryburgh, 0.28 km away
Waimate, 0.45 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 2.02 km away
Waitangi, 3.51 km away
Mt Sutton, 4.67 km away
Fern Gully, 6.14 km away
Middle Range, 9.97 km away
Grampian, 10.47 km away
Awamoa, 12.19 km away

Campbell Hills, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	39
Co-rupture Rate	7.830421E-6

Hunters, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	0.0

Dryburgh, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	384
Co-rupture Rate	1.428201E-5

Waimate, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	65
Co-rupture Rate	4.306976E-6

Waitaki, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	68
Co-rupture Rate	3.689436E-6

Black Hill, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awahokomo, 0.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	210
Co-rupture Rate	4.3260693E-6

Kirkliston, 2.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,042
Co-rupture Rate	5.2464096E-5

Waitangi, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	9.877322E-7

Mt Sutton, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	true
Co-rupture Count	53
Co-rupture Rate	7.5218004E-6

Fern Gully, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	81
Co-rupture Rate	2.2758379E-10

Middle Range, 9.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	4.3258415E-6

Grampian, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	111
Co-rupture Rate	2.4896166E-5

Awamoa, 12.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	4.306976E-6
