Uruti Basin Details

PropertyValue
Rupture Count46,385
Ruptures Above Sect Min Mag46,355
Ruptures w/ Nonzero Rates42
Magnitude Range[6.47, 8.65]
Length Range[12, 1,074] km
Total Rate2.578631E-6 /yr
Multi-Fault Rate2.578631E-6 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults157

Table Of Contents

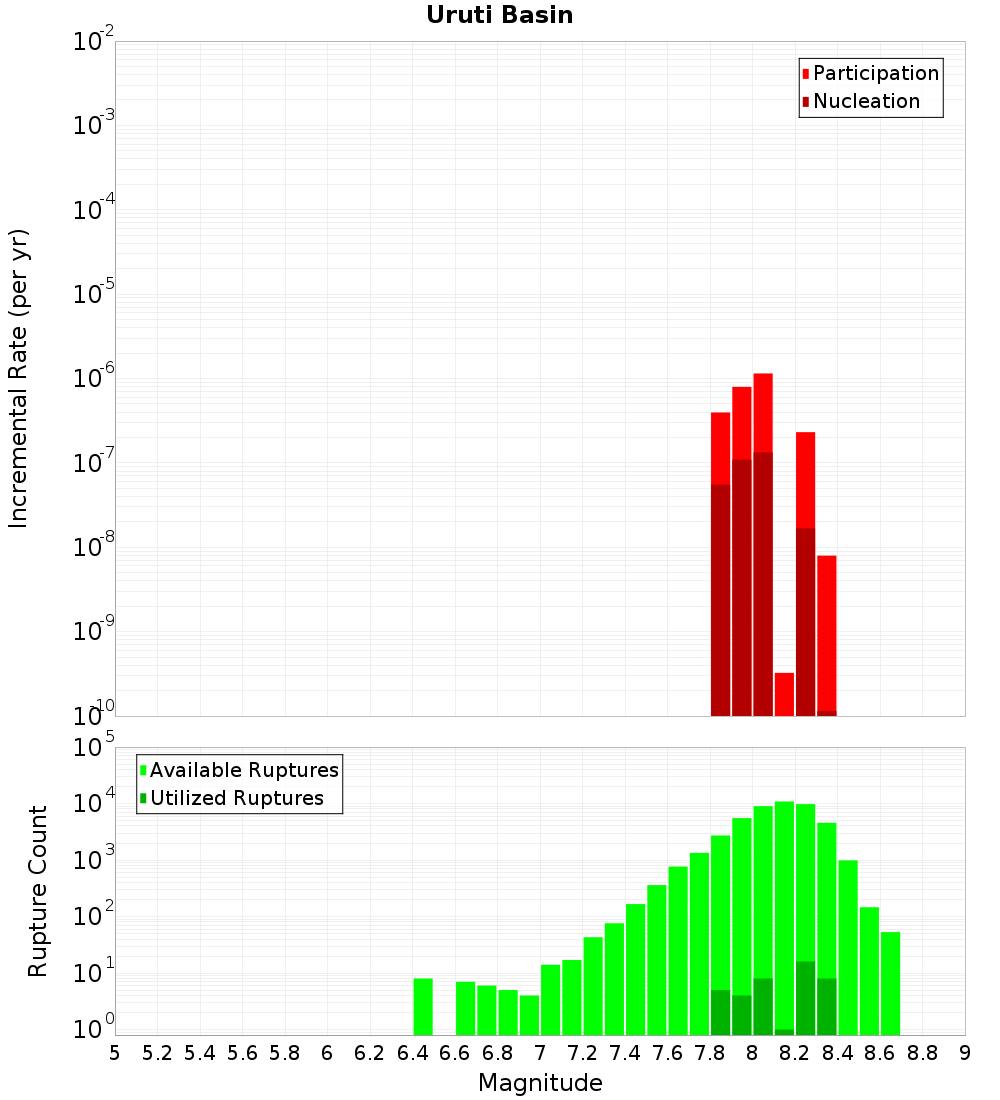

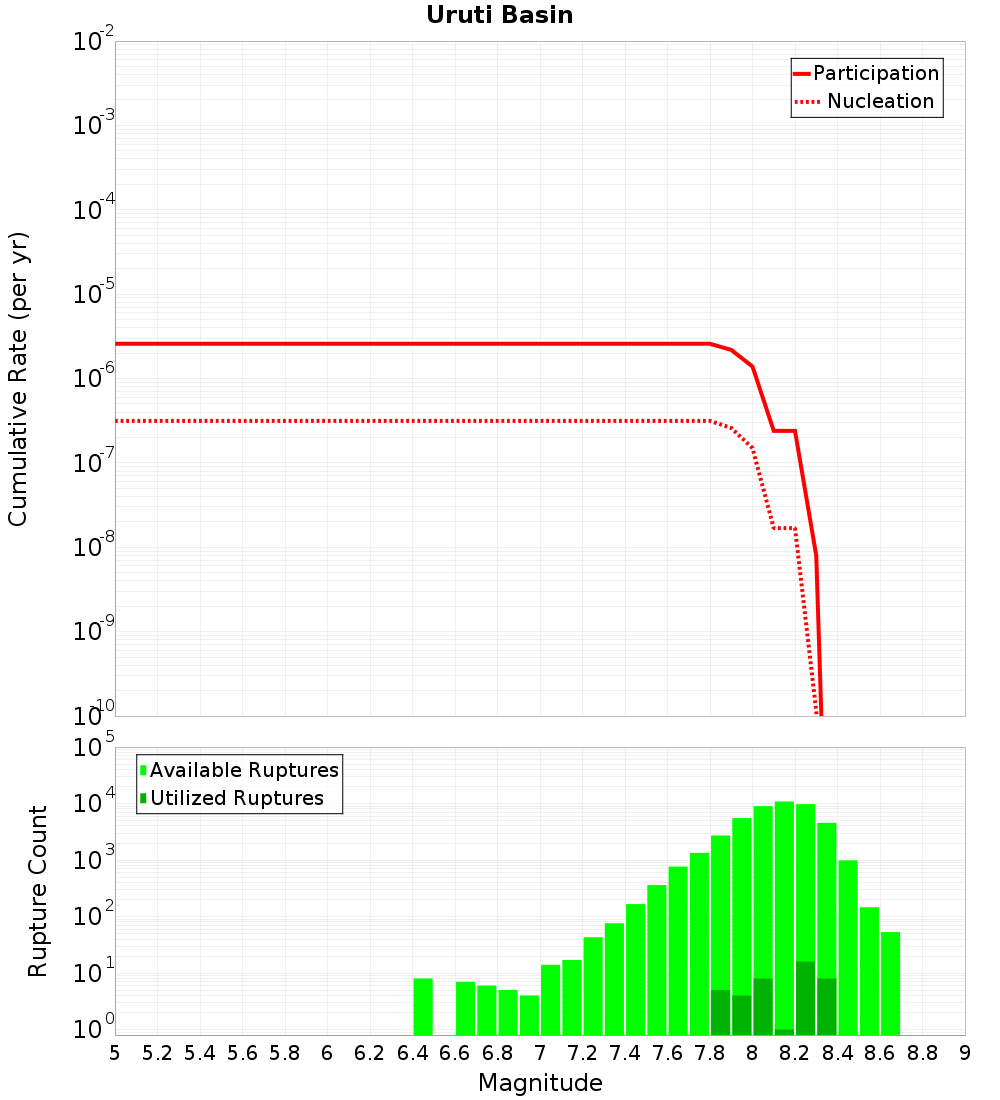

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Ridge 2, 0 km away
Pukeroro 2, 0.07 km away
Uruti Basin 2, 0.15 km away
Opouawe - Uruti, 0.16 km away
Pukeroro Ridge, 0.2 km away
Uruti East - PorWest 1, 0.25 km away
Aorangi Trough, 0.28 km away
Pahaua, 0.28 km away
Honeycomb, 0.57 km away
Palliser - Kaiwhata, 1.36 km away
Whareama Bank, 3.49 km away
Porangahau Basin, 6.11 km away
Aorangi Ridge, 7.06 km away
Riversdale, 8.5 km away
F17 - South, 11.39 km away

Uruti Ridge 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count16,842
Co-rupture Rate1.469942E-6

Pukeroro 2, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count2,033
Co-rupture Rate0.0

Uruti Basin 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count4,262
Co-rupture Rate1.2174377E-7

Opouawe - Uruti, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count23,900
Co-rupture Rate1.6372735E-7

Pukeroro Ridge, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count691
Co-rupture Rate0.0

Uruti East - PorWest 1, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count28,964
Co-rupture Rate1.2048253E-6

Aorangi Trough, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count284
Co-rupture Rate0.0

Pahaua, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count7,226
Co-rupture Rate2.2166337E-6

Honeycomb, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count8,596
Co-rupture Rate2.372405E-6

Palliser - Kaiwhata, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count14,437
Co-rupture Rate1.9826996E-7

Whareama Bank, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate0.0

Porangahau Basin, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count10,860
Co-rupture Rate1.2389744E-6

Aorangi Ridge, 7.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riversdale, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate0.0

F17 - South, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
