Uruti East - PorWest 1 Details

PropertyValue
Rupture Count57,924
Ruptures Above Sect Min Mag57,920
Ruptures w/ Nonzero Rates58
Magnitude Range[6.97, 8.65]
Length Range[22, 1,076] km
Total Rate1.534614E-5 /yr
Multi-Fault Rate1.534614E-5 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults149

Table Of Contents

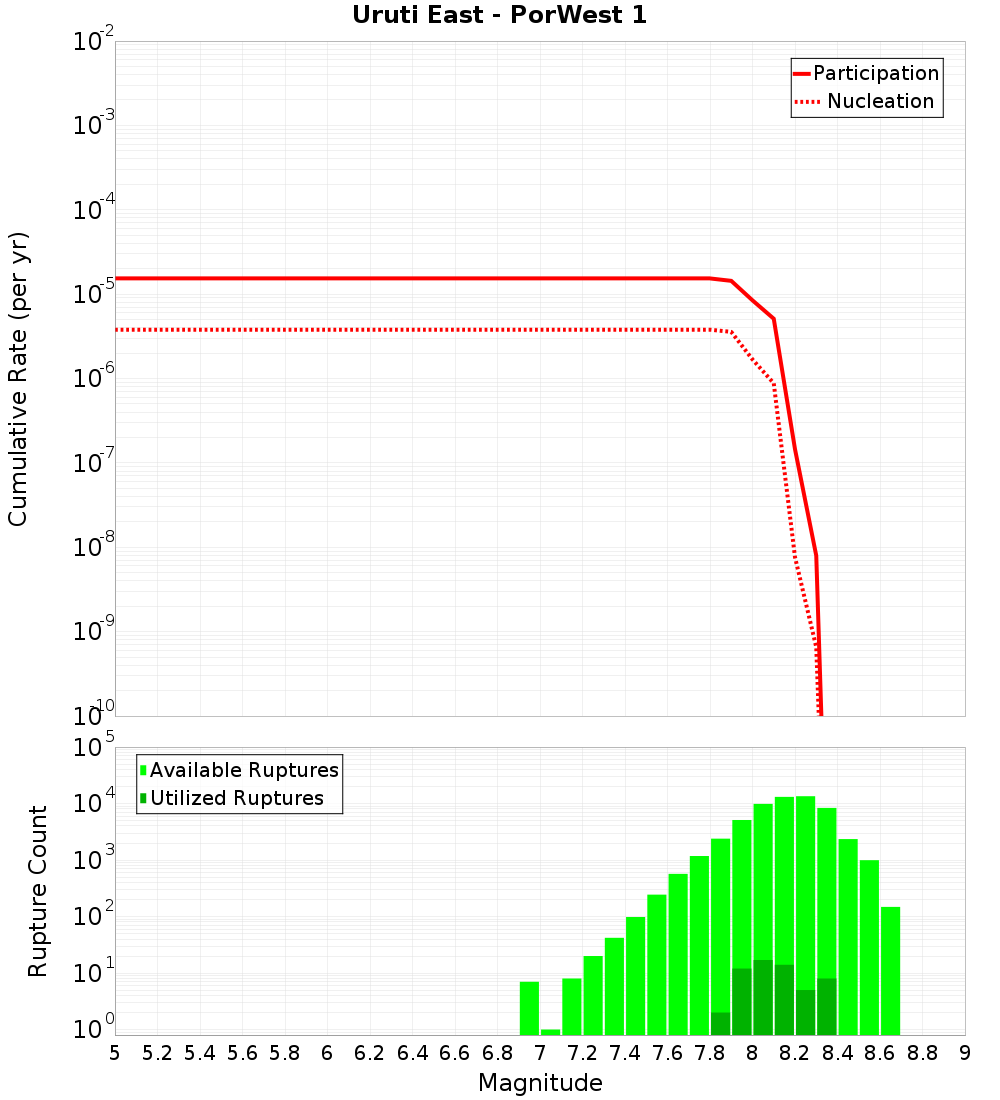

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

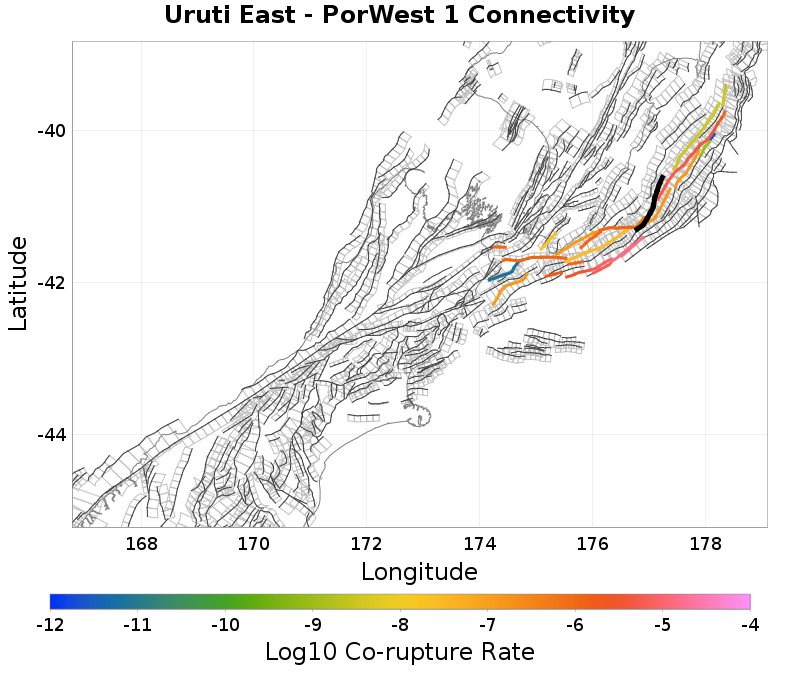

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pukeroro 2, 0 km awayMadden Banks, 4.33 km away
Porangahau Basin, 0.15 km awayOpouawe - Uruti, 5.48 km away
Uruti Basin, 0.25 km awayPorangahau Ridge, 6.91 km away
Pukeroro Ridge, 0.71 km awayPahaua, 7.45 km away
Uruti Basin 2, 1.75 km awayUruti North, 10.36 km away
Uruti Ridge 2, 2.58 km awayAorangi Ridge, 12.19 km away
PorWest2 - PaoanuiRSouth, 3.48 km awayAkitio Trough West, 13.04 km away
Aorangi Trough, 3.76 km awayPorangahau Northeast, 14.3 km away

Pukeroro 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count2,036
Co-rupture Rate0.0

Porangahau Basin, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count3,388
Co-rupture Rate1.3835722E-7

Uruti Basin, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count28,964
Co-rupture Rate1.2048253E-6

Pukeroro Ridge, 0.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count2,065
Co-rupture Rate1.4122137E-5

Uruti Basin 2, 1.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count4,217
Co-rupture Rate0.0

Uruti Ridge 2, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count18,797
Co-rupture Rate4.9343527E-7

PorWest2 - PaoanuiRSouth, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count34,240
Co-rupture Rate5.39933E-6

Aorangi Trough, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count704
Co-rupture Rate1.4122137E-5

Madden Banks, 4.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count2,586
Co-rupture Rate0.0

Opouawe - Uruti, 5.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count41,069
Co-rupture Rate2.7134583E-8

Porangahau Ridge, 6.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count1,643
Co-rupture Rate1.3835722E-7

Pahaua, 7.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count5,736
Co-rupture Rate1.0594962E-6

Uruti North, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count793
Co-rupture Rate0.0

Aorangi Ridge, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate0.0

Akitio Trough West, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?true
Co-rupture Count1,261
Co-rupture Rate0.0

Porangahau Northeast, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjcuMDM2WVhY
Connected?true
Directly Connected?false
Co-rupture Count1,001
Co-rupture Rate9.90836E-10
