Cape Foulwind 2 Details

Property	Value
Rupture Count	3,849
Ruptures Above Sect Min Mag	3,832
Ruptures w/ Nonzero Rates	116
Magnitude Range	[6.73, 8.24]
Length Range	[20, 631] km
Total Rate	4.228531E-4 /yr
Multi-Fault Rate	4.228531E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

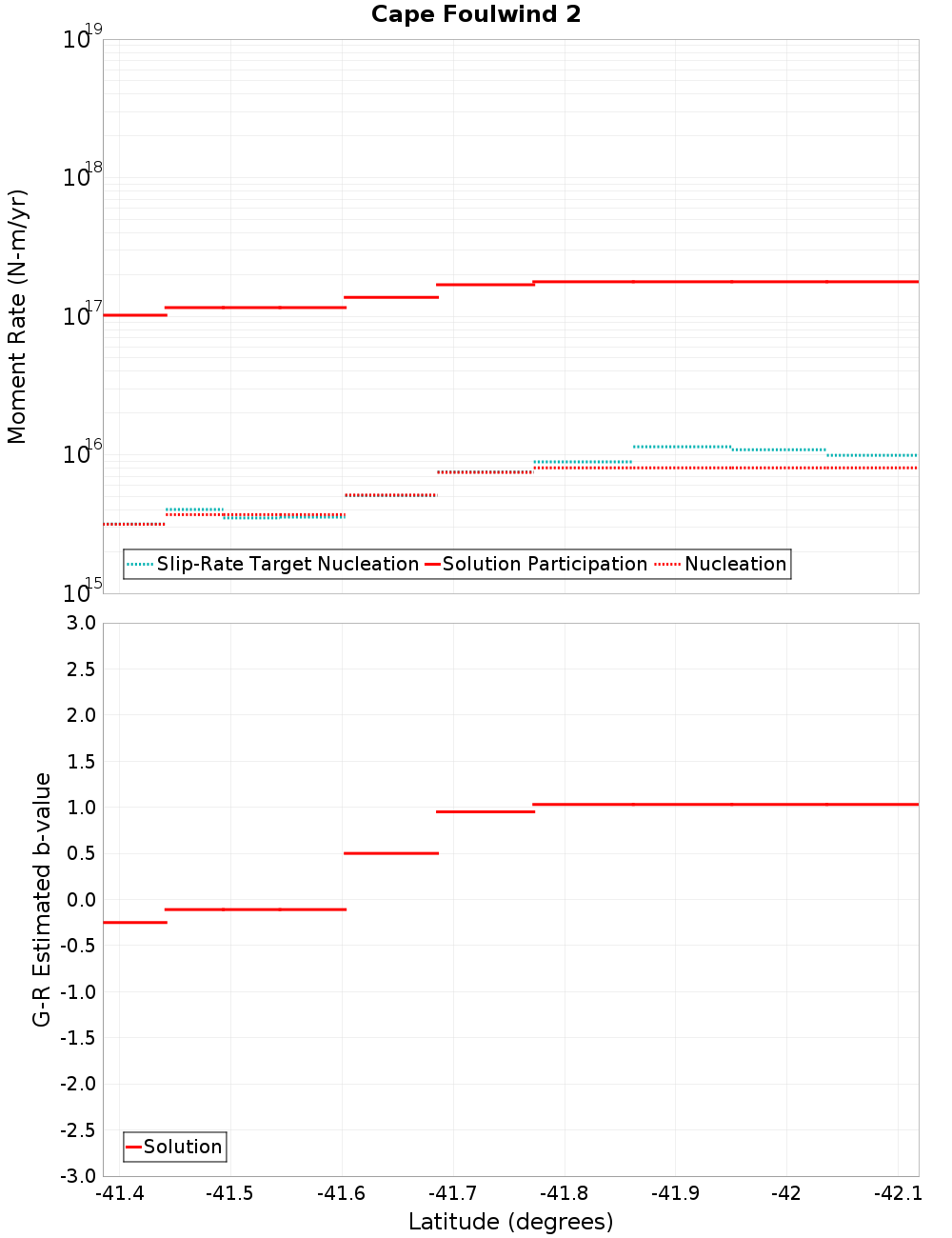

Moment-Rates and b-Values

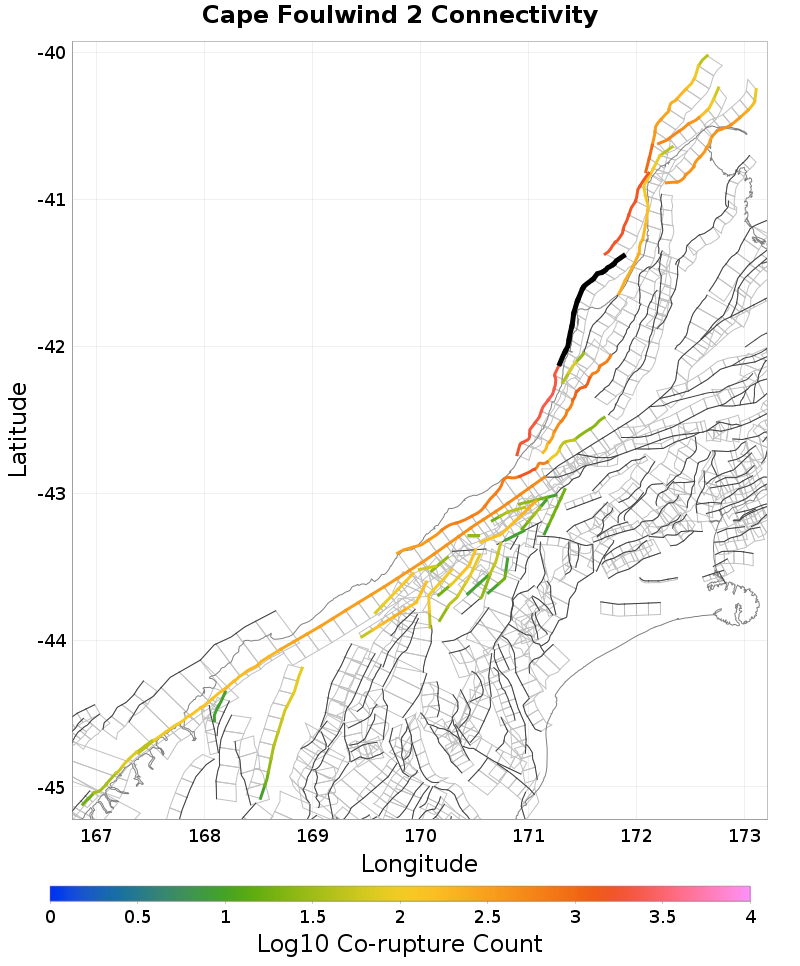

Connectivity

Nearby Sections

Fault Section
Cape Foulwind 1, 0 km away
Maimai, 0.22 km away
Maimai: South, 4.96 km away
Paparoa West, 8.1 km away
Cape Foulwind 4, 8.22 km away
Kongahau, 8.65 km away

Cape Foulwind 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,723
Co-rupture Rate	4.2242592E-4

Maimai, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	true
Co-rupture Count	634
Co-rupture Rate	0.0

Maimai: South, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	3.4611578E-5

Paparoa West, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	1.0701851E-5

Cape Foulwind 4, 8.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,676
Co-rupture Rate	1.00552104E-4

Kongahau, 8.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?	true
Directly Connected?	true
Co-rupture Count	272
Co-rupture Rate	1.6068114E-5
