Mt Arden Details

PropertyValue
Rupture Count15,296
Ruptures Above Sect Min Mag15,295
Ruptures w/ Nonzero Rates31
Magnitude Range[6.90, 8.22]
Length Range[21, 603] km
Total Rate1.5321128E-4 /yr
Multi-Fault Rate1.5321128E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults77

Table Of Contents

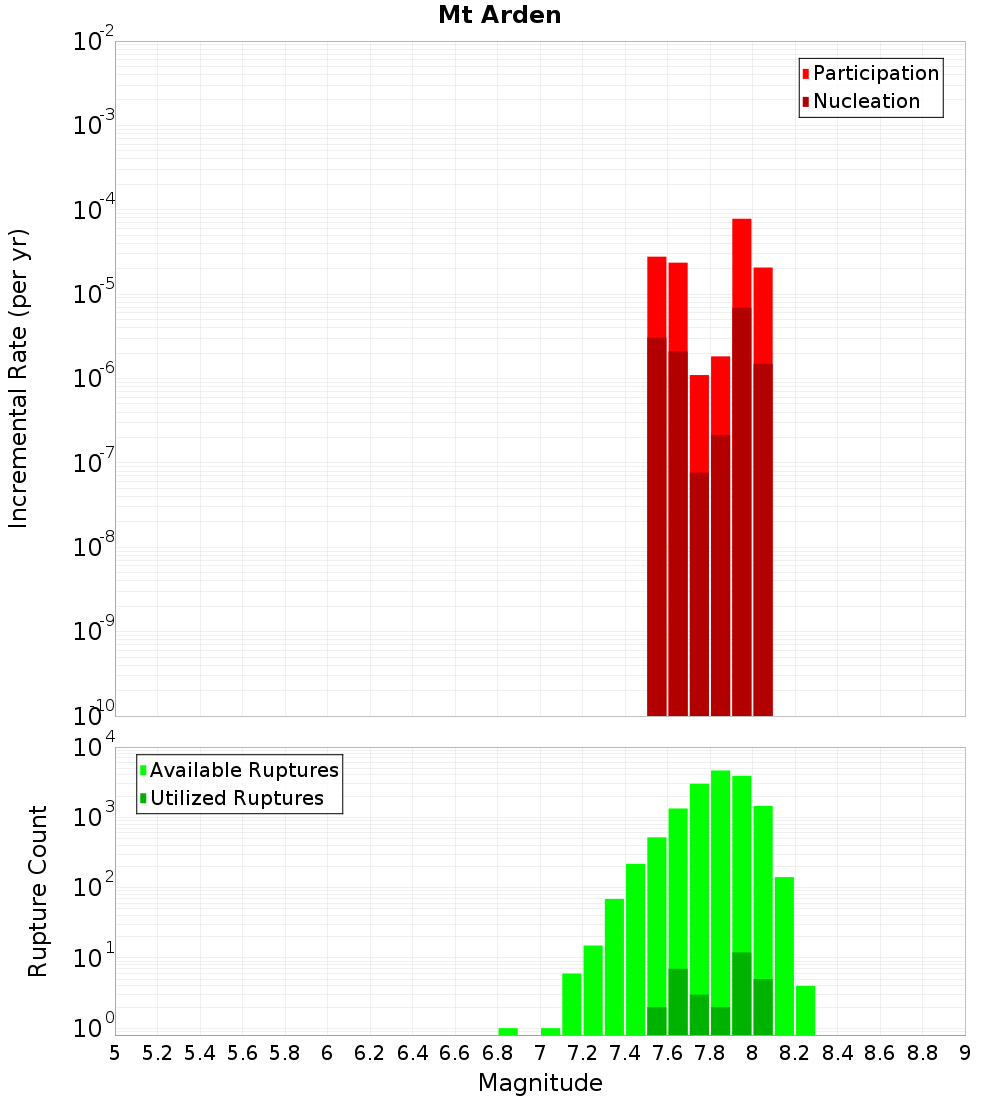

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

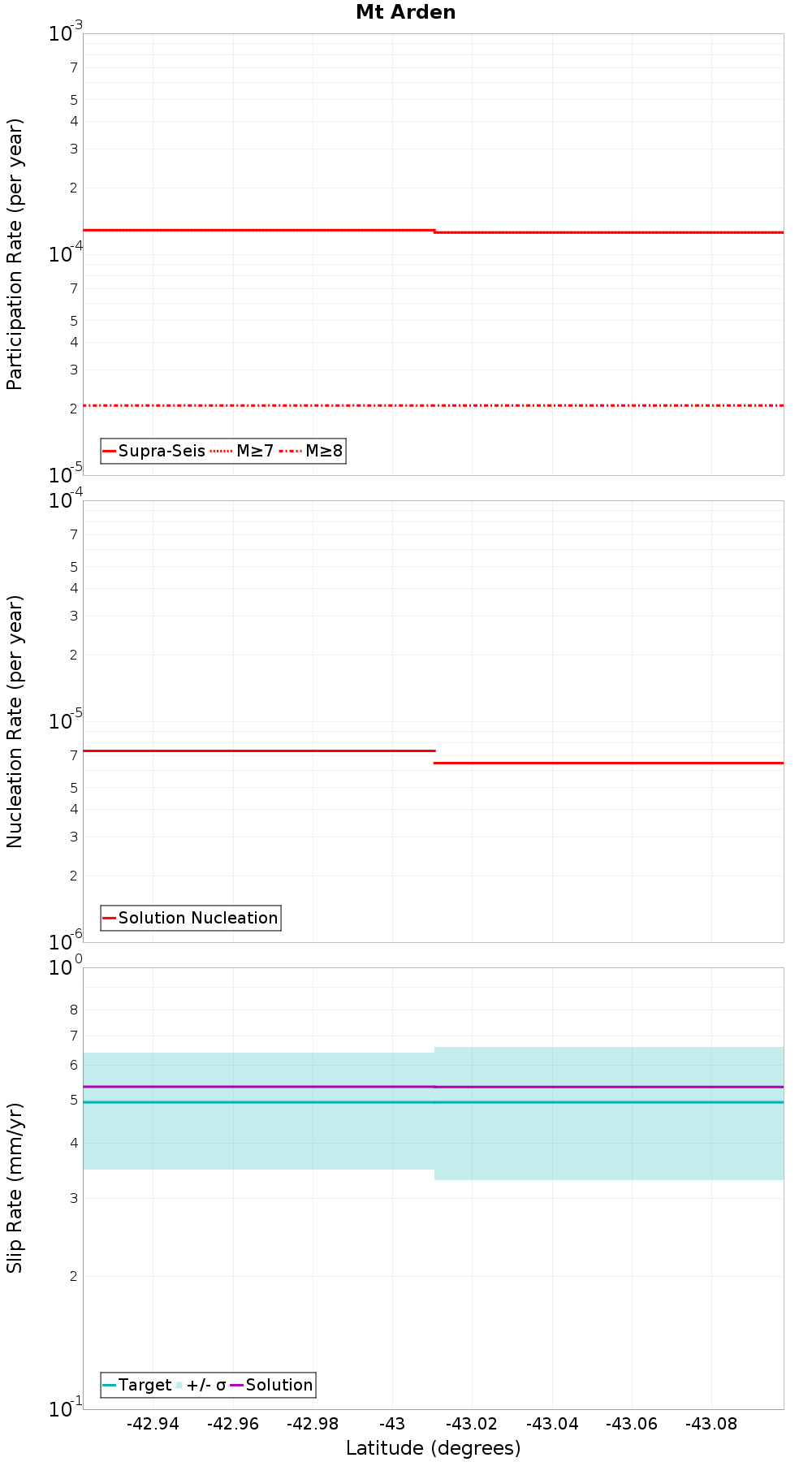

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pancake, 0.13 km away
Lees Valley, 0.19 km away
Virginia, 0.21 km away
Esk South, 0.31 km away
Hurunui Peak, 0.35 km away
Knowles Top, 2.66 km away
Mt Lawry, 5.15 km away
Doctors, 5.9 km away
Boby Stream, 6.78 km away
Lowry, 9.01 km away
Esk North, 9.02 km away
Springbank, 11.73 km away
Kaiwara South, 12.38 km away
Balmoral, 14.85 km away

Pancake, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count14,854
Co-rupture Rate2.2269093E-4

Virginia, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count2,390
Co-rupture Rate2.4705201E-5

Esk South, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count9,115
Co-rupture Rate7.849728E-5

Knowles Top, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count1,291
Co-rupture Rate0.0

Mt Lawry, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count220
Co-rupture Rate7.607523E-6

Doctors, 5.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Boby Stream, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 9.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?true
Co-rupture Count4,917
Co-rupture Rate7.7804914E-5

Springbank, 11.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?false
Co-rupture Count2,499
Co-rupture Rate1.04881234E-4

Kaiwara South, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 14.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjguMFA3ZmJu
Connected?true
Directly Connected?false
Co-rupture Count965
Co-rupture Rate2.4703151E-5
