Akitio Trough West Details

Property	Value
Rupture Count	24,378
Ruptures Above Sect Min Mag	24,371
Ruptures w/ Nonzero Rates	340
Magnitude Range	[6.97, 8.38]
Length Range	[27, 788] km
Total Rate	1.6623407E-4 /yr
Multi-Fault Rate	1.6621703E-4 /yr (99.99%)
Directly-Connected Faults	12
All Co-Rupturing Faults	110

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

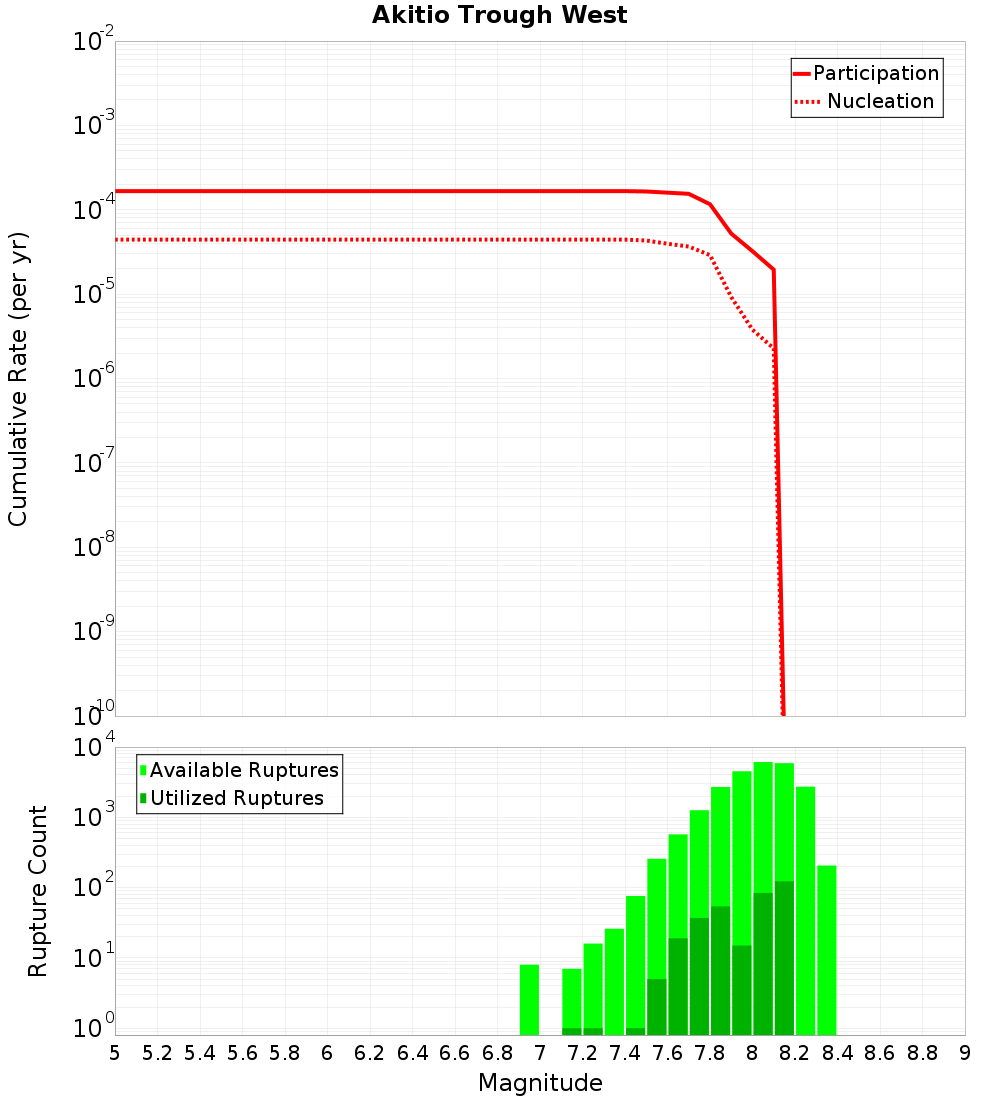

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

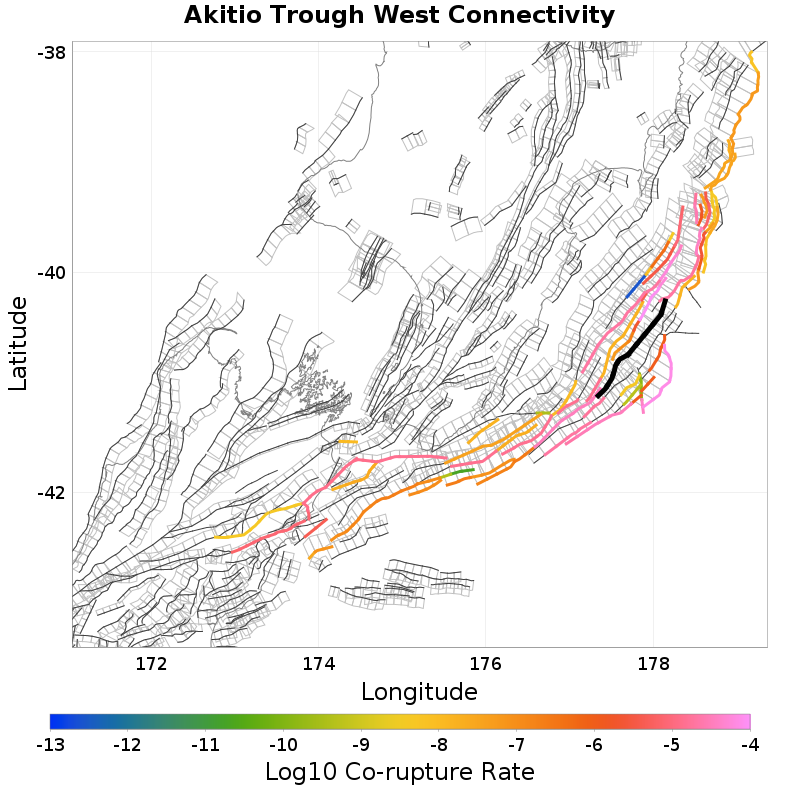

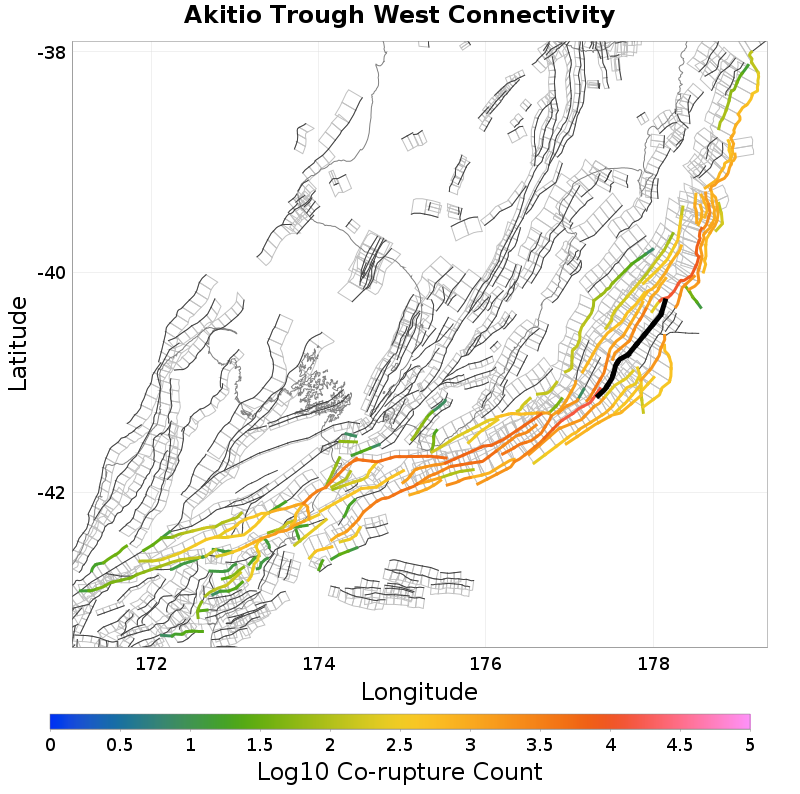

Connectivity

Nearby Sections

Fault Section	Fault Section
Pukeroro Ridge, 0.93 km away	F14 - North, 8.79 km away
Rock Garden - Ritchie East, 1.16 km away	PorWest2 - PaoanuiRSouth, 10.35 km away
Aorangi Trough, 2.57 km away	Bennett Knoll, 11.25 km away
Porangahau Northeast, 2.96 km away	F17 - South, 11.75 km away
Porangahau Ridge, 3.24 km away	BKSmt-North, 11.87 km away
Akitio Ridge, 3.45 km away	F16 - South, 12.01 km away
Paoanui Ridge North, 6.7 km away	Uruti East - PorWest 1, 13.04 km away
Porangahau Basin, 7.99 km away	Ritchie West 1, 13.23 km away
F16 - Central, 8.18 km away	F16 - North, 14.03 km away
Aorangi Ridge, 8.36 km away

Pukeroro Ridge, 0.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	14,453
Co-rupture Rate	3.1989628E-5

Rock Garden - Ritchie East, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	13,066
Co-rupture Rate	4.0160354E-5

Aorangi Trough, 2.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	2,073
Co-rupture Rate	1.7596569E-5

Porangahau Northeast, 2.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,665
Co-rupture Rate	9.486056E-5

Porangahau Ridge, 3.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	3,950
Co-rupture Rate	1.4067069E-5

Akitio Ridge, 3.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,948
Co-rupture Rate	1.4508109E-8

Paoanui Ridge North, 6.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,119
Co-rupture Rate	5.9307247E-5

Porangahau Basin, 7.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	1.4051132E-5

F16 - Central, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,747
Co-rupture Rate	1.0460833E-6

Aorangi Ridge, 8.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	false
Co-rupture Count	1,224
Co-rupture Rate	1.932439E-5

F14 - North, 8.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

PorWest2 - PaoanuiRSouth, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	719
Co-rupture Rate	1.9668258E-5

Bennett Knoll, 11.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	531
Co-rupture Rate	7.068196E-5

F17 - South, 11.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,000
Co-rupture Rate	3.281768E-5

BKSmt-North, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

F16 - South, 12.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	false
Co-rupture Count	435
Co-rupture Rate	4.939919E-10

Uruti East - PorWest 1, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	true
Co-rupture Count	1,261
Co-rupture Rate	1.0249787E-8

Ritchie West 1, 13.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	true
Directly Connected?	false
Co-rupture Count	655
Co-rupture Rate	8.61976E-6

F16 - North, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
