Hope: Conway Details

PropertyValue
Rupture Count176,959
Ruptures Above Sect Min Mag176,919
Ruptures w/ Nonzero Rates1,932
Magnitude Range[6.54, 8.47]
Length Range[16, 1,083] km
Total Rate0.0032022805 /yr
Multi-Fault Rate0.0032022384 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults291

Table Of Contents

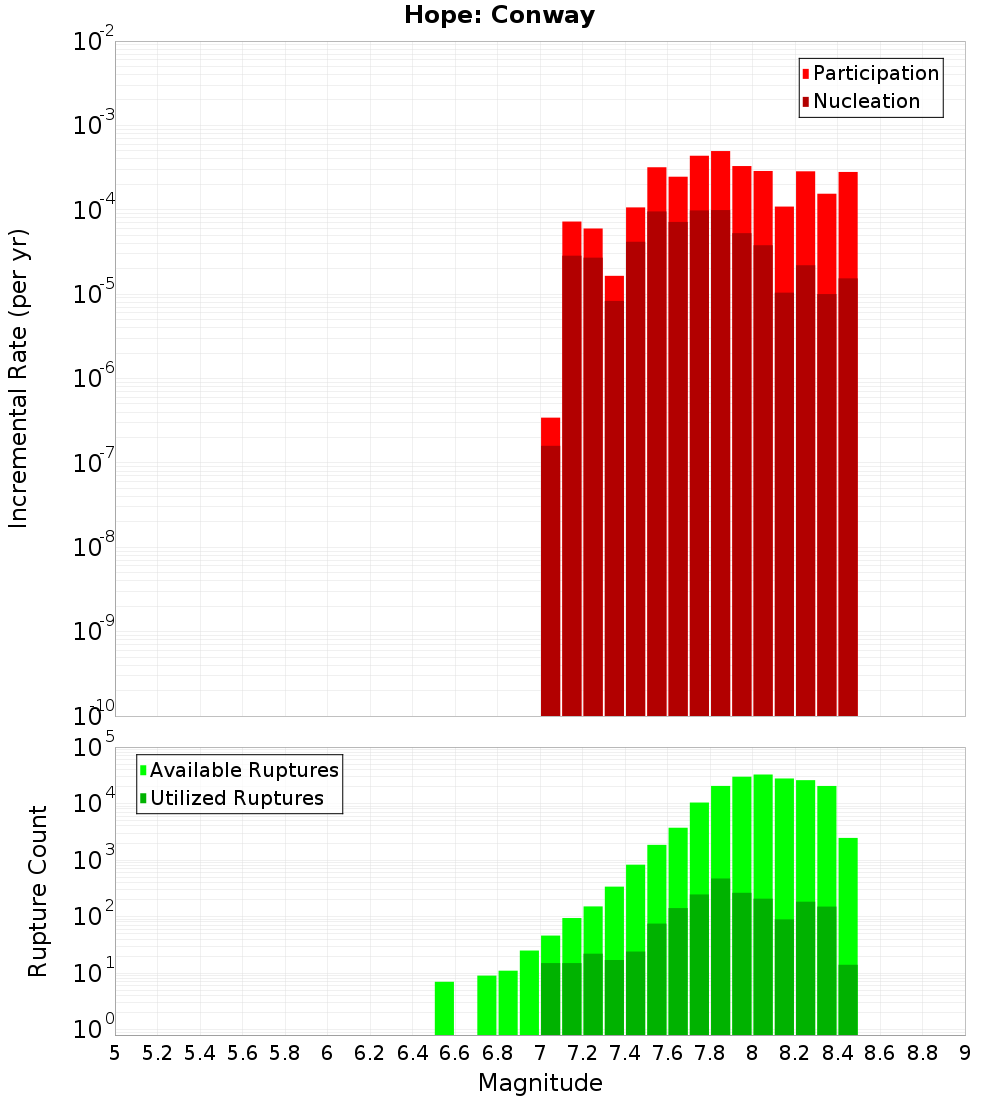

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

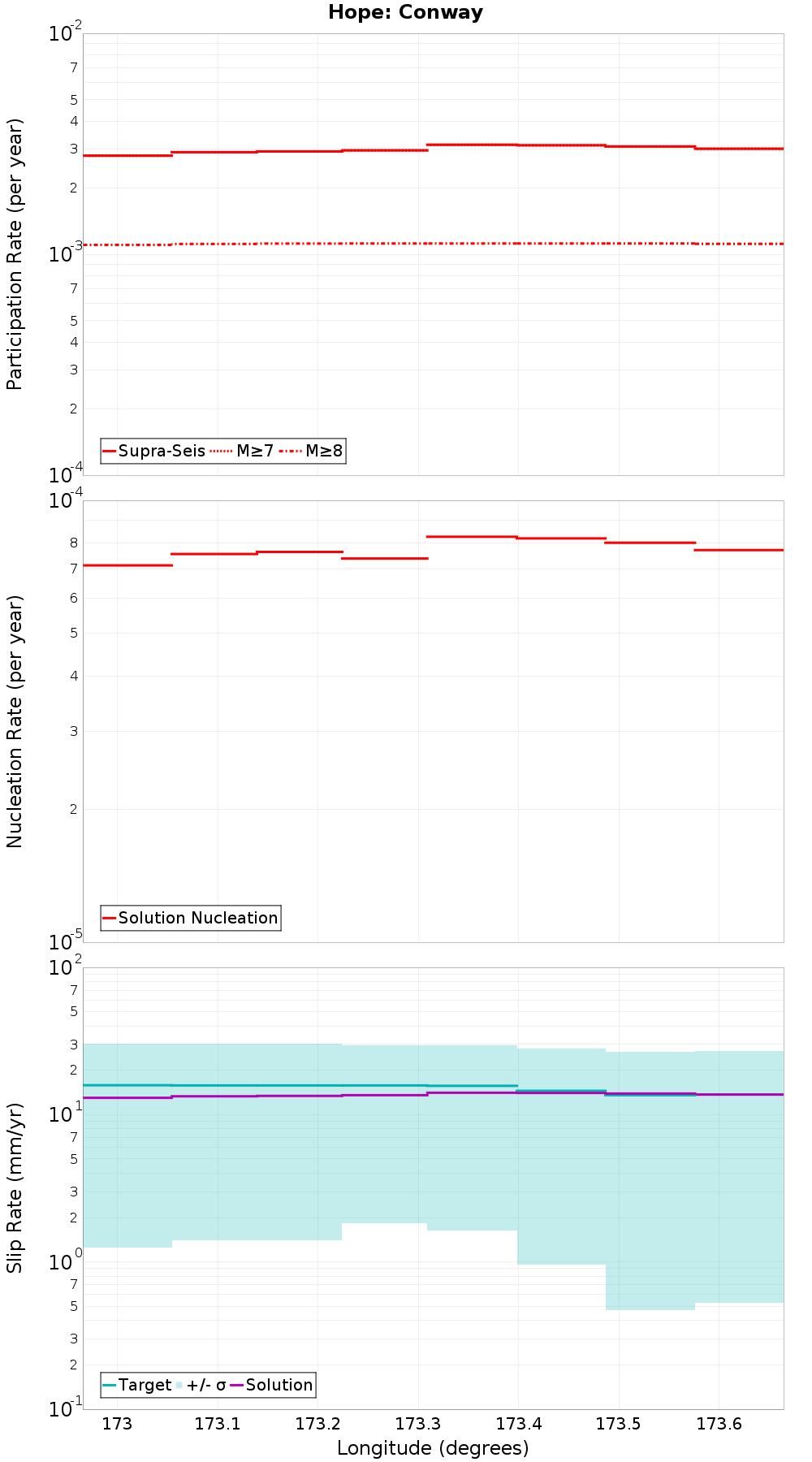

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Jordan, 0 km awayLeader: Central, 4.85 km away
Hope: Seaward, 0 km awayKaiwara North, 6.34 km away
Hope: Hamner SE, 0 km awayLeader: South, 6.39 km away
Hanmer, 0 km awayHundalee, 7.09 km away
Upper Kowhai - Manakau, 0.14 km awayDillon, 8.76 km away
Offshore Splay Thrust, 0.19 km awayPapatea, 10.19 km away
Leader: North, 0.2 km awayThe Humps, 10.44 km away
StoneJug, 0.26 km awayElliott, 11.08 km away
Kowhai, 0.31 km awayAcheron, 11.85 km away
Kaikoura - Mangamaunu, 3.18 km awayMt Culverden, 12.62 km away
Kaikoura 2, 4.74 km awayHope: Hanmer NW, 12.84 km away

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count50,244
Co-rupture Rate0.001092359

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count85,073
Co-rupture Rate0.001314915

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count128,955
Co-rupture Rate0.0017321374

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count5,650
Co-rupture Rate8.498613E-4

Upper Kowhai - Manakau, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count1,491
Co-rupture Rate6.414588E-5

Offshore Splay Thrust, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count15,131
Co-rupture Rate3.374941E-6

Leader: North, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count12,141
Co-rupture Rate1.7488879E-4

StoneJug, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count4,237
Co-rupture Rate4.421523E-5

Kowhai, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count1,913
Co-rupture Rate6.371808E-5

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count6,031
Co-rupture Rate2.4986884E-4

Kaikoura 2, 4.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count720
Co-rupture Rate1.2173725E-4

Leader: Central, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count19,572
Co-rupture Rate1.1680107E-4

Kaiwara North, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count16,250
Co-rupture Rate4.28924E-5

Leader: South, 6.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count138
Co-rupture Rate4.6967114E-5

Hundalee, 7.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count2,110
Co-rupture Rate2.6912016E-5

Dillon, 8.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count168
Co-rupture Rate1.5119312E-4

Papatea, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count23,046
Co-rupture Rate3.4793535E-5

The Humps, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count1,239
Co-rupture Rate9.7327435E-9

Elliott, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count786
Co-rupture Rate3.462845E-4

Acheron, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate2.3523014E-4

Mt Culverden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count5,379
Co-rupture Rate9.881889E-9

Hope: Hanmer NW, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count54,536
Co-rupture Rate5.7986524E-4
