Otaheke North Details

PropertyValue
Rupture Count522
Ruptures Above Sect Min Mag520
Ruptures w/ Nonzero Rates61
Magnitude Range[6.99, 7.94]
Length Range[25, 285] km
Total Rate2.891602E-4 /yr
Multi-Fault Rate2.7279422E-4 /yr (94.34%)
Directly-Connected Faults7
All Co-Rupturing Faults30

Table Of Contents

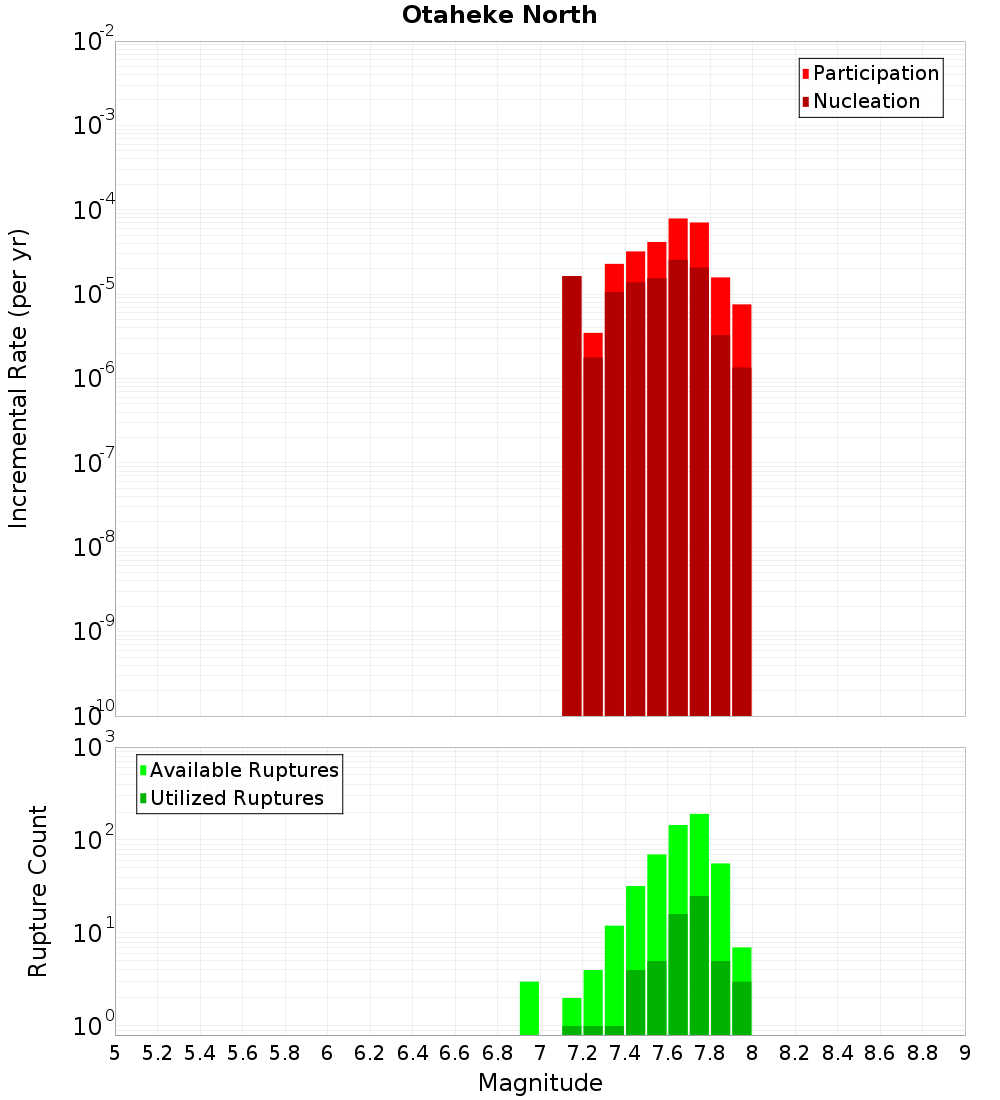

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

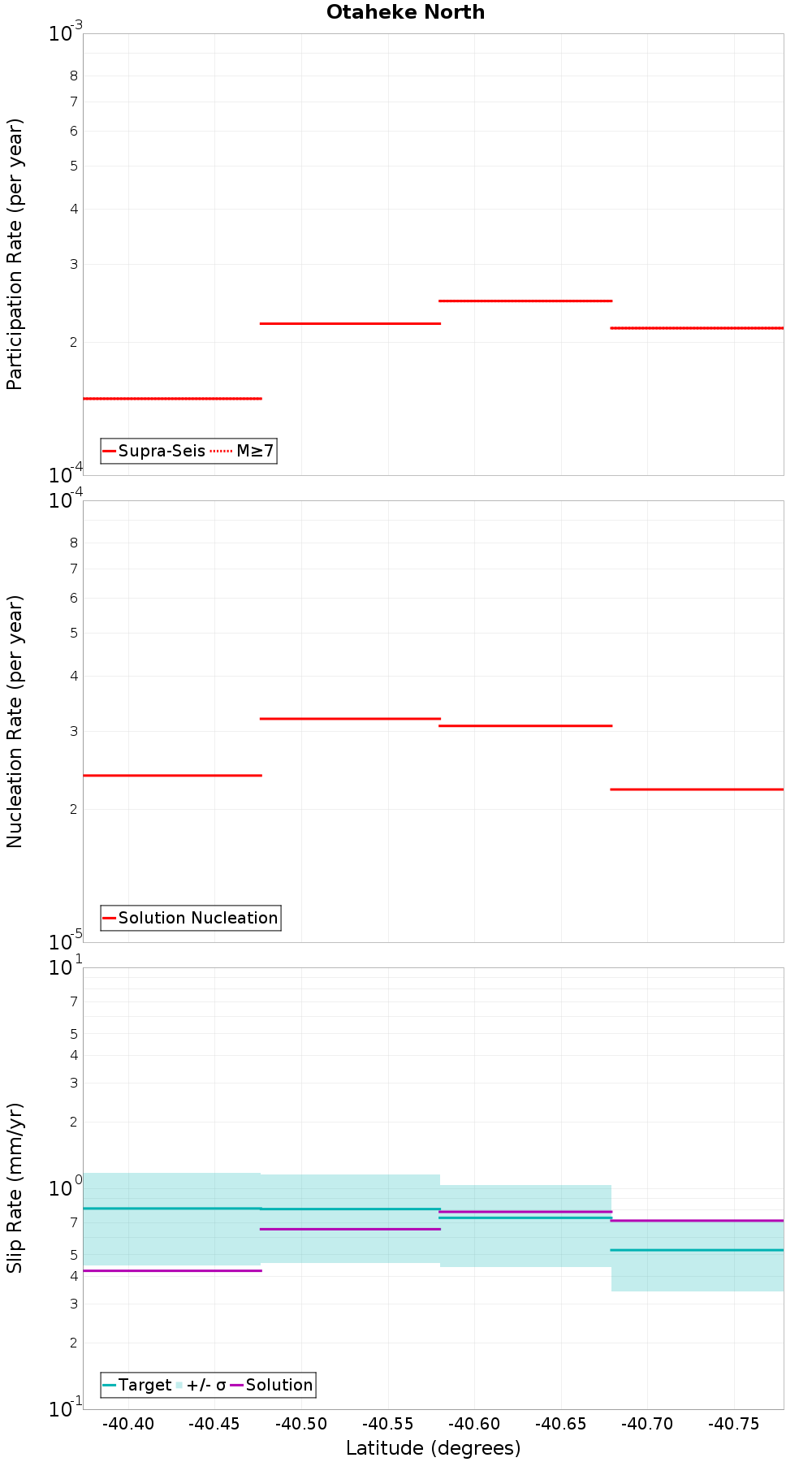

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

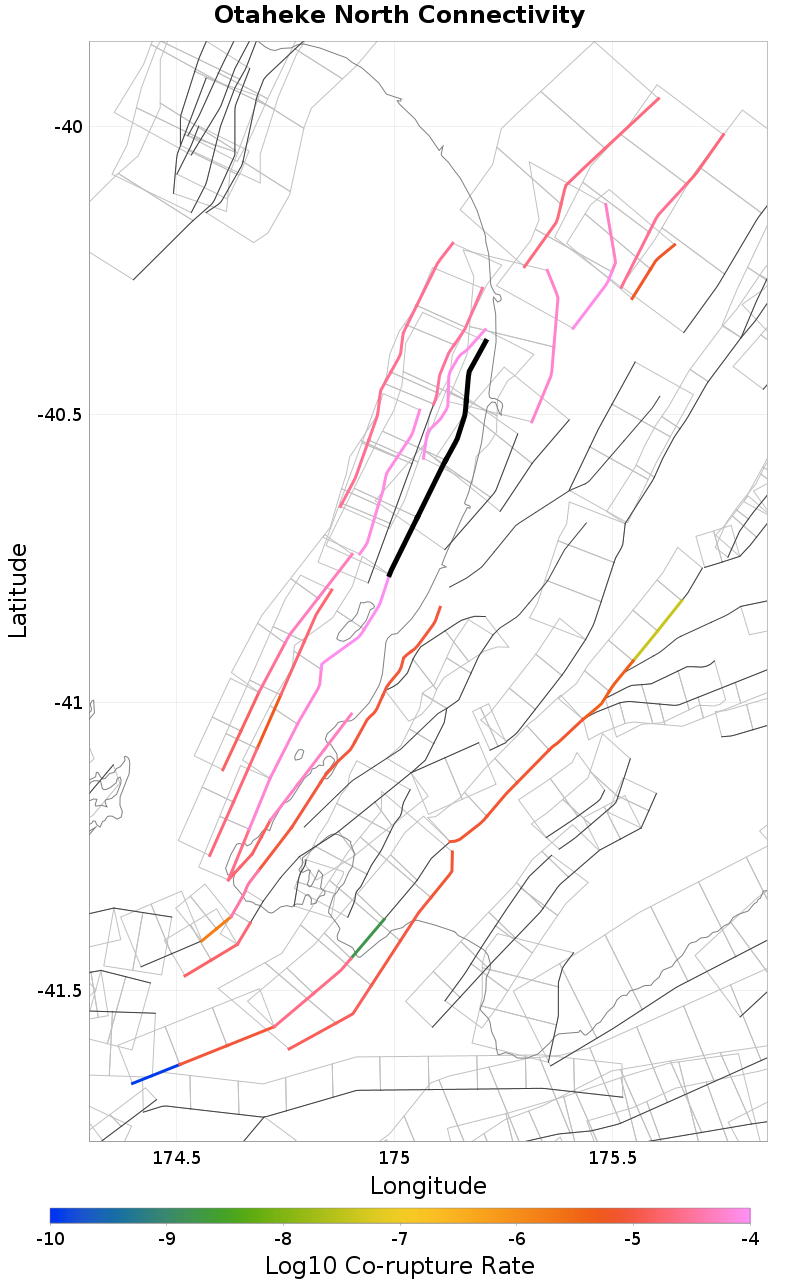

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otaheke South, 0 km away
Rangitikei Offshore 1, 0.19 km away
Onepoto, 0.42 km away
Mascarin, 0.44 km away
Fisherman 3, 0.89 km away
Fisherman 2, 2.94 km away
Poroutawhao, 4.14 km away
Okupe 1, 8.09 km away
Himatangi, 8.62 km away
Levin Anticline, 10.06 km away
Northern Ohariu, 11.55 km away
Ohariu, 11.65 km away
Mt Stewart, 14.7 km away
Gibbs, 14.97 km away

Otaheke South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count298
Co-rupture Rate9.137328E-5

Rangitikei Offshore 1, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate8.115242E-5

Onepoto, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count98
Co-rupture Rate3.1676016E-5

Mascarin, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate2.7384393E-5

Fisherman 3, 0.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count48
Co-rupture Rate7.605376E-5

Fisherman 2, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate4.767522E-5

Poroutawhao, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 8.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate3.567082E-5

Himatangi, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate5.7839006E-5

Levin Anticline, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count174
Co-rupture Rate3.5009343E-5

Mt Stewart, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate8.129862E-5

Gibbs, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
