Wellington Hutt Valley: 4 Details

PropertyValue
Rupture Count5,859
Ruptures Above Sect Min Mag5,854
Ruptures w/ Nonzero Rates131
Magnitude Range[6.69, 8.25]
Length Range[18, 639] km
Total Rate7.4336614E-4 /yr
Multi-Fault Rate7.4336614E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults116

Table Of Contents

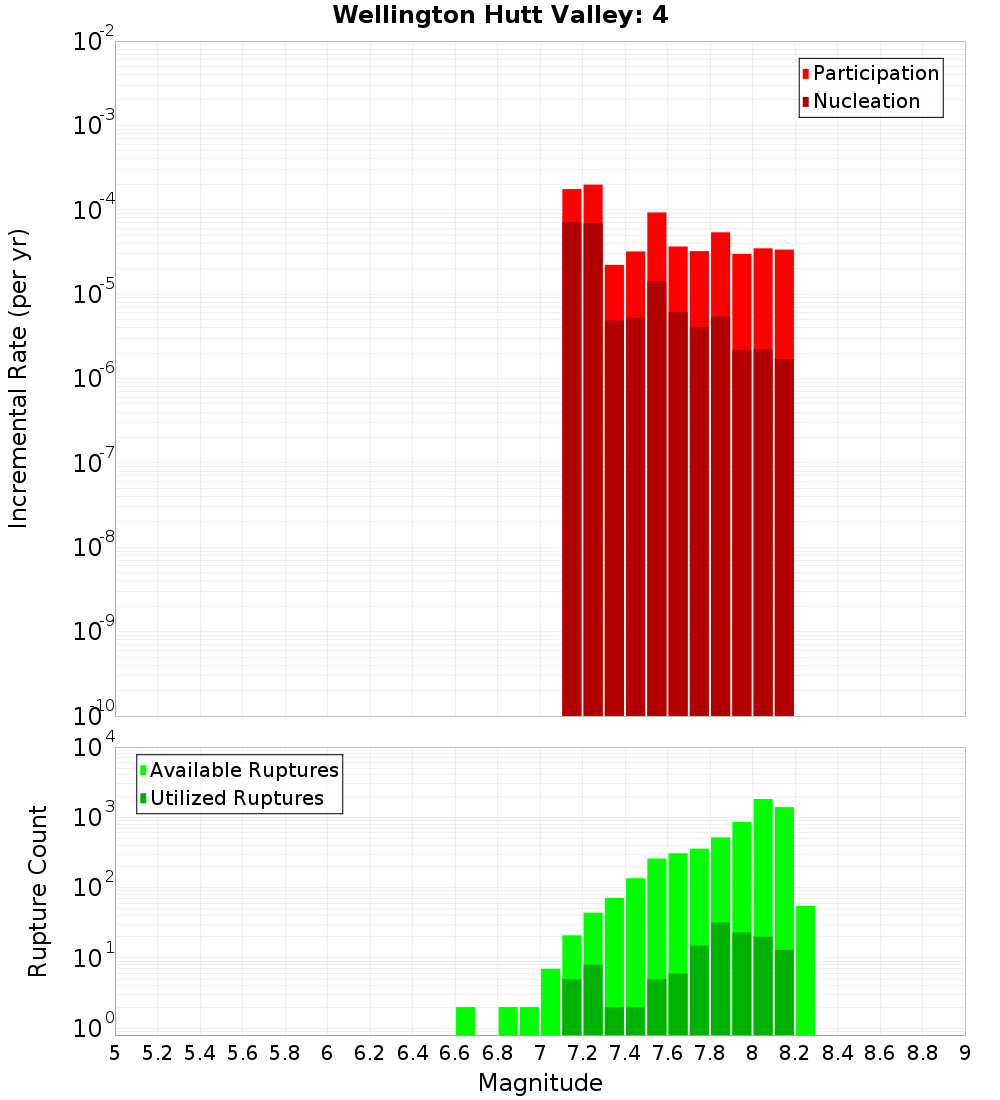

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

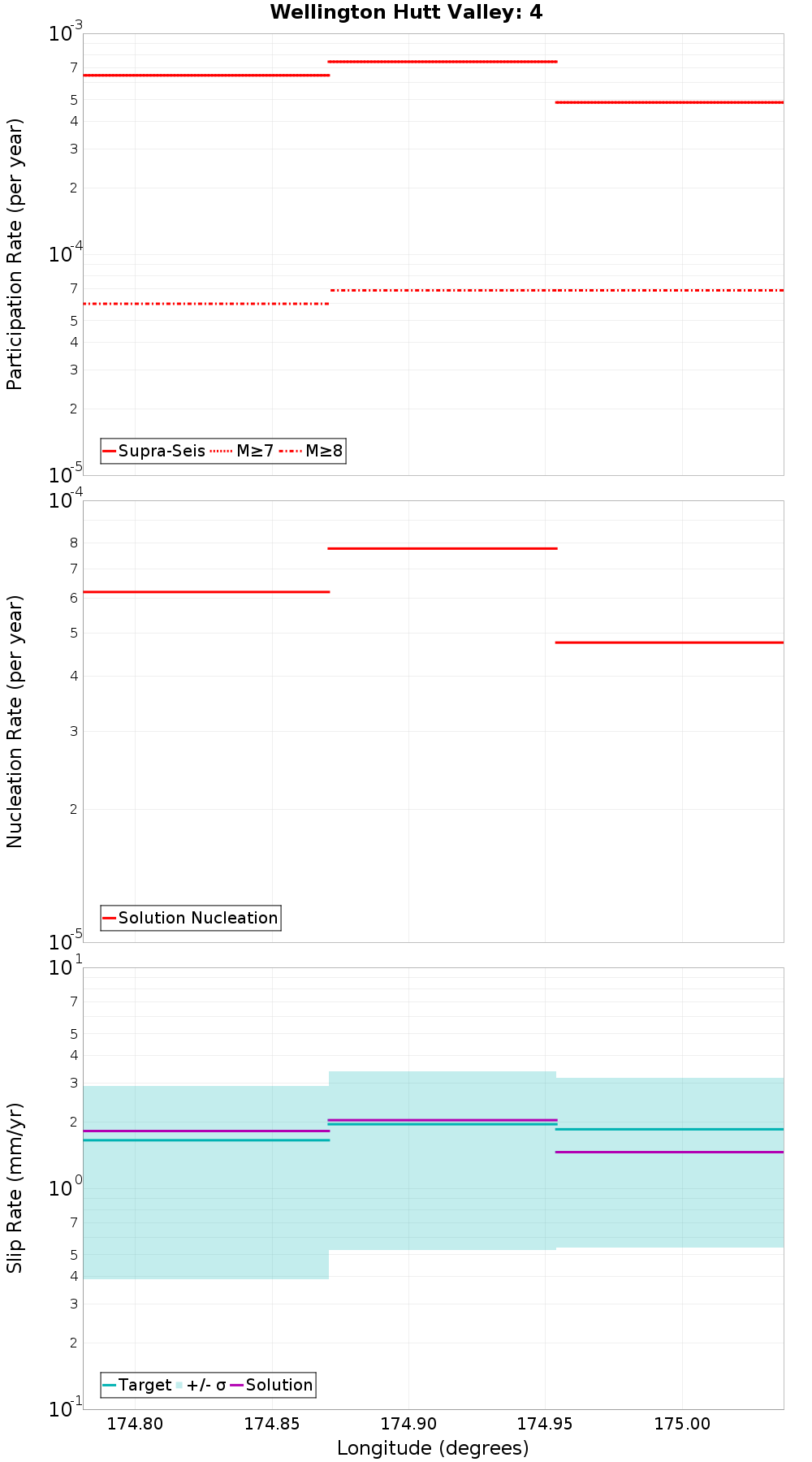

Along-Strike Values

(top)

Along-strike plot

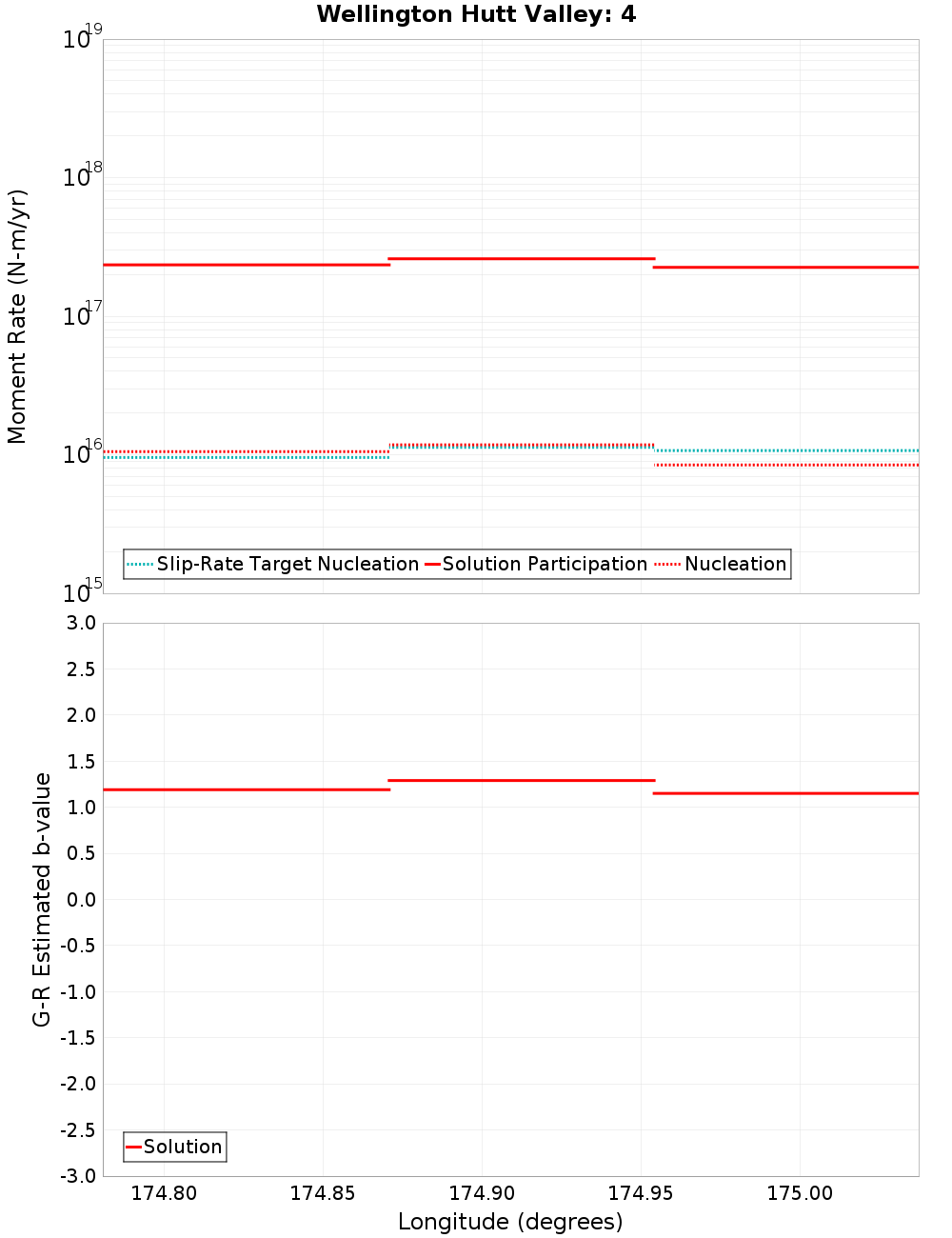

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 3, 0 km awayOhariu, 4.6 km away
Akatarawa, 0.01 km awayPukerua - Shepherds Gully: 2, 8.22 km away
Wellington Hutt Valley: 5, 0.01 km awayPukerua - Shepherds Gully: 3, 8.98 km away
Whitemans Valley, 0.1 km awayPukerua - Shepherds Gully: 1, 9.04 km away
Wharekauhau, 0.21 km awayShepherds Gully - Mana, 10.91 km away
Aotea - Evans Bay, 1.21 km awayWellington Hutt Valley: 2, 10.98 km away
Wairarapa: 1, 2.73 km awayOtaki Forks: 1, 14.19 km away
Wairarapa: 2, 3.98 km awayGibbs, 14.45 km away
Moonshine, 4.31 km away

Wellington Hutt Valley: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count1,468
Co-rupture Rate5.672914E-4

Akatarawa, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count2,209
Co-rupture Rate2.3880873E-4

Wellington Hutt Valley: 5, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count2,688
Co-rupture Rate2.3578279E-4

Whitemans Valley, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Wharekauhau, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count710
Co-rupture Rate6.676387E-6

Aotea - Evans Bay, 1.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count1,436
Co-rupture Rate2.7966347E-5

Wairarapa: 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count283
Co-rupture Rate9.257409E-5

Wairarapa: 2, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count267
Co-rupture Rate7.739626E-5

Moonshine, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate3.226376E-5

Ohariu, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?true
Co-rupture Count654
Co-rupture Rate2.4116633E-4

Pukerua - Shepherds Gully: 2, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Shepherds Gully - Mana, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count754
Co-rupture Rate4.658967E-4

Otaki Forks: 1, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?true
Directly Connected?false
Co-rupture Count2,184
Co-rupture Rate2.3880873E-4

Gibbs, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNjkuMHoyRDdk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
