Karangarua Details

Property	Value
Rupture Count	22,829
Ruptures Above Sect Min Mag	22,822
Ruptures w/ Nonzero Rates	248
Magnitude Range	[6.70, 8.39]
Length Range	[16, 676] km
Total Rate	1.3054576E-4 /yr
Multi-Fault Rate	1.3054576E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	207

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

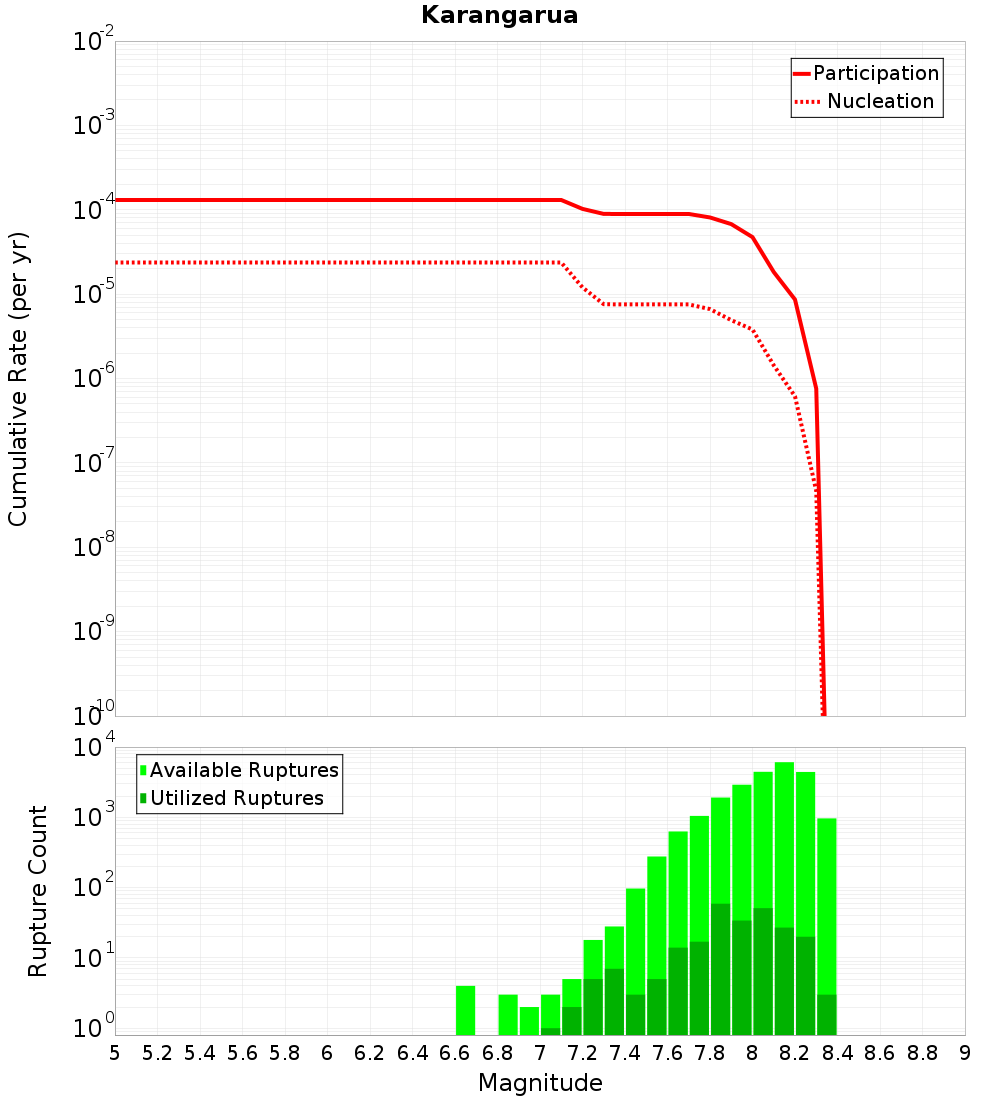

Magnitude-Frequency Distribution

Incremental	Cumulative

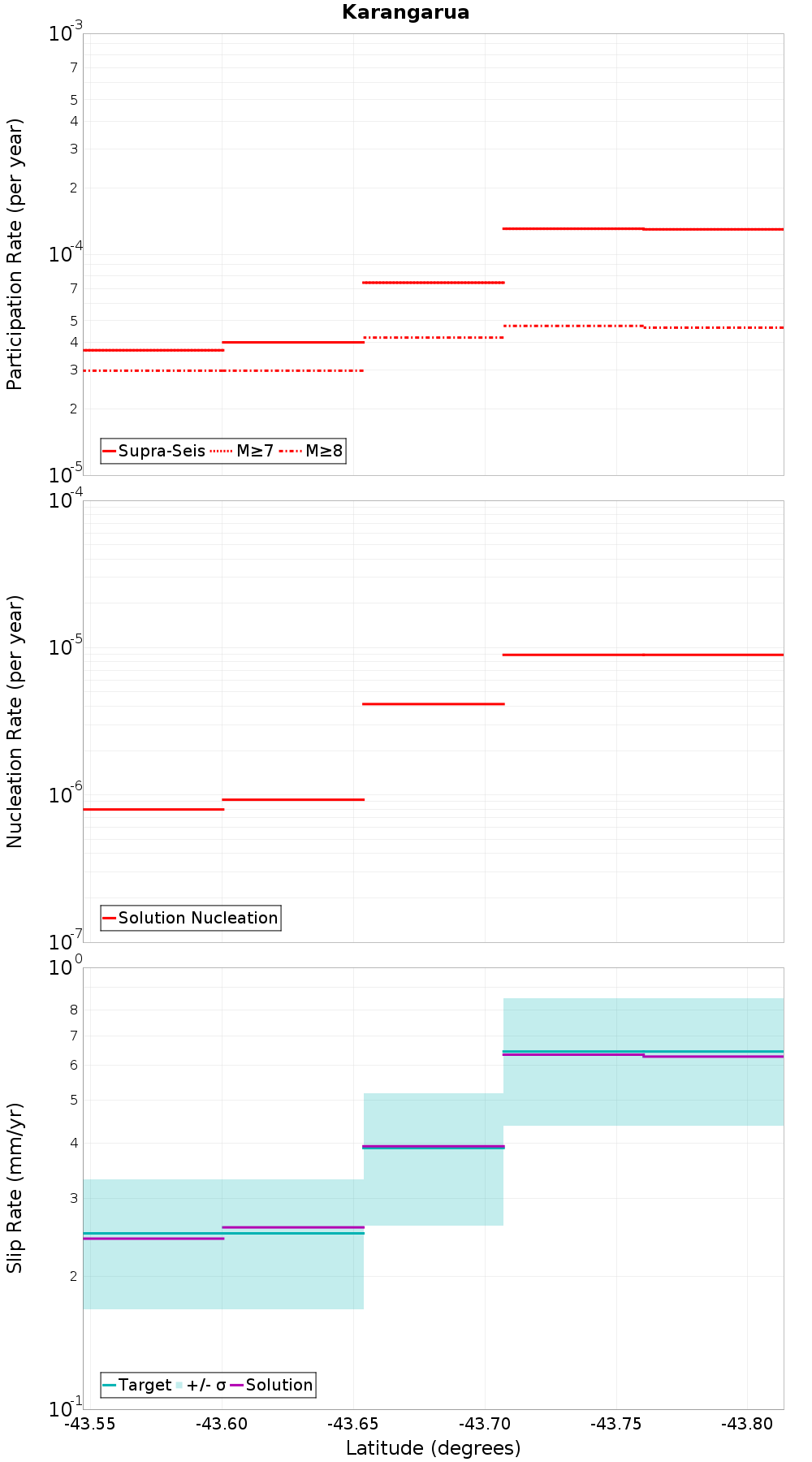

Along-Strike Values

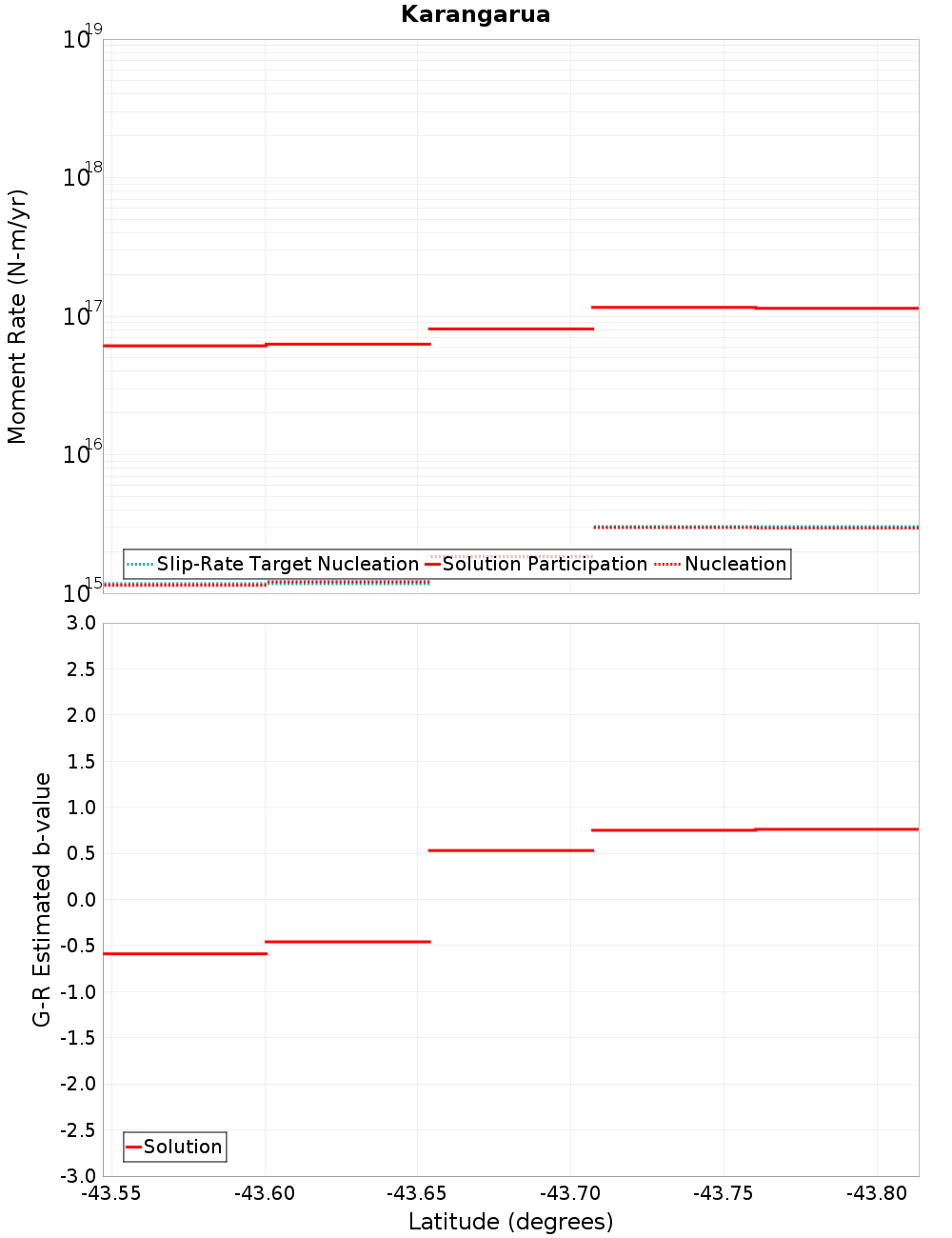

Moment-Rates and b-Values

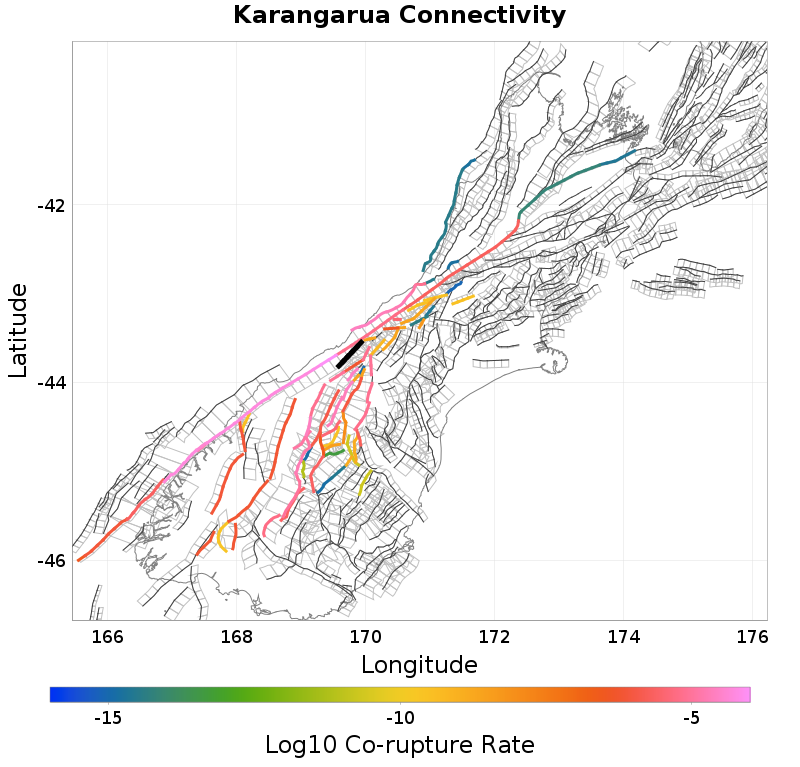

Connectivity

Nearby Sections

Fault Section
Alpine: Jacksons to Kaniere, 0.14 km away
McKerrow - Douglas Duplex, 0.24 km away
Hohonu South, 2.41 km away
Black Blob - Haast Ridge, 2.51 km away
Landsborough 2, 3.37 km away
Great Groove, 3.57 km away
Huxley, 4.17 km away
Straight Creek, 4.85 km away
Murchison 1 - Ice Lake, 5.3 km away
Hopkins, 8.27 km away
Barrier Range, 11.06 km away
Mt Roon, 13.57 km away

Alpine: Jacksons to Kaniere, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	5,365
Co-rupture Rate	9.4314644E-5

McKerrow - Douglas Duplex, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,419
Co-rupture Rate	7.0299734E-6

Hohonu South, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	21,875
Co-rupture Rate	2.4326977E-5

Black Blob - Haast Ridge, 2.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	672
Co-rupture Rate	5.746473E-10

Landsborough 2, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	5,311
Co-rupture Rate	9.202018E-6

Great Groove, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,608
Co-rupture Rate	8.290157E-6

Huxley, 4.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,502
Co-rupture Rate	2.788085E-5

Straight Creek, 4.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,378
Co-rupture Rate	2.208604E-9

Murchison 1 - Ice Lake, 5.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,709
Co-rupture Rate	2.208597E-9

Hopkins, 8.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	3,084
Co-rupture Rate	2.7883003E-5

Barrier Range, 11.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2,592
Co-rupture Rate	9.809492E-7

Mt Roon, 13.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
