Kermadec Trench slope1 Details
| Property | Value |
|---|---|
| Rupture Count | 1,500 |
| Ruptures Above Sect Min Mag | 1,496 |
| Ruptures w/ Nonzero Rates | 103 |
| Magnitude Range | [7.07, 8.30] |
| Length Range | [27, 451] km |
| Total Rate | 2.7656765E-4 /yr |
| Multi-Fault Rate | 2.7645953E-4 /yr (99.96%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

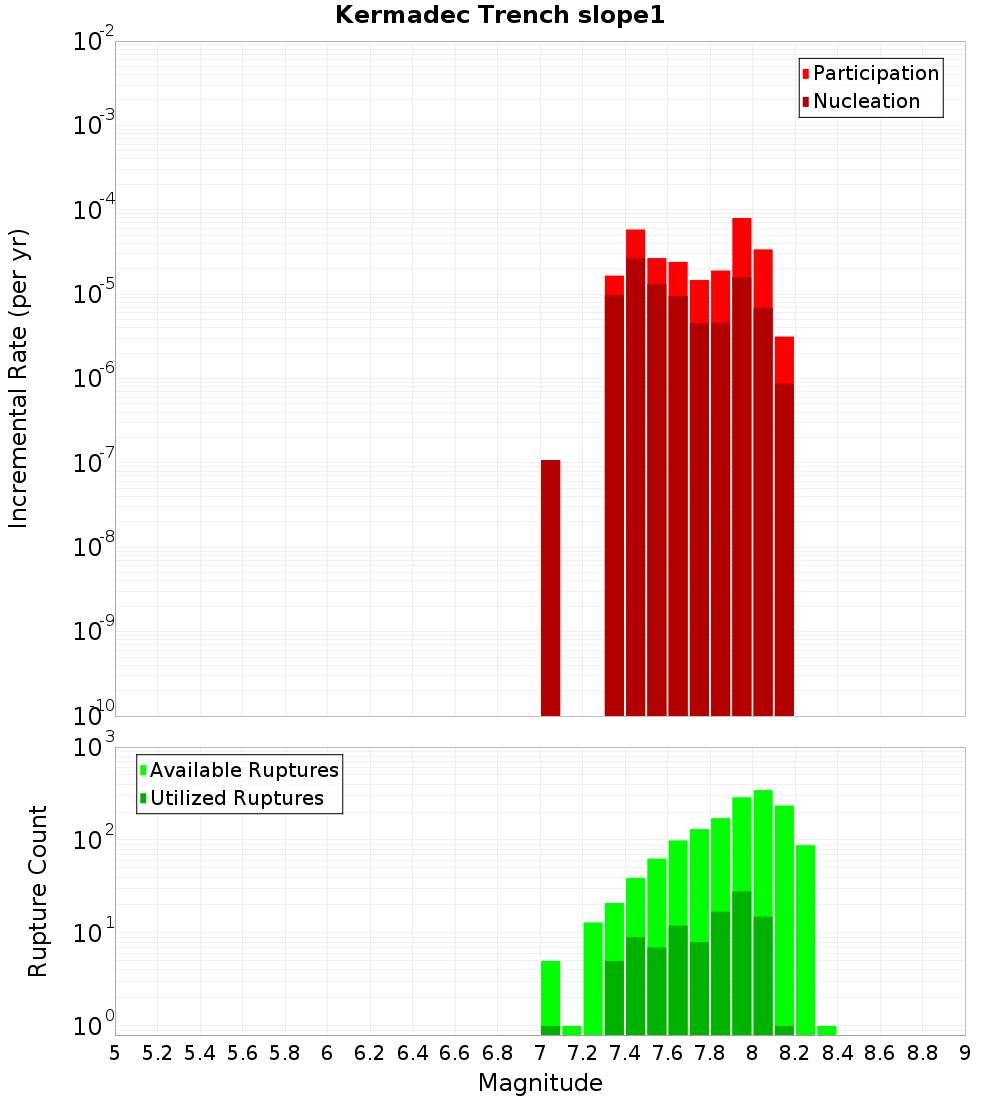

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

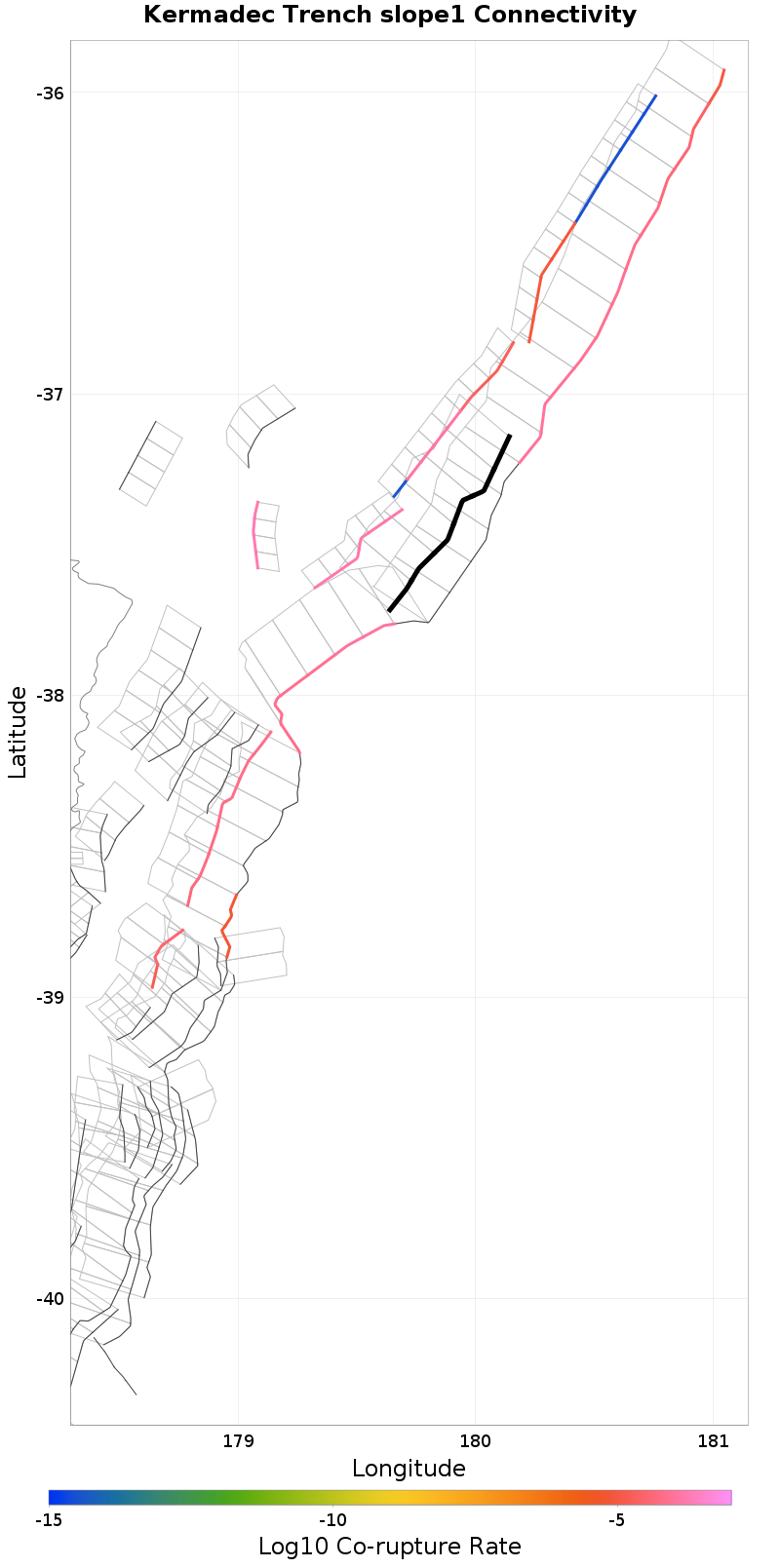

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria, 1.3 km away |
| Kermadec Trench, 2.56 km away |
| Awanui 1, 3.21 km away |
| Awanui 2, 3.49 km away |
Ruatoria, 1.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,152 |
| Co-rupture Rate | 1.01510916E-4 |
Kermadec Trench, 2.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 739 |
| Co-rupture Rate | 9.727706E-5 |
Awanui 1, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 278 |
| Co-rupture Rate | 1.6568904E-4 |
Awanui 2, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 325 |
| Co-rupture Rate | 1.10770496E-4 |
