Kowai - View Hill Details

Property	Value
Rupture Count	11,531
Ruptures Above Sect Min Mag	11,520
Ruptures w/ Nonzero Rates	337
Magnitude Range	[6.59, 8.37]
Length Range	[15, 732] km
Total Rate	1.8407223E-4 /yr
Multi-Fault Rate	1.8407223E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	98

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

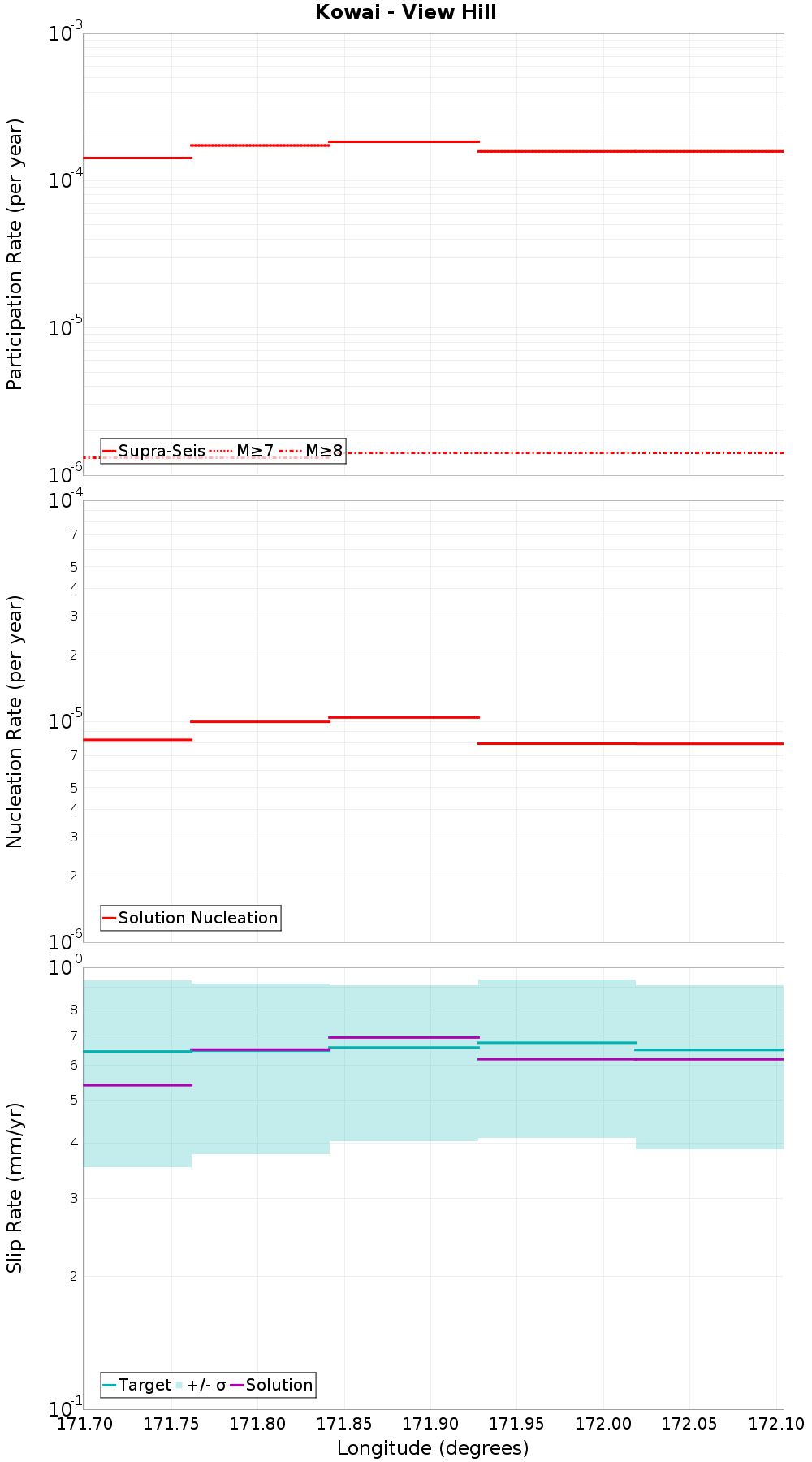

Along-Strike Values

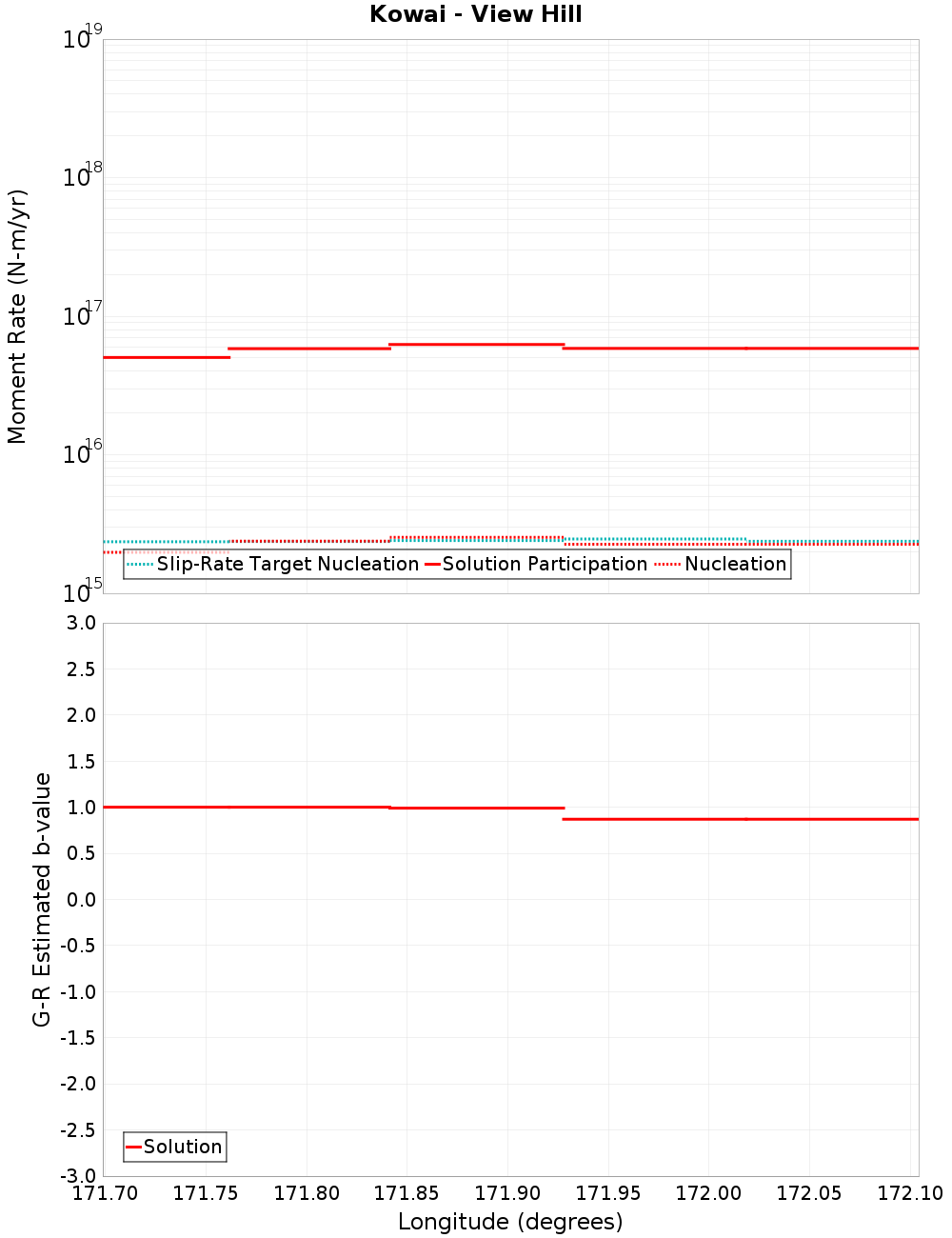

Moment-Rates and b-Values

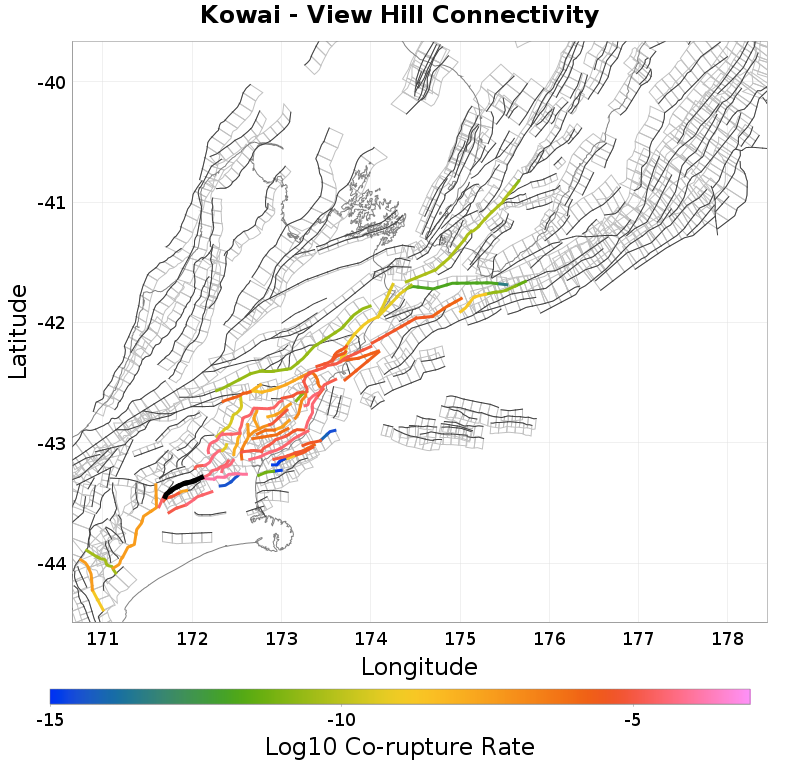

Connectivity

Nearby Sections

Fault Section
Hororata, 0.21 km away
Big Ben, 0.83 km away
Starvation - Ashley, 0.87 km away
High Peak - Sheffield, 1.73 km away
Knowles Top, 2.87 km away
Hutt Peel, 8.24 km away
Porters Pass, 8.66 km away
Lees Valley, 8.8 km away
Esk South, 9.83 km away
Springbank, 10.45 km away
Double Hill, 13.14 km away
Torlesse, 13.54 km away

Hororata, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,523
Co-rupture Rate	3.998377E-5

Big Ben, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,244
Co-rupture Rate	2.5087584E-5

Starvation - Ashley, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	10,625
Co-rupture Rate	1.241568E-4

High Peak - Sheffield, 1.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,848
Co-rupture Rate	7.2826283E-6

Knowles Top, 2.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	924
Co-rupture Rate	3.36814E-5

Hutt Peel, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	819
Co-rupture Rate	3.96702E-8

Porters Pass, 8.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2,325
Co-rupture Rate	4.6367444E-5

Esk South, 9.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Springbank, 10.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	3.3976677E-15

Double Hill, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 13.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
