Opotiki 3 Details

PropertyValue
Rupture Count380
Ruptures Above Sect Min Mag375
Ruptures w/ Nonzero Rates46
Magnitude Range[6.72, 8.33]
Length Range[16, 599] km
Total Rate2.4230973E-4 /yr
Multi-Fault Rate2.4230967E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults40

Table Of Contents

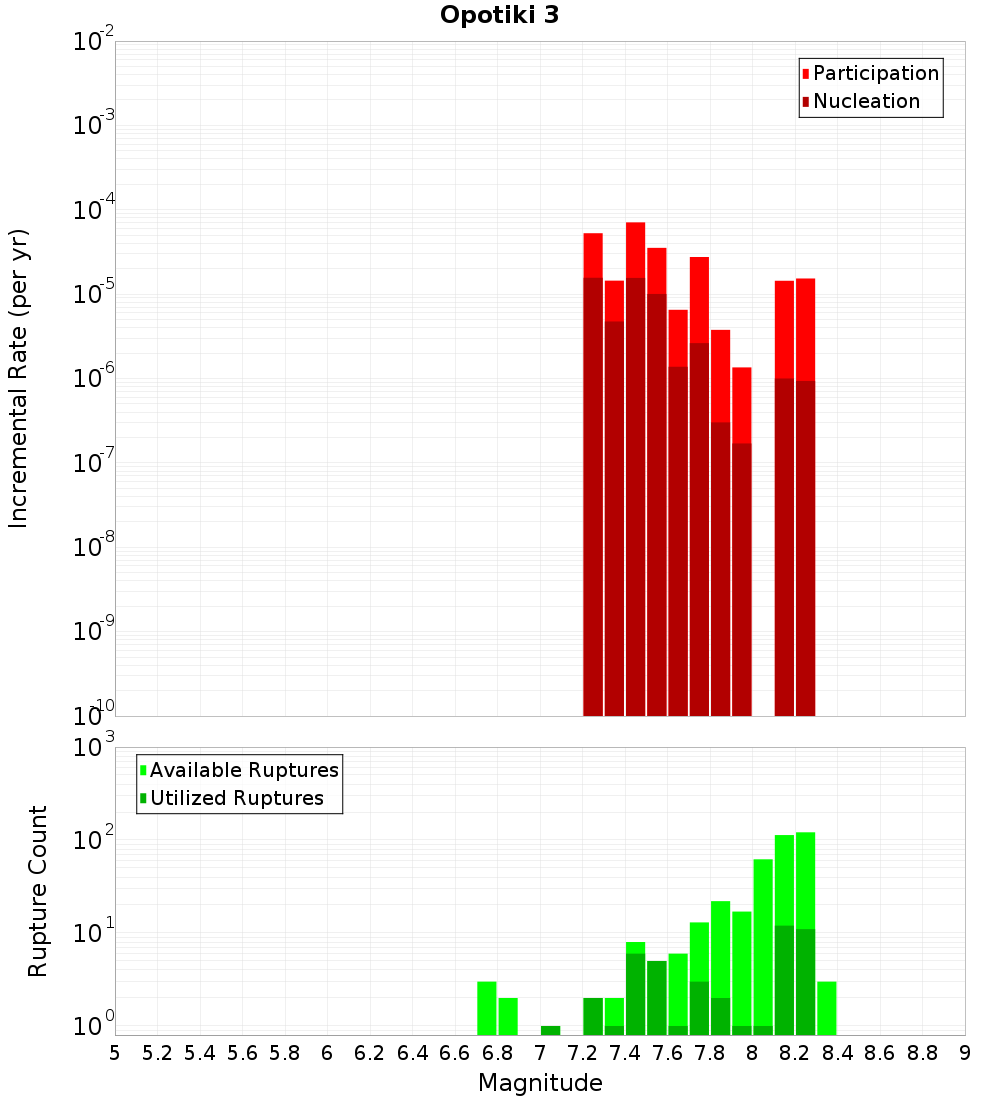

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

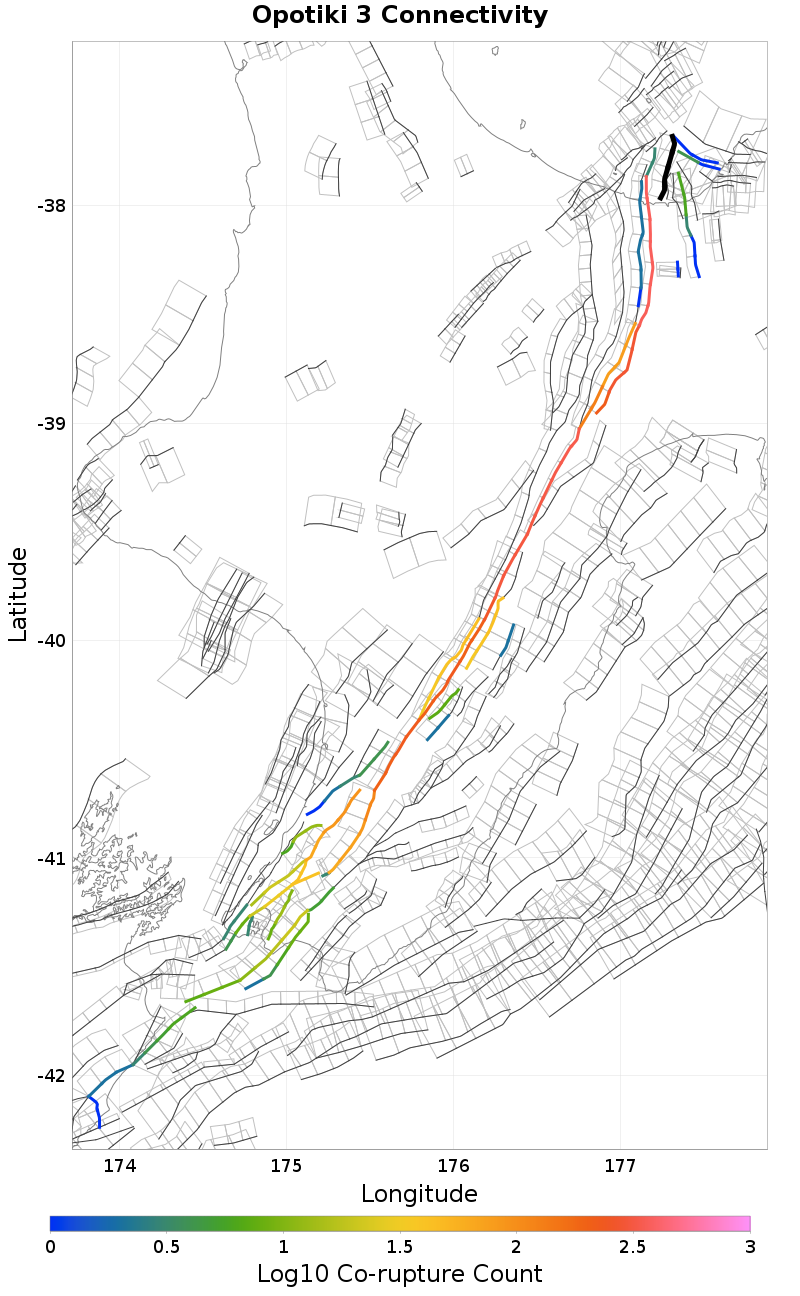

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 1, 0.13 km awayWaimanawa - Waikaremoana, 7.68 km away
Opotiki 2, 1.03 km awayWhakaari 4, 8.03 km away
Ohae 2, 3.15 km awayHariki, 8.05 km away
Tirohanga, 3.42 km awayTuatoru 1, 8.38 km away
Opape 1, 3.74 km awayOhiwa 1, 8.42 km away
White Island 2, 3.82 km awayWaimana: North, 8.45 km away
Waiotahi: North, 3.92 km awayWhite Island 1, 13.82 km away
Kotare - Moutuhora, 6.08 km awayTe Arawa 2, 14.46 km away
Te Arawa 1, 7.4 km away

Ohae 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate3.2325283E-5

Opotiki 2, 1.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate3.7935257E-5

Tirohanga, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 3.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count371
Co-rupture Rate1.6962404E-4

Kotare - Moutuhora, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.3742435E-5

Te Arawa 1, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.7554381E-5

Whakaari 4, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 8.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate3.241332E-14

White Island 1, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
