Ostler North Details

Property	Value
Rupture Count	15,070
Ruptures Above Sect Min Mag	15,069
Ruptures w/ Nonzero Rates	563
Magnitude Range	[7.08, 8.50]
Length Range	[24, 752] km
Total Rate	3.3822638E-4 /yr
Multi-Fault Rate	3.3822638E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	148

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

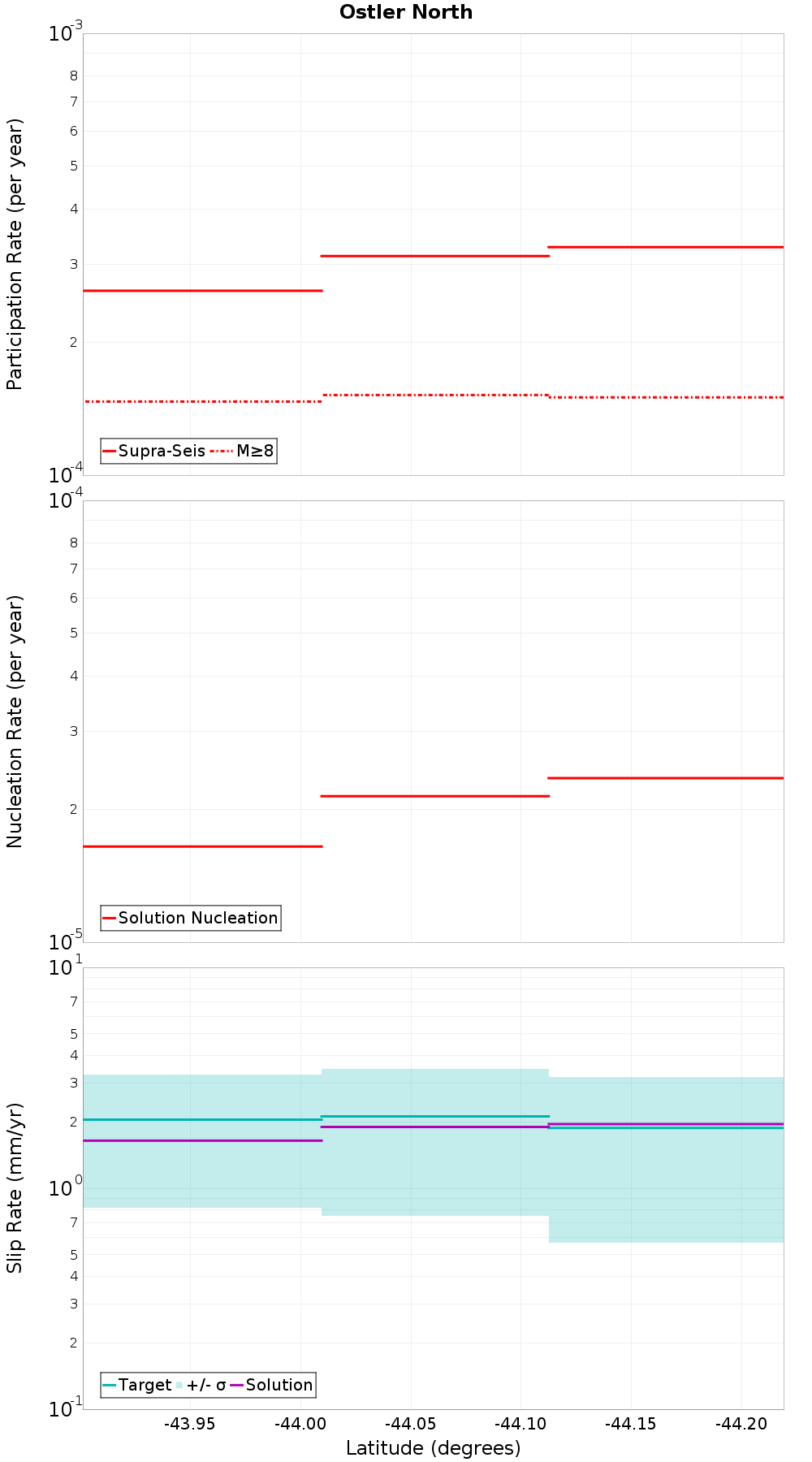

Along-Strike Values

Moment-Rates and b-Values

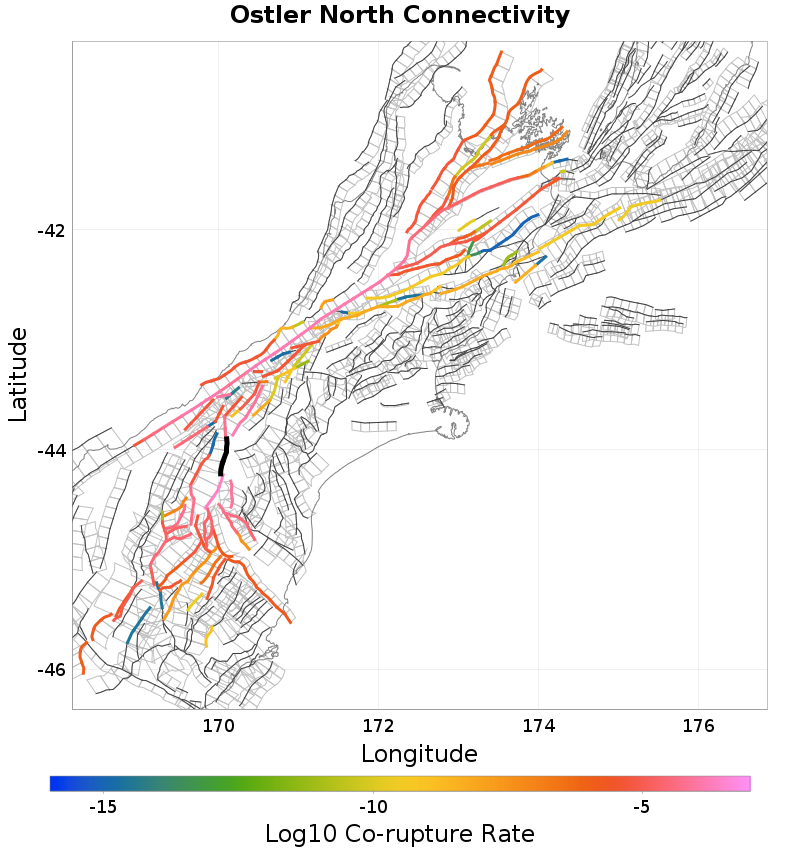

Connectivity

Nearby Sections

Fault Section
Great Groove, 0.81 km away
Ostler South, 1.9 km away
Barrier Range, 2.02 km away
Hopkins, 4.44 km away
Liebig North, 6.85 km away
Irishman Creek, 8.16 km away
Landsborough 2, 9.22 km away
Huxley, 10.15 km away
Falstone, 11.53 km away
Alpine: Jacksons to Kaniere, 14.01 km away

Great Groove, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,348
Co-rupture Rate	5.0014798E-5

Ostler South, 1.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	11,133
Co-rupture Rate	2.5717771E-4

Barrier Range, 2.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	733
Co-rupture Rate	6.5083773E-6

Hopkins, 4.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Liebig North, 6.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	10,493
Co-rupture Rate	1.6512458E-4

Irishman Creek, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Landsborough 2, 9.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	391
Co-rupture Rate	3.4467692E-5

Huxley, 10.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Falstone, 11.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	634
Co-rupture Rate	8.023213E-5

Alpine: Jacksons to Kaniere, 14.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExNzMuMHFhOWRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	9,931
Co-rupture Rate	2.0185481E-4
